Audio Plug/Sockets

www.schurter.com/PG12

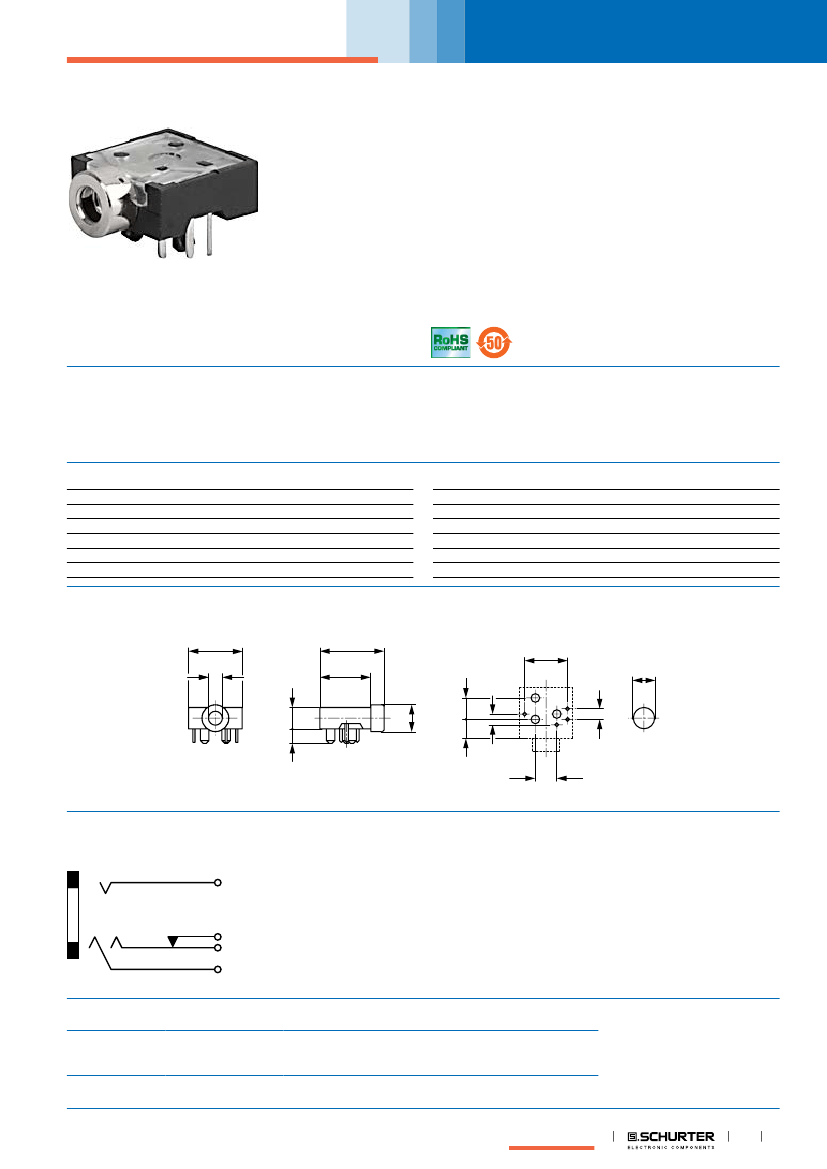

Audio Connector, Socket, 2.5 mm, 3-pole, solder terminals for PCB, shielded

4831.2320

Description

- PCB Mounting:

Drop-in type, from rear-side

- Audio entrances and exits

- Data and Signal transfer

- Audio Plug: 3-pole, shielded, straight

References

Weblinks

Alternative: Housing insulated

pdf-datasheet, html-datasheet, General Product Information, RoHS,

CHINA-RoHS, REACH, Mating Connectors, e-Shop, SCHURTER-

Stock-Check, Distributor-Stock-Check

Technical Data

Diameter

Number of Poles

Ratings DC

Ratings AC

Dielectric Strength

Insulation Resistance

2.5 mm

3-pole

0.5 A / 30 VDC

0.5 A / 30 VAC

500 VDC

> 100 MΩ␣ @ 500 VDC

Allowable Operation Temp.

Terminal

Mounting

Housing

Style

Lifetime

-20 °C to 70 °C

PCB terminals silver plated

Drop-in type

screened

straight

5000 Insertions

Dimensions

10.0

ø 2.6

12.0

9.5

A

8.0

ø 5.2

3.5 4.0

ø 5.0

2.7 4.0

2.0

B

A

B

2.0

A = ø 1.6

B = ø 0.7

B

4.0

PCB Component Side

Diagrams

All Variants

Product group

Audio Plug/Sockets

Diameter [mm]

2.5

Number of Poles

3-pole

Terminal

PCB terminals

Order Number

4831.2320

Availability for all products can be searched real-time:http://www.schurter.com/en/Stock-Check/Stock-Check-SCHURTER
