39-01-2081 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 39-01-2081

39-01-2081: Descriptionheaders & wire housings 8 ckt plug housing; CategoryThe connector The connector; File Size32KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

39-01-2081 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	39-01-2081	-	-	View	Buy Now

39-01-2081 Overview

headers & wire housings 8 ckt plug housing

39-01-2081 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	5 weeks
Is Samacsys	N
Other features	MINI-FIT JR, COMPATIBLE CONTACTS: 39-00-0081; 44478-3111; 30490-2002
body width	0.378 inch
subject depth	0.941 inch
body length	0.709 inch
Body/casing type	PLUG
Connector type	RECTANGULAR POWER CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	5 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Durability	30 Cycles
empty shell	YES
Filter function	NO
IEC compliance	NO
maximum insertion force	6.672 N
Minimum insulation diameter	0.035 inch
Insulation resistance	1000000000 Ω
insulator material	NYLON
MIL compliance	NO
Plug contact pitch	0.165 inch
Match contact row spacing	0.165 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	POLARIZED LCK
Installation type	PANEL
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
polarization key	CENTER
Guideline	UL, CSA
reliability	COMMERCIAL
Shell material	NYLON
Total number of contacts	8
UL Flammability Code	94V-2
Maximum wire diameter	16 AWG
Minimum wire diameter	28 AWG
Evacuation force-minimum value	3.1136 N
Base Number Matches	1

Preview

Download Datasheet

View All

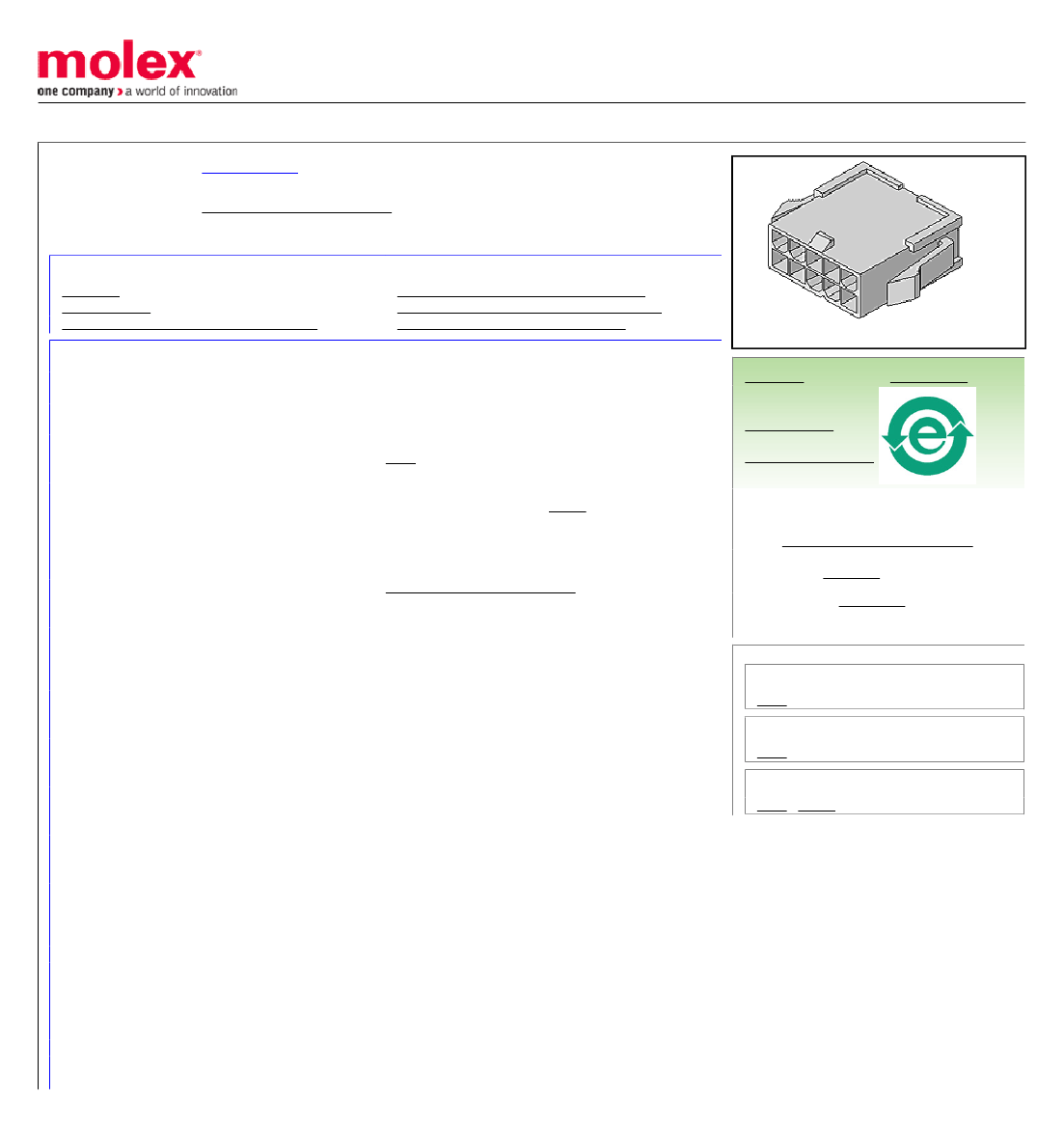

This document was generated on 04/28/2014

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

39-01-2081

Active

Mini-Fit Jr.™ Power Connectors

Mini-Fit Jr.™ Plug Housing, Dual Row with Panel Mount Ears, UL 94V-2, Panel Mount,

8 Circuits

Documents:

3D Model

Drawing (PDF)

Product Specification PS-45750-001 (PDF)

Product Specification PS-5556-001 (PDF)

Packaging Specification PK-5559-001 (PDF)

RoHS Certificate of Compliance (PDF)

image - Reference only

Series

Agency Certification

CSA

LR19980

E29179

EU RoHS

ELV and RoHS

Compliant

REACH SVHC

Contains SVHC: No

Low-Halogen Status

Low-Halogen

China RoHS

General

Product Family

Series

Application

Comments

Crimp Housings

5559

Power, Wire-to-Board, Wire-to-Wire

Current = 13A max. per circuit when header is mated

to a receptacle loaded with 45750 series terminals

crimped to 16 AWG wire. . See Molex product

specification PS-45750-001 for additional current

derating information.. Not for use with Strain Relief.

Yes

Mini-Fit Jr.™ Power Connectors

Mini-Fit Jr.™

800753584341

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

MolexKits

Overview

Product Name

UPC

Physical

Breakaway

Circuits (maximum)

Color - Resin

Flammability

Gender

Glow-Wire Compliant

Material - Resin

Net Weight

Number of Rows

Packaging Type

Panel Mount

Pitch - Mating Interface

Pitch - Termination Interface

Polarized to Mating Part

Stackable

Temperature Range - Operating

Natural

94V-2

Plug

Nylon

2.757/g

Bag

Yes

4.20mm

Yes

-40°C to +105°C

Search Parts in this Series

5559Series

Mates With

5557 Dual Row Receptacle Housing

Use With

5558 , 30490 Male Terminal

Electrical

Current - Maximum per Contact

13A

Material Info

Old Part Number

5559-08P

Reference - Drawing Numbers

Packaging Specification

Product Specification

Sales Drawing

PK-5559-001

PS-45750-001, PS-5556-001

SD-5559-NP
