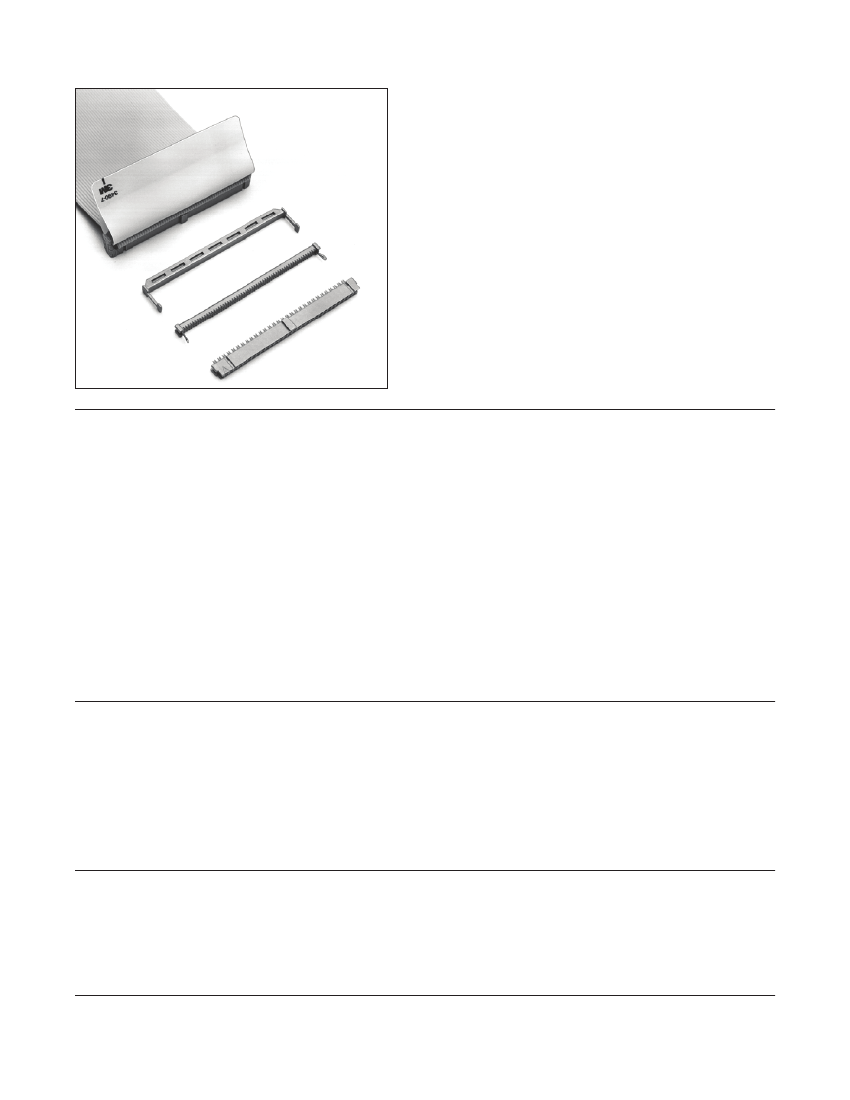

.100” × .100” for .050” Pitch Cable (Optional Plastic or Metal Strain Relief)
3000 Series
• Industry standard IDC socket
• Positive locking metal “J” clips provide high cover retention
• Mates with 3M headers, plugs and pin strips for quick connect/
disconnect capability
• Open or closed end covers available
• Accepts flat cable or discrete wire
• Military polarization, with or without centerbump
• Transfer adhesive on covers provides precision alignment
between connector and cables resulting in high yield terminations
• Availability of pull tab to facilitate proper unplugging
• Availability of 2 types of strain relief (standard and low profile) to
isolate the IDC interface
• Set the standard for MIL spec and IEC standardization
• Availability of Military and Center Bump polarization
• See the Regulatory Information Appendix (RIA) in the “RoHS
compliance” section of www.3mconnectors.com for compliance
information (RIA E1 & C1 apply)
Date Modified: October 12, 2011
TS-0718-F
Sheet 1 of 3
Physical
Insulation:
Material: Glass Filled Polyester (PBT)
Flammability: UL 94V-0
Color: Gray
Contact:
Material:
Copper Alloy
J Clip Material:
Stainless Steel
Plating:
Underplating and U-Slot: 100 μ” [ 2.54 μm ] Nickel
Wiping Area: 30 μ” [ 0.76 μm ] Gold
Wire Accommodation: 26 and 28 AWG Solid and Stranded
Marking:
3M Logo, Part Identification Number and Orientation Triangle
Electrical
Current Rating:
1 Line
6 Adjacent Lines
All Lines
26 AWG
4.75
2.00
1.00
28 AWG
4.50
1.75
1.00
Rating Conditions: EIA-364-070 Method 2, 30°C maximum temperature rise, 20% derated.
Reference appropriate 3M Product Specification for detailed current derating curves.
Insulation Resistance:
> 1 × 10
9
Ω
at 500 V
DC
Withstanding Voltage:
1000 V
RMS
at Sea Level
Environmental
Temperature Rating:
-55°C to +105°C
UL File No.: E68080
3
Electronic Solutions Division
Interconnect Solutions
http://www.3Mconnectors.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
Wiremount Socket

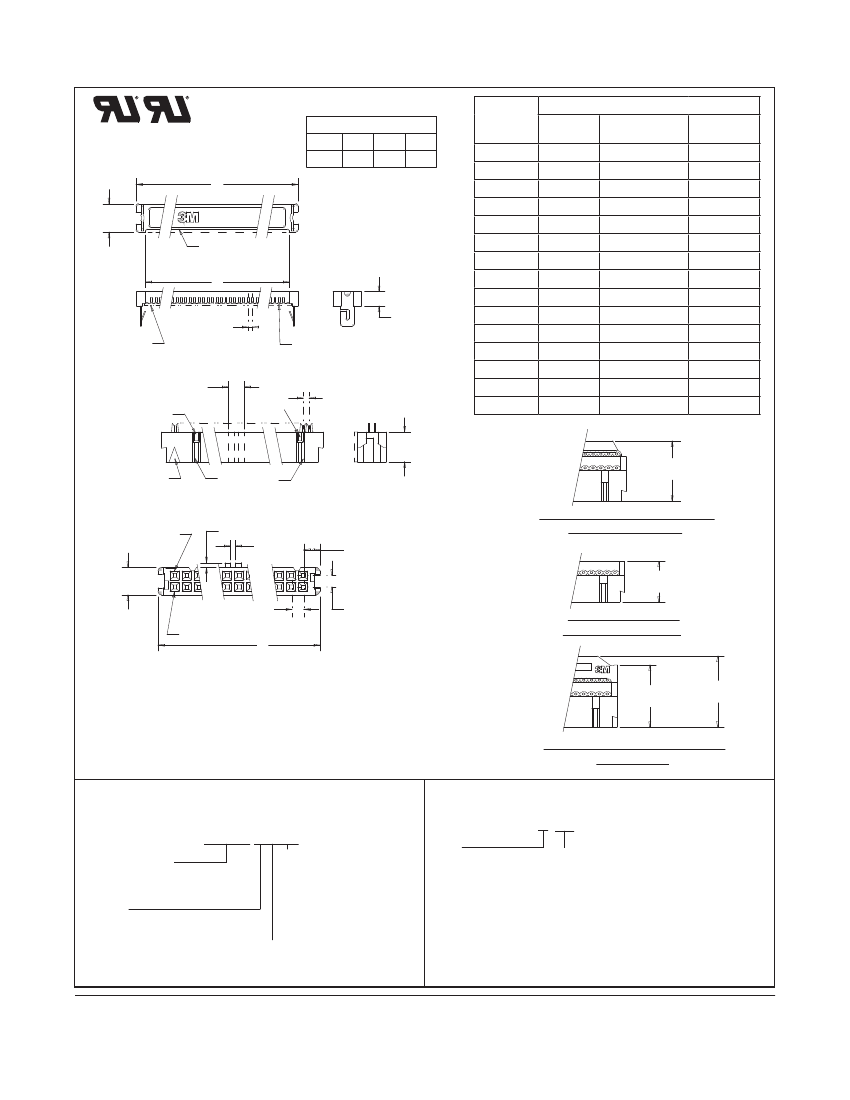

.100” × .100” for .050” Pitch Cable (Optional Plastic or Metal Strain Relief)
C
Tolerance Unless Noted
.0
Inch
A
.24
[ 6.1 ]
NO.3XXX
Recessed for Cable
Exit
B
.15
[ 3.8 ]
3000 Series
Dimensions
A
B
0.34 [8.6]
0.44 [11.2]
0.54 [ 13.7 ]
0.74 [ 18.8 ]
0.84 [ 21.3 ]
1.04 [ 26.4 ]
1.24 [ 31.5 ]
1.34 [ 34.0 ]
1.54 [ 39.1 ]
1.74 [ 44.2 ]
1.84 [ 46.7 ]
2.04 [ 51.8 ]
2.24 [ 56.9 ]
2.54 [ 64.5 ]
3.04 [ 77.2 ]
Inch
(mm)
.00
.000
Contact
Quantity
6
8
10
14
16
20
24
26
30
34
36
40
44
50
60
Socket
Series
3863
3868
3473
3385
3452
3421
3626
3399
3419
3414
9436
3417
9444
3425
3334
±
.1
±
.01
±
.005
0.48 [12.2]
0.58 [14.7]
0.68 [ 17.3 ]
0.88 [ 22.4 ]
0.98 [ 24.9 ]
1.18 [ 30.0 ]
1.38 [ 35.1 ]
1.48 [ 37.6 ]
1.68 [ 42.7 ]
1.88 [ 47.8 ]
1.98 [ 50.3 ]
2.18 [ 55.4 ]
2.38 [ 60.5 ]
2.68 [ 68.1 ]
3.18 [ 80.8 ]
[ ] Dimensions for
Reference only
Optional
Closed End
Cover
.050 Typ*
[ 1.27 ]
Nonconductive
Transfer Adhesive
with Liner
.14
[ 3.6 ]
See Note 2
See Note 1
.050 Ref
[ 1.27 ]
.26
[ 6.6 ]
Triangle Indicates
Position 1
Military:
Dual Polarization
Slots
.54 Ref
[ 13.7 ]
Position 1
.06 [ 1.5 ] Centerbump (Optional)
.14
.035
[ 3.6 ]
[ 0.89 ]
Assembled Height with Metal
Profile Strain Relief
.24
[ 6.1 ]
.100 Typ
[ 2.54 ]
Position 2
A
.100
[ 2.54 ]
.41 Ref
[ 10.4 ]
Assembled Height
without Strain Relief
Notes:
1. This polarizing groove is non-existent on 3863, 3868, 3385 and 3473 Series.
2. This polarizing groove is non-existent on 3863 series for Polarization option 6.
3. The low profile strain relief can be used with the 4600 Series Plug and .1 x .1 Headers with
ejector latches. The latches will only function as an ejector.
.565 Ref
[ 14.35 ]
.64 Ref
[ 16.3 ]
Assembled Height with Plastic
Strain Relief
Ordering Information
Sockets
XXXX-XXXX
Socket Series:
See Table for
3M Part Number
Cover:
6 = Open End
(For Daisy Chaining or Bussing)
7 = Closed End
(For End Cable Termination)
(10-60 Position Only)
RIA (E1 & C1 Apply)
Strain Relief
(Order Separately)
3448-X0XX
Type:
2 = Low Profile 10-60
Position (Metal)
3 = Plastic
Keying Plug
(Order Separately)
3435-0
00 = No Strain Relief
XX = Contact Quantity for
Plastic Strain Relief
10-60 Position
05= Plastic Strain Relief
6 & 8 Position
06 = Metal Strain Relief
10-60 Position
Polarization:
0 = Military (Dual Slot)
6 = Centerbump and Military
XX = ‘‘Contact Quantity’’
See Table
(i.e. 50 for
a 50 Position
Strain Relief)
See TS-0720
Pull Tabs
(Order Separately)
3490-X
TS-0718-F
Sheet 2 of 3
Assembly tools: 3M
™
Press (or equivalent) 3640 , 3M
™
Locator Plate 3443-94, 3M
™
Platen 3442-9.
3
Electronic Solutions Division
Interconnect Solutions
http://www.3Mconnectors.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
Wiremount Socket
.100” × .100” for .050” Pitch Cable (Optional Plastic or Metal Strain Relief)
3000 Series
-B-
Typ
.100
[2.54]
-A-
Typ
.100
[2.54]
Typ
Space Occupied
by Socket
.30 Min
[7.6]
.20 Min
[5.1]
.30 Min
[7.6]
.14
[3.6]
.025 ± .001
[0.64] Square or Round Typ
(See Note 1)
.025
A B
Space for
Cable Exit
See Note 2
.018 Max
[0.46]
.230 Min
[5.84]
Recommended Post Pattern
TS-0718-F
Sheet 3 of 3
3
Electronic Solutions Division
Interconnect Solutions
http://www.3Mconnectors.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
Important Notice
All statements, technical information, and recommendations related to 3M’s products are based on information believed to be reliable, but the accuracy or completeness
is not guaranteed. Before using this product, you must evaluate it and determine if it is suitable for your intended application. You assume all risks and liability associated
with such use. Any statements related to the product which are not contained in 3M’s current publications, or any contrary statements contained on your purchase order
shall have no force or effect unless expressly agreed upon, in writing, by an authorized officer of 3M.
Warranty; Limited Remedy; Limited Liability.
This product will be free from defects in material and manufacture for a period of one (1) year from the time of purchase.
3M MAKES NO OTHER WARRANTIES
INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
If this product is defective within the
warranty period stated above, your exclusive remedy shall be, at 3M’s option, to replace or repair the 3M product or refund the purchase price of the 3M product.
Except
where prohibited by law, 3M will not be liable for any indirect, special, incidental or consequential loss or damage arising from this 3M product, regardless of
