50394-8054 (Cut Strip) datasheet, PDF

Datasheet> All Categories > The connector> 50394-8054 (Cut Strip)

50394-8054 (Cut Strip): Descriptionheaders & wire housings ML-grd term 24-30g F cut strip of 100; CategoryThe connector; File Size42KB，3 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

50394-8054 (Cut Strip) Overview

headers & wire housings ML-grd term 24-30g F cut strip of 100

50394-8054 (Cut Strip) Parametric

Parameter Name	Attribute value
Manufacture	Molex
Product Category	Headers & Wire Housings
RoHS	Yes
Pitch	-
Number of Positions	-
Number of Rows	-
Contact Plating	Gold
Housing Material	-
Termination Style	Crim
Mounting Style	-
Mounting Angle	-
Contact Material	Phosphor Bronze
Latching Type	-
Mating Post Length	-
Row Spacing	-
Factory Pack Quantity	100
Termination Post Length	-
Wire Gauge	30

Preview

Download Datasheet

View All

This document was generated on 05/14/2014

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

50394-8054

Active

Milli-Grid™ Connector System

Milli-Grid™ Crimp Terminal, Reel, Gold (Au) Flash, Lead free

Documents:

3D Model

Drawing (PDF)

Product Specification PS-51110-001 (PDF)

RoHS Certificate of Compliance (PDF)

Product Literature (PDF)

Series

General

Product Family

Series

Application

Crimp Quality Equipment

Overview

Product Literature Order No

Product Name

UPC

Crimp Terminals

50394

Signal

Yes

Milli-Grid™ Connector System

987650-1991

Milli-Grid™

756054436530

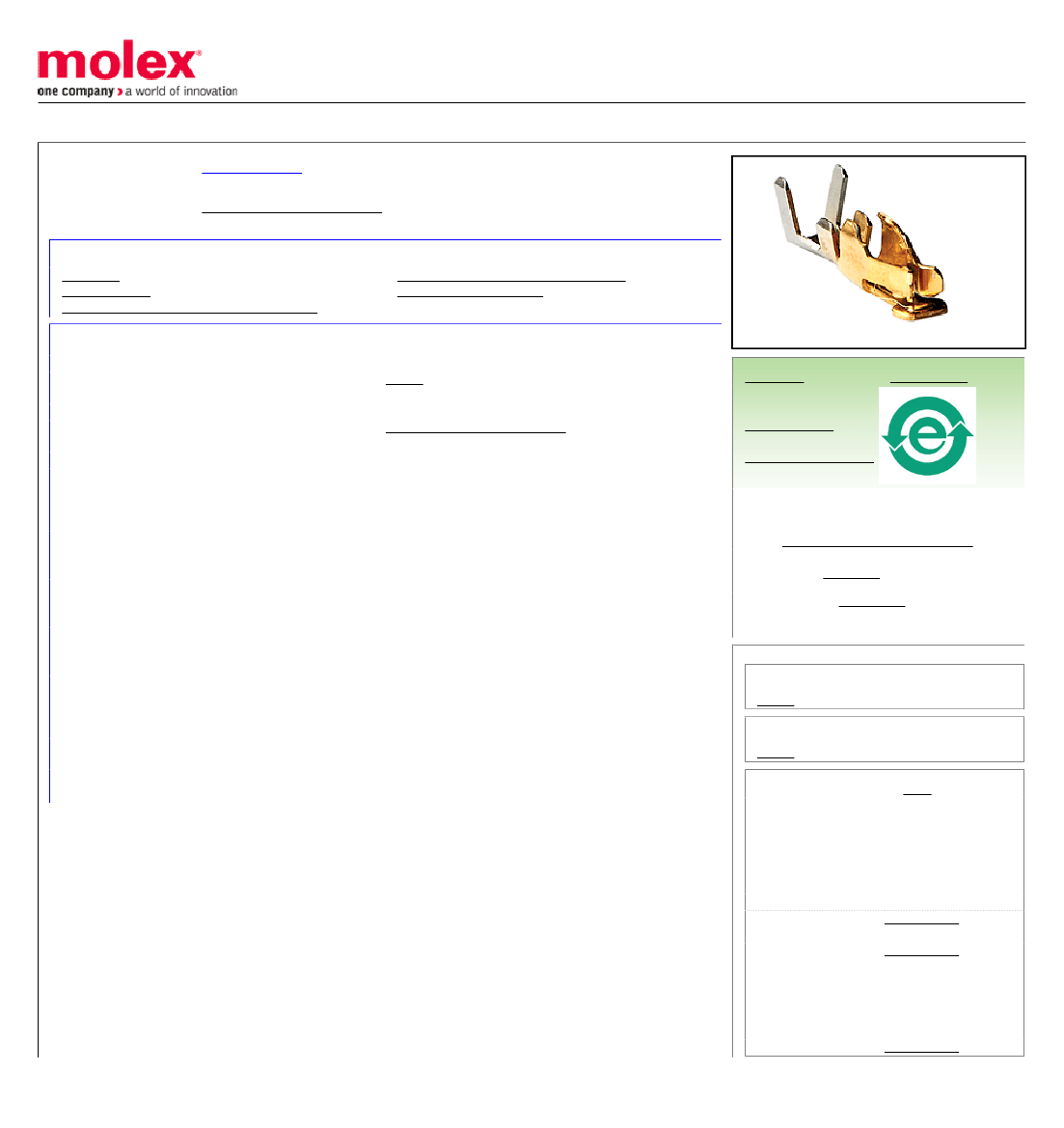

image - Reference only

EU RoHS

ELV and RoHS

Compliant

REACH SVHC

Contains SVHC: No

Low-Halogen Status

Low-Halogen

China RoHS

Physical

Gender

Material - Metal

Material - Plating Mating

Material - Plating Termination

Net Weight

Packaging Type

Plating min - Mating

Plating min - Termination

Termination Interface: Style

Wire Insulation Diameter

Wire Size AWG

Wire Size mm²

Female

Phosphor Bronze

Gold

Nickel

0.023/g

Reel

0.051µm

2.032µm

Crimp or Compression

1.40mm max.

24, 26, 28, 30

N/A

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Search Parts in this Series

50394Series

Use With

51110 Crimp Housing

Material Info

Reference - Drawing Numbers

Product Specification

Sales Drawing

PS-51110-001

SD-50394-8***, SD-50394-8XXX

Application Tooling

FAQ

Tooling specifications and manuals are

found by selecting the products below.

Crimp Height Specifications are then

contained in the Application Tooling

Specification document.

Global

Description

Product #

Hand Crimp Tool for 0638190100

Crimp Terminals

FineAdjust™

0639005200

Applicator for

2.00mm Pitch Wire-

to-Board Crimp

Terminals 24-30

AWG

T2 Terminator Die 0639105200

50394-8054 (Cut Strip) Related Products

	50394-8054 (Cut Strip)	50394-8054 (Mouser Reel)
Description	headers & wire housings ML-grd term 24-30g F cut strip of 100	headers & wire housings ML-grd term 24-30g F reel of 1000
Manufacture	Molex	Molex
Product Category	Headers & Wire Housings	Headers & Wire Housings
RoHS	Yes	Yes
Contact Plating	Gold	Gold
Termination Style	Crim	Crim
Contact Material	Phosphor Bronze	Phosphor Bronze
Factory Pack Quantity	100	1000
Wire Gauge	30	30
