RESISTIVE PRODUCTS –
Model HVPS Series
PRODUCT SHEET
High Value Thin Film Precision Resistor Series
HVPS Series
FEATURES
• Tight tolerances to ± 0.01%
• Resistance range 100 K to 10 MΩ
• Low TCR to ± 5 ppm/ºC
• Thin film stability 500 ppm at 70 ºC for 2000 hours
• Low Noise <- 20 DB
APPLICATIONS
• Instrumentation amplifiers
• Precision voltage dividers
• Measurement systems
• Test Range selection
w w w. v i s h a y. c o m
The datasheet for Model HVPS Series is available on our web site at
www.vishay.com/doc?60091

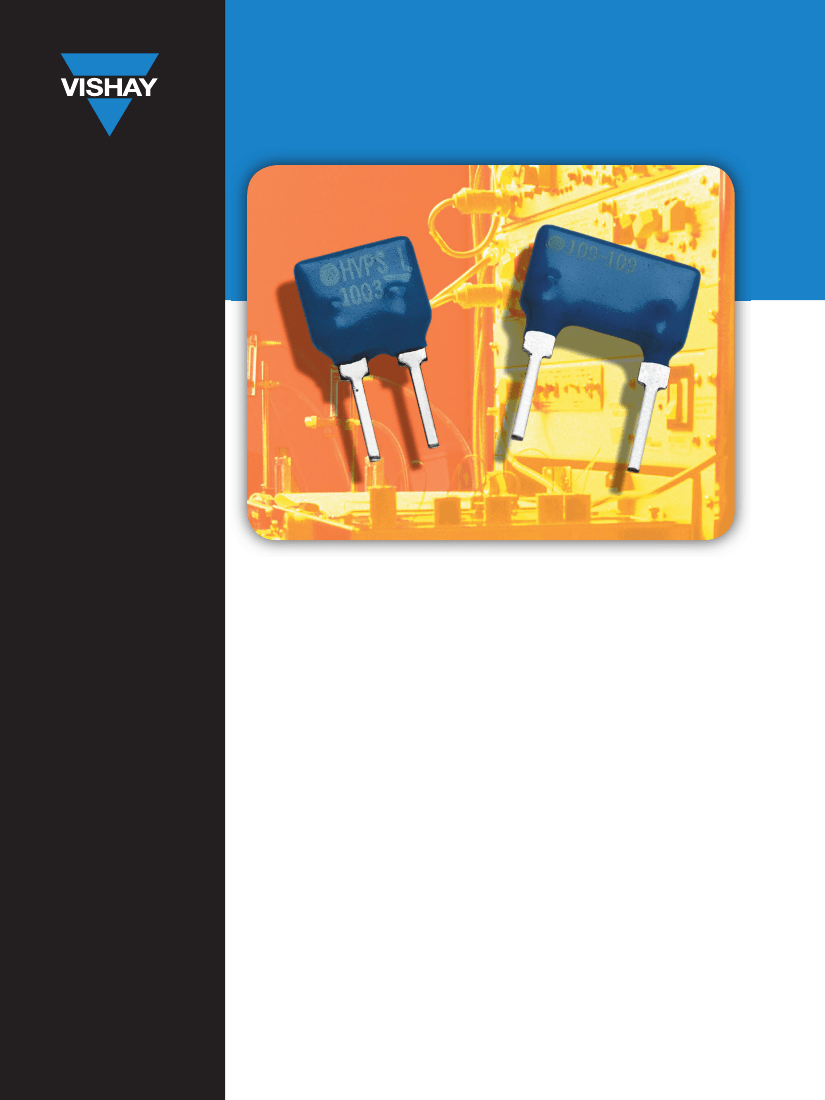

HVPS
Vishay Thin Film
High Value Precision SIP
FEATURES
• High nominal ultra precision resistors
(Value range 50K-10M).
• Highly accurate resistance tolerance to
±
0.01%
0.240 Max
(6.096)
0.110 Max
(2.794)
PART NO:
0.260 Max
(6.604)
0.320 Max
(8.128)
PART NO:
0 . 11 0 M A X
(2.794)
DIMENSIONS AND INPRINTING
in inches [millimeters]
• Conformal coating flame resistant (UL94V-) Rating)
• Ultra low TCR
±
5ppm/°C
DATECODE
DATECODE
0.260 Max
(6.604)
APPLICATIONS
• Precise Instrumentation (Medical, Test etc).
• Precision Amplifers
0.02
±
0.005
(.508
±
.127)
0.100 TYPICAL
(2.54)
0.125 MINIMUM
(3.175)
0.02
±
0.005
(.508
±
.127)
0.200 TYPICAL
(5.08)
0.125 MINIMUM
(3.175)
SCHEMATIC
STANDARD ELECTRICAL SPECIFICATIONS
Resistive Elements
2
TAMELOX (Passivated Nichrome)
99.6% Alumina
Expoy
Copper with Nickel barrier
SN 60
Per MIL-PRF-83401
1
Substrate Material
Body
Terminals
STANDARD ELECTRICAL SPECIFICATIONS
CONDITIONS
Plating
TEST
SPECIFICATIONS
MATERIAL
50K to 5M ohms
100K to 10M ohms
- 55 to + 125°C
125
Max @ + 70°C
70
Max @ + 70°C
70
2000 hours @ + 70°C
70
TAMELOX
Marking Resistance to Solvents
Resistance Range
HVPS 1
HVPS 2
TCR
5, 10, 15, 25ppm/°C
C
Tolerance
0.01%, 0.02%, 0.05%
0.10%, 0.50%, 1.0%
How to Order
Series
HVPS1
( 100 mil Pin Spacing)
HVPS2
( 200 mil Pin Spacing
TCR
±
(ppm/°C)
C)
Resistance Value
Tolerance
±
(%)
Stability
500ppm
Voltage Coefficient
250 Volts
300 Volts
< 1.0ppm/Volt
Working Voltage
HVPS 1
HLPS 2
E
= 25
D
= 15
Y
= 10
Z
=5
4 digits. The first 3 digits are
significant figures and the
last digit specifies the number
of zeros to follow
HVPS1 = 50K to 5M ohms
HVPS2 = 100K to 10M ohms
e,g, 100K =
1003
Operating Temperature Range
- 55°C to + 125°C
F
= 1.0%
D
= 0.5%
B
= 0.1%
A
= 0.05%
P
= 0.02%
L
= 0.01%
Noise
< - 30 db
Thermal EMF
< 0.1 micro volt/°C
1 Year @ + 25°C
25
Revision 11-Sep-03
Shelf Life Stability
< 100ppm
Example: HVPS1E5004B
is a high value precision single-in-line discrete resistor with 100 mil spacing, 25ppm/°C TCR, 5
Meg Ohm resistance value and a tolerance of
±
0.1%
VISHAY THIN FILM • FRANCE +33.4.93.37.28.24 FAX: +33.4.93.37.27.31 • GERMANY +49.9287.710 FAX: +49 9287.70435 • ISRAEL +972.3.557.0945 FAX: +972.3.558.9121
• ITALY + 39.2.300.11919 FAX: +39.2.300.11999 • JAPAN +81.3.5464.6411 FAX: +81.3.5464.6433 • SINGAPORE +65.788.6668 FAX: +65.788.0988
• SWEDEN +46.8.594.70590 FAX: +46.8.594.70581 • UK +44 191 514 8237 FAX: +44 1953 457 722 • USA: (610) 407-4800 FAX: (610) 640-9081
VMN-PT9114-0408
