LESHAN RADIO COMPANY, LTD.
RBV601G – RBV608G
D5SB10 –D5SB80
6.0A
6.0A BRIDGE RECTIFIERS
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25°C ambient temperature unless otherwise specified. Single phase,half wave,
60Hz,resistive or inductive load. For capacitive load,derate current by 20%.
Maximum
Peak
TYPE
Reverse
Voltage
PRV
V
PK
Maximum
Maximum
Average Forward Peak
Forward
Surge Current
Output
@ 8.3ms
Current
@T
A
= 70°C Superimposed
I
O
Maximum DC
Forward Voltage
drop per element
at I
F
=3.0ADC
V
F
V
PK
Maximum DC
Reverse Current
at rated DC
Blocking Voltage
per element
I
R
25°CTA
µADC
125°CTA
µADC
Operating
Junction
Temperature
Package

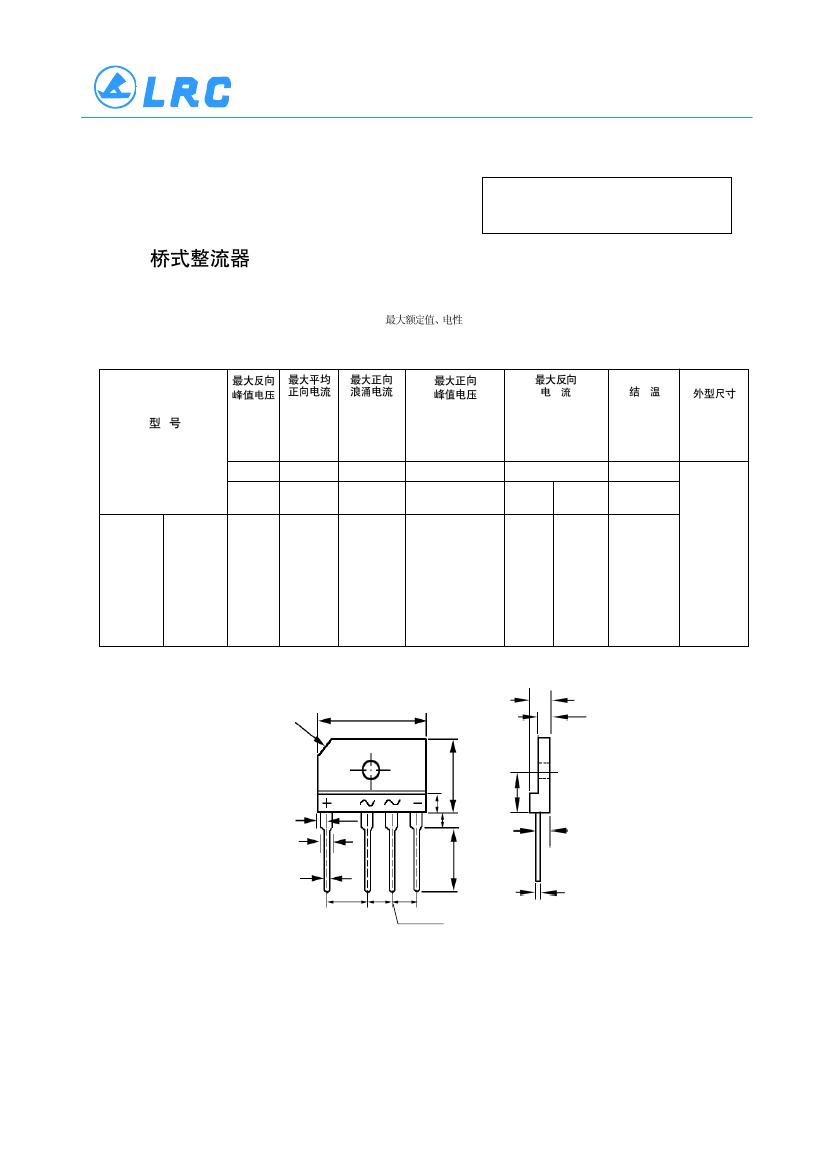

Dimensions
I
FM
(Surge)
A
PK
T
J
°C
A
AV
RBV601G
RBV602G
RBV604G
RBV606G
RBV608G
D5SB10
D5SB20
D5SB40
D5SB60
D5SB80
100
200
400
600
800
6.0
150
1.1
10
500
150
D5 – SB
4.6 ± 0.2
C3
30 ± 0.3
3.6 ± 0.2
20 ± 0.3
2.5 ± 0.2
2.2 ± 0.2
4 ± 0.2
11 ± 0.2
5
φ
3.2 ± 0.2
0.1
2.7 ± 0.2
17.5 ± 0.5
1 ± 0.1
10 ± 0.2
0.7 ± 0.1
7.5 ± 0.2
D5 – SB
11C–1/2
LESHAN RADIO COMPANY, LTD.
RBV601G-RBV608G D5SB10-D5SB80

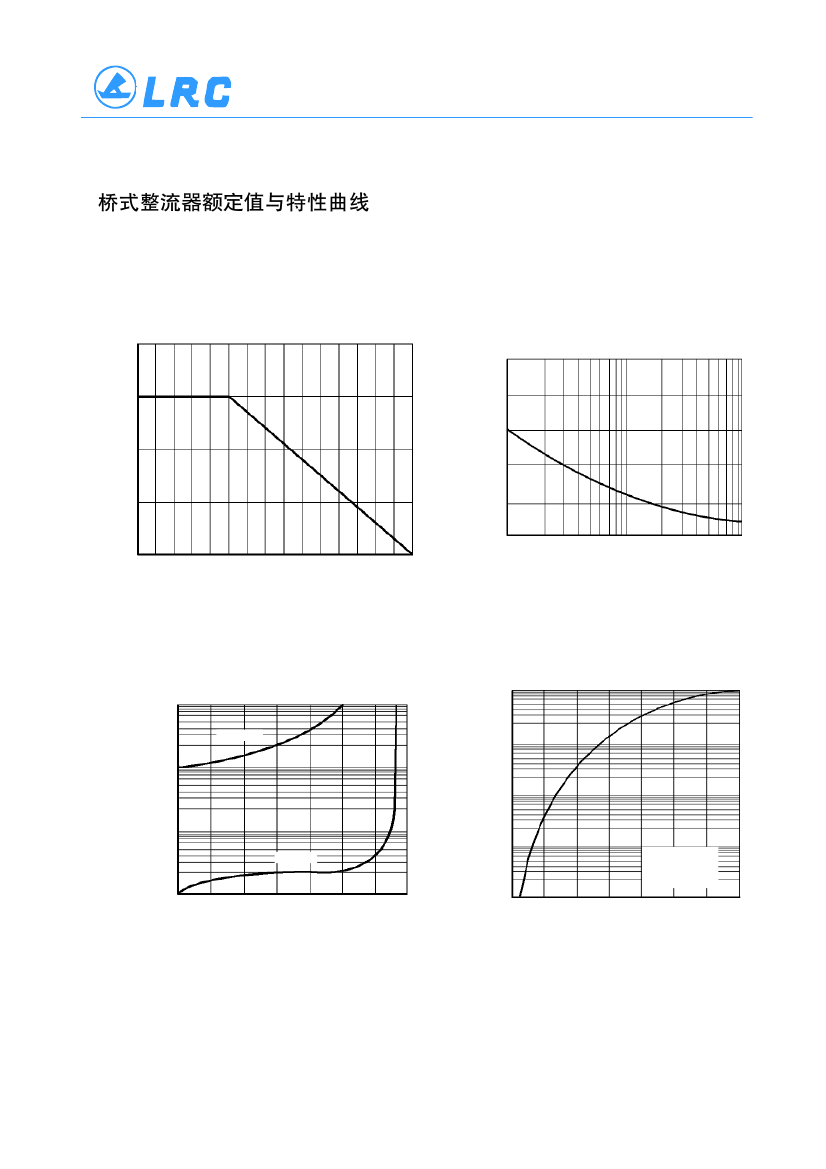

BRIDGE RECTIFIERS RATING AND CHARACTERISTIC CURVES
FIG. 1 - TYPICAL FORWARD CURRENT
DERATING CURVE
8
AVERAGE FORWARD OUTPUT CURRENT AMPERES
FIG. 2 - MAXIMUM NON-REPETITIVE
SURGE CURRENT
250
PEAK FORWARD SURGE CURRENT.AMPERES
6
200
150
4
100
2
50
0
1
2
5
10
20
50
100
0
0
70
100
150
NUMBER OF CYCLES AT 60Hz
AMBIENT TEMPERATURE.°C
FIG. 3 - TYPICAL REVERSE CHARACTERISTICS
FIG. 4 - TYPICAL INSTANTANEOUS FORWARD
PER BRIDGE ELEMENT
100
INSTANTANEOUS FORWARD CURRENT AMPERES
INSTANTANEOUS REVERSE CURRENT MICROAMPERES
100
T
C
= 100°C
10
10
1.0
1.0
T
A
= 25°C
0.1
T
J
= 25°C
Pulse Width=300µs
1% Duty Cycle
0.01
0.6
0.8
1.0
1.2
1.4
1.6
1.8
2.0
.1
20
40
60
80
100
120
140
PERCENT OF RATED PEAK REVERSE VOLTAGE,(%)
FORWARD VOLTAGE (V)
11C–2/2
