T95S155K020HAZL datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> T95S155K020HAZL

T95S155K020HAZL: DescriptionCAPACITOR, TANTALUM, SOLID, POLARIZED, 20 V, 1.5 uF, SURFACE MOUNT, 1407, CHIP, ROHS COMPLIANT; CategoryPassive components capacitor; File Size92KB，6 Pages; ManufacturerVishay; Websitehttp://www.vishay.com; Environmental Compliance

Download Datasheet Parametric View All

T95S155K020HAZL Overview

CAPACITOR, TANTALUM, SOLID, POLARIZED, 20 V, 1.5 uF, SURFACE MOUNT, 1407, CHIP, ROHS COMPLIANT

T95S155K020HAZL Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	2135707267
package instruction	, 1407
Reach Compliance Code	compliant
Country Of Origin	Israel
ECCN code	EAR99
YTEOL	6.95
capacitance	1.5 µF
Capacitor type	TANTALUM CAPACITOR
dielectric materials	TANTALUM (DRY/SOLID)
JESD-609 code	e3
leakage current	0.0005 mA
Manufacturer's serial number	T95
Installation features	SURFACE MOUNT
negative tolerance	10%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
method of packing	TR, 7 INCH
polarity	POLARIZED
positive tolerance	10%
Rated (DC) voltage (URdc)	20 V
size code	1407
surface mount	YES
Delta tangent	0.06
Terminal surface	Matte Tin (Sn)
Terminal shape	WRAPAROUND

Preview

Download Datasheet

View All

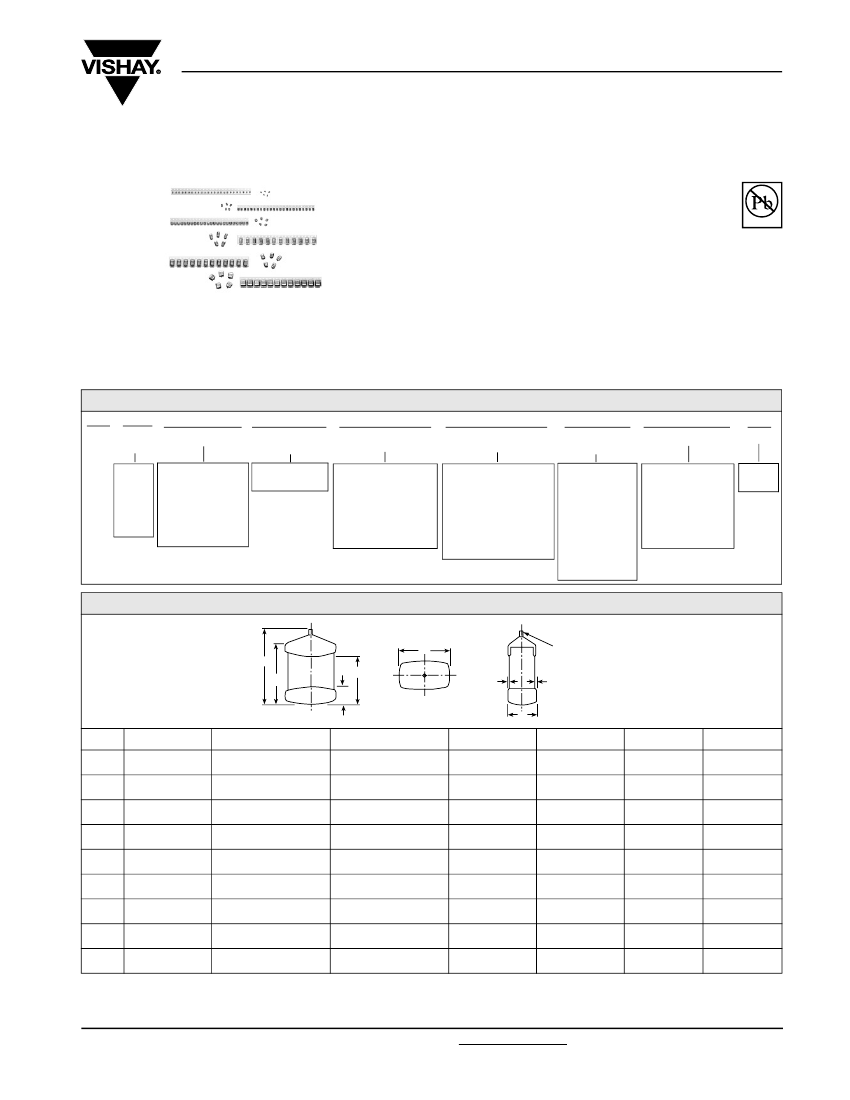

T95

Vishay Sprague

Solid Tantalum Chip Capacitors

ANTAMOUNT

Hi-Rel COTS, Conformal Coated Case

FEATURES

•

High reliability; Weibull grading available

•

Surge Current Testing per MIL-PRF-55365

options available

•

Standard and Low ESR options

•

Terminations: SnPb, Standard. 100 % Tin

available

Pb-free

Available

RoHS*

COMPLIANT

PERFORMANCE/ELECTRICAL CHARACTERISTICS

Operating Temperature:

- 55 °C to + 85 °C

(To + 125 °C with voltage derating)

Capacitance Range:

0.1 µF to 680 µF

Capacitance Tolerance:

± 20 %, ± 10 % standard

Voltage Rating:

4 WVDC to 50 WVDC

ORDERING INFORMATION

T95

TYPE CASE

CODE

See

Ratings

and

Case

Codes

Table.

107

CAPACITANCE

This is expressed

in picofarads. The

first two digits are

the significant

figures. The third is

the number of

zeros to follow.

CAPACITANCE

TOLERANCE

K = ± 10 %

M = ± 20 %

010

DC VOLTAGE

RATING AT + 85 °C

This is expressed in

volts. To complete the

three-digit block, zeros

precede the voltage

rating. A decimal point

is indicated by an “R”

(6R3 = 6.3 V).

TERMINATION AND

PACKAGING

E: Sn/Pb Solder/7"

(178 mm) reels

L: Sn/Pb Solder/7"

(178 mm) ½ reel

C: 100 % Tin/7"

(178 mm) reels

H: 100 % Tin/7"

(178 mm) ½ reel

RELIABILITY

LEVEL

A = 1.0 %

Weibull

B = 0.1 %

Weibull**

S = Hi-Rel

Standard

Burn-in

Z = Non-

Established

Reliability

SURGE CURRENT

A = 10 cycles at

+ 25 °C

B = 10 cycles at

- 55 °C/+ 85 °C

S = 3 cycles at

+ 25 °C

Z = none

ESR

S = Std

L = Low

DIMENSIONS

in inches [millimeters]

Tantalum Wire

Nib Identifies

Anode (+)

Term inal

CASE

CODE

L (MAX.)

0.097 ± 0.016

[2.5 ± 0.4]

0.180 ± 0.024

[4.6 ± 0.6]

0.180 ± 0.024

[4.6 ± 0.6]

0.180 ± 0.024

[4.6 ± 0.6]

0.085 ± 0.015

[2.16 ± 0.37]

0.085 ± 0.015

[2.16 ± 0.37]

0.200 ± 0.027

[5.08 ± 0.69]

0.200 ± 0.027

[5.08 ± 0.69]

0.200 ± 0.027

[5.08 ± 0.69]

D (REF.)

0.138

[3.5]

0.236

[6.0]

0.253

[6.4]

0.243

[6.2]

0.115

[2.9]

0.115

[2.9]

0.243

[6.2]

0.243

[6.2]

0.243

[6.2]

J (MAX.)

0.004

[0.1]

0.004

[0.1]

0.004

[0.1]

0.004

[0.1]

0.004

[0.1]

0.004

[0.1]

0.004

[0.1]

0.004

[0.1]

0.004

[0.1]

0.158

0.110 + 0.012 - 0.016 0.075 + 0.012 - 0.024

0.031 ± 0.012

[4.0]

[2.8 + 0.3 - 0.4]

[1.9 + 0.3 - 0.6]

[0.80 ± 0.30]

0.281

0.126 ± 0.012

0.098 ± 0.012

0.051 ± 0.012

[7.1]

[3.2 ± 0.3]

[2.5 ± 0.3]

[1.3 ± 0.30]

0.293

0.170 ± 0.012

0.110 ± 0.012

0.051 ± 0.012

[7.5]

[4.3 ± 0.3]

[2.8 ± 0.3]

[1.3 ± 0.30]

0.283

0.235 ± 0.012

0.136 ± 0.012

0.051 ± 0.012

[7.2]

[6.0 ± 0.3]

[3.5 ± 0.3]

[1.3 ± 0.30]

0.143

0.072 ± 0.008

0.048 ± 0.008

0.023 ± 0.010

[3.63]

[1.83 ± 0.2]

[1.22 ± 0.2]

[0.58 ± 0.25]

0.143

0.104 ± 0.010

0.051 ± 0.010

0.023 ± 0.010

[3.63]

[2.65 ± 0.25]

[1.3 ± 0.25]

[0.58 ± 0.25]

0.285

0.104 ± 0.010

0.051 ± 0.010

0.040 ± 0.020

[7.24]

[2.65 ± 0.25]

[1.3 ± 0.25]

[1.0 ± 0.5]

0.285

0.104 ± 0.010

0.069 ± 0.010

0.040 ± 0.020

[7.24]

[2.65 ± 0.25]

[1.75 ± 0.25]

[1.0 ± 0.5]

0.285

0.104 ± 0.010

0.040 ± 0.020

[7.24]

[2.65 ± 0.25]

[1.0 ± 0.5]

Note:

The anode termination (D less B) will be a minimum of 0.010" (0.25 mm)

* Pb containing terminations are not RoHS compliant, exemptions may apply

** Weibull 0.1 % may not be available on all ratings. See detailed notes in ratings table or contact marketing for availability.

Document Number: 40081

Revision: 20-Nov-07

For technical questions, contact: tantalum@vishay.com

www.vishay.com

149
