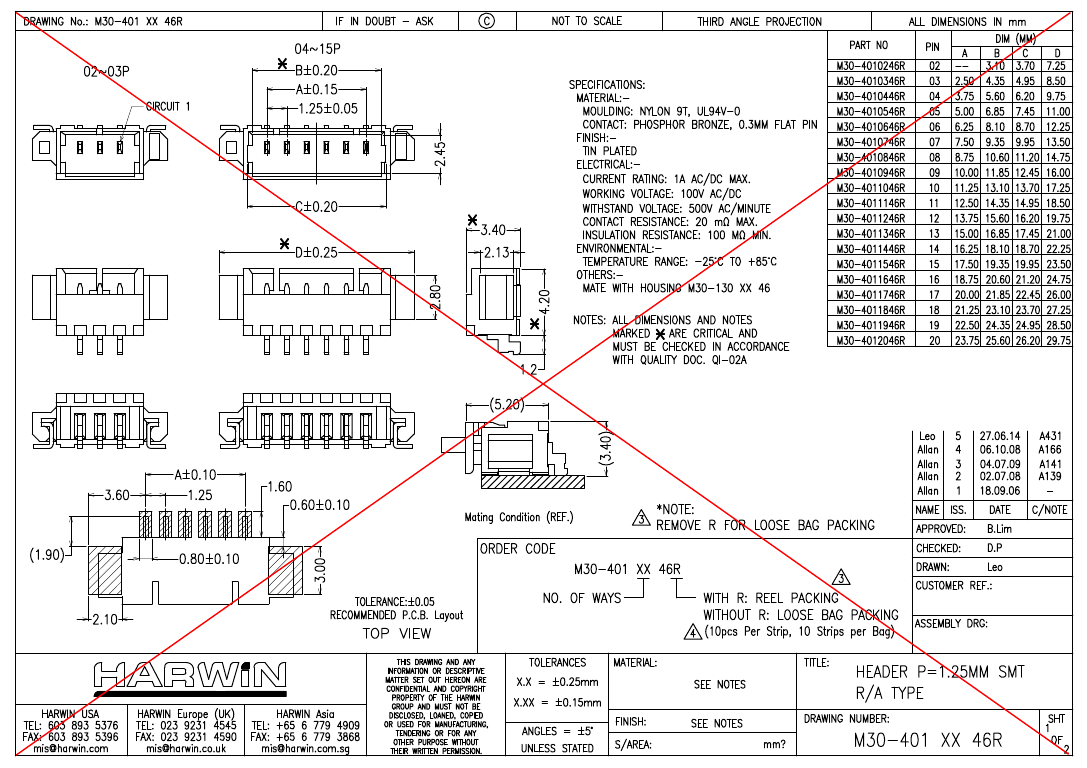

headers & wire housings 5P sil smt horizontl shrouded tab header
| Parameter Name | Attribute value |
| Is it lead-free? | Lead free |
| Is it Rohs certified? | conform to |
| Reach Compliance Code | compli |
| ECCN code | EAR99 |
| Other features | ROHS COMPLIANT |
| body width | 0.134 inch |
| subject depth | 0.217 inch |
| body length | 0.315 inch |
| Body/casing type | PLUG |
| Connector type | BOARD CONNECTOR |
| Contact to complete cooperation | NOT SPECIFIED |
| Contact completed and terminated | Tin (Sn) |
| Contact point gender | FEMALE |
| Contact material | NOT SPECIFIED |
| contact mode | RECTANGULAR |
| Contact resistance | 20 mΩ |
| Dielectric withstand voltage | 500VAC V |
| Insulation resistance | 100000000 Ω |
| insulator material | NYLON |
| JESD-609 code | e3 |
| Manufacturer's serial number | M30 |
| Plug contact pitch | 0.049 inch |
| Installation option 1 | LOCKING |
| Installation method | RIGHT ANGLE |
| Installation type | BOARD |
| Number of connectors | ONE |
| PCB row number | 1 |
| Number of rows loaded | 1 |
| Maximum operating temperature | 85 °C |
| Minimum operating temperature | -25 °C |
| PCB contact pattern | RECTANGULAR |
| polarization key | POLARIZED HOUSING |
| Rated current (signal) | 1 A |
| Guideline | UL |
| reliability | COMMERCIAL |
| Terminal pitch | 1.2446 mm |
| Termination type | SURFACE MOUNT |
| Total number of contacts | 5 |
| Base Number Matches | 1 |
| M30-4010546R | M30-4011546R | M30-4010946R | LBC2518T101 | M30-4011246R | M30-4011046R | M30-4011446R | M30-4011146R | M30-4011346R | |
|---|---|---|---|---|---|---|---|---|---|
| Description | headers & wire housings 5P sil smt horizontl shrouded tab header | headers & wire housings 15p sil smt horiz shrouded tab header | headers & wire housings 9P sil smt horizontl shrouded tab header | WIRE-WOUND CHIP INDUCTORS (LB SERIES) | headers & wire housings 12p sil smt horiz shrouded tab header | headers & wire housings 10p sil smt horiz shrouded tab header | headers & wire housings 14p sil smt horiz shrouded tab header | CONN HORZ SIL SMT MALE | CONN HORZ SIL SMT MALE |
| Is it lead-free? | Lead free | Lead free | Lead free | - | Lead free | Lead free | Lead free | Lead free | Lead free |
| Is it Rohs certified? | conform to | conform to | conform to | - | conform to | conform to | conform to | conform to | conform to |
| Reach Compliance Code | compli | compliant | compli | - | compliant | compliant | compliant | compliant | compliant |
| ECCN code | EAR99 | EAR99 | EAR99 | - | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 |
| Other features | ROHS COMPLIANT | ROHS COMPLIANT | ROHS COMPLIANT | - | ROHS COMPLIANT | ROHS COMPLIANT | ROHS COMPLIANT | ROHS COMPLIANT | ROHS COMPLIANT |
| body width | 0.134 inch | 0.134 inch | 0.134 inch | - | 0.134 inch | 0.134 inch | 0.134 inch | 0.134 inch | 0.134 inch |
| subject depth | 0.217 inch | 0.217 inch | 0.217 inch | - | 0.217 inch | 0.217 inch | 0.217 inch | 0.217 inch | 0.217 inch |
| body length | 0.315 inch | 0.807 inch | 0.512 inch | - | 0.659 inch | 0.561 inch | 0.758 inch | 0.61 inch | 0.709 inch |
| Body/casing type | PLUG | PLUG | PLUG | - | PLUG | PLUG | PLUG | PLUG | PLUG |
| Connector type | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | - | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR |
| Contact to complete cooperation | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | - | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Contact completed and terminated | Tin (Sn) | Tin (Sn) | Tin (Sn) | - | Tin (Sn) | Tin (Sn) | Tin (Sn) | Matte Tin (Sn) | Tin (Sn) |
| Contact point gender | FEMALE | FEMALE | FEMALE | - | FEMALE | FEMALE | FEMALE | FEMALE | FEMALE |
| Contact material | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | - | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| contact mode | RECTANGULAR | RECTANGULAR | RECTANGULAR | - | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Contact resistance | 20 mΩ | 20 mΩ | 20 mΩ | - | 20 mΩ | 20 mΩ | 20 mΩ | 20 mΩ | 20 mΩ |
| Dielectric withstand voltage | 500VAC V | 500VAC V | 500VAC V | - | 500VAC V | 500VAC V | 500VAC V | 500VAC V | 500VAC V |
| Insulation resistance | 100000000 Ω | 100000000 Ω | 100000000 Ω | - | 100000000 Ω | 100000000 Ω | 100000000 Ω | 100000000 Ω | 100000000 Ω |
| insulator material | NYLON | NYLON | NYLON | - | NYLON | NYLON | NYLON | NYLON | NYLON |
| JESD-609 code | e3 | e3 | e3 | - | e3 | e3 | e3 | e3 | e3 |
| Manufacturer's serial number | M30 | M30 | M30 | - | M30 | M30 | M30 | M30 | M30 |
| Plug contact pitch | 0.049 inch | 0.049 inch | 0.049 inch | - | 0.049 inch | 0.049 inch | 0.049 inch | 0.049 inch | 0.049 inch |
| Installation option 1 | LOCKING | LOCKING | LOCKING | - | LOCKING | LOCKING | LOCKING | LOCKING | LOCKING |
| Installation method | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE | - | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE |
| Installation type | BOARD | BOARD | BOARD | - | BOARD | BOARD | BOARD | BOARD | BOARD |
| Number of connectors | ONE | ONE | ONE | - | ONE | ONE | ONE | ONE | ONE |
| PCB row number | 1 | 1 | 1 | - | 1 | 1 | 1 | 1 | 1 |
| Number of rows loaded | 1 | 1 | 1 | - | 1 | 1 | 1 | 1 | 1 |
| Maximum operating temperature | 85 °C | 85 °C | 85 °C | - | 85 °C | 85 °C | 85 °C | 85 °C | 85 °C |
| Minimum operating temperature | -25 °C | -25 °C | -25 °C | - | -25 °C | -25 °C | -25 °C | -25 °C | -25 °C |
| PCB contact pattern | RECTANGULAR | RECTANGULAR | RECTANGULAR | - | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| polarization key | POLARIZED HOUSING | POLARIZED HOUSING | POLARIZED HOUSING | - | POLARIZED HOUSING | POLARIZED HOUSING | POLARIZED HOUSING | POLARIZED HOUSING | POLARIZED HOUSING |
| Rated current (signal) | 1 A | 1 A | 1 A | - | 1 A | 1 A | 1 A | 1 A | 1 A |
| Guideline | UL | UL | UL | - | UL | UL | UL | UL | UL |
| reliability | COMMERCIAL | COMMERCIAL | COMMERCIAL | - | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Terminal pitch | 1.2446 mm | 1.2446 mm | 1.2446 mm | - | 1.2446 mm | 1.2446 mm | 1.2446 mm | 1.2446 mm | 1.2446 mm |
| Termination type | SURFACE MOUNT | SURFACE MOUNT | SURFACE MOUNT | - | SURFACE MOUNT | SURFACE MOUNT | SURFACE MOUNT | SURFACE MOUNT | SURFACE MOUNT |
| Total number of contacts | 5 | 15 | 9 | - | 12 | 10 | 14 | 11 | 13 |
| Base Number Matches | 1 | 1 | 1 | - | - | 1 | 1 | 1 | 1 |
| Maker | - | Harwin | Harwin | - | Harwin | Harwin | Harwin | Harwin | Harwin |
