2-1969574-0 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 2-1969574-0

2-1969574-0: Descriptionheaders & wire housings assy,hdr,RA,gwt dual row, ep2.5; CategoryThe connector; File Size286KB，2 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric View All

2-1969574-0 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	2-1969574-0	-	-	View	Buy Now

2-1969574-0 Overview

headers & wire housings assy,hdr,RA,gwt dual row, ep2.5

2-1969574-0 Parametric

Parameter Name	Attribute value
Manufacture	TE Connectivity
Product Category	Headers & Wire Housings
RoHS	Yes
Type	Pin Heade
Pitch	2.5 mm
Number of Positions	20
Number of Rows	2
Contact Gende	Pin (Male)
Contact Plating	Ti
Housing Material	Nyl
Termination Style	Through Hole
Mounting Angle	Righ
Applicati	Wire-to-Board
Contact Material	Brass
Current Rating	7.5 A
Flammability Rating	UL 94 V-0
Housing Gende	Plug
Operating Temperature Range	- 25 C to + 105 C
Voltage Rating	250 V

Preview

Download Datasheet

View All

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

LOC

DIST

REVISIONS

LTR

DESCRIPTION

DATE

DWN

APVD

TOL AND DIA UPDATED

22FEB2014

POSITION #1

10.17

[.400 ]

2.50

[.098 ]

2.50

[.098 ]

TYP

DIM "M"

DIM "F"

12.17

[.479 ]

PRELIMINARY - NOT FOR PRODUCTION

HEADER HOUSING

NYLON 66, UL94V-0, GWT

NATURAL

9.62

[.379 ]

15.92

[.627 ]

REF

PIN, BRASS WITH

TIN PLATING OVER NICKEL

3.40

[.134 ]

DIM "L"

1.25 [.049]

0.00

1.25 [.049]

0.00

1.25 [.049]

0.00

NO. OF

LATCH

CUT-OUTS

47.50 [1.870]

45.00 [1.772]

42.50 [1.673]

40.00 [1.575]

37.50 [1.477]

35.00 [1.378]

32.50 [1.280]

30.00 [1.181]

27.50 [1.083]

25.00 [.984]

22.50 [.886]

20.00 [.787]

17.50 [.689]

15.00 [.590]

12.50 [.492]

10.00 [.394]

7.50 [.295]

DIM "F"

05OCT2012

H.C.CANTERI

CHK

13FEB13

K.A.RANDOLPH

APVD

13FEB13

K.A.RANDOLPH

DWN

PRODUCT SPEC

APPLICATION SPEC

52.89 [2.083]

50.39 [1.985]

47.89 [1.886]

45.39 [1.788]

42.89 [1.689]

40.39 [1.591]

37.89 [1.492]

35.39 [1.394]

32.89 [1.295]

30.39 [1.197]

27.89 [1.098]

25.39 [1.000]

22.89 [.901]

20.39 [.803]

17.89 [.704]

15.39 [.606]

12.89 [.507]

DIM "L"

NO. OF

POSISTION

4-1969574-0

3-1969574-8

3-1969574-6

3-1969574-4

3-1969574-2

3-1969574-0

2-1969574-8

2-1969574-6

2-1969574-4

2-1969574-2

2-1969574-0

1.25 [.049]

0.00

1.25 [.049]

2.50

[.098 ]

0.60

[.024 ]

0.00

1.25 [.049]

0.00

1.25 [.049]

0.00

1.25 [.049]

0.00

1.25 [.049]

DIM "M"

1-1969574-8

1-1969574-6

1-1969574-4

1-1969574-2

1-1969574-0

1969574-8

PART NO.

TE Connectivity

THIS DRAWING IS A CONTROLLED DOCUMENT.

DIMENSIONS:

mm[INCHES]

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

MATERIAL

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

0.25 [.010]

PRELIMINARY

NAME

WEIGHT

1471-9 (3/11)

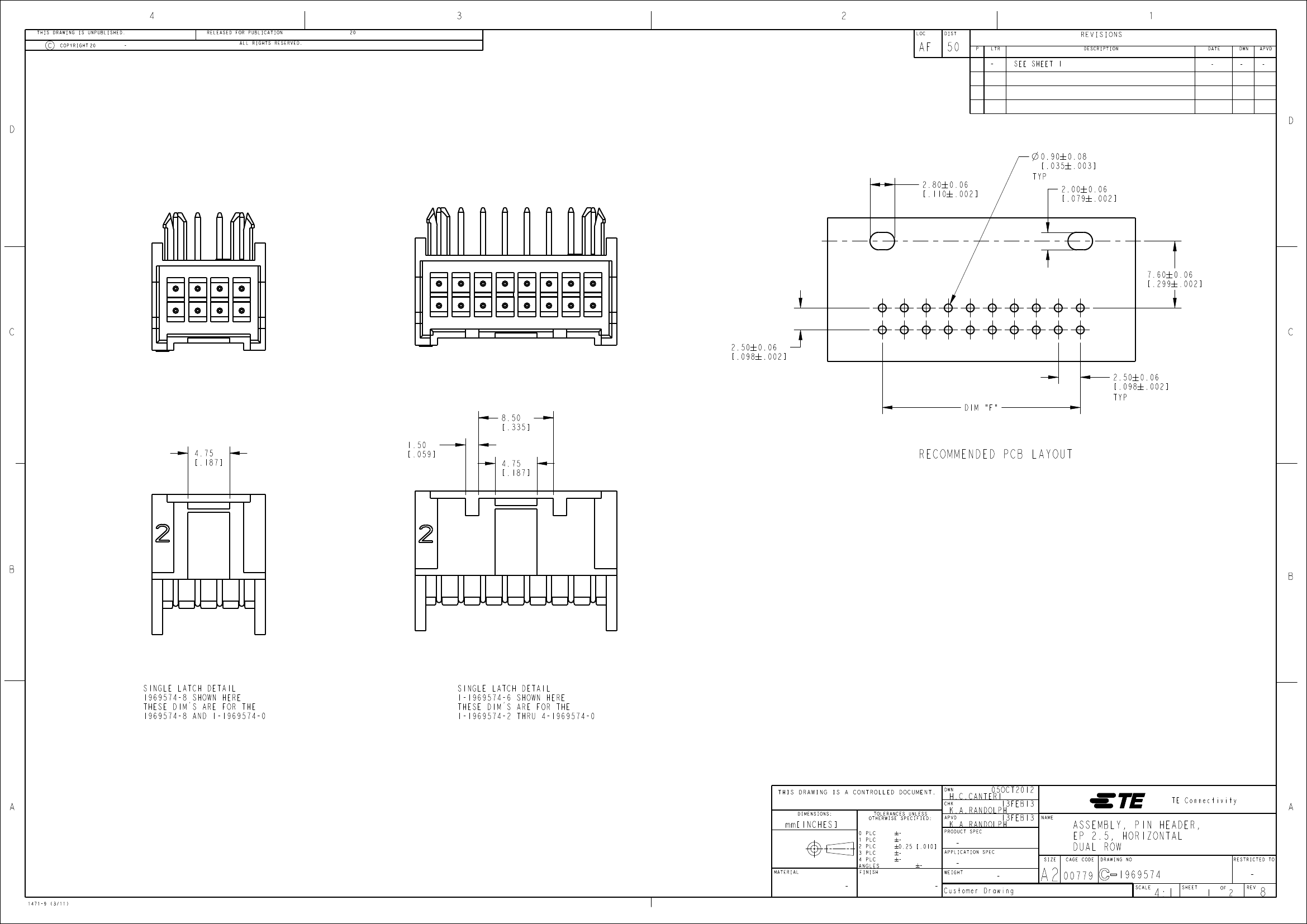

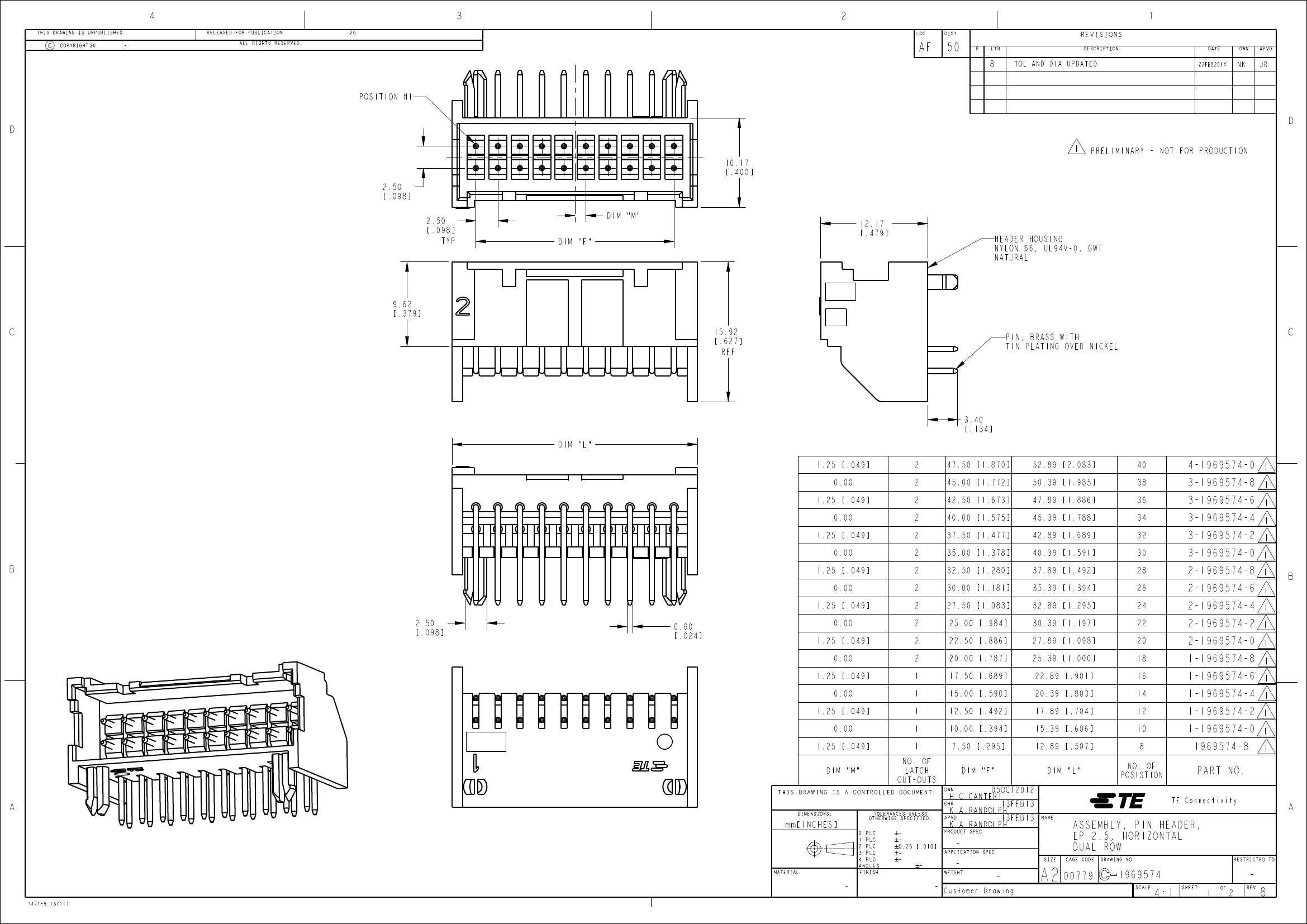

Customer Drawing

00779

SIZE

CAGE CODE

ASSEMBLY, PIN HEADER,

EP 2.5, HORIZONTAL

DUAL ROW

DRAWING NO

RESTRICTED TO

1969574

SCALE

4:1

SHEET

REV
