COMPONENTS PRODUCT INFORMATION
NEW
High-speed Transmission Compatible
Low-profile Docking Connector
CONNECTOR
MB-0270-1
September 2013
DD4 Series
Receptacle
RoHS Compliant
Cradle
Plug

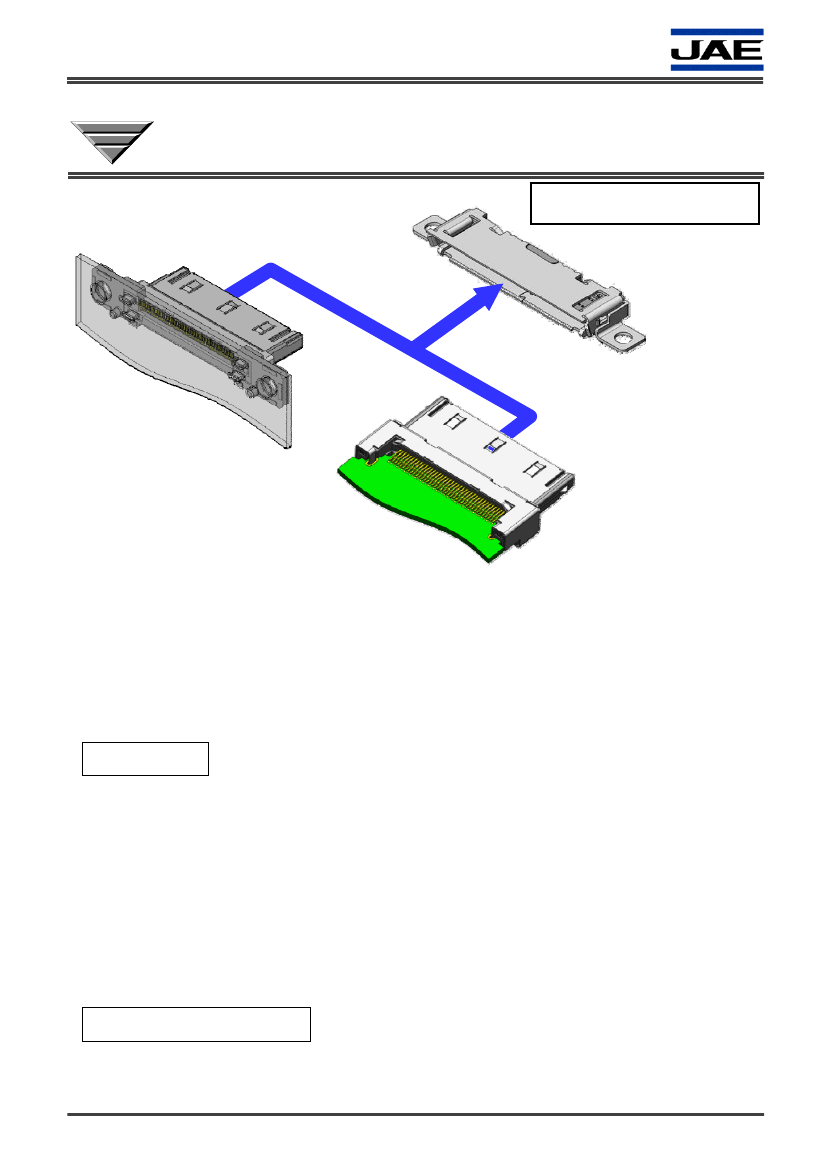

The DD4 Series is an external interface connector compatible with high-speed signals
such as USB 3.0, DisplayPort™, SATA Gen2.
DisplayPort™ is a registered trademark of Video Electronics Standards Association (VESA).
Features
Connector
to transmit high-speed signals of transmission standards such as USB3.0,
DisplayPort™, SATA Gen2.
Achieves
low profile, mounted height 2.8mm to comply with the demand for slimmer
devices.
Enhanced
twisting resistance against insertion and removal through equipping a
guide rail on shell.
Allows
insertion and removal while conducting electricity with first mate last break
receptacle side power supply pin.
Available
on embossed tape for automatic mounting.
Applicable Markets
Notebook PC, tablet PC, hand-held devices such as portable game player.
JAE PMK Div. Proprietary. Copyright © 2013, Japan Aviation Electronics Industry, Ltd.
1/12
MB-0270-1
General Specifications
■No.
of Contacts: 40 pos.
■Contact
Resistance:
50m
max. (initial)
■Dielectric
Withstanding Voltage:
AC300Vr.m.s for 1 minute
■Operating
Temperature:
-25 Deg. C to +75 Deg. C
■Rated
Current:
0.1A / 1 pos. (signal)
1.1A / 1pos. (power)
■Insulation
Resistance:
100M
min. (initial)
■Life
time: 5,000 times
Materials and Finishes
■Receptacle
Component
Shell
Insulator
Contact
Material and Finish
Stainless-steel / Ni plating
Synthetic resin
Contact area: Copper alloy / Au plating over Ni
Terminal area: Copper alloy / Au flash plating over Ni
■Plug
Component
Shell
Lock Spring
Inner Insulator
Base Insulator
Contact
Material and Finish
Stainless-steel / Ni plating
Stainless-steel
Synthetic resin
Synthetic resin
Contact area: Copper alloy / Au plating over Ni
Terminal area: Copper alloy / Au flash plating over Ni
■Cradle
Component
Shell
Cap
Inner Insulator
Base Insulator
Contact
Material and Finish
Stainless-steel / Ni plating
Synthetic resin
Synthetic resin
Synthetic resin
Contact area: Copper alloy / Au plating over Ni
Terminal area: Copper alloy / Au flash plating over Ni
JAE PMK Div. Proprietary. Copyright © 2013, Japan Aviation Electronics Industry, Ltd.
2/12
MB-0270-1
Ordering Information
■Receptacle
DD4 R A 040 J A 1
Series
Modification Code
Plating Specification
A: Contact area 0.1m Au min.
R: Receptacle
A: Key Variation
No. of Contacts
Connection Type
J: Right Angle SMT mounting
■Plug
/ Cradle
DD4 B A 040 W A 1
Series
B: Cradle
P: Plug
A: Key Variation
Modification Code
Plating Specification
A: Contact area 0.1m Au min.
No. of Contacts
Connection Type
W: Straight SMT mounting
M: Right Angle SMT mounting
JAE PMK Div. Proprietary. Copyright © 2013, Japan Aviation Electronics Industry, Ltd.
3/12
MB-0270-1

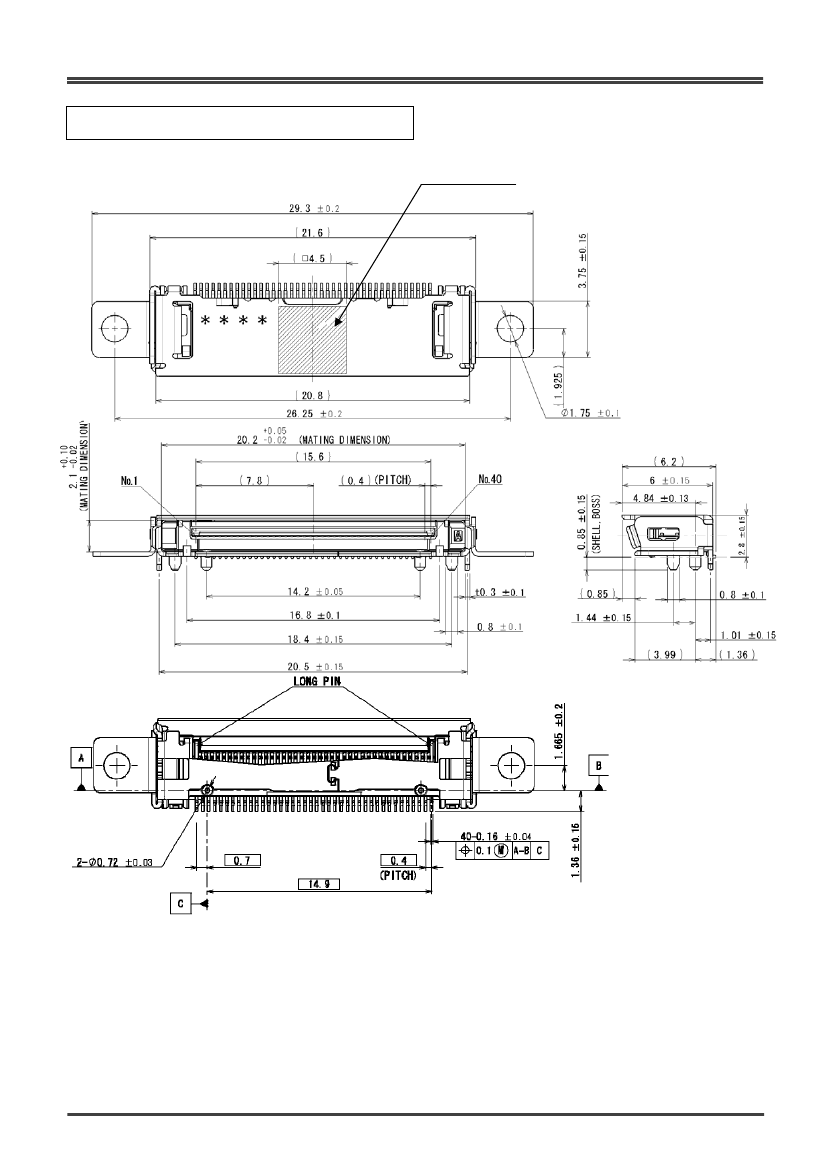

Product Drawing (Individual Product)
Part Number: DD4RA40JA1
(SJ Drawing No.: SJ114484)
Adsorption area
*Please refer to SJ drawing when considering use of this product.
JAE PMK Div. Proprietary. Copyright © 2013, Japan Aviation Electronics Industry, Ltd.
4/12
MB-0270-1

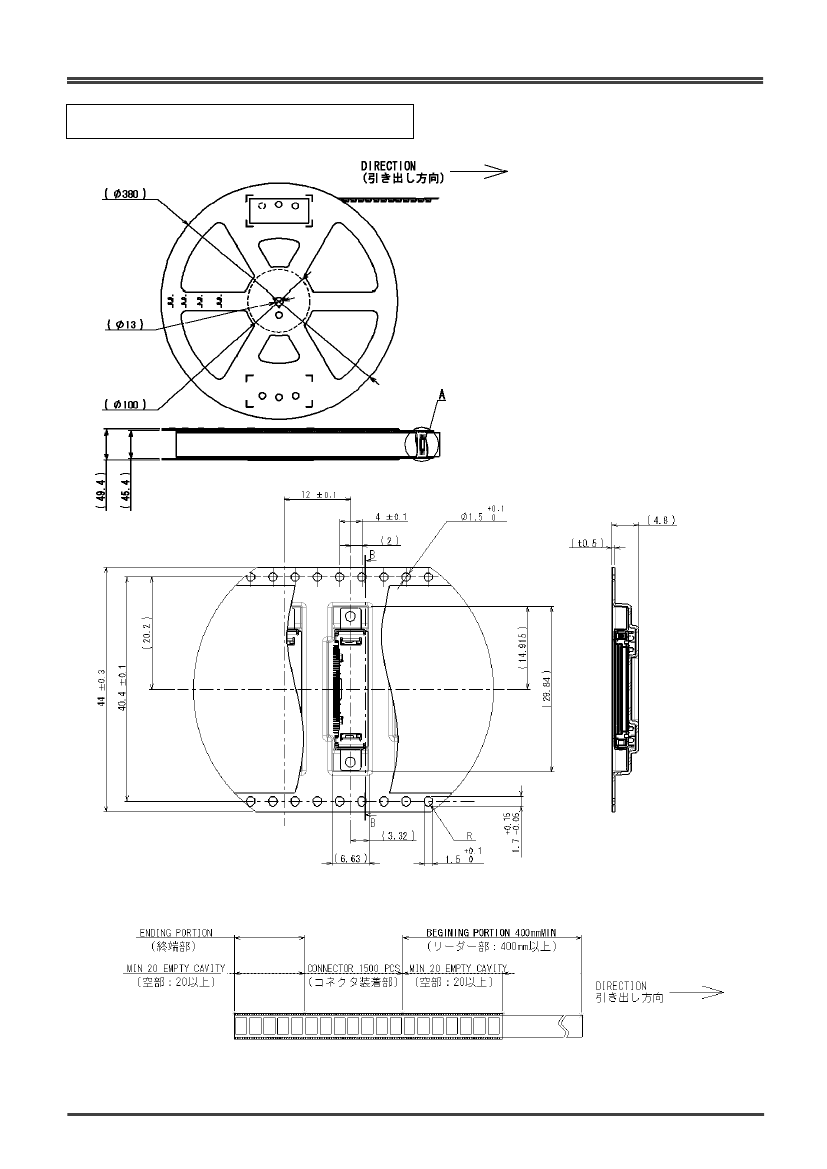

Product Drawing (Packaged Product)
Part Number: DD4RA40JA1R1500
(
SJ
Drawing No.: SJ114485)
Detailed drawing of area A
Cross-sectional
drawing of B
*Please refer to SJ drawing when considering use of this product.
JAE PMK Div. Proprietary. Copyright © 2013, Japan Aviation Electronics Industry, Ltd.
5/12
