TV59C020BT-60.000MHZ datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> TV59C020BT-60.000MHZ

TV59C020BT-60.000MHZ: DescriptionTCVCXO, Clock, 10MHz Min, 60MHz Max, 60MHz Nom; CategoryPassive components oscillator; File Size56KB，2 Pages; ManufacturerPletronics

Download Datasheet Parametric View All

TV59C020BT-60.000MHZ Overview

TCVCXO, Clock, 10MHz Min, 60MHz Max, 60MHz Nom

TV59C020BT-60.000MHZ Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Objectid	1206877441
package instruction	DILCC4,.24,200
Reach Compliance Code	compliant
JESD-609 code	e0
Installation features	SURFACE MOUNT
Number of terminals	4
Maximum operating frequency	60 MHz
Minimum operating frequency	10 MHz
Nominal operating frequency	60 MHz
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	METAL
Encapsulate equivalent code	DILCC4,.24,200
power supply	5 V
Certification status	Not Qualified
Maximum slew rate	5 mA
Nominal supply voltage	5 V
surface mount	YES
Terminal surface	Tin/Lead (Sn/Pb)

Preview

Download Datasheet

View All

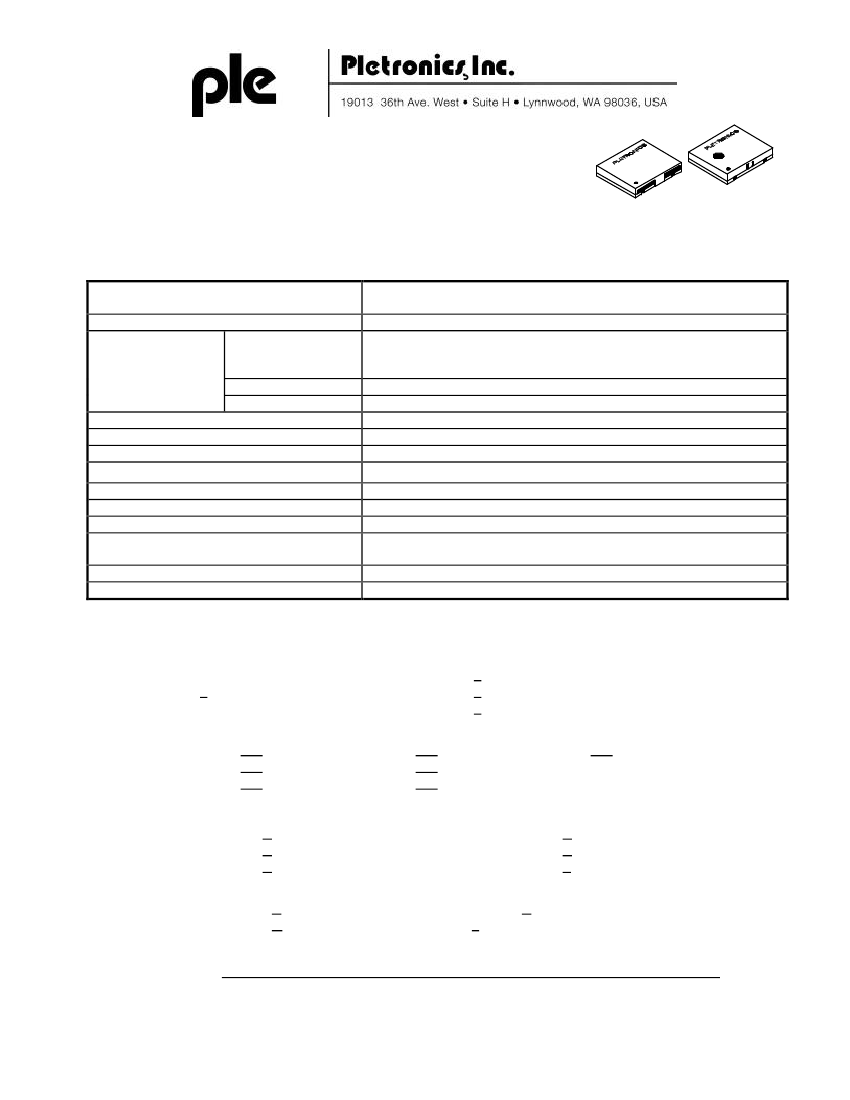

TV5 TCVCXO SERIES

SURFACE MOUNT TCVCXO IN METAL PACKAGE, AVAILABLE WITH OR WITHOUT TRIMMER

STANDARD SPECIFICATIONS:

Frequency Range

Operating Temperature Range

vs. Temperature

Frequency Stability

vs. Supply Voltage

Aging

Frequency Adjustment by Trimmer

Input Voltage

Output Logic

Output Voltage Levels

Input Current (Icc) or Current Consumption

Output Load

Control Voltage Range

Frequency Deviation (Pullability) over the

Control Voltage Range

Linearity

Packaging

10.000 MHz - 60.000 MHz

(Consult factory for specific available frequencies)

Various temperature ranges up to -40 to +85°C available.

1.5, 2, 2.5, 3, 5, 10 & 15 PPM over operating temperature range

available. See below for available frequency stability options per

temperature range.

0.5 PPM maximum over 5V

3 PPM first year, 1 PPM per year thereafter at 25°C

5°C

3 PPM minimum

5% Volt standard, but 3.0 V also available for HCMOS output

Clipped Sine Wave

1 Vp-p min.

2 - 5 mA max.

10kΩ/10 pF

2.5V

2.0V for Vcc = 5.0V, 1.65V

1.32V for Vcc = 3.0V

±10,

±15

PPM minimum standard, but up to

25 PPM available

for certain frequencies.

10% is standard, but

5% also available.

TBD

PART NUMBERING GUIDE:

The Pletronics part number for a TV5 series TCVCXO consists of the following 6 elements:

1. Model Number (Voltage):

2. Package:

TV5

= 5V

TV51C: 11.4 x9.6 x 2.0 mm High, w/o trimmer

3TV5 = 3.0V

TV58C: 11.4 x9.6 x 2.0 mm High, with trimmer

TV59C: 9.0 x 7.0 x 2.0 mm High, w/o trimmer

3. Frequency Stability:

TV51C015:

±1.5

PPM

TV51C020:

2 PPM

TV51C025:

±2.5

PPM

TV51C030:

±3

PPM

TV51C050:

±5

PPM

TV51C100:

±10

PPM

TV51C150

±15

PPM

Operating Temperature Range {with Tightest Frequency Stability Available}:

TV51C015A:

0 to +50°C {± 1.5 PPM}

TV51C015B: 0 to +70°C {± 1.5 PPM}

TV51C020C: -10 to +70°C {± 2.0 PPM}

TV51C020D: -20 to +75°C {± 2.0 PPM}

TV51C025E: -30 to +75°C {± 2.5 PPM}

TV51C050F: -40 to +85°C {± 5.0 PPM}

Frequency Deviation over Control Voltage Range:

TV51C100BS:

±5

PPM

TV51C100BR:

±10

PPM

TV51C100BQ:

±15

PPM

TV51C100BT:

±25

PPM

6. Frequency of Operation in MHz

EXAMPLE: TV59C150EQ-12.800 MHz, TV58C020DT-10.000 MHz, 3TV51C050ER-30.000 MHz

(continued)

Telephone: (425) 776-1880, Fax: (425) 776-2760, e-mail: ple-sales@pletronics.com
