CA009-1204-001: DescriptionI/O connectors cfp internal backer plate; CategoryThe connector; File Size81KB，1 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

CA009-1204-001 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	CA009-1204-001	-	-	View	Buy Now

CA009-1204-001 Overview

I/O connectors cfp internal backer plate

CA009-1204-001 Parametric

Parameter Name	Attribute value
Manufacture	Yamaichi Electronics
Product Category	I/O Connectors
RoHS	Yes
Produc	Accessories
Number of Ports	-
Number of Positions	-
Pitch	-
Contact Plating	-
Contact Material	-
Gende	-
Current Rating	-
Mounting Style	-
Termination Style	-
Accessory	Backer Plate Assembly
Features	For optical modules with 40 Gbps and 100 Gbps
Housing Material	-
Voltage Rating	-

Preview

Download Datasheet

View All

High Speed

Connectors

Features

■

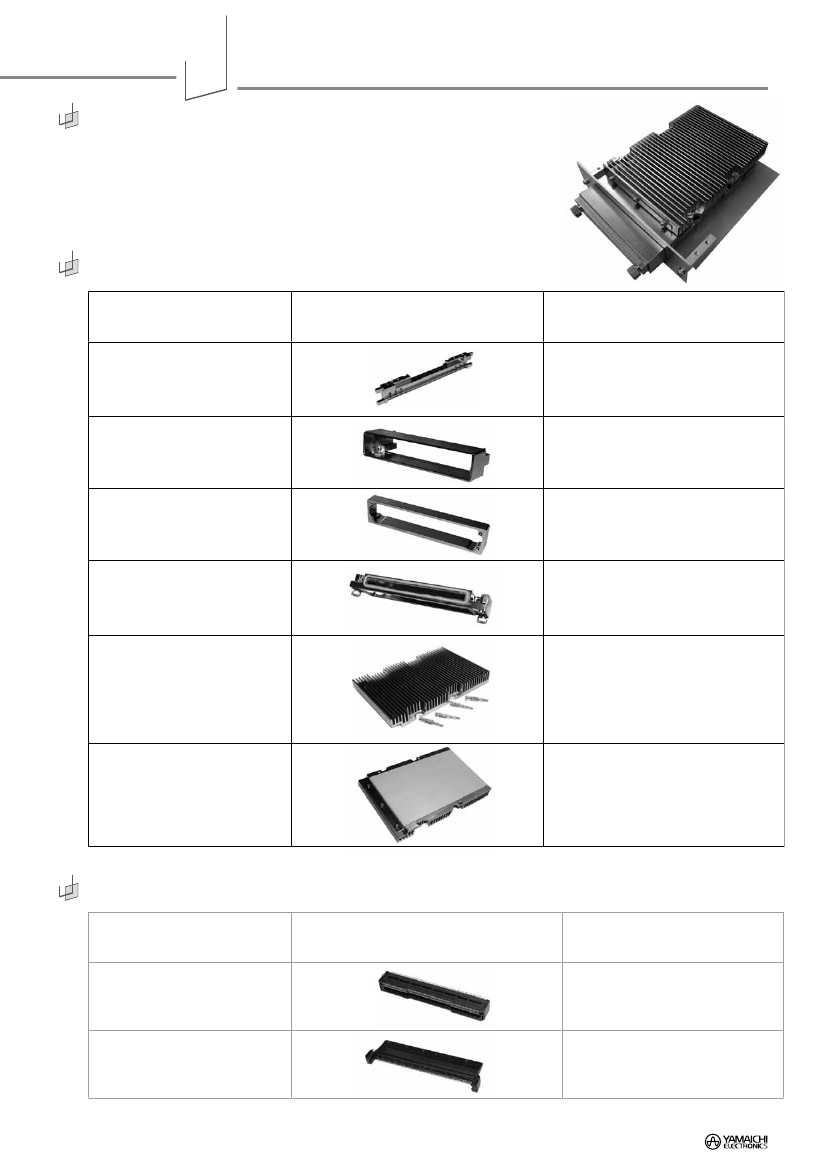

Series CA009

CFP Mechanical Unit and Connectors

CFP Multi Source Agreement (MSA) compliant

For optical modules with 40Gbps & 100Gbps

10 Gbps/channel

Riding heat-sink ensures efficient thermal dissipation

Gasket installed host connector cover and Bracket to ensure EMI shielding performance

Pin count: 148

Mating cycles: 200 times

CFP Mechanical Unit

Part Number

Yamaichi Parts

Description and Notes

Guide Rails

CA009-1201-001

rail x 1pc, no screws attached,

requires 2 x M3, L10mm per rail

CA009-1203-001

4 x 2-56 UNC screws attached

External Bracket Assembly

Backer Plate Assembly

CA009-1204-001

Host Connector Cover

CA009-1400-001

no screws attached,

requires 2 x M3, L10mm

CA009-1310-001

4 x M3 screws installed

Heat Sink Assembly MSA

Standard size without

thermal interposer

CA009-1300-002

4 x M3 screws installed

Heat Sink Assembly Long

Size with thermal interposer

CFP Connector and Plug

Part Number

Yamaichi Parts

Description and Notes

Host Connector

Surface Mount Type

Plug Connector

Straddle Mount Tye

CA009-S001-001

CA009-P001-001

C-16

Connectors

SPECIFICATIONS AND DRAWINGS ARE SUBJECT TO ALTERATION WITHOUT PRIOR NOTICE - DIMENSIONS IN MILLIMETER

CA009-1204-001 Related Products

	CA009-1204-001	CA009-1201-001	CA009-1203-001	CA009-S001-001
Description	I/O connectors cfp internal backer plate	I/O connectors cfp guide rail	I/O connectors cfp external bracket	high speed / modular connectors cfp host conn
Manufacture	Yamaichi Electronics	Yamaichi Electronics	Yamaichi Electronics	Yamaichi Electronics
Product Category	I/O Connectors	I/O Connectors	I/O Connectors	High Speed / Modular Connectors
RoHS	Yes	Yes	Yes	Yes
Produc	Accessories	Accessories	Accessories	-
Accessory	Backer Plate Assembly	Guide Rail	External Bracket Assembly	-
