M83723/71W20398: DescriptionMIL Series Connector, 39 Contact(s), Aluminum Alloy, Female, Crimp Terminal, Receptacle; CategoryThe connector The connector; File Size79KB，1 Pages; ManufacturerAero-Electric Connector; Websitehttps://www.aero-electric.com/index.html

Download Datasheet Parametric View All

M83723/71W20398 Overview

MIL Series Connector, 39 Contact(s), Aluminum Alloy, Female, Crimp Terminal, Receptacle

M83723/71W20398 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Objectid	1721163782
Reach Compliance Code	compliant
Country Of Origin	USA
YTEOL	8.5
Other features	STANDARD: MIL-DTL-83723 SERIES III, COMPATIBLE CONTACT: M39029/5-115, M39029/5-116
Back shell type	SOLID
Body/casing type	RECEPTACLE
Connector type	MIL SERIES CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
Coupling type	BAYONET
DIN compliance	NO
empty shell	NO
Environmental characteristics	CORROSION RESISTANT; ENVIRONMENT RESISTANT; FLUID RESISTANT
Filter function	NO
IEC compliance	NO
MIL compliance	YES
Manufacturer's serial number	M83723
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE AND PANEL
Options	GENERAL PURPOSE
Shell surface	CADMIUM
Shell material	ALUMINUM ALLOY
Housing size	20
Termination type	CRIMP
Total number of contacts	39

Preview

Download Datasheet

View All

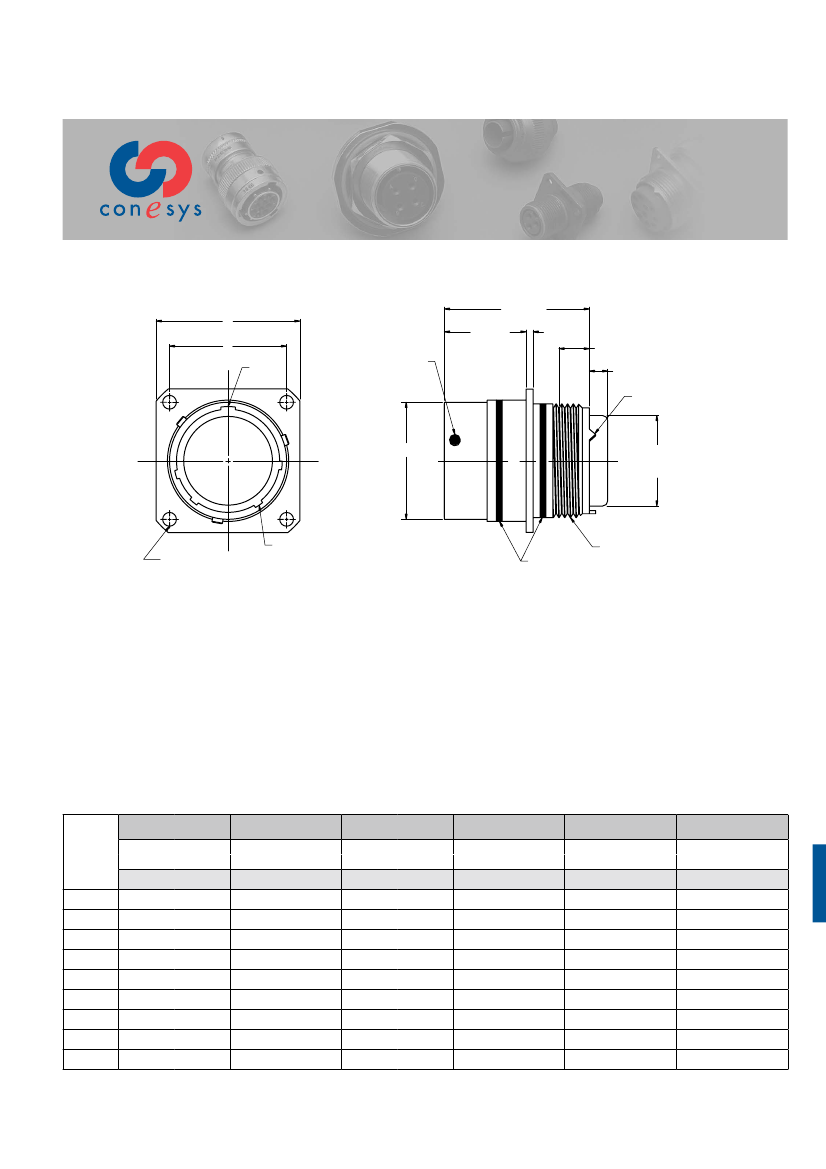

M83723/71, 72

Wall Mounting Receptacle

AE83371, 72

Bayonet Coupling, Crimp Removable, Rear Release

A

B

MASTER

KEYWAY

3x BAYONET PINS

EQUALLY SPACED

1.300(33.02)

MAX

.728(18.49)

.072(1.83)

.708(17.98)

.052(1.32)

.290(7.37) MIN FULL THREAD

.190(4.83) GROMMET

.130(3.30) EXTENSION

3 ACCESSORY TEETH

EQUALLY SPACED

D

MAX

GROMMET

F

4x MINOR KEYS

4x

MOUNTING

HOLES

C

E

BLUE COLOR BANDS

ACCESSORY THREAD

Page 129

Page 145

Pages 148,149

Page 128

Page 147

Page 143

Completed Part Number

Contacts, Sealing Plugs and Tools

Insert Arrangements

Performance Specifications

Insert Availability and Contact Information

Polarization

A

Shell

Size

8

10

12

14

16

18

20

22

24

±.005

inch

.812

.937

1.031

1.125

1.250

1.343

1.437

1.562

1.703

±.13

mm

20.62

23.80

26.19

28.58

31.75

34.11

36.50

39.67

43.26

inch

.594

.719

.812

.906

.969

1.062

1.156

1.250

1.375

B

(TP)

mm

15.09

18.26

20.62

23.01

24.61

26.97

29.36

31.75

34.93

±.005

inch

.120

.149

Ø

C

±.13

mm

3.05

3.78

+.000

-.005

inch

.536

.659

.829

.898

1.025

1.131

1.256

1.381

1.506

Ø

D

+.00

-.13

mm

13.61

16.74

21.06

22.81

26.04

28.73

31.90

35.08

38.25

E

Accessory Thread

Class 2A

1/2-20UNF

5/8-24UNEF

3/4-20UNEF

7/8-20UNEF

1-20UNEF

1-1/16-18UNEF

1-3/16-18UNEF

1-5/16-18UNEF

1-7/16-18UNEF

Ø

F

Maximum

inch

.305

.405

.531

.665

.790

.869

.994

1.119

1.244

mm

7.75

10.29

13.49

16.89

20.07

22.07

25.25

28.42

31.60

www.conesys.com

– 130 –

sales

@

aero-electric.com

Recommended Resources
