2198339-2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 2198339-2

2198339-2: DescriptionI/O connectors zsfp+ stack 2x6 rcpt emi gasket W/4 LP; CategoryThe connector; File Size8MB，5 Pages; ManufacturerAll Sensors

Download Datasheet Parametric Compare View All

2198339-2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	2198339-2	-	-	View	Buy Now

2198339-2 Overview

I/O connectors zsfp+ stack 2x6 rcpt emi gasket W/4 LP

2198339-2 Parametric

Parameter Name	Attribute value
Manufacture	TE Connectivity
Product Category	I/O Connectors
Produc	zSFP Connectors
Number of Ports	12
Number of Positions	12
Contact Plating	Gold
Contact Material	Copper Alloy
Gende	Female
Current Rating	0.5 A
Mounting Style	Through Hole
Termination Style	Press Fi
Col	Black
Flammability Rating	UL 94 V-0
Housing Material	Liquid Crystal Polymer (LCP)
Operating Temperature Range	- 40 C to + 85 C
Packaging	Tray
Factory Pack Quantity	9
Type	Cage Assembly
Voltage Rating	120 V

Preview

Download Datasheet

View All

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

BY -

LOC

DIST

REVISIONS

LTR

DESCRIPTION

DATE

DWN

APVD

CAGE ASSEMBLY

REVISED

20APR2012

26SEP2012

08OCT2012

31MAY2013

MEC

CJV

MDM

MJP

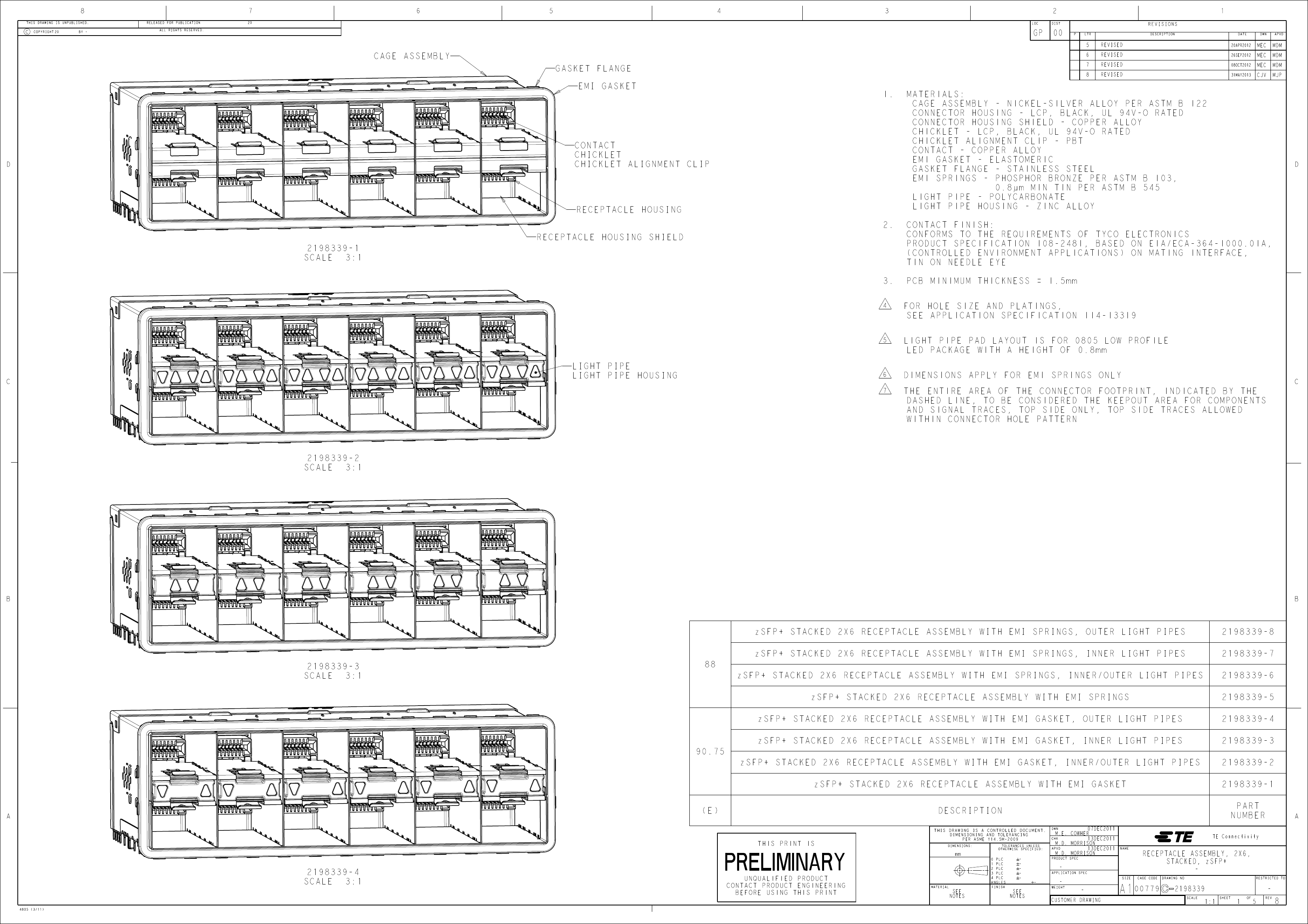

GASKET FLANGE

EMI GASKET

CONTACT

CHICKLET

CHICKLET ALIGNMENT CLIP

RECEPTACLE HOUSING

RECEPTACLE HOUSING SHIELD

MATERIALS:

CAGE ASSEMBLY - NICKEL-SILVER ALLOY PER ASTM B 122

CONNECTOR HOUSING - LCP, BLACK, UL 94V-O RATED

CONNECTOR HOUSING SHIELD - COPPER ALLOY

CHICKLET - LCP, BLACK, UL 94V-O RATED

CHICKLET ALIGNMENT CLIP - PBT

CONTACT - COPPER ALLOY

EMI GASKET - ELASTOMERIC

GASKET FLANGE - STAINLESS STEEL

EMI SPRINGS - PHOSPHOR BRONZE PER ASTM B 103,

0.8µm MIN TIN PER ASTM B 545

LIGHT PIPE - POLYCARBONATE

LIGHT PIPE HOUSING - ZINC ALLOY

CONTACT FINISH:

CONFORMS TO THE REQUIREMENTS OF TYCO ELECTRONICS

PRODUCT SPECIFICATION 108-2481, BASED ON EIA/ECA-364-1000.01A,

(CONTROLLED ENVIRONMENT APPLICATIONS) ON MATING INTERFACE,

TIN ON NEEDLE EYE

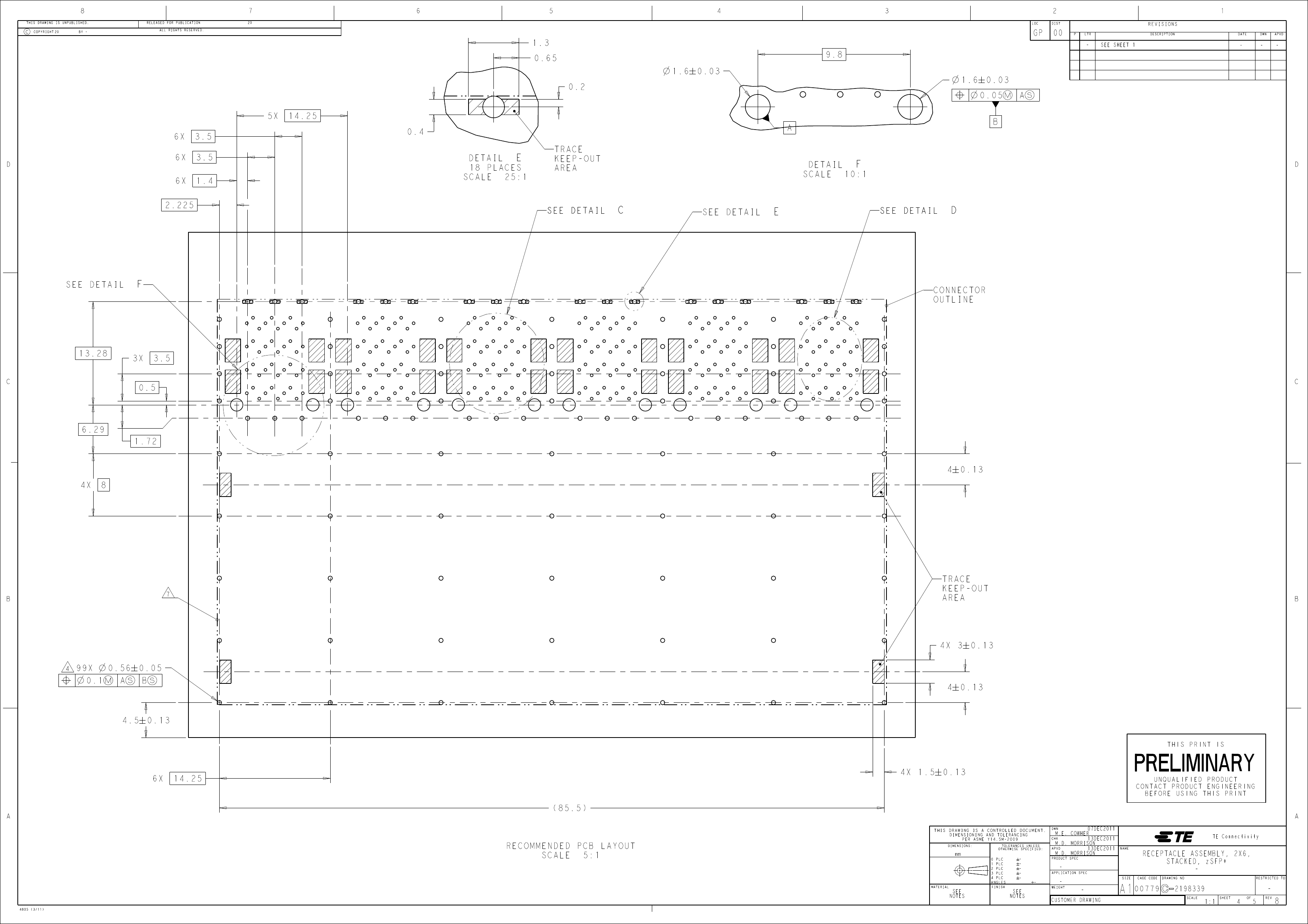

PCB MINIMUM THICKNESS = 1.5mm

FOR HOLE SIZE AND PLATINGS,

SEE APPLICATION SPECIFICATION 114-13319

LIGHT PIPE PAD LAYOUT IS FOR 0805 LOW PROFILE

LED PACKAGE WITH A HEIGHT OF 0.8mm

DIMENSIONS APPLY FOR EMI SPRINGS ONLY

THE ENTIRE AREA OF THE CONNECTOR FOOTPRINT, INDICATED BY THE

DASHED LINE, TO BE CONSIDERED THE KEEPOUT AREA FOR COMPONENTS

AND SIGNAL TRACES, TOP SIDE ONLY, TOP SIDE TRACES ALLOWED

WITHIN CONNECTOR HOLE PATTERN

2198339-1

SCALE

3:1

LIGHT PIPE

LIGHT PIPE HOUSING

2198339-2

SCALE

3:1

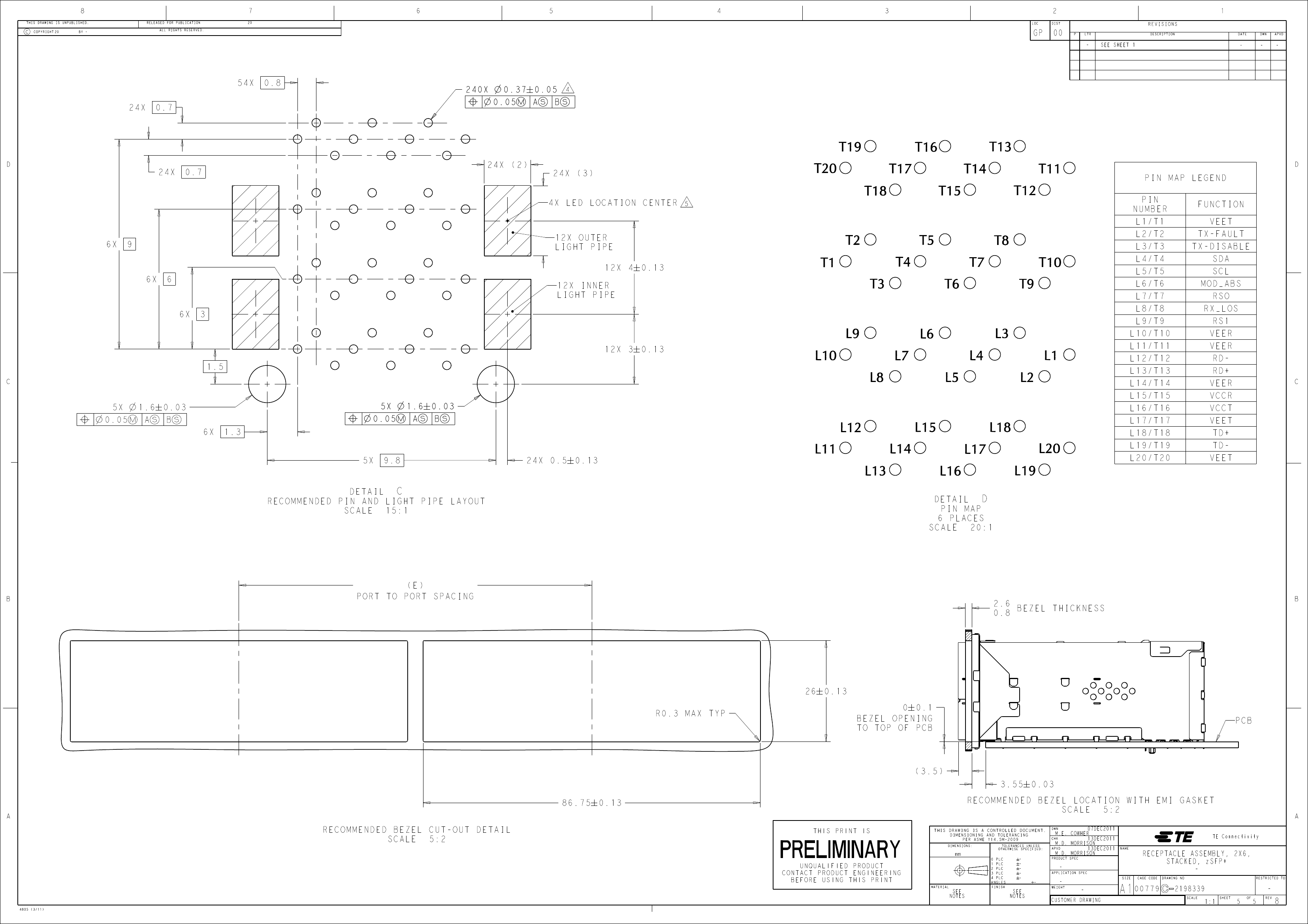

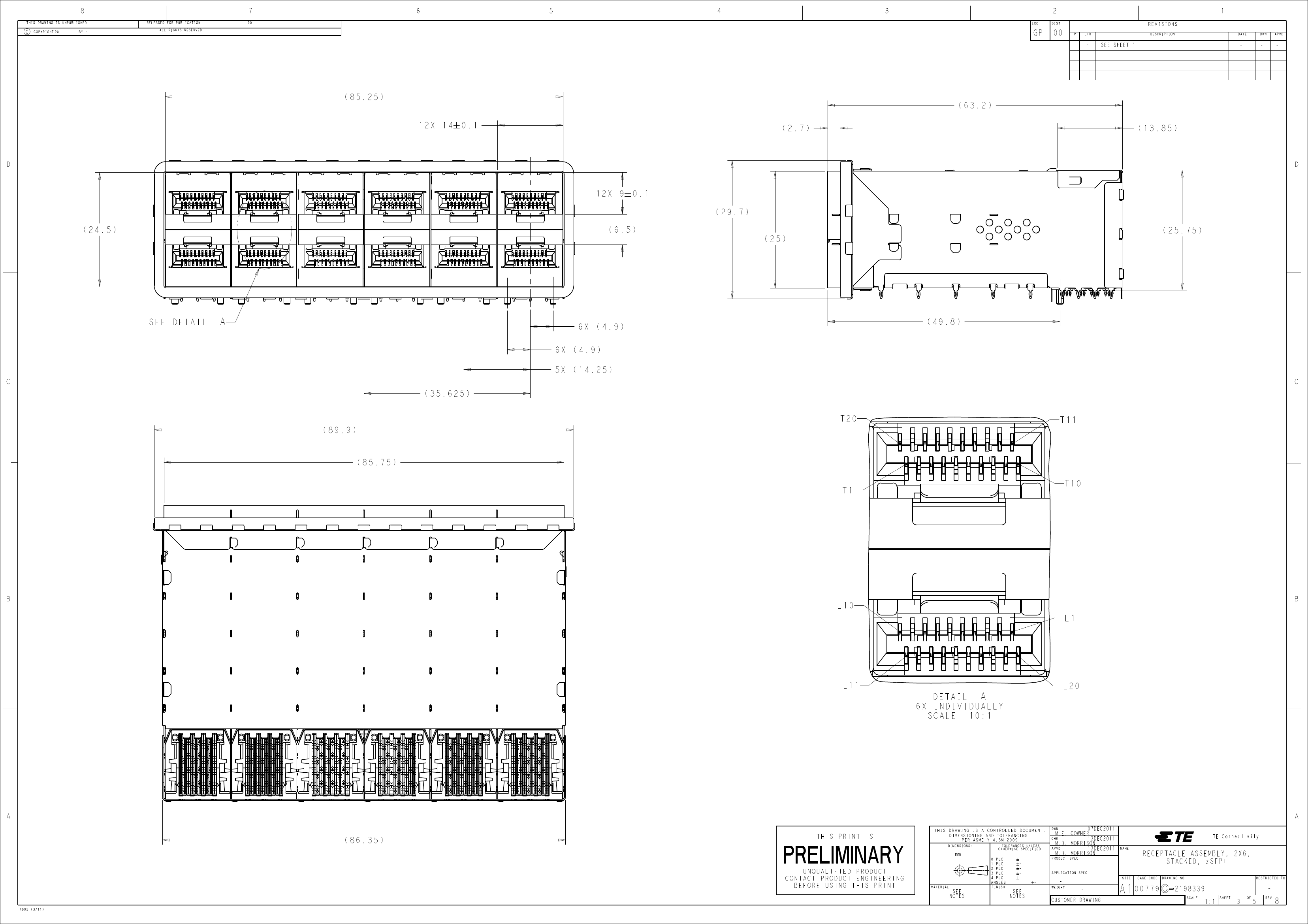

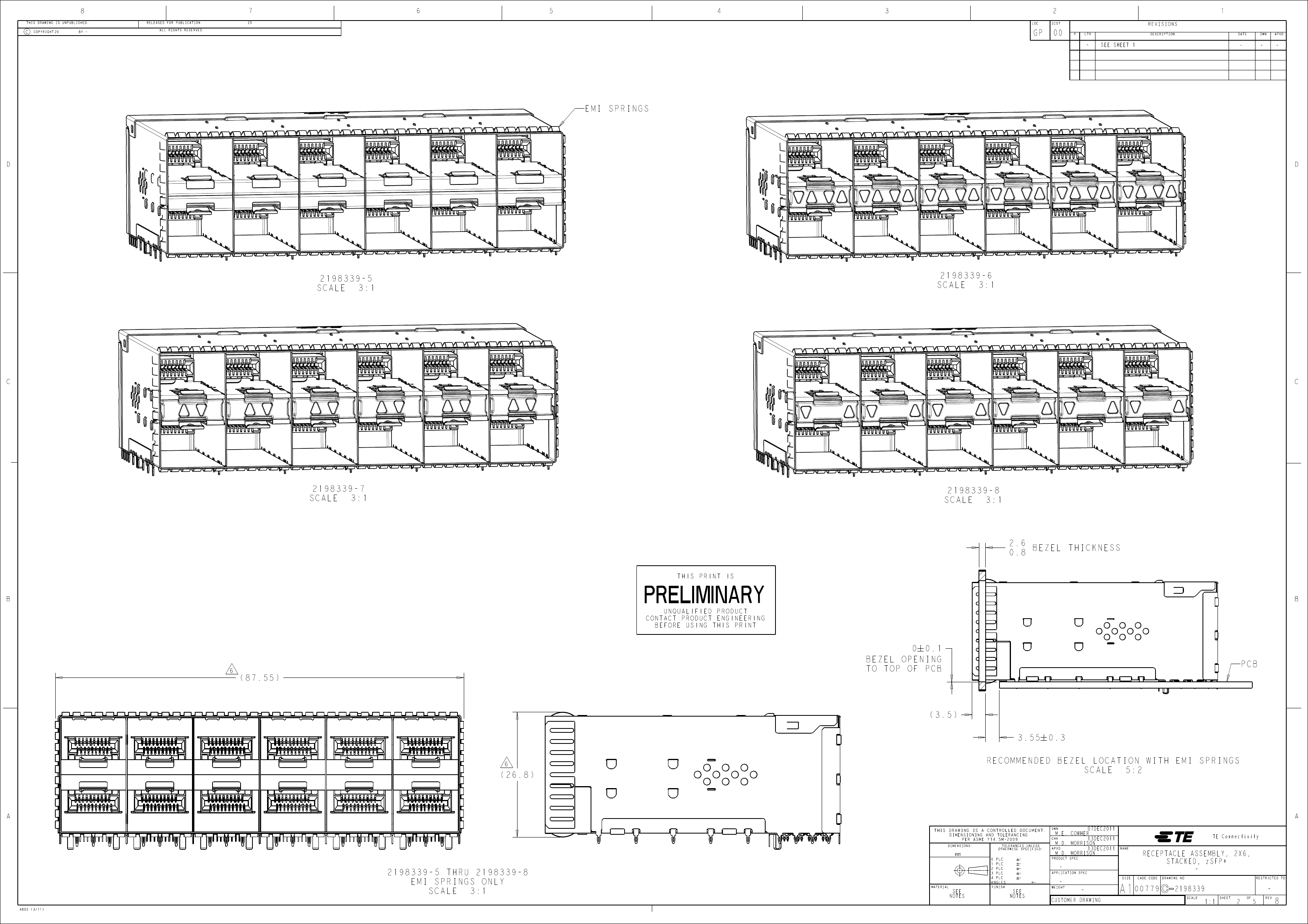

zSFP+ STACKED 2X6 RECEPTACLE ASSEMBLY WITH EMI SPRINGS, OUTER LIGHT PIPES

zSFP+ STACKED 2X6 RECEPTACLE ASSEMBLY WITH EMI SPRINGS, INNER LIGHT PIPES

zSFP+ STACKED 2X6 RECEPTACLE ASSEMBLY WITH EMI SPRINGS, INNER/OUTER LIGHT PIPES

zSFP+ STACKED 2X6 RECEPTACLE ASSEMBLY WITH EMI SPRINGS

zSFP+ STACKED 2X6 RECEPTACLE ASSEMBLY WITH EMI GASKET, OUTER LIGHT PIPES

90.75

zSFP+ STACKED 2X6 RECEPTACLE ASSEMBLY WITH EMI GASKET, INNER LIGHT PIPES

zSFP+ STACKED 2X6 RECEPTACLE ASSEMBLY WITH EMI GASKET, INNER/OUTER LIGHT PIPES

zSFP+ STACKED 2X6 RECEPTACLE ASSEMBLY WITH EMI GASKET

2198339-8

2198339-7

2198339-6

2198339-5

2198339-4

2198339-3

2198339-2

2198339-1

PART

NUMBER

2198339-3

SCALE

3:1

(E)

DESCRIPTION

THIS DRAWING IS A CONTROLLED DOCUMENT.

DIMENSIONING AND TOLERANCING

PER ASME Y14.5M-2009

DIMENSIONS:

DWN

CHK

2198339-4

SCALE

3:1

4805 (3/11)

PRELIMINARY

UNQUALIFIED PRODUCT

CONTACT PRODUCT ENGINEERING

BEFORE USING THIS PRINT

THIS PRINT IS

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

MATERIAL

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

13DEC2011

M.D. MORRISON

APVD

13DEC2011

M.D. MORRISON

PRODUCT SPEC

APPLICATION SPEC

M.E. COWHER

07DEC2011

NAME

TE Connectivity

SEE

NOTES

SEE

NOTES

WEIGHT

CUSTOMER DRAWING

00779

SIZE

CAGE CODE

RECEPTACLE ASSEMBLY, 2X6,

STACKED, zSFP+

DRAWING NO

RESTRICTED TO

2198339

SCALE

1:1

SHEET

REV
