DS37-FFC1-MN-03-SG20-PSR

Description
D Type Connector,
CategoryThe connector    The connector
File Size103KB,1 Pages
ManufacturerCentral Semiconductor
Environmental Compliance
Download Datasheet Parametric View All

DS37-FFC1-MN-03-SG20-PSR Overview

D Type Connector,

DS37-FFC1-MN-03-SG20-PSR Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Objectid145128873429
Reach Compliance Codeunknown
1
2
3
4
5
6
7
8
9
A
B

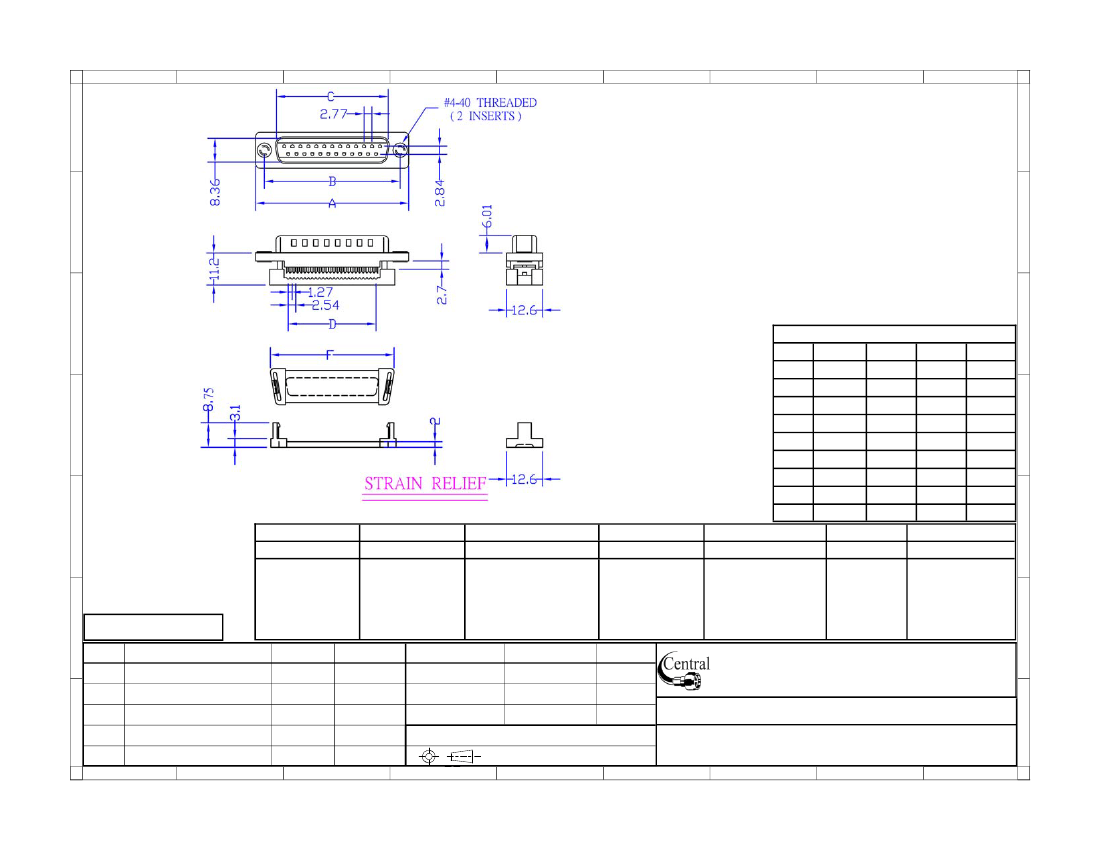

SPECIFICATIONS
Wire Size:
Insulation Material:
Contact Plating:
Contact Material:
Insulation Resistance:
Contact Resistance:
Operating Temp:
AWG 26~28
PBT +30% GF UL94V-0
Gold over Nickel
Phosphor Bronze
1000MΩ at 500VDC
15mΩ Max. Mated
-55ºC to 105ºC
A
B
C
D
E
Series
DSXX
D-Sub Connector
XX=09,15,25,37
F
RoHS compliant
Rev.
Description
Date
Dimensions (mm)
Pos.
A
B
C
D
9
30.89
24.99
16.92
10.16
15 39.14
33.32
25.25
17.78
25 53.09
47.04
30.48
37 69.39
63.50
55.45
45.72
Pos.
E
F
9
21.78
15
29.62
25
38.38
43.35
37
59.92
Type
Shell
Face Options
Contact Finish
Color
Options
XFC1
X
XX
XX
XX
XX
MFC1=Male IDC M=Metal Tin Plated
01=Through Hole [Blank]=SG
[Blank]=Black [Blank]=None
FFC1=Female IDC MN=Metal Nickel Plated 02=4-40 Th. Insert SGXX=Selective Gold BL=Blue
PSR=Plastic Strain
P=Plastic
03=Th. Inserts w/ XX=Flash if blank,
GY=Gray
Relief
Jackscrews
5,10,15,20,30u”
GD=Gold Flash
Drawing
Name
Approved Howard
Checked Lizzy
Drawn Tina
0.0 ± 0.35
Date
05/15/09
05/15/09
05/15/09 Part No.:
C
D
E
F
Approved
Central Components Manufacturing
440 Lincoln Blvd., Middlesex, New Jersey 08846
Phone 732 469-5720 888 288-5152 Fax 732 469-1919
DS25-MFC1-M-02-XX-XX-XX
G
7
8
9
G
0.00 ± 0.20 Angles ± 3’
UNIT: mm
5
6
Description: IDC D-Sub Connector
1
2
3
4
