DF22 Series
Complete
Locking
Function
Completely
enclosed
locking system
Protection from
shorts circuits
between adjacent
Contacts

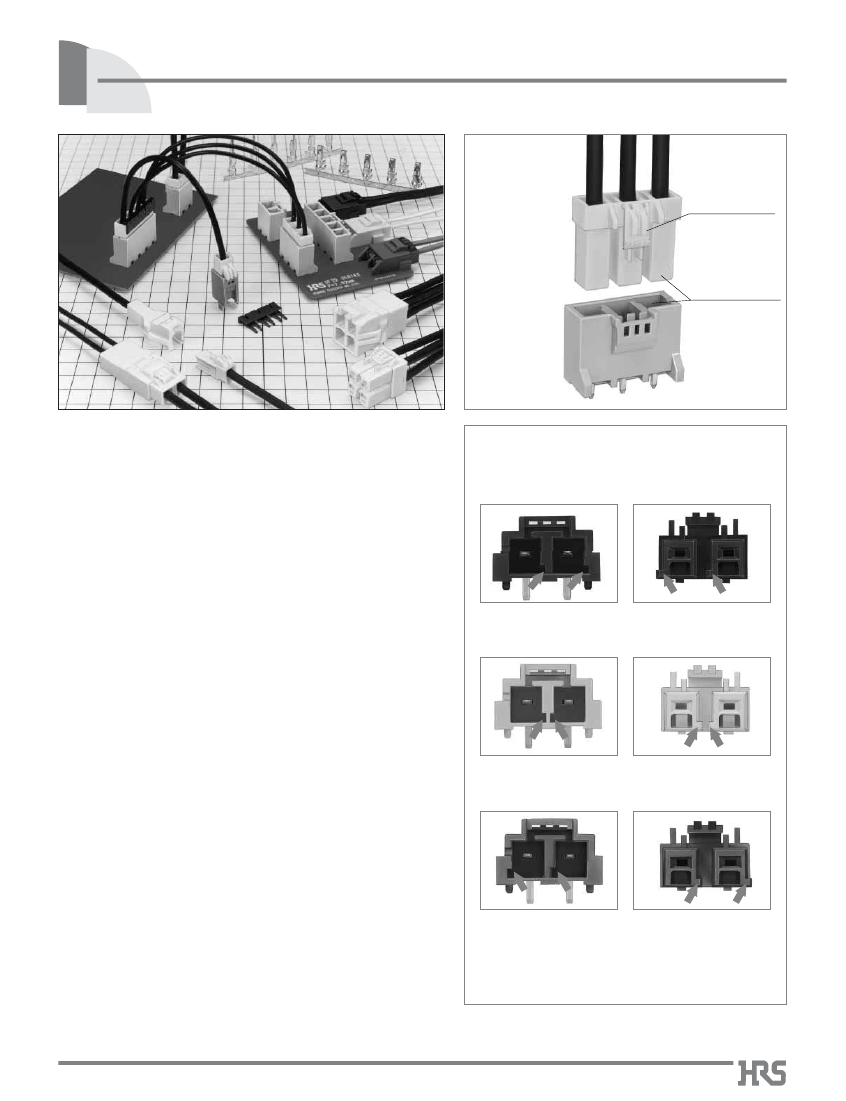

■Features
1. 30 A maximum current
Single position connector can carry current of 30 A with #10 AWG
conductor. Please refer to Table #1 for current ratings for multi-
position connectors using other conductor sizes.
Prevention of Incorrect Connections
●R
Type
(Guide key: right side, Color: black)
2. Complete Locking Function
Reliable interior lock protects mated connectors from accidental
disconnection.
3. Prevention of Incorrect Connections
To prevent incorrect connection when using multiple connectors
having the same Number of contacts, 3 product types having
different mating configurations are available.
4. Molded-in contact retention tabs
Handling of terminated contacts during the crimping is easier
and avoids entangling of wires, since there are no protruding
metal tabs.
●Standard
Type
(Guide key: inside, Color: natural)
5. Prevention of incorrect board placement
Built-in posts assure correct connector placement and
orientation on the board.
6. Supports encapsulation
Connectors can be encapsulated up to 10 mm without affecting
the performance.
7. Prevention of Short Circuits Between Adjacent Contacts
Each Contact is completely surrounded by the insulator housing
electrically isolating it from adjacent contacts.
●L
Type
(Guide key: left side, Color: red)
8. Increased Retention Force of Crimped Contacts
and confirmation of complete contact insertion
Separate contact retainers are provided for applications where
extreme pull-out forces may be applied against the wire or when a
visual confirmation of the full contact insertion is required.
9. Full Line of Crimp Socket Contacts
Realizing the market needs for multitude of different applications,
Hirose has developed several variants of crimp socket contacts
and housings. Continuous development is adding different
variations. Contact your nearest Hirose Electric representative
for latest developments.
*The
photographs on the left show header (the board
dip side), the photographs on the right show the
socket (cable side).
*The
guide key position is indicated in position facing
the mating surface of the header.
10. In-line Connections
Connectors can be ordered for in-line cable connections. In
addition, assemblies can be placed next to each other allowing
4 position total (2
∞
2) in a small space.
11. Listed by UL, C-UL, and TÜV.
2010.9
1
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
DF22 Series●7.92 mm Contact Pitch, High-Current Connectors for Internal Power Supplies (UL, C-UL and TÜV Listed)
■Product
Specifications
Current
rating
Ratings
AWG10
Number of contacts
30A
1
25A
2
25A
3
22A
4
22A
5
Specification
UL/C-UL
TÜV
AWG12
25A
20A
20A
18A
18A
AWG16
AWG14
15A
20A
15A
18A
15A
18A
13A
15A
13A
15A
AC/DC 1000V
AC/DC
600V
AC/DC
600V
Operating temperature range -35ç to 85ç (Note 1)
Operating humidity range 20% to 80%
Storage temperature range -10ç to 60ç (Note 2)
Storage humidity range 40% to 70% (Note 2)
UL/C-UL/TÜV
UL
C-UL
TÜV
File No. and Recognition No.
: E52653
: E52653
: R9950703
Voltage
rating
Item
1. Contact resistance
2. Insulator resistance
3. Withstanding voltage
Specification
Contact resistance(Initial value): 5 m ohms max.
1000 M ohms min.
No flashover or Insulator breakdown
0.3N min., 5N max.
Contact resistance of 10 m ohms max.
No electrical discontinuity of 1
μs.
min.
No electrical discontinuity of 1
μs.
min.
Contact resistance 10 m ohms max.
Contact resistance of 10 m ohms max.
No deformation of the insulator parts affecting performance
20mV max., 1mA
1000 V DC
2500 V AC for 1 minute
Condition
4. Insertion-Extraction force (per contact)
5. Durability (mating/unmating)
6. Vibration
7. Shock
8. Humidity
9. Temperature cycle
10. Resistance to Soldering heat
Measured with a steel pin of 1.6 x 0.8
±
0.002 thickness
30 cycles
Frequency 10 to 55 Hz, single amplitude of 0.75 mm, 3 axis, duration of 2 hours
Acceleration of 490 m/s
2
, 11 ms duration, sine half-wave waveform, 3 cycles in each of the 3 axis.
Temperature 40ç
±
2ç, 90% to 95% RH, 96 hours
(-55ç: 30 minutes➝ 5 to 35ç: 5 minutes➝85ç: 30 minutes➝5 to 35ç: 5 minutes) for 5 cycles
Flow solder temperature 250ç, for 10 seconds
Manual soldering: Soldering iron temperature 300ç, 3 seconds
Note 1: Current rating of header is 30A (1 pos.) and 25A (2 to 5 pos.)
Note 2: Includes temperature rise caused by the current flow.
Note 3: The term "storage" refers to products stored for long period of time prior to mounting and use. Operating Temperature Range and Humidity
range covers non- conducting condition of installed connectors in storage, shipment or during transportation.
Note 4: Information contained in this catalog represents general requirements for this Series. Contact us for the drawings and specifications for a
specific part number shown.
■Materials
Product
Sockets
Crimp contacts
Headers
Part
Insulator
Contacts
Insulator
Contacts
Material
Polyamide
High conductivity copper alloy
Polyamide (Glass reinforced)
High conductivity copper alloy
Finish
Color: Natural white
Tin-lead plated
Color: Natural beige
Tin-copper plated
(Note)
(Note)
Remarks
UL94V-0
----------
UL94V-0
----------
Note : Standard Color, colors of the differing coupling forms are black for DF22R and red for DF22L.
■Ordering
Information
●Socket,
Header
●Contacts
DF22 B L - 2 S - 7.92 C
1
2
3
4
5
6
7
4
Number of contacts : 1 to 5
5
Connector type
S
DS
P
EP
DEP
RS/P
6
Contact pitch
7
Type of housing
C
DSA
DS
No letter
DF22 A - 1416 SCF
1
8
9
8
Applicable Cable
Blank : UL1430
A
: UL1015
9
Applicable Conductor
1416 : AWG 14 to AWG 16
1012 : AWG 10 to AWG 12
10
Packaging
SCF : Socket contacts / Reel
SC : Socket contacts / Bag
PCF : In-line plug contacts / Reel
PC : In-line plug contacts / Bag
10
1
Series name: DF22
2
Form Type
Sockets
Blank : Standard height, standard lock (Type I)
B : Long type, standard lock (Type III)
C : Long type, ergonomic lock (Type IV)
In-line Plugs
Blank : With panel stop
A : Without panel stop
3
Guide key type
Blank : Inside (Color: natural)
R : Right side (Color: black)
L : Left side (Color: red)
: Socket
: Double-row socket
: Header
: In-line plug
: Double-row in-line plug
: Retainer
: 7.92 mm
: Crimp housing
: Straight header
: Right-angle header
: Retainer
2
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
DF22 Series●7.92 mm Contact Pitch, High-Current Connectors for Internal Power Supplies (UL, C-UL and TÜV Listed)

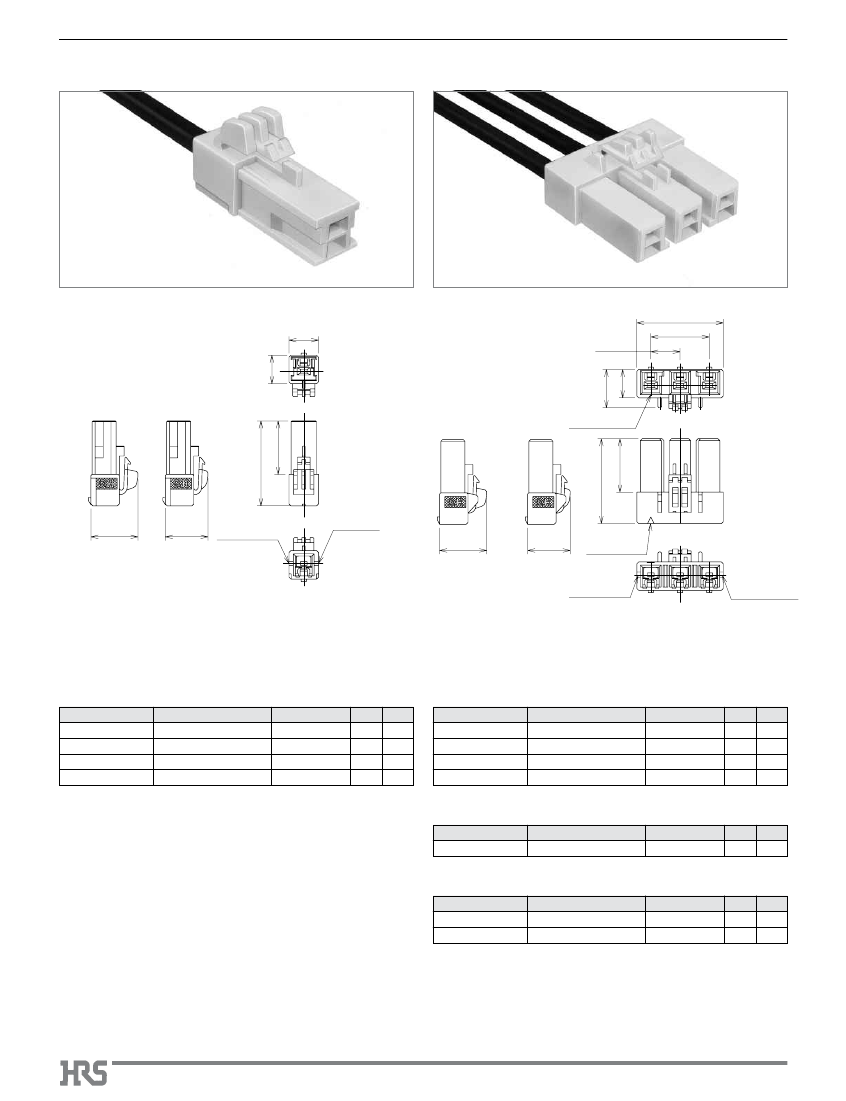

■Crimp
Sockets (Standard Type)
Shown with terminated and installed contacts.
Shown with terminated and installed contacts.
1 Pos.
7.7
8
2 to 5 Pos.
P=7.92
A
B
Type
1
Standard lock
14.5
Contact No. 1
20
10.4
20
Type
1
Standard lock
(11.55)
Cavity No.
A
1
No. of contacts
indicator
(11.55)
Contact No. 1
indicator
A
3
14.5
7.7
Cavity No.
No. of contacts
indicator
■
Type I
Height: Standard type, Standard lock
Note: The part number and CL No. have changed to accommodate
the product form change of the 2 to 5 pos. types.
Standard Type (Guide Key: Inside, Color: White)
Part Number
DF22-1S-7.92C(28)
DF22-2S-7.92C(28)
DF22-3S-7.92C(28)
DF22-4S-7.92C(28)
DF22-5S-7.92C(28)
CL No.
680-1012-2-28
680-1004-4-28
680-1005-7-28
680-1006-0-28
680-1007-2-28
Number of contacts
1
2
3
4
5
A
B
8.00 -----
15.50 7.92
23.42 15.84
31.34 23.76
39.26 31.68
R Type (Guide Key: Right Side, Color: Black)
Part Number
DF22R-1S-7.92C(28)
DF22R-2S-7.92C(28)
DF22R-3S-7.92C(28)
DF22R-4S-7.92C(28)
DF22R-5S-7.92C(28)
CL No.
680-1026-7-28
680-1027-0-28
680-1028-2-28
680-1029-5-28
680-1030-4-28
Number of contacts
1
2
3
4
5
A
B
8.00 -----
15.50 7.92
23.42 15.84
31.34 23.76
39.26 31.68
L Type (Guide Key: Left Side, Color: Red)
Part Number
DF22L-1S-7.92C(28)
DF22L-2S-7.92C(28)
DF22L-3S-7.92C(28)
DF22L-4S-7.92C(28)
DF22L-5S-7.92C(28)
CL No.
680-1031-7-28
680-1032-0-28
680-1033-2-28
680-1034-5-28
680-1035-8-28
Number of contacts
1
2
3
4
5
A
B
8.00 -----
15.50 7.92
23.42 15.84
31.34 23.76
39.26 31.68
Note: Bag packaging (100 pieces/bag). Order by number of bags.
3
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
DF22 Series●7.92 mm Contact Pitch, High-Current Connectors for Internal Power Supplies (UL, C-UL and TÜV Listed)

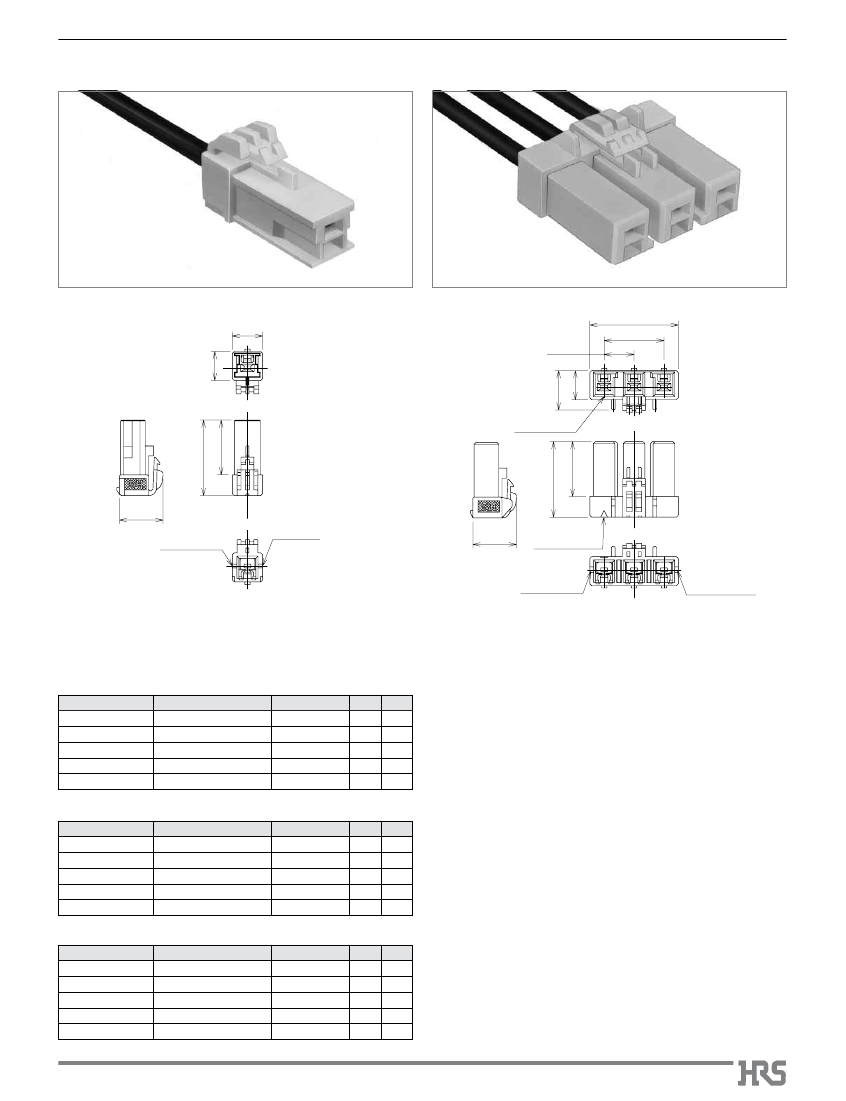

■Crimp
Sockets (Height, Long Type)
Shown with terminated and installed contacts.
Shown with terminated and installed contacts.
1 Pos.
8
7.7
2 to 5 Pos.
P=
7.92
A
B
Type
4
Type
3
Height: Long type, Height: Long type,
Enhanced
Standard lock
ergonomic lock
Type
4
Type
3
Height: Long type, Height: Long type,
Enhanced
Standard lock
Contact No. 1
ergonomic lock
14.5
14.5
23
(12.75)
(11.55)
Cavity No.
A
1
No. of contacts
indicator
(12.75)
(11.55)
Contact No. 1
indicator
A
3
23
10.4
7.7
Cavity No.
No. of contacts
indicator
■
Type III
Height: Long type, Standard lock
■
Type IV
Height: Long type, Enhanced ergonomic lock
Standard Type (Guide Key: Inside, Color: White)
Part Number
DF22B-2S-7.92C
DF22B-3S-7.92C
DF22B-4S-7.92C
DF22B-5S-7.92C
CL No
.
680-1097-5
680-1098-8
680-1099-0
680-1100-8
Number of contacts
2
3
4
5
A
B
15.50 7.92
23.42 15.84
31.34 23.76
39.26 31.68
Standard Type (Guide Key: Inside, Color: White)
Part Number
DF22C-1S-7.92C
DF22C-2S-7.92C
DF22C-3S-7.92C
DF22C-4S-7.92C
CL No
.
680-1101-0
680-1102-3
680-1103-6
680-1104-9
Number of contacts A
B
1
8.00 -----
2
15.50 7.92
3
23.42 15.84
4
31.34 23.76
Note: Bag packaging (100 pieces/bag). Order by number of bags.
R Type (Guide Key: Right Side, Color: Black)
Part Number
DF22CR-3S-7.92C
CL No
.
680-1130-9
Number of contacts A
B
3
23.42 15.84
L Type (Guide Key: Left Side, Color: Red)
Part Number
DF22CL-1S-7.92C
DF22CL-3S-7.92C
CL No
.
680-1133-7
680-1135-2
Number of contacts A
B
1
8.00 -----
3
23.42 15.84
Note: Bag packaging (100 pieces/bag). Order by number of bags.
4
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
DF22 Series●7.92 mm Contact Pitch, High-Current Connectors for Internal Power Supplies (UL, C-UL and TÜV Listed)

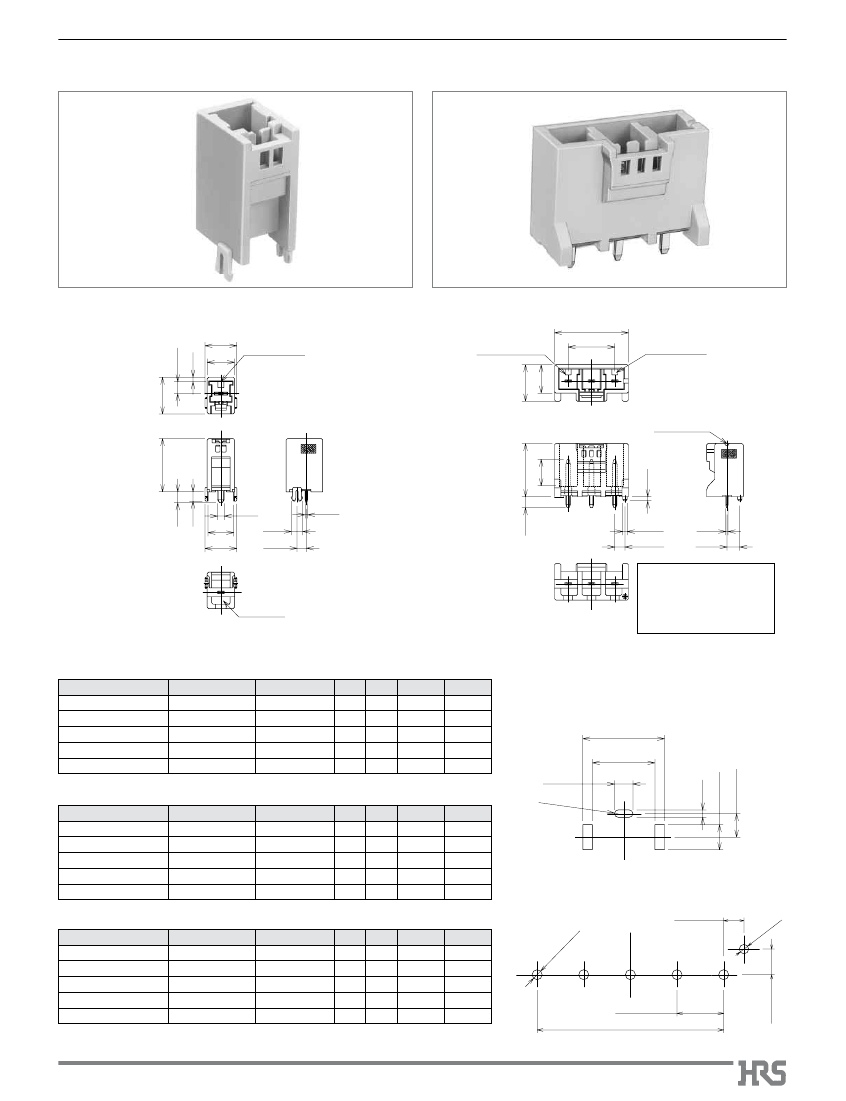

■Straight
header
1 Pos.
10.8
4.05
1.5
9.3
A
2 to 5 Pos.
Cavity No.
No. of contacts
indicator
12.45
9.7
3
A
B
A
Cavity No.
12.45
Contact No. 1
indicator
18.1
18.1
9
3.7
3.2
2.3
8.7
10.8
3.9
3.2
0.8
3.7
Ø1.5
3.45
0.8
4.35
1
No. of contacts
indicator
Standard Type (Guide Key: Inside, Color: Natural Beige)
Part Number
DF22-1P-7.92DSA(**)
DF22-2P-7.92DSA(**)
DF22-3P-7.92DSA(**)
DF22-4P-7.92DSA(**)
DF22-5P-7.92DSA(**)
CL No.
680-1013-5-**
680-1014-8-**
680-1015-0-**
680-1016-3-**
680-1017-6-**
Number of contacts
1
2
3
4
5
A
B Bag Packaging Tray Packaging
-----
10.08 -----
✓
-----
✓
17.22 7.92
-----
✓
25.14 15.84
-----
✓
33.06 23.76
-----
✓
40.98 31.68
■
PCB mounting pattern
(Board thickens: 1.6±0.1)
1 Pos.
11.1±0.1
8.5
2.5
+0.1
0
2-R0.5
+0.1
--0.2
1.4
[Specification number]
(05) : Tin-copperplated
bag packaging
(25) : Tin-copperplated
tray packaging
R Type (Guide Key: Right Side, Color: Black)
Part Number
DF22R-1P-7.92DSA(**)
DF22R-2P-7.92DSA(**)
DF22R-3P-7.92DSA(**)
DF22R-4P-7.92DSA(**)
DF22R-5P-7.92DSA(**)
CL No.
Number of contacts
1
680-1036-0-**
2
680-1037-3-**
3
680-1038-6-**
4
680-1039-9-**
5
680-1040-8-**
A
B Bag Packaging Tray Packaging
-----
-----
10.08
✓
-----
✓
17.22 7.92
-----
✓
25.14 15.84
-----
✓
33.06 23.76
-----
✓
40.98 31.68
2 to 5 Pos.
3.45±0.05
+
0
0 .1
L Type (Guide Key: Left Side, Color: Red)
Part Number
DF22L-1P-7.92DSA(**)
DF22L-2P-7.92DSA(**)
DF22L-3P-7.92DSA(**)
DF22L-4P-7.92DSA(**)
DF22L-5P-7.92DSA(**)
Number of contacts
CL No.
1
680-1041-0-**
2
680-1042-3-**
3
680-1043-6-**
4
680-1044-9-**
5
680-1045-1-**
A
B Bag Packaging Tray Packaging
-----
-----
10.08
✓
-----
✓
17.22 7.92
-----
✓
25.14 15.84
-----
✓
33.06 23.76
-----
✓
40.98 31.68
*
-Ø
1.
7
3.4±0.1
3.2±0.05
1
+0.1
0
Ø1
.6
.1
+0 0
P=7.92±0.05
B±0.05
Note 1: Bag packaging (100 pieces/bag). Order by number of bags.
Note 2: Tray packaging (150 pieces/tray). Order by number of 150.
Active Power Filter, a new technology that uses power electronics technology to suppress harmonics and improve power quality, has become a new hot spot in the field of power system research in recent ...
I am using DK-LM3S9B96... It has a solidified Bootloader. I have studied how to start the Bootloader and want to force it to start from the solidified Bootloader when powered on, without checking whet...
hFlash = OpenStore(L"MSFlash"); hFlash = OpenStore(L"DSK0:"); What is the difference between these two sentences? Why can I only use the first sentence in the case of multi-bin, but only the second se...
With the booming electronics industry, vision systems have become a leader in the electronics automation sector. However, the delicate nature of electronic products often affects product yields due...[Details]
The intelligent driving community has its own rhythm. Some are busy pushing new versions and focusing on R&D, others are busy with publicity and promotion, and still others are immersed in mass pro...[Details]
A line scan lens is an industrial lens used with line scan cameras. Its imaging principle is to capture the image of the workpiece using a linear sensor and then perform digital signal processing t...[Details]
New energy vehicles are increasingly popular with consumers due to policies and energy conservation. Once you've purchased your vehicle, maintenance is essential. However, due to the different powe...[Details]
On August 24th, media outlets reported, citing sources, that NavInfo, a listed company on the A-share market, is nearing completion in its acquisition of the intelligent driving c...[Details]
Zos Automotive Research Institute released the "2025
Smart Cockpit
Tier 1 Research Report (Domestic Edition)."
This report analyzes the operating conditions of more than a dozen ...[Details]
Robotics
has become
LiDAR
's "second growth curve."
While LiDAR was still battling with its "pure vision" rivals in the automotive field, another field ignited the demand f...[Details]
Based on a survey of more than ten intelligent robot companies, this article sorts out and analyzes the current development status of the intelligent industry and the challenges and differences it ...[Details]
The all-new MG4 was recently officially announced on the Ministry of Industry and Information Technology's (MIIT) new vehicle announcement. The all-new MG4's semi-solid-state battery version addres...[Details]
The digital TV set-top box consists of a tuner, QAM demodulator, TS demultiplexer, MPEG-2 decoder, PAUNTSC video encoder, embedded CPU system and peripheral interfaces, CA module, and uplink data m...[Details]
UPS stands for Uninterruptible Power Supply, which includes energy storage devices. It is mainly used to provide uninterruptible power supply for devices that require high power stability.
...[Details]
On August 21st, BYD announced the launch of its next-generation "Little White Pile" product, the "Lingchong"
charging
pile
, which is now available for general sale. This charging pile feat...[Details]
The range of an electric vehicle is crucial to the driving experience, and range anxiety is a common headache when driving an electric vehicle. Although the latest electric vehicles can achieve a r...[Details]
New version helps developers build secure and trustworthy embedded systems
Shanghai, China—August 21, 2025—
QNX, a division of BlackBerry Ltd., today announced the release of QNX...[Details]
Summer is the peak season for buying and using air conditioners. Do you pay attention to the energy efficiency of your air conditioner? Did you buy a DC inverter air conditioner? Do you know the re...[Details]
Microcontroller MCU
京公网安备 11010802033920号
EEWORLD
