701W-X2/03

Description
AC power entry modules snap-In mnt solder
CategoryThe connector    The connector
File Size329KB,1 Pages
ManufacturerQualtek Electronics Corporation
Websitehttp://www.qualtekusa.com/
Environmental Compliance
Download Datasheet Parametric View All

701W-X2/03 Overview

AC power entry modules snap-In mnt solder

701W-X2/03 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerQualtek Electronics Corporation
Reach Compliance Codeunknow
ECCN codeEAR99
Other featuresAPPROVALS: UL; VDE
body width0.93 inch
subject depth0.76 inch
body length1.21 inch
Body/casing typeRECEPTACLE
Connector typeMAINS POWER CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact point genderFEMALE
Contact materialNOT SPECIFIED
Coupling typeSNAP
Power Connector Ratings15A, 250VAC
Installation typePANEL
OptionsGENERAL PURPOSE
GuidelineCCC; CSA
Total number of contacts3
Base Number Matches1

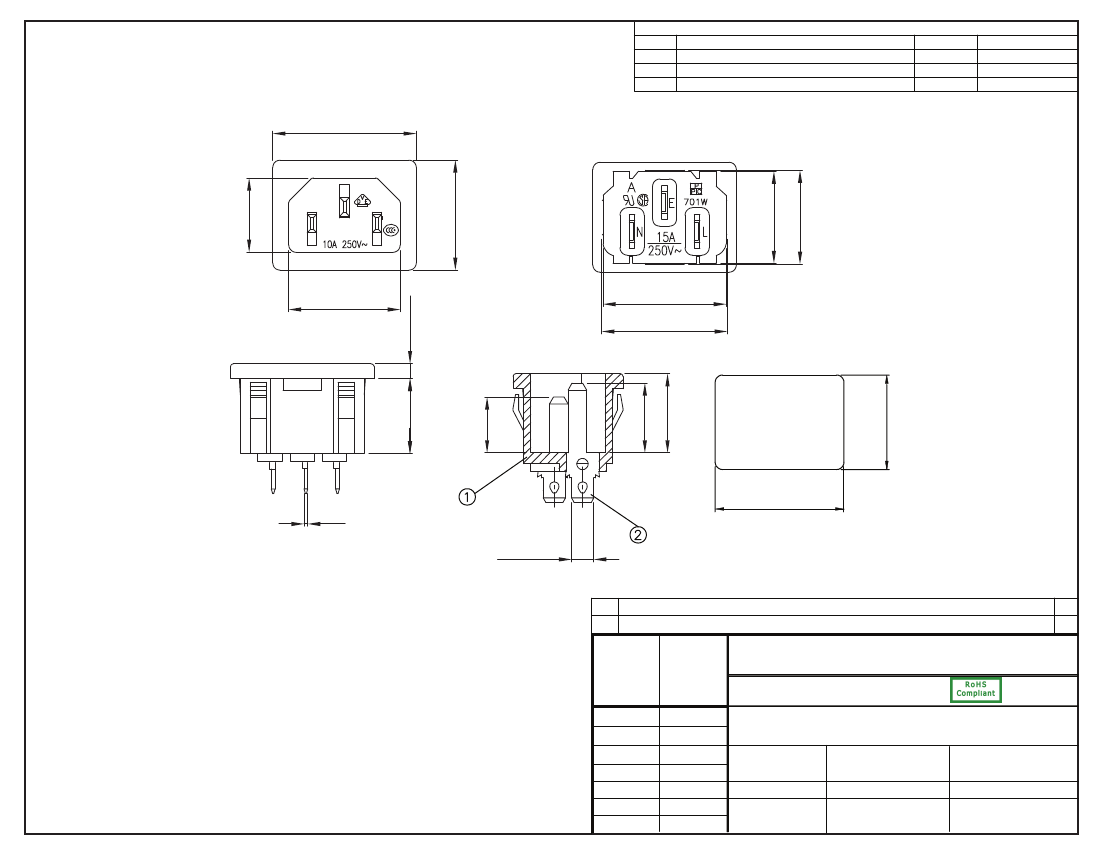

THESE DRAWINGS ARE THE PROPERTY OF QUALTEK
ELECTRONICS AND NOT TO BE REPRODUCED FOR
OR COMMUNICATED TO A THIRD PARTY WITHOUT
THE EXPRESS WRITTEN PERMISSION OF AN OFFICER
OF QUALTEK ELECTRONICS.
30.7 ± 0.3
REVISION
REV.
B
C
D
DESCRIPTION
RoHS Compliancy
Updated Dimensions
Updated Panel Thickness, Cutout, and Approvals
DATE
06-01-06
06-30-08
03-03-16
APPROVED
DP
DP
LY
23.7 ± 0.3
19.8 ± 0.3
26.5 ± 0.3
27 ± 0.3
15 ±
0.5
0
17 ±
0
1
24 ±
0.5
0
3.2 ± 0.2
20 ± 0.3
16 ±
0
0.5
16
1
0.5
12 ±
0.8
4.8 ± 0.15
2
1
27 ±
0.2
0
20 ±
0.2
0
CONTROLLED
Contact Pin Brass Strip Tin-Plated
Body Insulator Nylon Black Color
Dim
range
(mm)
0-1
1-6
6-18
18-50
50-120
120-250
250-500
Tolerance
+/-
(mm)
0.15
0.20
0.30
0.50
0.70
0.90
1.20
Drawn / Date
B.Zhang
05-24-05
3
1
NOTES:
RATING:
UL, CSA: 15A 250V AC
VDE, CCC: 10A 250V AC
INSULATION RESISTANCE: OVER 100M OHM 500V DC
DIELECTRIC RESISTANCE: 2000V AC ONE MINUTE
PANEL THICKNESS: 0.8mm ~ 1.5mm
APPROVALS: UL,CSA, VDE, CCC
RoHS COMPLIANT
Qualtek Electronics Corp.
Part Number:
Description:
PPC DIVISION
701W-X2/03
AC RECEPTACLE
UNIT: mm
Checked / Date
05-24-05
REV. D
Approved / Date
JJH / 05-24-05
