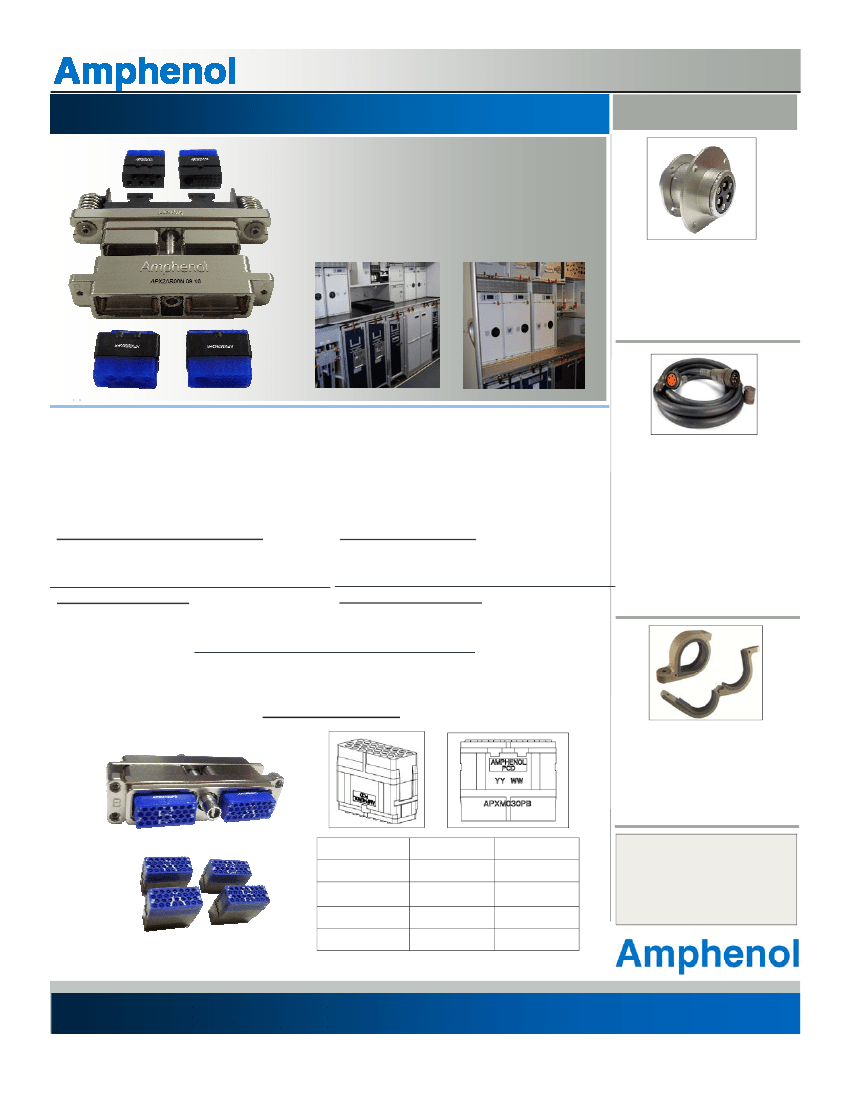

APeX Galley Connector, Rectangular
Interchangeable and Intermateable
Overmold Technology
Blind-Mate Connection
ARINC 810 Conformity
Other High Performance Products
APeX Galley Connector, Circular
Intermateable/Interchangeable
Blind-mate connection
Highly Reliable and Durable
Intermateable and interchangeable with other ARINC 810 galley connectors,
Amphenol Pcd’s
APeX Galley Connector, Rectangular
is a reliable, robust
connector that uses overmold technology to set it apart from the rest.
Cable Solutions
Molded Cables for Tactical
Digital Communications
Custom Molded Cables for
Harsh Environments
PRC 117F/G and PRC-152
Radio / Data Cables
Mil-22992 Class L Heavy Duty
Power Cables
Soldier Accessories Connectors
and Cables
Benefits at a Glance
Intermateable and Interchangeable
Ability to mate with other ARINC 810 galley
connectors in the market
Overmold Technology
Enables exceptional sealing that improves
safety and reliability
Blind-Mate Connection
Guide pin feature enables quick and simple
mating
Intuitive and Ergonomic
Smooth, low insertion force to mate connector
Other APeX Rectangular Connectors
30-pin insert, Size 20
High Performance P-Clamps
PEEK polymer
Non-corrosive & Non-conductive
Overmolded silicone cushions
Lightweight
Part Number
APXM030PA
APXM030PB
APXM130PA
APXM130PB
Contact us or more information
Polarization
A
B
A
B
Contact
none
none
CNP820100
CNP820100
72 Cherry Hill Drive
Beverly, MA 01915 USA
info@amphenolpcd.com
978-624-3400
Amphenol Pcd
www.amphenolpcd.com
email: info@amphenolpcd.com
978-624-3400

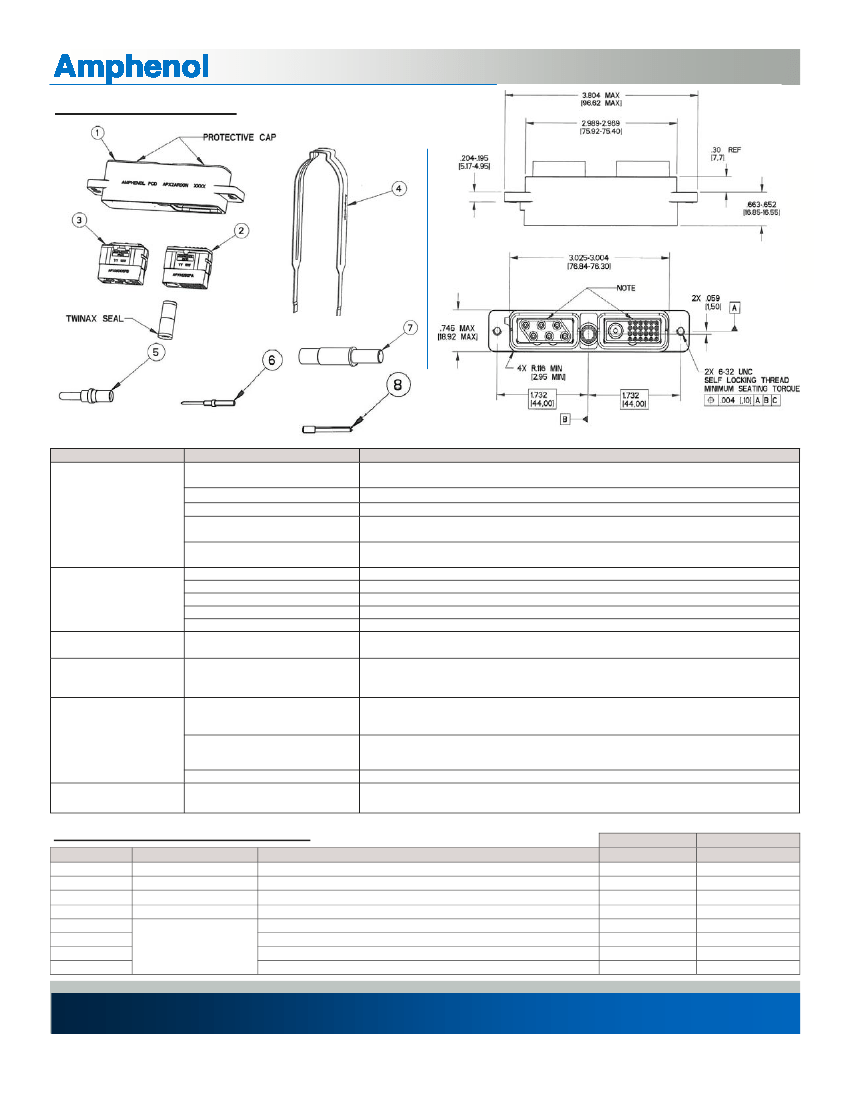

Plug: APX2A801
Note: socket insert installed; protective cap not shown
Item
Part
Strain relief
Retention nut
Male fastener body
Insert retention clip
Float-mounted eyelet
Float-mounted spring
Shell
Material
PEI thermoplastic 40% carbon fiber
Stainless steel per AISI 316, passivated
Stainless steel per AISI 316, passivated
Copper alloy per ASTM B194
Stainless steel per AISI 316, passivated
Stainless steel per AISI 302, passivated
Aluminum allow 6061T651 per AMS-QQ-A-250/11, electroless nickel per Mil-C-26074 0.001 inch
min
EPDM elastomer per ASTM D3568
Polyethermide thermoplastic per ASTM D5205
PEEK thermoplastic per Mil-P-46183
Silicone elastomer per ASTM-D-2000
Polyethermide thermoplastic per ASTM D5205
Silicone elastomer per A-A-59588A class 3B
Stainless steel per AISI 301
Copper alloy per ASTM B196, gold plate per AMS2422, 50 microinches min. over nickel plate, 40 to
200 microinches per QQ-N-290
Stainless steel per AISI 305 per ASTM A 580, passivated
Copper alloy per ASTM B196, gold plated per Mil-G-45204, 50 micoinch min. over nickel plate per
QQ-N-290, 50 microinch min
Brass per ASTM B453, gold plated per Mil-G-45204, 50 micoinch min. over nickel plate per QQ-N-
290, 50 microinch min
TFE thermoplastic per AMS 3651
PTFE thermoplastic per ASTM-D1710
1
Plug shell assembly
2&3
25 socket insert with
twinax seal
6 socket insert
4
Insertion/Removal tool
5&6
Socket contact size 12
Socket contact size 22
7
Socket twinax
contact size 8
8
Sealing plug
Protective cap
Housing
Retention clips
Grommet
Twinax seal housing
Twinax seal grommet
Tool
Body
Sleeve
Outer and Inner contacts
Shield ferrule
Front insulator and spacer insulator
Sealing plug
Plug Part Numbers and Descriptions
Item
1
2
3
4
5
6
7
8
APX2A801K
Desc
Plug shell assembly with protective cap
25 socket insert polarization A with twinax seal
6 socket insert polarization B
Insert insertion/Removal tool
CNS812100, APeX socket contact, size 12
CNS822100, APeX socket contact, size 22
CNS882100, APeX socket twinax contact, size 8
CNA032401, sealing plug size 22
APX2A801C
Qty/Assy
1
1
1
1
6
24
1
3
Part No.
APX2BL00N
APXM25QSA
APXM006SB
APXTL0001
455400200
Qty/Assy
1
1
1
1
0
0
0
0
Amphenol Pcd
www.amphenolpcd.com
email: info@amphenolpcd.com
978-624-3400

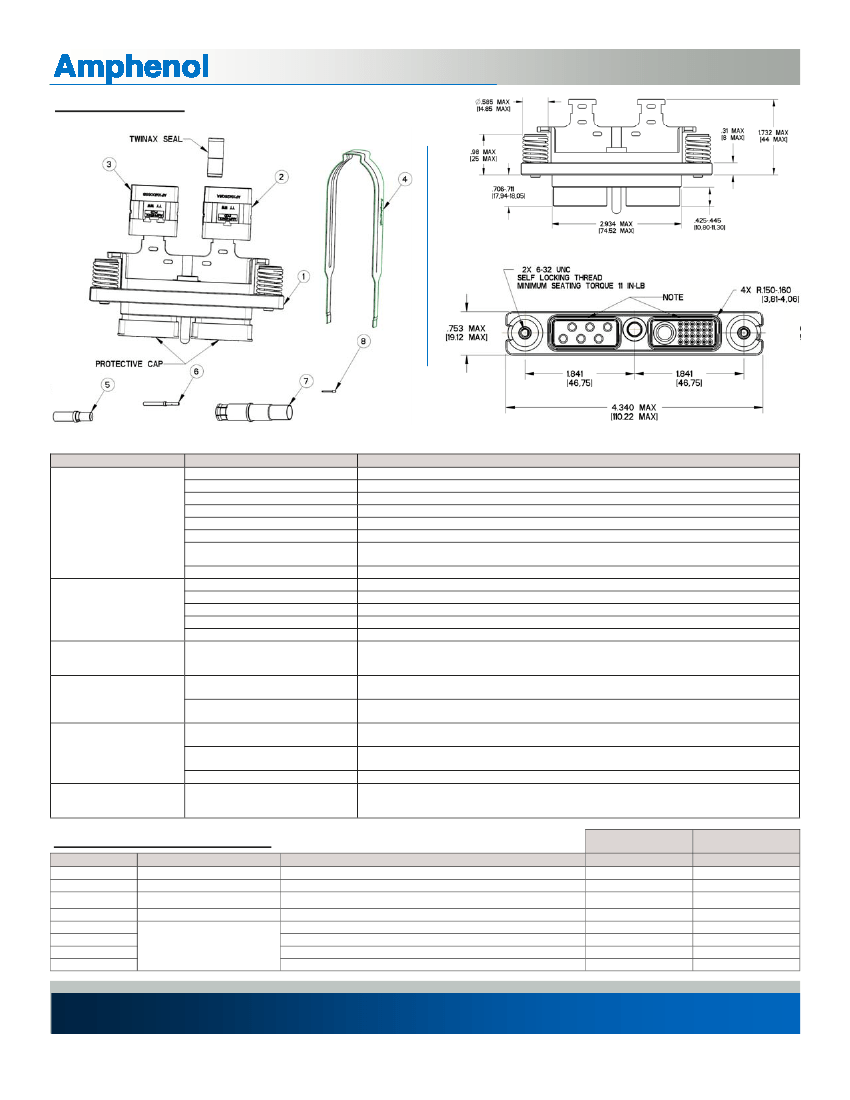

Receptacle: APX2B801
Note: pin insert installed; protective cap not shown
Item
Part
Shell
Material
Aluminum alloy 6061T651 per AMS-QQ-A-250/11
electroless nickel per MIL-C-26074 .001 inch min
Stainless steel per AISI 316, passivated
Stainless steel per AISI 316, passivated
Copper alloy per ASTM B194
EPDM elastomer per ASTM D3568
Polyetherimide thermoplastic per ASTM D5205
Peek thermoplastic per MIL-P-46183
Silicone elastomer per ASTM-D-2000
Polyetherimide thermoplastic per ASTM D5205
Silicon elastomer per A-A-59588A class 3B
Stainless steel per AISI 301
Copper alloy C97, gold plate per AMS 2422
50 microinches min over nickel per AMS 2403
40-200 microinches min
Copper alloy per ASTM B196, gold plated per Mil-G-45204
50 microinch min. over nickel plate per QQ-N-290
50 microinch min.
Brass per ASTM B453, gold plated per MIL-G-45204
50 microinch min. over nickel plate per QQ-N-290
50 microinch min.
TFE thermoplastic per AMS 3651
PTFE thermoplastic per ASTM-D1710
1
Receptacle shell
assembly
Retention nut
Guide sleeve
Insert retention clip
Protective cap
2&3
25 pin insert with
twinax seal
6 pin insert
4
Insertion/removal tool
5&6
Pin contact size 12
Pin contact size 22
Housing
Retention clips
Grommet
Twinax seal housing
Twinax seal grommet
Tool
Contact
7
Pin twinax
contact size 8
8
Sealing plug
Outer & inner contacts
Shield ferrule
Front insulator & spacer insulator
Sealing plug
Receptacle Part Numbers and Descriptions
Item
1
2
3
4
5
6
7
8
Part No.
APX2AR00N
APXM25QPA
APXM006PB
APXTL0001
Desc
Receptacle shell assembly with protective cap
25 pin insert polarization A with twinax seal
6 pin insert polarization B
Insert insertion/removal tool
CNP812100, APEX pin contact, size 12
CNP822100, APEX pin contact, size 22
CPN882100, APEX pin twinax contact, size 8
CNA032401, sealing plug size 22
APX2B801K
Qty/Assy
1
1
1
1
0
0
0
0
APX2B801C
Qty/Assy
1
1
1
1
6
24
1
3
455400100
Amphenol Pcd
www.amphenolpcd.com
email: info@amphenolpcd.com
978-624-3400

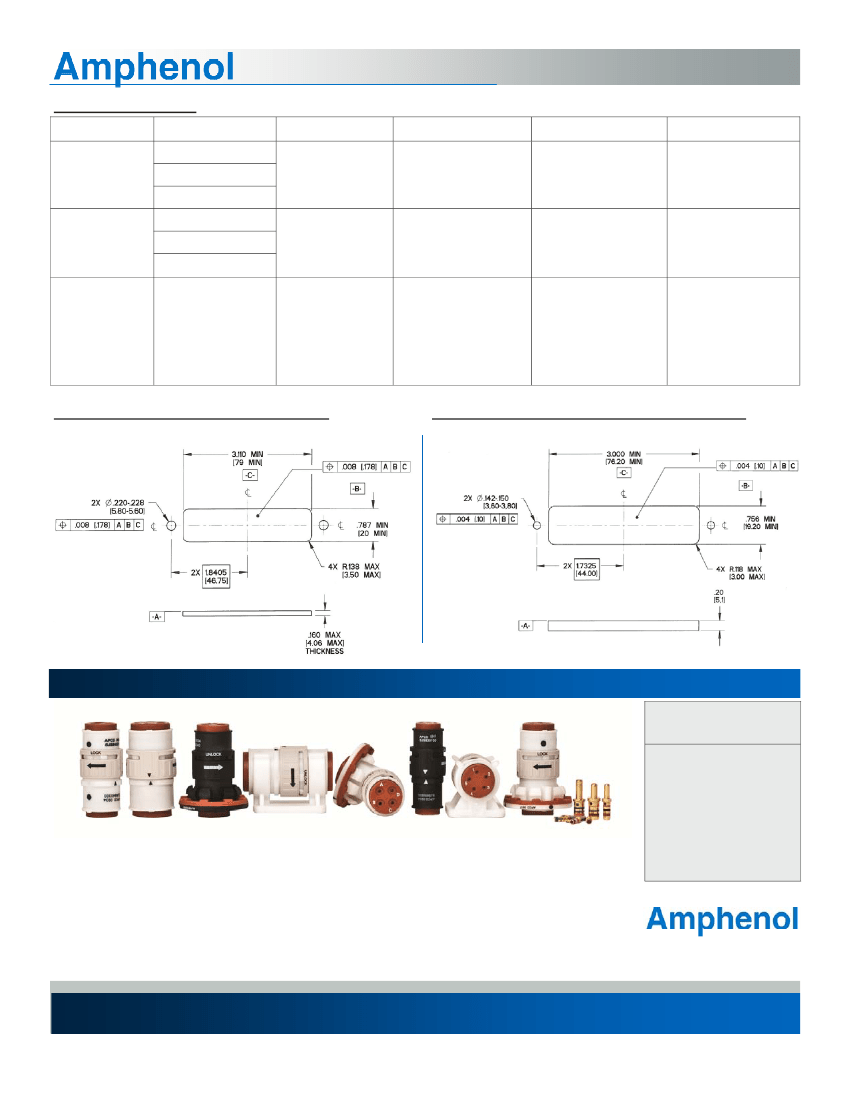

Cable Accommodations
Contact Size
Wire Size (AWG)
26
22
24
22
16
12
14
12
M22520/1-01
M22520/1-02
M81969/14-04
M81969/14-04
M22520/2-01
M22520/2-23
M81969/14-01
M81969/14-01
Crimping Tool
Positioner
Installing Tool
Removal Tool
8
24
Center Contacts:
M22520/2-01; Outer
Body M22520/5-01
Center Contacts: Daniels
K709; Outer Body
M22520/5-45
M81969/14-12
M81969/14-12
Recommended Plug Panel Cutout Dimensions
Recommended Receptacle Panel Cutout Dimensions
Luminus Series
Amphenol Pcd
The Luminus Series are small, cost-effective connectors that are highly reliable and simple to use. With multiple
product options to choose from, they meet MIL-T-81714, accept AS39029 contacts, and are environmentally-
sealed. Ideal for where space is limited, these innovative connectors feature a locking mechanism that ensures
stability, and are suitable for blind-mating.
72 Cherry Hill Drive
Beverly, MA 01915 USA
info@amphenolpcd.com
978-624-3400
Developed to MIL-T-81714
Standard AS39029 contacts
Environmentally sealed
Multiple keys & configurations
Blind-Mate connection
Quick, Simple connection
March, 2012
