5220.0123.1 Overview

AC power entry modules 5220 pwr entry modul W. filter 1A

5220.0123.1 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SCHURTER
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	7 weeks
Other features	STANDARDS: IEC/EN 60320-1/C14, UL 498, CSA C22.2, VDE, QUICK CONNECT
Body/casing type	SOCKET
Connector type	MAINS POWER CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
Coupling type	SNAP
DIN compliance	NO
IEC compliance	YES
MIL compliance	NO
Power Connector Ratings	1A, 250/125VAC
Plug information	MULTIPLE MATING PARTS AVAILABLE
Installation type	PANEL
Options	GENERAL PURPOSE
Shell material	POLYETHYLENE
Termination type	SOLDER
Total number of contacts	3
Base Number Matches	1

Preview

Download Datasheet

View All

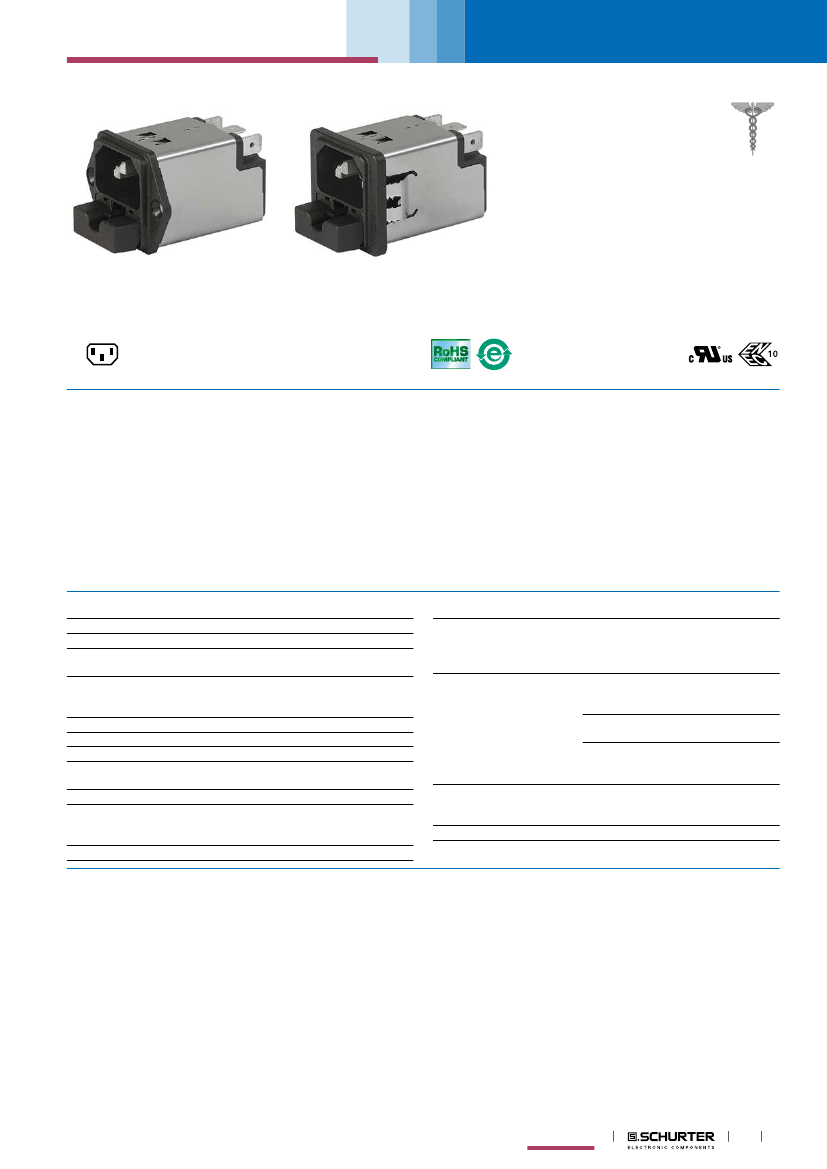

Power Entry Modules with Line Filter

www.schurter.com/PG06

IEC Appliance Inlet C14 with Filter, Fuseholder 1- or 2-pole

5220

Plug removal necessary for fuse

replacement

Typ 5220, Fuseholder 2-pole

Screw-On Version

Typ 5220, Fuseholder 2-pole

Snap-In Version

C14

70° C

Description

- Panel Mount:

Snap-in or screw-on mounting from front side

- 3 Functions:

Appliance Inlet Protection class I, Fuseholder for fuse-links 5 x 20 mm

2-pole, Line filter in standard and medical version

- Quick connect terminals 6.3 x 0.8 mm

Characteristics

- All single elements are already wired

- Plug removal necessary for fuse-link replacement

Fuse drawer meets requirements of medical standard IEC/EN 60601-1

The fuseholder is accessible from the equipment front

- Suitable for use in equipment according to IEC/UL 60950

Suitable for use in medical equipment according to IEC/UL 60601-1

Approvals

References

Weblinks

- VDE Certificate Number: 101307

- UL File Number: E72928

Alternative: version without line filter

6220

Alternative: Standard version

pdf-datasheet, html-datasheet, General Product Information, RoHS,

CHINA-RoHS, REACH, Mating Connectors, e-Shop, SCHURTER-

Stock-Check, Distributor-Stock-Check, Accessories

Technical Data

Ratings IEC

Ratings UL/CSA

Leakage Current

Dielectric Strength

1 - 10 A @ Ta 40 °C / 250 VAC; 50 Hz

1 - 10 A @ Ta 40 °C / 125 VAC; 60 Hz

standard < 0.5 mA (250 V / 60 Hz)

medical < 5 µA (250 V / 60 Hz)

> 1.7 kVDC between L-N

> 2.7 kVDC between L/N-PE

Test voltage (2 sec)

-25 °C to 85 °C

25/085/21 acc. to IEC 60068-1

from front side IP 40 acc. to IEC 60529

Suitable for appliances with protection

class I acc. to IEC 61140

Quick connect terminals 6.3 x 0.8 mm

Screw: max 8 mm

Mounting screw torque max 0.5 Nm

Snap-in: 0.8 mm to 3 mm

Thermoplastic, black, UL 94V-0

Appliance-Inlet/-Outlet

C14 acc. to IEC 60320,

UL 498, CSA C22.2 no. 42 (for cold

conditions) pin-temperature 70 °C, 10 A,

Protection Class I

2-pole, Shocksafe category PC2 acc. to

IEC 60127-6,

for fuse-links 5 x 20 mm

5 x 20: 1.6 W (2-pole)

Admissible power acceptance at higher

ambient temperature see derating cur-

ves

Standard and Medical Version, IEC

60939, UL 1283, CSA C22.2 no. 8

Technical Details

> 2'300'000 h acc. to MIL-HB-217 F

Fuseholder

Allowable Operation Temp.

Climatic Category

Degree of Protection

Protection Class

Terminal

Panel Thickness s

Rated Power Acceptance @

Ta 23 °C

Power Acceptance @ Ta >

23°C

Line Filter

MTBF

Material: Housing

Connectors
