GSP2.8203.15 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> GSP2.8203.15

GSP2.8203.15: DescriptionAC power entry modules gsp2 appliance inlet 10a 70; CategoryThe connector; File Size372KB，4 Pages; ManufacturerSCHURTER; Websitehttp://www.schurterinc.com/; Environmental Compliance

Download Datasheet Parametric View All

GSP2.8203.15 Overview

AC power entry modules gsp2 appliance inlet 10a 70

GSP2.8203.15 Parametric

Parameter Name	Attribute value
Manufacture	Schurte
Product Category	AC Power Entry Modules
Filtered	N
Produc	Inlets
Fused	N
Factory Pack Quantity	50
Switch Functi	Not Switched
Unit Weigh	10 g

Preview

Download Datasheet

View All

Connectors (Inlets/Outlets)

www.schurter.com/PG07

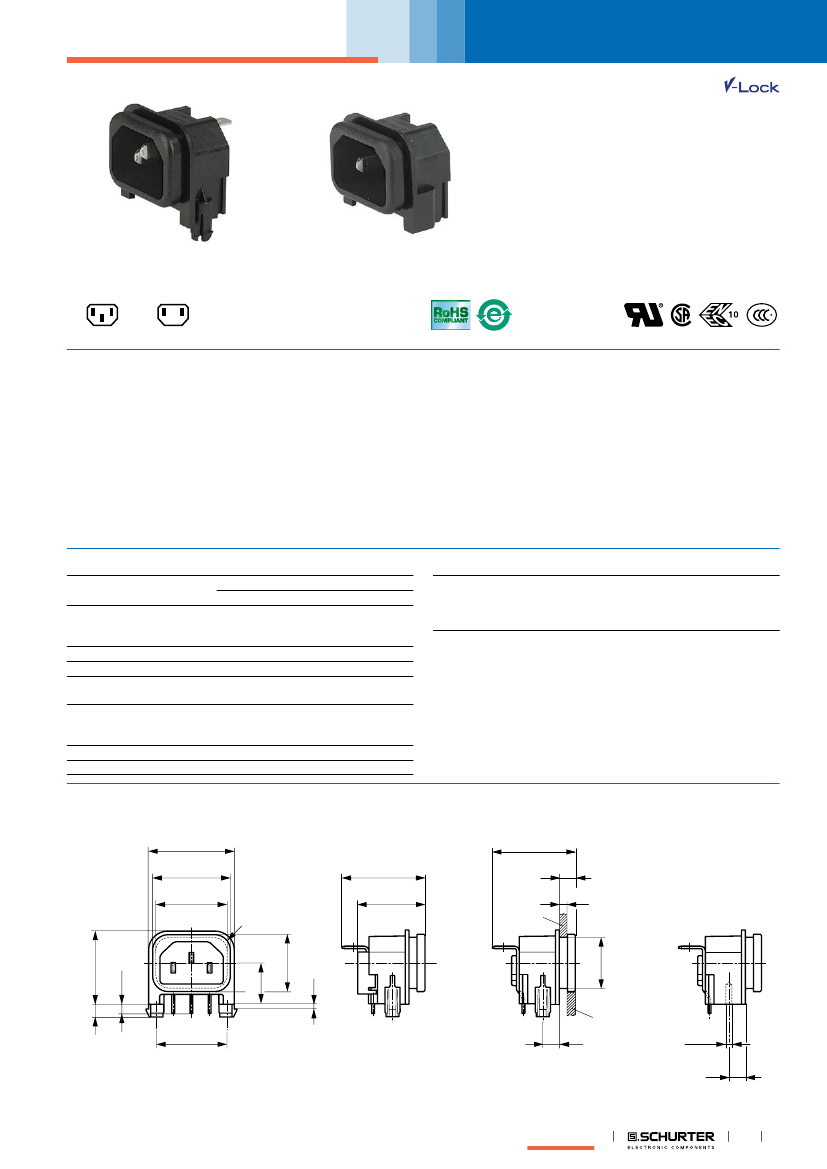

IEC Appliance Inlet C14 or C18, sandwich Mounting, PCB- or Solder Terminal

GSP2

Snap-in mounting

Screw-on mounting

C14

70° C

C18

70° C

Description

- Panel Mount:

Snap-in or screw-on mounting on PCB, sandwich or rear-side

- Appliance Inlet, Pin temperature 70 °C, protection class I or II

- For PCB mounting

Other versions on request

Approvals

- With solder terminals

- Types for enhanced glow wire test requirements acc. IEC 60695-2-

12 and -13 for the use in unattended household equipment acc. IEC

60335-1

- Variant with notch for V-Lock mating Cordsets

VDE Certificate Number: 40012767

UL File Number: E96454

CSA File Number: 38456

CCC File Number: 2006010204183838

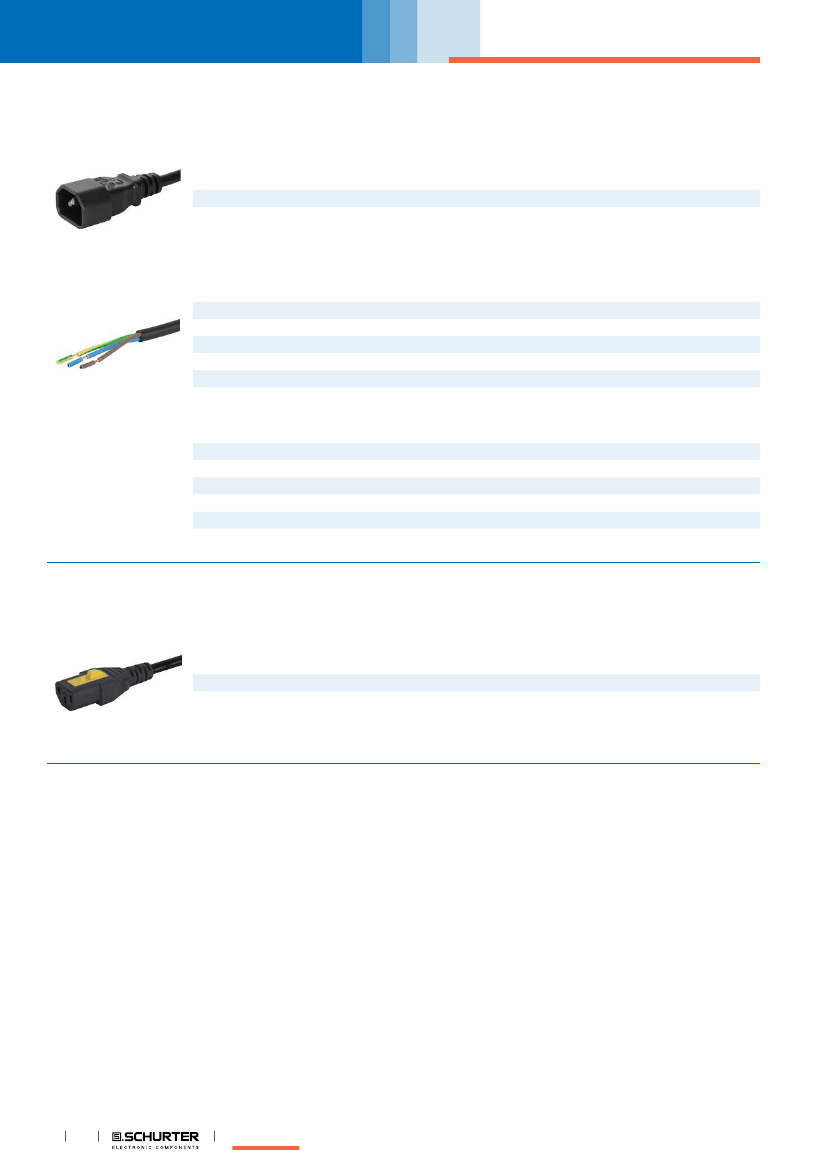

Weblinks

pdf-datasheet, html-datasheet, General Product Information, Approvals,

CE declaration of conformity, RoHS, CHINA-RoHS, REACH, Mating

Connectors, e-Shop, SCHURTER-Stock-Check, Distributor-Stock-

Check, CAD-Drawings, Accessories, Detailed request for product

Newly available variants corresponding to V-Lock mating cordset. The connector is equipped with a notch intended for use with the latching cordset.

The cord latching system prevents against accidental removal of the cordset.

Technical Data

Ratings IEC

Ratings UL/CSA

Dielectric Strength

10 A / 250 VAC; 50 Hz

15 A / 250 VAC; 60 Hz

> 3 kVAC between L-N

> 3 kVAC between L/N-PE

(1 min/50 Hz)

-25 °C to 70 °C

from front side IP 40 acc. to IEC 60529

Suitable for appliances with protection

class I or II acc. to IEC 61140

For PCB mounting ; Ground terminal:

angled to pin axis

Solder terminal on request

Sandwich/rear-side: 1.5/2/2.5/3 mm

Thermoplastic, black, UL 94V-0

Appliance Inlet

C14 / C18 acc. to IEC 60320,

UL 498, CSA C22.2 no. 42 (for cold

conditions) pin-temperature 70 °C, 10 A,

Protection Class I or II

Allowable Operation Temp.

Degree of Protection

Protection Class

Terminal

Panel Thickness s

Material: Housing

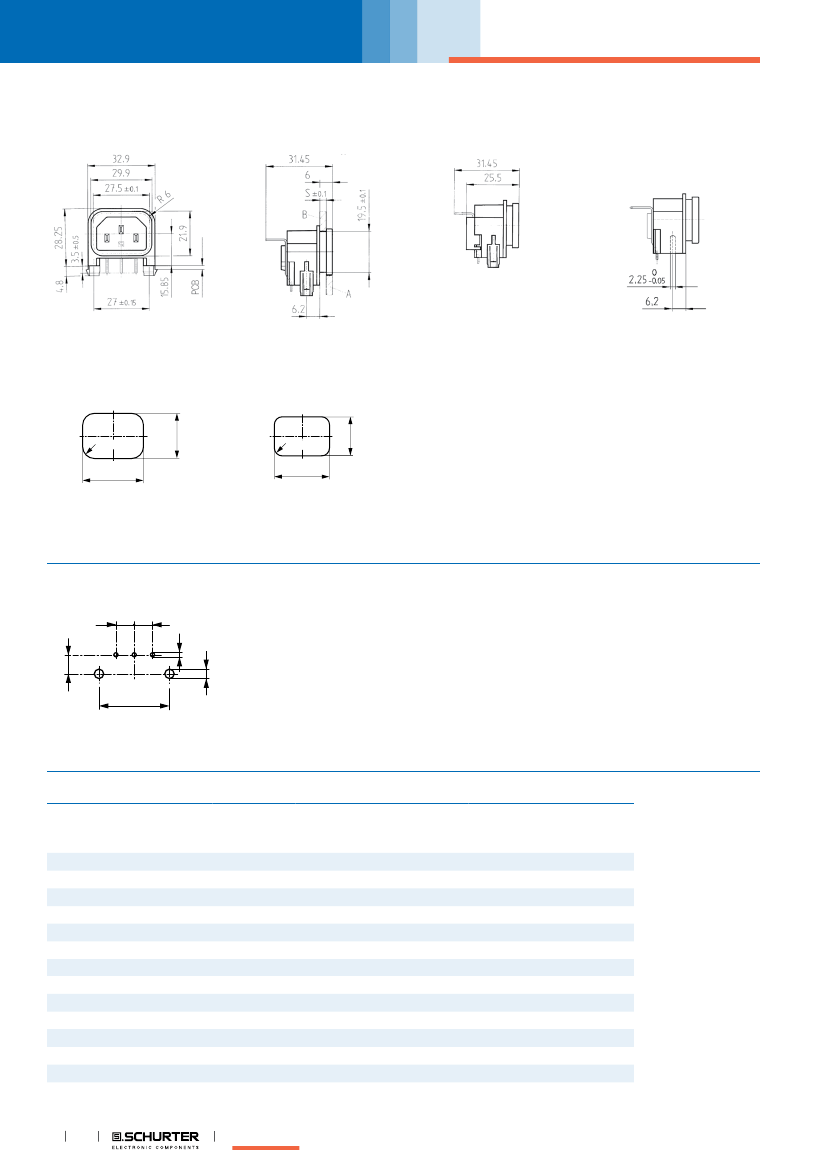

Dimensions

32.9

29.9

27.5

±0.1

28.25

21.9

31.45

25.5

19.5

±0.1

PCB

±0.15

6.2

2.25

-0.05

6.2

31.45

±0.1

4.8

3.5

±0.5

15.85

Connectors
