54200612: Descriptionautomotive connectors 6W male housing black 2.8mm term SZ; CategoryThe connector The connector; File Size81KB，1 Pages; ManufacturerDelphi Connection Systems

Download Datasheet Parametric Compare View All

54200612 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	54200612	-	-	View	Buy Now

54200612 Overview

automotive connectors 6W male housing black 2.8mm term SZ

54200612 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compli
ECCN code	EAR99
Connector type	COMBINATION LINE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Mixed contacts	NO
Options	GENERAL PURPOSE
Shell material	POLYAMIDE
Total number of contacts	6
Base Number Matches	1

Preview

Download Datasheet

View All

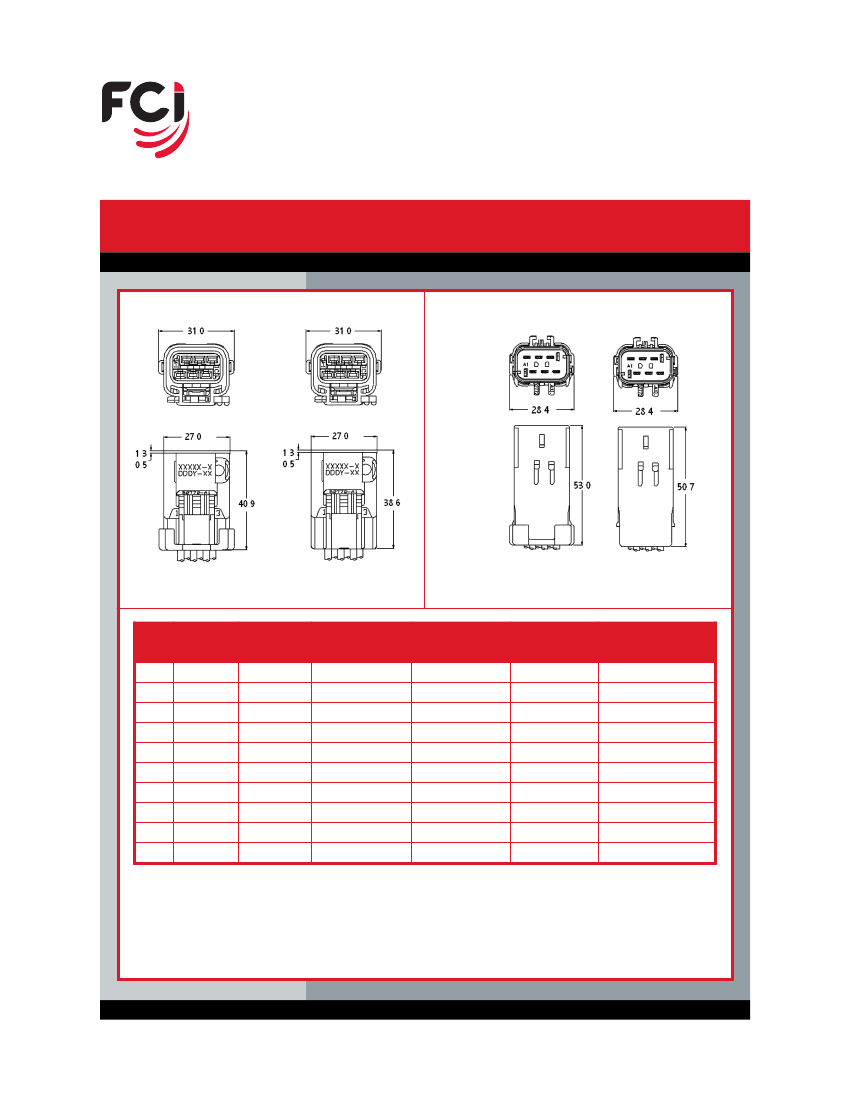

APEX 2.8

™

Connection Systems

FCI 6-Way APEX 2.8 mm Connection System

FEMALE

MALE

Sealed Assembly

Unsealed Assembly

Sealed Assembly

TEMPERATURE

RATING OF

MATERIAL

–40°C to +125°C

SEAL W/O HOLES

Unsealed Assembly

WIRE INSULATION

RANGE PER CAVITY

(mm)

1.70 – 2.77

1.50 – 4.09

1.70 – 2.77

1.50 – 4.09

1.70 – 2.77

1.50 – 4.09

1.70 – 2.77

1.50 – 4.09

USED AS CAP

INDEX

TYPE

A

B

C

D

A

HOUSING

COLOR

BLK

LT GREY

DK GREY

NATURAL

BLACK

SEALED/

UNSEALED

SEALED

UNSEALED

SEALED

UNSEALED

SEALED

UNSEALED

SEALED

UNSEALED

SEALED

FEMALE ASSEMBLY

PART NUMBER

54200608

54200600

54200609

54200646

54200610

54200602

54200611

54200603

54000626*

—

MALE ASSEMBLY

PART NUMBER

54200612

54200604

54200613

54200605

54200614

54200606

54200615

54200607

—

54200663*

* Plug for same index (A) mating part.

Note: Female part numbers with the N suffix are without CPA latch.

3.35mm wire diameter sealing is available in select configurations. Consult sales drawing.

Additional configurations available. Please consult sales drawing.

8

54200612 Related Products

	54200612	54200613	54200609-B	54200609	54200663
Description	automotive connectors 6W male housing black 2.8mm term SZ	automotive connectors 6W male housing LT gray 2.8mm trm SZ	automotive connectors 6W female housing LT gray 2.8mm trm SZ	automotive connectors 6W female housing LT gray 2.8mm trm SZ	automotive connectors 6W male connector
Reach Compliance Code	compli	compliant	-	compliant	-
ECCN code	EAR99	EAR99	-	EAR99	-
Connector type	COMBINATION LINE CONNECTOR	COMBINATION LINE CONNECTOR	-	COMBINATION LINE CONNECTOR	-
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	-	TIN	-
Contact point gender	MALE	MALE	-	FEMALE	-
DIN compliance	NO	NO	-	NO	-
empty shell	NO	NO	-	NO	-
Filter function	NO	NO	-	NO	-
IEC compliance	NO	NO	-	NO	-
MIL compliance	NO	NO	-	NO	-
Mixed contacts	NO	NO	-	NO	-
Options	GENERAL PURPOSE	GENERAL PURPOSE	-	WATERPROOF	-
Shell material	POLYAMIDE	POLYAMIDE	-	POLYAMIDE	-
Total number of contacts	6	6	-	6	-
Base Number Matches	1	1	-	1	-
