DTB5000MH: Descriptionautomotive connectors 50 ways male connector; CategoryThe connector The connector; File Size78KB，2 Pages; ManufacturerDelphi Connection Systems

Download Datasheet Parametric Compare View All

DTB5000MH Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	DTB5000MH	-	-	View	Buy Now

DTB5000MH Overview

automotive connectors 50 ways male connector

DTB5000MH Parametric

Parameter Name	Attribute value
Maker	Delphi Connection Systems
Reach Compliance Code	compli
ECCN code	EAR99
Connector type	RECTANGULAR CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
DIN compliance	NO
IEC compliance	NO
MIL compliance	NO
Options	GENERAL PURPOSE

Preview

Download Datasheet

View All

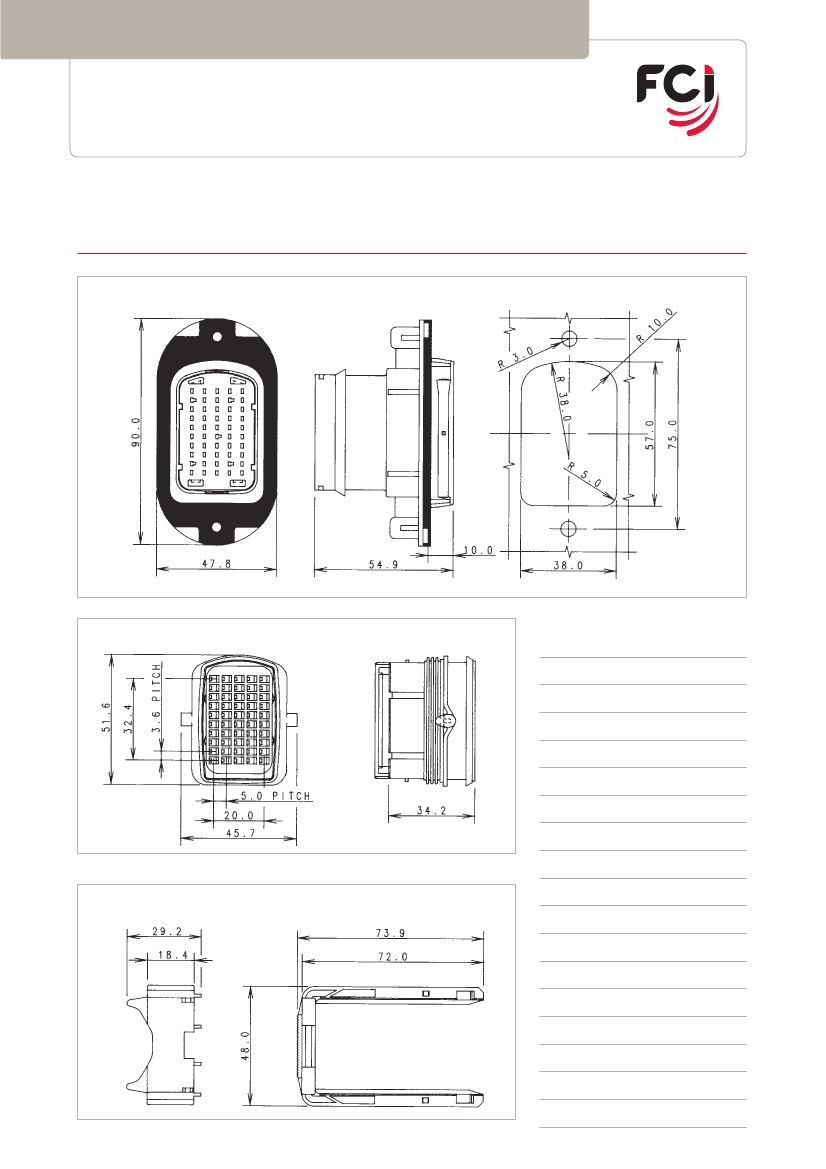

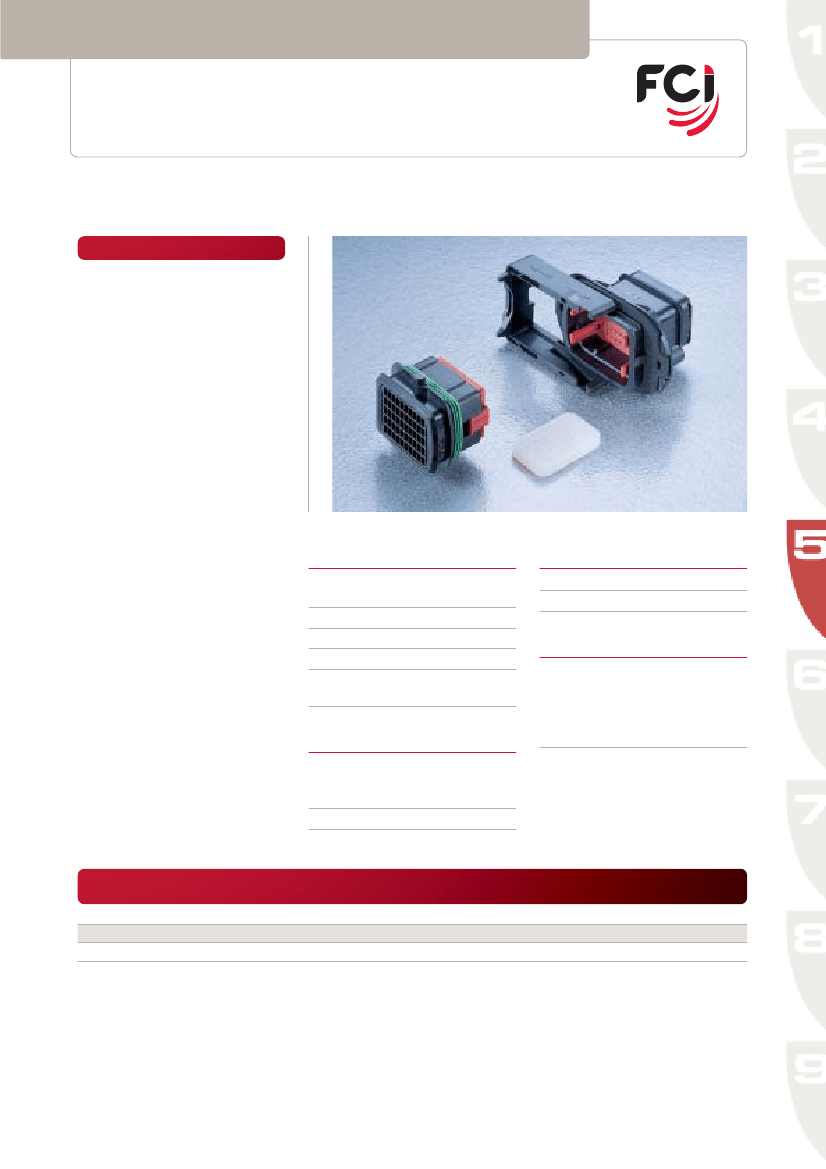

Harness Sectioning Connectors

Panel-through connectors

Sicma

50 way panel-through system for 1.5 mm terminals

Features

•

High density connector using

•

1.5 mm terminals

Splashproof connector when

equipped with a rubber boot

Female housing fitted with a

silicone interfacial seal

Male housing equipped with a panel

seal and two integrated harpoons

for easy pre-locking on panel

Pre-assembled front grids support

blade terminals guiding and mating

Terminal position assurance (T.P.A.)

Locking cam

Particularly suitable for door

connection

Sealed version available with rear

mat-seal

•

Performance characteristics

•

Temperature range:

from -40°C to +125°C

Tooling

•

T.P.A. removal tool:

•

Terminal removal tool:

T25400

T25300

•

Contact retention force:

•

Contact insertion force:

•

Connector mating force:

> 80 N

< 10 N

< 90 N

Connector compatibility

•

Usable terminals:

Sicma-2

Sicma-3

1.5

female terminals

male terminals

female terminals

male terminals

•

Sealing protection:

IP 64

when equipped with a rubber boot

Construction

•

Housing material:

- PBT for male & female housings

- PBT for locking cam

•

Interfacial seal:

Silicone

Part Numbers

DTB 5000 FH

DTB 5000 MH

DTB 5000 ST

No. of

position

Terminal size

1.5 mm

1.5 x 0.8 mm

Type

Female housing

Male housing

Locking cam

Colour

Black

5.40

DTB5000MH Related Products

	DTB5000MH	DTB5000ST	DTB5000FH	DTB5000ST-B
Description	automotive connectors 50 ways male connector	automotive connectors locking cam black for 50way housing	automotive connectors 50way fml hsng black 1.5mm term	automotive connectors locking cam black for 50way housing
