SQS
CONNECTOR
Squib connectors
Features

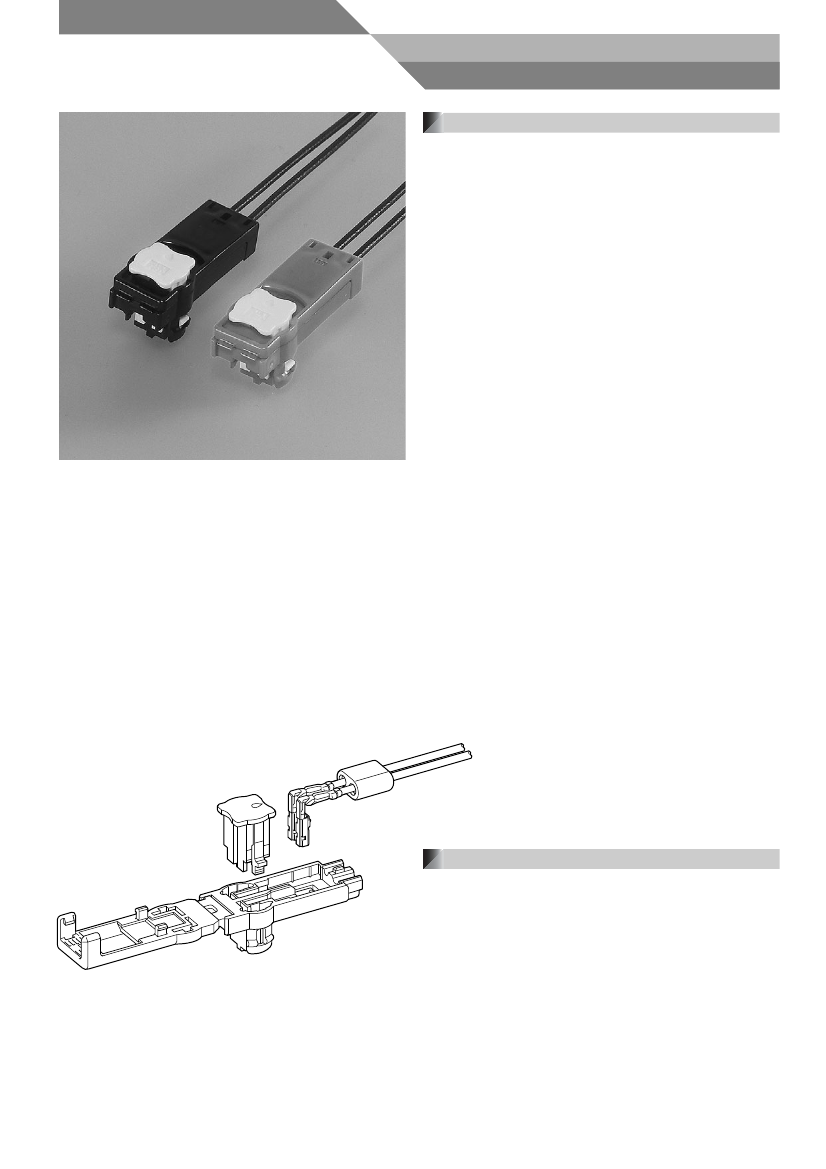

●Mating
Intelligent CPA adopted. It enables the connector to be locked
securely and prevents incomplete mating on the assembly line
resulting in improved connector retention force.
●Terminal
construction
It is designed to prevent the deformation of the contact part
when processing wire harness by protecting the contact part of
each terminal with a box.
●Scooping
(kojiri) preventive construction
Using a shunt ring with a countermeasure for scooping (kojiri),
the resistance to scooping (kojiri) insertion and withdrawal is
improved.
●Noise
suppression
Ferrite core provides simple and reliable noise suppression
characteristics.
●Two
types of CPA housing
This connector for air-bag has intelligent CPA, which
allows locking the connector, incomplete mating detection
and release of short-circuit at the same time.
1A type: Normal type
2A type: CPA housing has the jig tool insertion part in a tail part
in order to easily connector disassembly operation with
a jig tool such as drivers.
∗
They are selectable by usage and installed place of connector.
∗
Contact JST for details.
Specifications
¡Temperature
range: -30°C to +80°C
(including temperature rise in applying
electrical current)
¡Insulation
resistance: 100MΩ min.
¡Applicable
wire: 0.3mm
2
to 0.5mm
2
∗
Compliant with ELV/RoHS.
∗
Contact JST for details.
1
S
Q
S
CONNECTOR

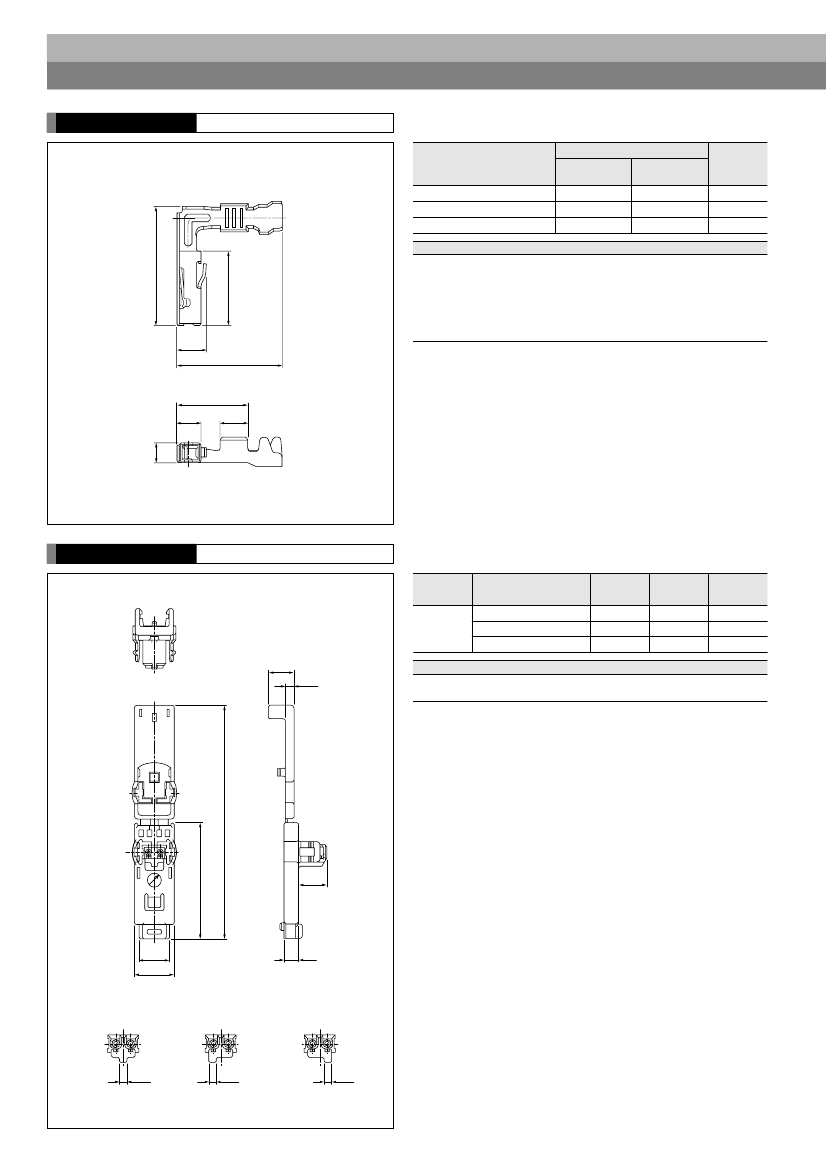

Female terminal
Applicable wire range
Model No.
SQS-A03GF-P-P
SQS-A03GG-P-P
SQS-A03GI-P-P
Conductor
(mm
2
)
0.3 to 0.5
0.3 to 0.5
0.3 to 0.5
Insulation O.D.
(mm)
1.0 to 1.6
1.0 to 1.6
1.0 to 1.6
Q’ty/reel
6,500
6,500
6,500
Material and Finish
GF: Copper alloy, nickel-undercoated,
Contact area; gold-plated (0.4µm min.)
GG: Copper alloy, nickel-undercoated,
Contact area; gold-plated (0.4µm min.)
Barrel area; tin-plated
GI: Copper alloy, nickel-undercoated,
Contact area; gold-plated (0.8µm min.)
10.6
2.61
9.55
6.45
2.2
2.5
Female housing
Circuits
Model No.
SQSR-02H-1A-K
2
SQSR-02H-1B-M
SQSR-02H-1C-D
7.4
2.4
1.8
6.6
Keying
figure
A code
B code
C code
Material
PBT
Q’ty/box
1,000
1,000
1,000
Color
Black
Green
Orange
(32)
(64.4)
8
8.2
11
4
¡Keying
figure
1.5
1.5
1.5
A code (black)
B code (green)
C code (orange)
2
S
Q
S
CONNECTOR
CPA housing
¡
SQSC-02H-1A-Y
8.5
11.6
Circuits
2
2
Model No.
SQSC-02H-1A-Y
SQSC-02H-2A-Y
Material
Glass-filled PBT
Q’ty/box
2,000
2,000
Color
Yellow
Yellow
9.8
12.65
φ
12.3
¡
SQSC-02H-2A-Y
8.5
9.3
12.65
11.6
9.3
9.8
14.05
φ
12.3
Ferrite
Circuits
2
8
2
Model No.
SQSF-02-1A
Q’ty/box
3,000
8.4
4
(2-R2.2)
φ
2.1
Identification mark
Crimping machine, Applicator
Strip terminal
SQS-A03GF-P-P
SQS-A03GG-P-P
SQS-A03GI-P-P
Note: When crimping operation is conducted using an applicator and die set other than the above, JST cannot guarantee the performance of the terminal.
AP-K2N
MK/SQS-A03-P
APLMK SQS-A03-P
Crimping
machine
Crimp applicator MKS-L
Dies
Crimp applicator with dies
4.4
3
