ARCOTRONICS
ELH - EHD
Aluminium Electrolytic Capacitors
SNAP-IN TERMINALS - General purpose 85°C / 2000 h
Description
Capacitors with snap lock terminals for P.C.B. mounting.
Aluminum case with insulated sleeve and safety vent at the bottom.
RoHS compliant and Lead-free
Applications
Industrial and professional power electronics,
welding machine, motor drives traction, battery chargers,
S.M.P.S., U.P.S., inverters converters.
Features
High reliability
Low equivalent series resistance (E.S.R.).
Different case size available for capacitance values
Marking
ARCOTRONICS’ logo
series: (ELH or EHD)
operating temperature: (85°C)
rated voltage: (Vdc),
capacitance (F),
negative polarity (white line),
date code.
Electrical characteristics
Rated voltage
Operating temperature
Capacitance range
Capacitance tolerance
Endurance test
Leakage current
6.3 to 100 Vdc
-40 to +85°C
820
F
to 120000F
160 to 450 Vdc
-25 to +85°C
47F to 2700F.

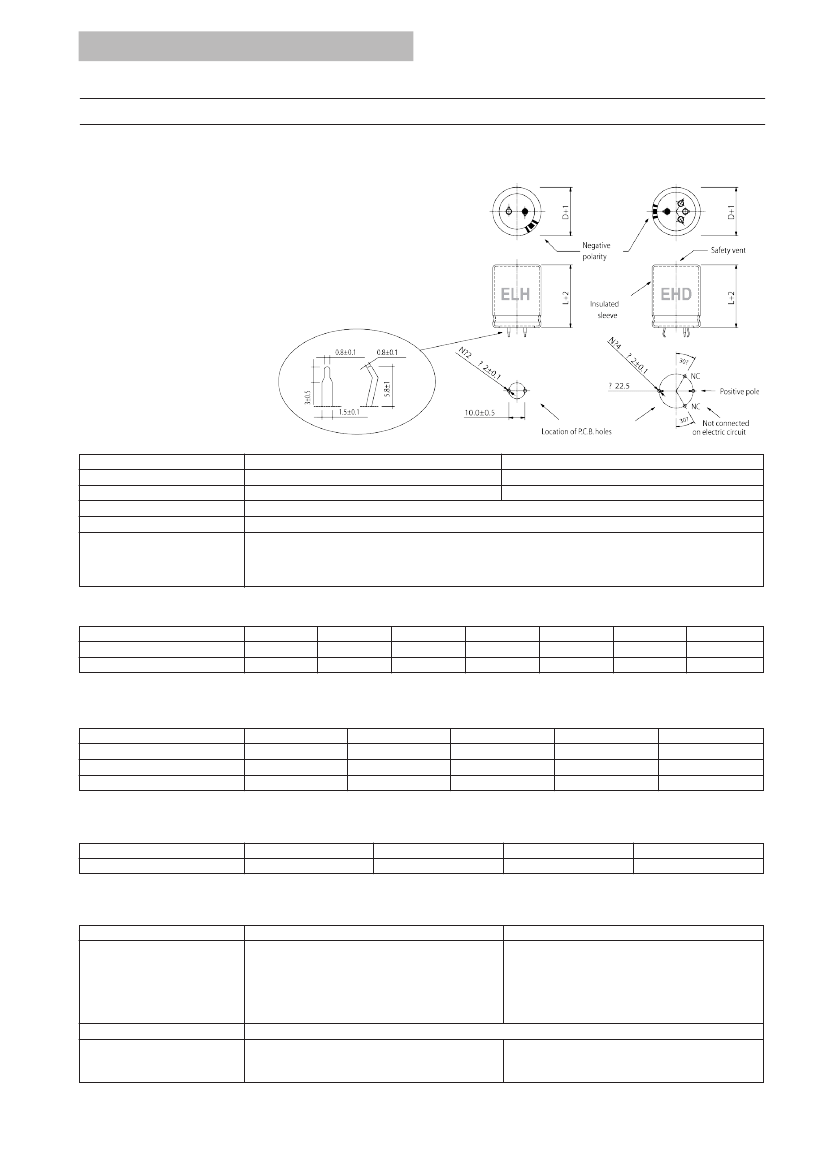

Diagram of dimensions (Units=mm) and P.C.B. mounting holes
Shorter pins are available upon request
EHD series only for Ø
35 mm
± 20% at 120Hz / 20°C
2000 h (see conditions in Test method and performance)
I = 0.02 CV (A) or 3 mA whichever is smaller
C = rated capacitance (F); V = rated voltage (Vdc)
(after that DC rated voltage at 20°C has been applied for 5 min)
Impedance Z characteristics at 120 Hz
Rated voltage (Vdc)
Z (-25°C) / Z (20°C)
Z (-40°C) / Z (20°C)
6.3 to 16
3
12
25
3
10
35
3
8
50 to 63
2
6
80 to 100
2
5
160 to 400
4
450
8
Compensation factor of ripple current (R.C.) vs. frequency
Rated voltage
from 6.3 to 100Vdc
from 160 to 250Vdc
from 350 to 450Vdc
50 Hz
0.88
0.75
0.74
60 Hz
0.90
0.78
0.76
120 Hz
1.00
1.00
1.00
1kHz
1.15
1.16
1.10
10 to 100 kHz
1.16
1.23
1.15
Compensation factor of ripple current (R.C.) vs. temperature
Temperature
Multiplier factors
40°C
1.48
60°C
1.42
70°C
1.30
85°C
1.00
Test method and performance
Conditions
Temperature:
Test duration:
Ripple current:
Voltage:
Performance
Capacitance change:
Dissipation factor:
Leakage current:
Load life test
85°C
2000 hours
max ripple current at 120 Hz 85°C
specified in table
the sum of D.C. voltage and the peak A.C. voltage
must not exceed the rated voltage of capacitor.
Shelf life test
85°C
1000 hours
no ripple current applied.
no voltage applied.
The following specifications will be satisfied when the capacitors will be restored at 20°C.
within 20% of initial value.
within 20% of initial value.
not exceed 200% of the initial requirement.
not exceed 150% of the initial requirement.
not exceed initial requirement.
not exceed initial requirement.
09/2006
110
ARCOTRONICS
ELH - EHD
Aluminium Electrolytic Capacitors
SNAP-IN TERMINALS - General purpose 85°C / 2000 h
Technical data and ordering codes
6.3 Vdc Rated voltage - 8 Vdc Surge voltage
Rated cap.
Case
D.F.
R.C.
L.C.
120 Hz
size
120 Hz
120 Hz
20°C
Arcotronics P/N*
20°C
DxL
25°C
85°C
5 min.
(F)
(mm)
(tg %)
(A
rms
)
(mA)
15000
22 x 25
60
2.44
1.9 ELH159M6R3AQ1AA
18000
22 x 30
60
2.60
2.3 ELH189M6R3AQ2AA
18000
25 x 25
60
2.62
2.3 ELH189M6R3AR1AA
22000
22 x 30
60
3.06
2.8 ELH229M6R3AQ2AA
22000
25 x 25
60
3.07
2.8 ELH229M6R3AR1AA
27000
22 x 35
60
3.49
3 ELH279M6R3AQ3AA
27000
25 x 30
60
3.52
3 ELH279M6R3AR2AA
27000
30 x 25
60
3.57
3 ELH279M6R3AS1AA
33000
22 x 40
60
3.97
3 ELH339M6R3AQ4AA
33000
25 x 35
60
4.02
3 ELH339M6R3AR3AA
33000
30 x 30
60
4.05
3 ELH339M6R3AS2AA
33000
35 x 25
60
4.10
3
ELH339M6R3AT1AA
39000
39000
39000
39000
47000
47000
47000
56000
56000
56000
68000
68000
82000
82000
100000
120000
22 x 45
25 x 40
30 x 30
35 x 25
25 x 45
30 x 35
35 x 30
25 x 50
30 x 40
35 x 30
30 x 45
35 x 35
30 x 50
35 x 40
35 x 45
35 x 50
60
60
60
60
60
60
60
60
60
60
60
60
60
60
60
60
4.56
4.50
4.46
4.51
5.09
5.06
5.03
5.71
5.70
5.75
6.48
6.42
7.32
7.29
8.31
8.60
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
ELH399M6R3AQ5AA
ELH399M6R3AR4AA
ELH399M6R3AS2AA
ELH399M6R3AT1AA
ELH479M6R3AR5AA
ELH479M6R3AS3AA
ELH479M6R3AT2AA
ELH569M6R3AR6AA
ELH569M6R3AS4AA
ELH569M6R3AT2AA
ELH689M6R3AS5AA
ELH689M6R3AT3AA
ELH829M6R3AS6AA
ELH829M6R3AT4AA
ELH10KM6R3AT5AA
ELH12KM6R3AT6AA
10 Vdc Rated voltage - 13 Vdc Surge voltage
Rated cap.
Case
D.F.
R.C.
L.C.
120 Hz
size
120 Hz
120 Hz
20°C
Arcotronics P/N*
20°C
DxL
25°C
85°C
5 min.
(F)
(mm)
(tg %)
(A
rms
)
(mA)
12000
22 x 25
50
2.40
2.4 ELH129M010AQ1AA
15000
22 x 30
50
2.75
3 ELH159M010AQ2AA
15000
25 x 25
50
2.75
3
ELH159M010AR1AA
18000
22 x 35
50
3.15
3 ELH189M010AQ3AA
18000
25 x 25
50
3.05
3
ELH189M010AR1AA
22000
22 x 40
50
3.55
3 ELH229M010AQ4AA
22000
25 x 30
50
3.50
3
ELH229M010AR2AA
22000
30 x 25
50
3.55
3
ELH229M010AS1AA
27000
22 x 45
50
4.05
3 ELH279M010AQ5AA
27000
25 x 35
50
4.00
3
ELH279M010AR3AA
27000
30 x 30
50
4.05
3
ELH279M010AS2AA
33000
22 x 50
50
4.60
3 ELH339M010AQ6AA
33000
25 x 40
50
4.55
3
ELH339M010AR4AA
33000
30 x 30
50
4.50
3
ELH339M010AS2AA
33000
35 x 25
50
4.50
3
ELH339M010AT1AA
39000
39000
39000
47000
47000
47000
56000
56000
68000
68000
82000
25 x 45
30 x 35
35 x 30
25 x 50
30 x 40
35 x 30
30 x 45
35 x 35
30 x 50
35 x 40
35 x 50
50
50
50
50
50
50
50
50
50
50
50
5.10
5.05
5.05
5.75
5.70
5.65
6.45
6.40
7.05
7.10
7.50
3
3
3
3
3
3
3
3
3
3
3
ELH399M010AR5AA
ELH399M010AS3AA
ELH399M010AT2AA
ELH479M010AR6AA
ELH479M010AS4AA
ELH479M010AT2AA
ELH569M010AS5AA
ELH569M010AT3AA
ELH689M010AS6AA
ELH689M010AT4AA
ELH829M010AT6AA
Rated cap.
120 Hz
20°C
(F)
8200
10000
10000
12000
12000
15000
15000
15000
18000
18000
18000
22000
22000
22000
22000
27000
27000
27000
33000
33000
39000
39000
47000
47000
56000
68000
16 Vdc Rated voltage - 20 Vdc Surge voltage
Case
D.F.
R.C.
L.C.
size
120 Hz
120 Hz
20°C
Arcotronics P/N*
DxL
25°C
85°C
5 min.
(mm)
(tg %)
(A
rms
)
(mA)
22 x 25
40
2.60
2.6 ELH828M016AQ1AA
22 x 30
40
2.70
3 ELH109M016AQ2AA
25 x 25
40
2.75
3
ELH109M016AR1AA
22 x 30
40
2.90
3 ELH129M016AQ2AA
25 x 25
40
2.95
3
ELH129M016AR1AA
22 x 35
40
3.30
3 ELH159M016AQ3AA
25 x 30
40
3.45
3
ELH159M016AR2AA
30 x 25
40
3.50
3
ELH159M016AS1AA
22 x 40
40
3.70
3 ELH189M016AQ4AA
25 x 35
40
3.75
3
ELH189M016AR3AA
30 x 30
40
3.80
3
ELH189M016AS2AA
22 x 50
40
4.35
3 ELH229M016AQ6AA
25 x 40
40
4.30
3
ELH229M016AR4AA
30 x 30
40
4.25
3
ELH229M016AS2AA
35 x 25
40
4.20
3
ELH229M016AT1AA
25 x 45
30 x 35
35 x 30
30 x 40
35 x 30
30 x 45
35 x 35
30 x 50
35 x 40
35 x 45
35 x 50
40
40
40
40
40
40
40
40
40
40
40
4.70
4.65
4.65
5.35
5.40
6.00
5.95
6.80
6.75
7.60
8.00
3
3
3
3
3
3
3
3
3
3
3
ELH279M016AR5AA
ELH279M016AS3AA
ELH279M016AT2AA
ELH339M016AS4AA
ELH339M016AT2AA
ELH399M016AS5AA
ELH399M016AT3AA
ELH479M016AS6AA
ELH479M016AT4AA
ELH569M016AT5AA
ELH689M016AT6AA
Rated cap.
120 Hz
20°C
(F)
5600
6800
6800
8200
8200
10000
10000
10000
12000
12000
12000
12000
15000
15000
15000
15000
18000
18000
18000
22000
22000
27000
27000
33000
33000
39000
25 Vdc Rated voltage - 32 Vdc Surge voltage
Case
D.F.
R.C.
L.C.
size
120 Hz
120 Hz
20°C
Arcotronics P/N*
DxL
25°C
85°C
5 min.
(mm)
(tg %)
(A
rms
)
(mA)
22 x 25
25
2.20
2.8 ELH568M025AQ1AA
22 x 30
25
2.40
3 ELH688M025AQ2AA
25 x 25
25
2.45
3
ELH688M025AR1AA
22 x 35
25
2.70
3 ELH828M025AQ3AA
25 x 25
25
2.70
3
ELH828M025AR1AA
22 x 40
25
3.10
3 ELH109M025AQ4AA
25 x 30
25
3.15
3
ELH109M025AR2AA
30 x 25
25
3.20
3
ELH109M025AS1AA
22 x 45
25
3.50
3 ELH129M025AQ5AA
25 x 35
25
3.45
3
ELH129M025AR3AA
30 x 30
25
3.50
3
ELH129M025AS2AA
35 x 25
25
3.55
3
ELH129M025AT1AA
22 x 50
25
4.00
3 ELH159M025AQ6AA
25 x 40
25
3.95
3
ELH159M025AR4AA
30 x 35
25
4.00
3
ELH159M025AS3AA
35 x 30
25
4.05
3
ELH159M025AT2AA
25 x 45
25
4.45
3
ELH189M025AR5AA
30 x 35
25
4.45
3
ELH189M025AS3AA
35 x 30
25
4.60
3
ELH189M025AT2AA
30 x 40
25
5.20
3
ELH229M025AS4AA
35 x 35
25
5.15
3
ELH229M025AT3AA
30 x 45
25
5.95
3
ELH279M025AS5AA
35 x 40
25
5.90
3
ELH279M025AT4AA
30 x 50
25
6.70
3
ELH339M025AS6AA
35 x 45
25
6.75
3
ELH339M025AT5AA
35 x 50
25
7.55
3
ELH399M025AT6AA
For capacitor whose capacitance exceeds 1000
F,
the value of D.F. (%) is increased by 2% for every addition of 1000
F.
* Only for Ø
35 mm and 4 pin terminals, replace ELH with EHD.
09/2006
111
ARCOTRONICS
ELH - EHD
Aluminium Electrolytic Capacitors
SNAP-IN TERMINALS - General purpose 85°C / 2000 h
35 Vdc Rated voltage - 44 Vdc Surge voltage
Case
D.F.
R.C.
L.C.
size
120 Hz
120 Hz
20°C
Arcotronics P/N*
DxL
25°C
85°C
5 min.
(mm)
(tg %)
(A
rms
)
(mA)
22 x 25
25
2.20
2.7 ELH388M035AQ1AA
22 x 30
25
2.40
3 ELH478M035AQ2AA
25 x 25
25
2.40
3
ELH478M035AR1AA
22 x 35
25
2.75
3 ELH568M035AQ3AA
25 x 25
25
2.75
3
ELH568M035AR1AA
22 x 40
25
2.85
3 ELH688M035AQ4AA
25 x 30
25
2.85
3
ELH688M035AR2AA
30 x 25
25
2.90
3
ELH688M035AS1AA
22 x 45
25
3.15
3 ELH828M035AQ5AA
25 x 35
25
3.10
3
ELH828M035AR3AA
30 x 30
25
3.15
3
ELH828M035AS2AA
22 x 50
25
3.55
3 ELH109M035AQ6AA
25 x 40
25
3.50
3
ELH109M035AR4AA
30 x 30
25
3.45
3
ELH109M035AS2AA
35 x 25
25
3.40
3
ELH109M035AT1AA
25 x 45
25
3.95
3
ELH129M035AR5AA
30 x 35
25
4.00
3
ELH129M035AS3AA
35 x 30
25
4.05
3
ELH129M035AT2AA
25 x 50
25
4.95
3
ELH159M035AR6AA
30 x 40
25
4.95
3
ELH159M035AS4AA
35 x 35
25
5.00
3
ELH159M035AT3AA
30 x 45
25
5.50
3
ELH189M035AS5AA
35 x 40
25
5.55
3
ELH189M035AT4AA
30 x 50
25
6.00
3
ELH229M035AS6AA
35 x 45
25
6.05
3
ELH229M035AT5AA
35 x 50
25
6.90
3
ELH279M035AT6AA
50 Vdc Rated voltage - 63 Vdc Surge voltage
Case
D.F.
R.C.
L.C.
size
120 Hz
120 Hz
20°C
Arcotronics P/N*
DxL
25°C
85°C
5 min.
(mm)
(tg %)
(A
rms
)
(mA)
22 x 25
20
1.90
2.2 ELH228M050AQ1AA
22 x 30
20
2.10
2.7 ELH278M050AQ2AA
25 x 25
20
2.20
2.7
ELH278M050AR1AA
22 x 30
20
2.35
3 ELH338M050AQ2AA
25 x 25
20
2.35
3
ELH338M050AR1AA
22 x 35
20
2.65
3 ELH398M050AQ3AA
25 x 30
20
2.65
3
ELH398M050AR2AA
30 x 25
20
2.65
3
ELH398M050AS1AA
22 x 40
20
3.00
3 ELH478M050AQ4AA
25 x 35
20
3.00
3
ELH478M050AR3AA
30 x 25
20
2.95
3
ELH478M050AS1AA
22 x 45
20
3.35
3 ELH568M050AQ5AA
25 x 40
20
3.35
3
ELH568M050AR4AA
30 x 30
20
3.35
3
ELH568M050AS2AA
35 x 25
20
3.40
3
ELH568M050AT1AA
22 x 50
20
3.80
3 ELH688M050AQ6AA
25 x 40
20
3.80
3
ELH688M050AR4AA
30 x 30
20
3.80
3
ELH688M050AS2AA
30 x 35
20
3.85
3
ELH688M050AS3AA
35 x 30
20
3.85
3
ELH688M050AT2AA
25 x 50
20
4.35
3
ELH828M050AR6AA
30 x 40
20
4.35
3
ELH828M050AS4AA
35 x 30
20
4.40
3
ELH828M050AT2AA
30 x 45
20
5.00
3
ELH109M050AS5AA
35 x 35
20
4.95
3
ELH109M050AT3AA
30 x 50
20
5.60
3
ELH129M050AS6AA
35 x 40
20
5.55
3
ELH129M050AT4AA
35 x 45
20
6.45
3
ELH159M050AT5AA
35 x 50
20
6.70
3
ELH189M050AT6AA
Rated cap.
120 Hz
20°C
(F)
3900
4700
4700
5600
5600
6800
6800
6800
8200
8200
8200
10000
10000
10000
10000
12000
12000
12000
15000
15000
15000
18000
18000
22000
22000
27000
Rated cap.
120 Hz
20°C
(F)
2200
2700
2700
3300
3300
3900
3900
3900
4700
4700
4700
5600
5600
5600
5600
6800
6800
6800
6800
6800
8200
8200
8200
10000
10000
12000
12000
15000
18000
Rated cap.
120 Hz
20°C
(F)
1800
2200
2200
2700
2700
2700
3300
3300
3300
3900
3900
3900
4700
4700
4700
4700
5600
5600
5600
5600
6800
6800
8200
8200
10000
10000
12000
63 Vdc Rated voltage - 79 Vdc Surge voltage
Case
D.F.
R.C.
L.C.
size
120 Hz
120 Hz
20°C
Arcotronics P/N*
DxL
25°C
85°C
5 min.
(mm)
(tg %)
(A
rms
)
(mA)
22 x 25
20
1.85
2.3 ELH188M063AQ1AA
22 x 30
20
2.30
2.8 ELH228M063AQ2AA
25 x 25
20
2.30
2.8
ELH228M063AR1AA
22 x 35
20
2.45
3 ELH278M063AQ3AA
25 x 30
20
2.45
3
ELH278M063AR2AA
30 x 25
20
2.50
3
ELH278M063AS1AA
22 x 40
20
2.60
3 ELH338M063AQ4AA
25 x 30
20
2.65
3
ELH338M063AR2AA
30 x 25
20
2.70
3
ELH338M063AS1AA
22 x 45
20
2.95
3 ELH398M063AQ5AA
25 x 35
20
2.95
3
ELH398M063AR3AA
30 x 30
20
3.00
3
ELH398M063AS2AA
22 x 50
20
3.40
3 ELH478M063AQ6AA
25 x 40
20
3.35
3
ELH478M063AR4AA
30 x 30
20
3.35
3
ELH478M063AS2AA
35 x 25
20
3.40
3
ELH478M063AT1AA
25 x 40
20
3.70
3
ELH568M063AR4AA
25 x 45
20
3.70
3
ELH568M063AR5AA
30 x 35
20
3.75
3
ELH568M063AS3AA
35 x 30
20
3.75
3
ELH568M063AT2AA
30 x 40
20
4.25
3
ELH688M063AS4AA
35 x 30
20
4.20
3
ELH688M063AT2AA
30 x 45
20
4.80
3
ELH828M063AS5AA
35 x 35
20
4.80
3
ELH828M063AT3AA
30 x 50
20
5.50
3
ELH109M063AS6AA
35 x 40
20
5.45
3
ELH109M063AT4AA
35 x 45
20
6.20
3
ELH129M063AT5AA
Rated cap.
120 Hz
20°C
(F)
1200
1500
1500
1800
1800
1800
2200
2200
2200
2700
2700
2700
2700
3300
3300
3300
3300
3900
3900
3900
4700
4700
4700
5600
5600
6800
6800
8200
10000
80 Vdc Rated voltage - 100 Vdc Surge voltage
Case
D.F.
R.C.
L.C.
size
120 Hz
120 Hz
20°C
Arcotronics P/N*
DxL
25°C
85°C
5 min.
(mm)
(tg %)
(A
rms
)
(mA)
22 x 25
20
1.65
1.9 ELH128M080AQ1AA
22 x 30
20
1.90
2.4 ELH158M080AQ2AA
25 x 25
20
1.90
2.4
ELH158M080AR1AA
22 x 35
20
2.20
2.9 ELH188M080AQ3AA
25 x 30
20
2.20
2.9
ELH188M080AR2AA
30 x 25
20
2.20
2.9
ELH188M080AS1AA
22 x 40
20
2.45
3 ELH228M080AQ4AA
25 x 30
20
2.45
3
ELH228M080AR2AA
30 x 25
20
2.50
3
ELH228M080AS1AA
22 x 45
20
2.80
3 ELH278M080AQ5AA
25 x 35
20
2.80
3
ELH278M080AR3AA
30 x 30
20
2.85
3
ELH278M080AS2AA
35 x 25
20
2.85
3
ELH278M080AT1AA
22 x 50
20
3.15
3 ELH338M080AQ6AA
25 x 40
20
3.20
3
ELH338M080AR4AA
30 x 30
20
3.20
3
ELH338M080AS2AA
35 x 25
20
3.20
3
ELH338M080AT1AA
25 x 45
20
3.60
3
ELH398M080AR5AA
30 x 35
20
3.60
3
ELH398M080AS3AA
35 x 30
20
3.60
3
ELH398M080AT2AA
25 x 50
20
4.05
3
ELH478M080AR6AA
30 x 40
20
4.05
3
ELH478M080AS4AA
35 x 35
20
4.10
3
ELH478M080AT3AA
30 x 45
20
4.55
3
ELH568M080AS5AA
35 x 35
20
4.50
3
ELH568M080AT3AA
30 x 50
20
5.15
3
ELH688M080AS6AA
35 x 40
20
5.15
3
ELH688M080AT4AA
35 x 45
20
5.85
3
ELH828M080AT5AA
35 x 50
20
6.60
3
ELH109M080AT6AA
For capacitor whose capacitance exceeds 1000
F,
the value of D.F. (%) is increased by 2% for every addition of 1000
F.
* Only for Ø
35 mm and 4 pin terminals, replace ELH with EHD.
09/2006
112
ARCOTRONICS
ELH - EHD
Aluminium Electrolytic Capacitors
SNAP-IN TERMINALS - General purpose 85°C / 2000 h
100 Vdc Rated voltage - 125 Vdc Surge voltage
Case
D.F.
R.C.
L.C.
size
120 Hz
120 Hz
20°C
Arcotronics P/N*
DxL
25°C
85°C
5 min.
(mm)
(tg %)
(A
rms
)
(mA)
22 x 25
15
1.85
1.6 ELH827M100AQ1AA
22 x 30
15
2.10
2 ELH108M100AQ2AA
25 x 25
15
2.10
2
ELH108M100AR1AA
22 x 35
15
2.40
2.4 ELH128M100AQ3AA
25 x 30
15
2.45
2.4
ELH128M100AR2AA
22 x 40
15
2.70
3 ELH158M100AQ4AA
25 x 30
15
2.75
3
ELH158M100AR2AA
30 x 25
15
2.75
3
ELH158M100AS1AA
22 x 45
15
3.10
3 ELH188M100AQ5AA
25 x 35
15
3.15
3
ELH188M100AR3AA
30 x 30
15
3.15
3
ELH188M100AS2AA
35 x 25
15
3.15
3
ELH188M100AT1AA
22 x 50
15
3.50
3 ELH228M100AQ6AA
25 x 40
15
3.55
3
ELH228M100AR4AA
30 x 30
15
3.55
3
ELH228M100AS2AA
35 x 25
15
3.60
3
ELH228M100AT1AA
25 x 45
30 x 35
35 x 30
25 x 50
30 x 40
35 x 30
30 x 45
35 x 35
35 x 40
35 x 50
15
15
15
15
15
15
15
15
15
15
4.10
4.05
4.05
4.50
4.55
4.50
5.15
5.10
5.75
6.20
3
3
3
3
3
3
3
3
3
3
ELH278M100AR5AA
ELH278M100AS3AA
ELH278M100AT2AA
ELH338M100AR6AA
ELH338M100AS4AA
ELH338M100AT2AA
ELH398M100AS5AA
ELH398M100AT3AA
ELH478M100AT4AA
ELH568M100AT6AA
Rated cap.
120 Hz
20°C
(F)
820
1000
1000
1200
1200
1500
1500
1500
1800
1800
1800
1800
2200
2200
2200
2200
2700
2700
2700
3300
3300
3300
3900
3900
4700
5600
For capacitor whose capacitance exceeds 1000
F,
the value of
D.F. (%) is increased by 2% for every addition of 1000
F.
* Only for Ø
35 mm and 4 pin terminals, replace ELH with EHD.
09/2006
113
Embedded System
京公网安备 11010802033920号
EEWORLD
