EMRC13J1H-2.375MTR datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> EMRC13J1H-2.375MTR

EMRC13J1H-2.375MTR: DescriptionCRYSTAL OSCILLATOR, CLOCK, LVPECL OUTPUT; CategoryPassive components oscillator; File Size774KB，10 Pages; ManufacturerECLIPTEK; Websitehttp://www.ecliptek.com; Environmental Compliance

Download Datasheet Parametric View All

EMRC13J1H-2.375MTR Overview

CRYSTAL OSCILLATOR, CLOCK, LVPECL OUTPUT

EMRC13J1H-2.375MTR Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	7039979128
Reach Compliance Code	unknown

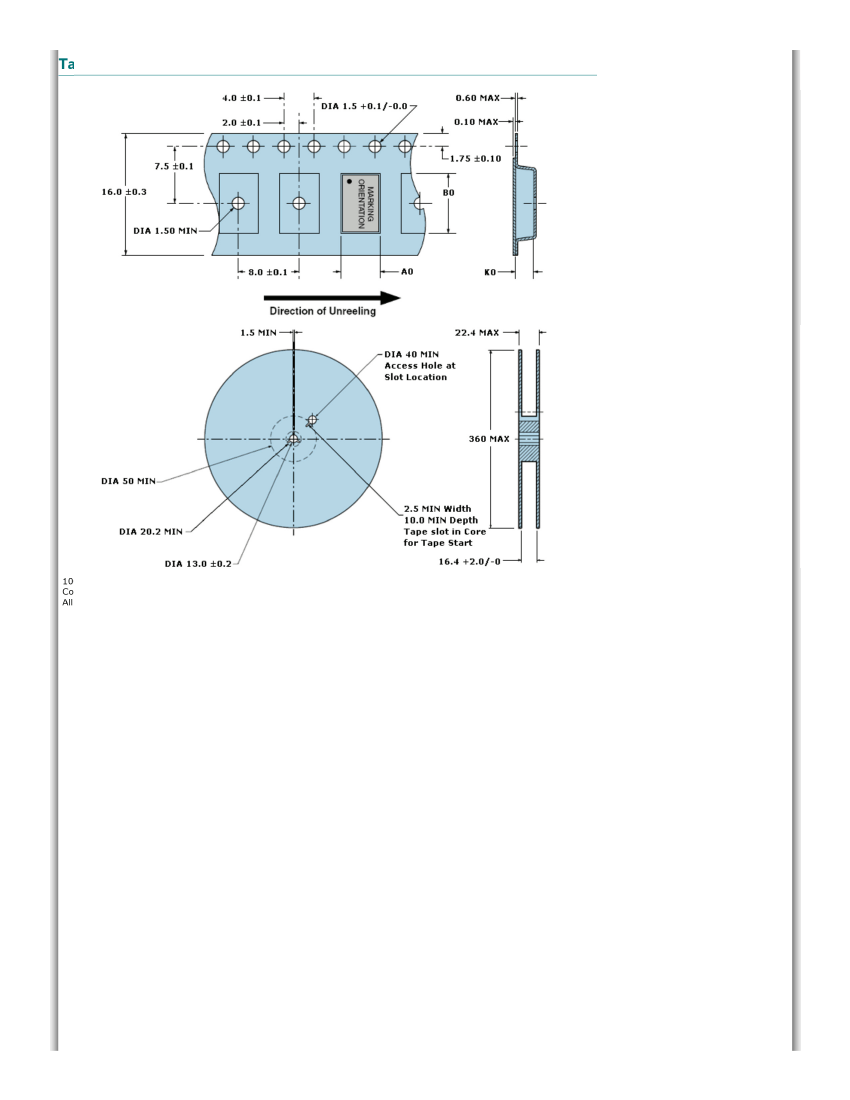

Other features	ENABLE/DISABLE FUNCTION; COMPLEMENTARY OUTPUT; TR, 14 INCH
maximum descent time	0.5 ns
Frequency Adjustment - Mechanical	NO
frequency stability	25%
JESD-609 code	e4
Installation features	SURFACE MOUNT
Nominal operating frequency	2.375 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	LVPECL
Output load	50 OHM

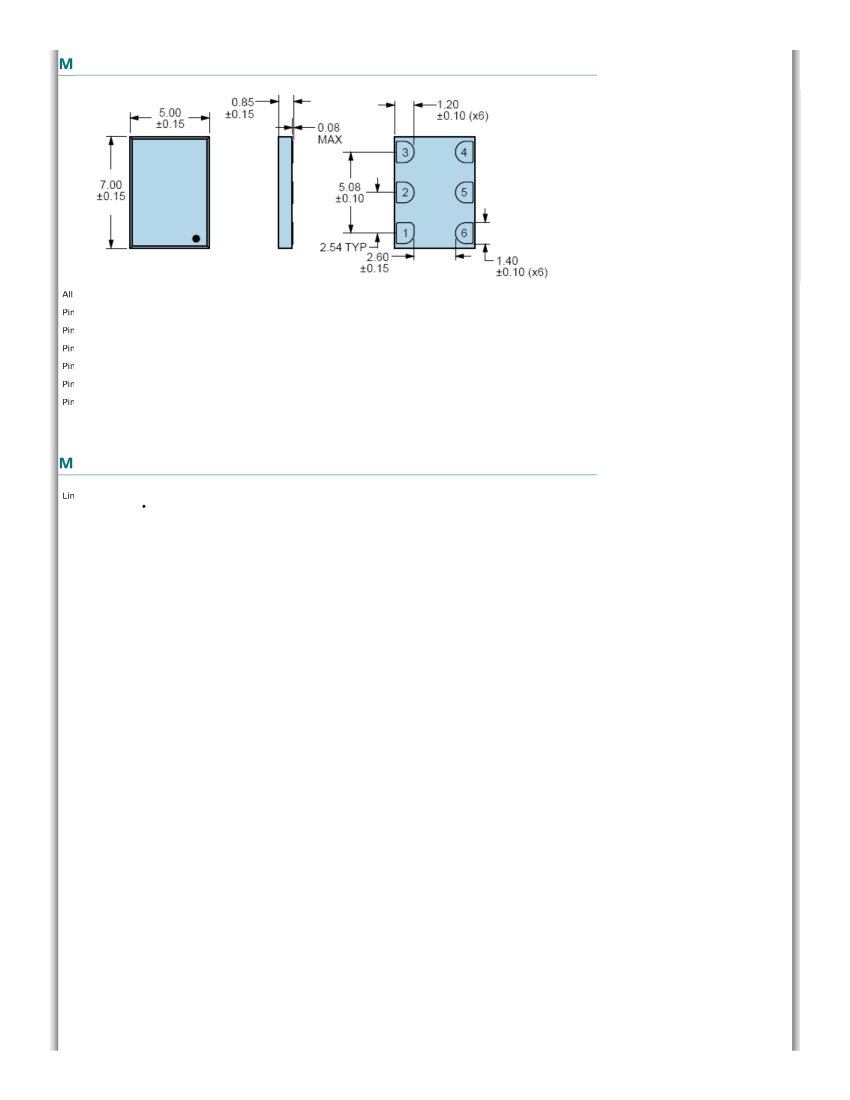

physical size	7.0mm x 5.0mm x 0.85mm
longest rise time	0.5 ns
Maximum supply voltage	3.63 V
Minimum supply voltage	2.97 V
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	60/40 %
Terminal surface	Nickel/Palladium/Gold (Ni/Pd/Au)

Preview

Download Datasheet

View All

Ecliptek | EMRC13 Series Oscillator

http://www.ecliptek.com/oscillators/EMRC13/

Log On

| 714-433-1200 |

Email Customer Support

Home

Products

Quick Quote

My Parts List

Site Map

EMRC13 Series Oscillator

MEMS Clock Oscillators LVPECL (PECL) 3.3Vdc 6 Pad 5.0mm x 7.0mm Plastic Surface Mount (SMD)

2011/65 +

2015/863

168 SVHC

Revision A 05/11/2012

Electrical Specifications

Nominal Frequency

1.000MHz to 625.000MHz

Some frequencies within this range may not be available.

Frequency Tolerance/Stability

(Inclusive of all conditions: Calibration Tolerance at 25°C, Frequency

Stability over the Operating Temperature Range, Supply Voltage

Change, Output Load Change, First Year Aging at 25°C, Reflow, Shock,

and Vibration)

±100ppm Maximum

±50ppm Maximum

±25ppm Maximum

±20ppm Maximum

0°C to +70°C

-20°C to +70°C

-40°C to +85°C

3.3V

±10%

Excluding Load Termination Current

60mA Typical, 70mA Maximum

-1.10V

Minimum, 2.40V

Typical, V

-0.70V

Maximum

-1.90V

Minimum, 1.60V

Typical, V

-1.50V

Maximum

600mVdc Minimum, 800mVdc Typical, 1000mVdc Maximum

Measured at 50% of waveform

50 ±10(%)

50 ±5(%) (Not available over Nominal Frequency range of

312.500001MHz to 524.999999MHz)

Measured at 20% to 80% of Waveform

300pSec Typical, 500pSec Maximum

50 Ohms into V

-2.0V

LVPECL

Output Enable (OE) and Complementary Output

Vih of 70% of Vdd Minimum or No Connect to Enable Output and

Complementary Output, Vil of 30% of V

Maximum to Disable Output

and Complementary Output (High Impedance)

35mA Maximum (OE) Without Load at Logic Control / Additional

Output of Output Enable (OE) and Complementary Output

Fj = 12kHz to 20MHz; Random

0.5pSec Typical, 1pSec Maximum

0.2pSec Typical

Operating Temperature Range

Supply Voltage (V

)

Input Current

Output Voltage Logic High (V

)

Output Voltage Logic Low (V

)

Output Swing (VOpp)

Duty Cycle

Rise Time/Fall Time

Load Drive Capability

Output Logic Type

Logic Control / Additional Output

Output Control Input Voltage

Output Enable Current

RMS Phase Jitter

Period Jitter (Deterministic)

1 of 10

28-Jan-2016 1:58 PM
