ECS-3953M-163-BN datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> ECS-3953M-163-BN

ECS-3953M-163-BN: DescriptionOscillator, 1.8MHz Min, 125MHz Max, 16.384MHz Nom,; CategoryPassive components oscillator; File Size125KB，1 Pages; ManufacturerECS; Websitehttp://www.ecsxtal.com/; Environmental Compliance

Download Datasheet Parametric View All

ECS-3953M-163-BN Overview

Oscillator, 1.8MHz Min, 125MHz Max, 16.384MHz Nom,

ECS-3953M-163-BN Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	108291328
package instruction	DILCC4,.2,200
Reach Compliance Code	compliant
JESD-609 code	e4
Installation features	SURFACE MOUNT
Number of terminals	4
Maximum operating frequency	125 MHz
Minimum operating frequency	1.8 MHz
Nominal operating frequency	16.384 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	CERAMIC
Encapsulate equivalent code	DILCC4,.2,200
power supply	3.3 V
Certification status	Not Qualified
Maximum slew rate	15 mA
Nominal supply voltage	3.3 V
surface mount	YES
Terminal surface	Gold (Au) - with Nickel (Ni) barrier

Preview

Download Datasheet

View All

-40 ~ +85°C Temp Range

5 x 7 mm Footprint

Pb Free/RoHS Compliant

± 50 ppm Stability

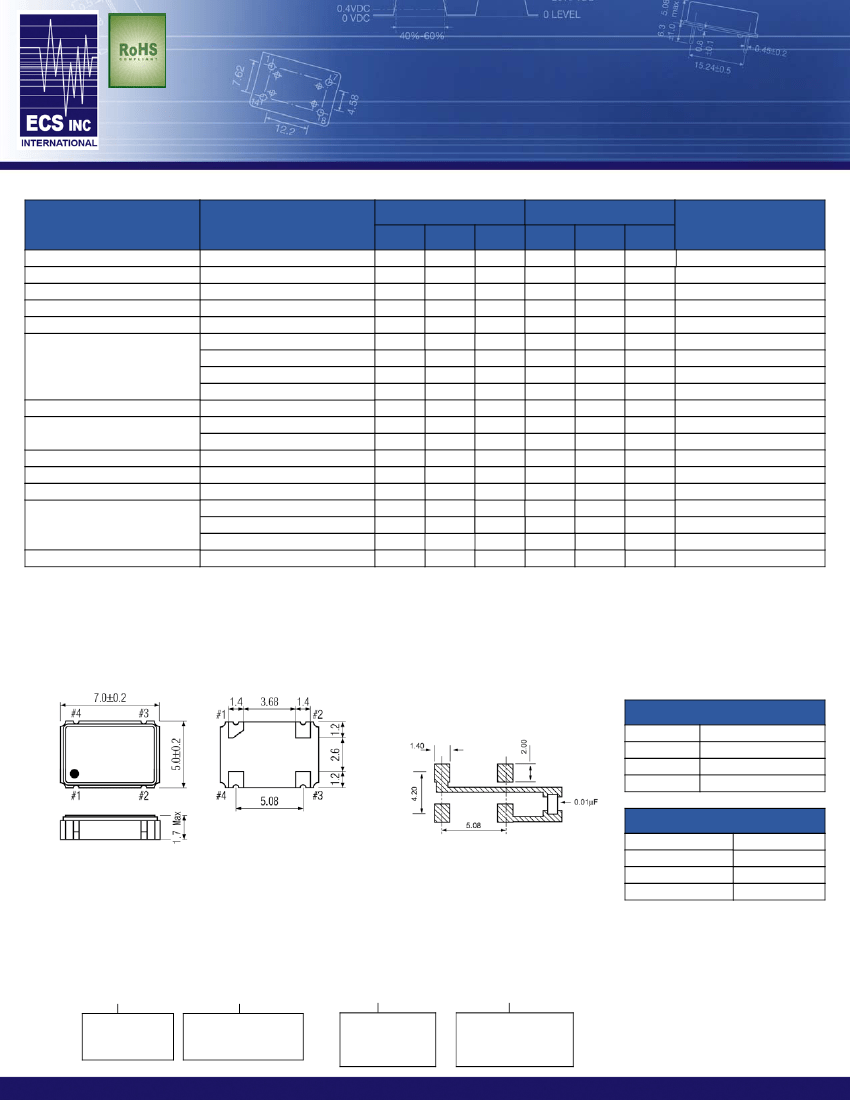

ECS-3951M/3953M-BN

SMD CLOCK OSCILLATOR

ECS-3951M-BN (5.0V) and ECS-3953M-BN (3.3V) Industrial

Grade (-40 to +85°C) miniature SMD oscillators . Ideal for

today's high temperature range applications.

OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS

ECS-3951M-BN (+5V)

ECS-3953M-BN (+3.3V)

PARAMETERS

Frequency Range

Operating Temperature

Storage Temperature

Supply Voltage

Frequency Stability *

Input Current

Output Symmetry

Rise and Fall Times

"0" level

"1" level

Output Load

Startup time

Disable delay time

CONDITIONS

MIN

1.800

-40

-55

+4.5

TYP

MAX

125.00

+85

+125

+5.5

± 50

40/60

10% VDD

MIN

1.800

-40

-55

+2.97

TYP

MAX

125.00

+85

+125

+3.63

± 50

40/60

10% VDD

UNITS

MHz

°C

VDC

ppm

VDC

VDD

Option B

1.800 to 36.000 MHz

36.100 to 70.000 MHz

70.100 to 100.000 MHz

100.100 to 125.000 MHz

@ 50% VDD level

1.800 to 70.000 MHz

70.001 to 125.000 MHz

VOL

VOH

HCMOS

1.800 to 36.000 MHz

36.100 to 70.000 MHz

70.100 to 100.000 MHz

+5.0

+3.3

90% VDD

100

ECS-3953M-BN is also compatible with a supply voltage of +3.0V DC ±0.3V.

* Note: Inclusive of 25°C tolerance, operating temperature,input voltage change, aging, shock and vibration.

DIMENSIONS (mm)

Pin Connections

Pin #1

Pin #2

Pin #3

Pin #4

Tri-State

Ground

Output

Tri-State Control Voltage

Pad 1

Open

+2.2V Min

+0.8V Max

Pad 4

Oscillation

No Oscillation

Figure 1) Top, Side and Bottom views

Figure 2) Suggested Land Pattern

Note: Internal crystal oscillation to be halted

(Pin #1=VIL)

PART NUMBERING GUIDE: Example ECS-3953M-200-BN

ECS

Series

Frequency Abbreviation

200 = 20.000 MHz

See Frequency

Abbreviations

Stability

Temperature

N = -40 ~ +85°C

3951M = +5.0V

3953M = +3.3V

B = ± 50 ppm

1105 South Ridgeview Road

Olathe, KS 66062

Phone: 913.782.7787

Fax: 913.782.6991

www.ecsxtal.com
