NOTES:
1. MATERIALS AND FINISHES:
BODY - ZINC DIE CAST, NICKEL PLATING
CONTACT - PHOSPHOR BRONZE, GOLD PLATING (.000003 THICK)
@ CONTACT AREA ONLY, TIN PLATING AT TAIL, NICKEL PLATED OVERALL
INSULATOR - POLYPROPYLENE
HOUSING - PBT 15% G.F., WHITE
FORK PIN - BRASS, TIN PLATING
GROUNDNG TERMINAL - STEEL, TIN PLATING
2. ELECTRICAL:
A. IMPEDANCE: 75 OHM
B. FREQUENCY RANGE: DC - 1 GHz
C. DIELECTRIC WITHSTANDING VOLTAGE: 1500 VRMS, MIN.
3. MECHANICAL:
A. DURABILITY: 500 CYCLES MIN.
B. TEMPERATURE RANGE: -55 $C TO 85 $C
4. PACKAGING:
4. PACKAGING:
A. PACKAGED IN PACKING TRAYS
B. QUANTITY PER TRAY: 40
5. SEPERATELY SUPPLIED MOUNTNG HARDWARE TO BE
TIGHTENED TO 10 IN-LBS MIN/15 IN-LBS MAX
WHEN ASSEMBLING TO PANEL
BNC PER MIL-STD-348
THIRD ANGLE PROJ.
REV
REVISIONS
A
B
RELEASE TO MFG.
SEE SHEET 1
SEE SHEET 1
TRANSFER TO KJ
SEE SHEET 1
DESCRIPTION
7/27/93
11/18/96
1/17/08
3/3/05
4/30/96
DATE
39647
40246
41637
45329
49278
ECO
C
D
E
SCALE
1.000
34.7 REF
F
JM/DR
CPM
CPM
EW
PB/RV
APPR
OBSOLETED ASSY DRAWING ADDED PURCHASING OUTLINE
11/29/12
14.5 #
0.3
1/2"-28UNEF-THREAD
15.6 #
0.3
11.7
7.42
0.76
12.83
PANEL CUTOUT
10.16
2 TYP (2)
5.08
12 #
0.3
8.9 #
0.3
7.37 #
0.3
4.1 #
.3
0.5 #
0.1
0.76 REF
3 #
0.3
5.08
0.72 REF
GROUND
0.9 TYP (2)
SIGNAL
5.08
GROUND
SIGNAL
2.54
RECOMMENDED PCB LAYOUT
UNLESS OTHERWISE SPECIFIED, DIMENSIONS ARE IN METRIC AND TOLERANCES ARE:
<0.5mm
0.5 - 6mm
6 - 30mm
30 - 120mm
ANGLES
# 0.05mm
#
0.1mm
# 0.3mm
#
0.2mm
# $
1
NOTICE - These drawings, specifications, or other data (1) are, and remain the
property of Amphenol corp. (2) must be returned upon requiest; and (3) arre
confidential and not to be disclosed to any person other than those to whom
they
are given by Amphenol Corp. the funishing of these drawings, specifications,
or
other data by Amphenol Corp., or to any other person to anyone for any purpose
is
not to be regarded by implicatioin or otherwise in any manner licensing,
granting
rights to permitting such holder or any other sperson to manufacture, use or
sell any
product, process or design, patented or otherwsie, that may in any way be
related to
or disclosed by said drawings, specifications, or other data.
MATERIAL
-
-
REFERENCE
CONFIGURATION LEVEL:
DRAWN
ERIC WANKOFF
ENGINEER
RAV
APPROVED
D ROYCE
DATE
26-Jun-12
DATE
7/23/93
DATE
4-30-96
TITLE

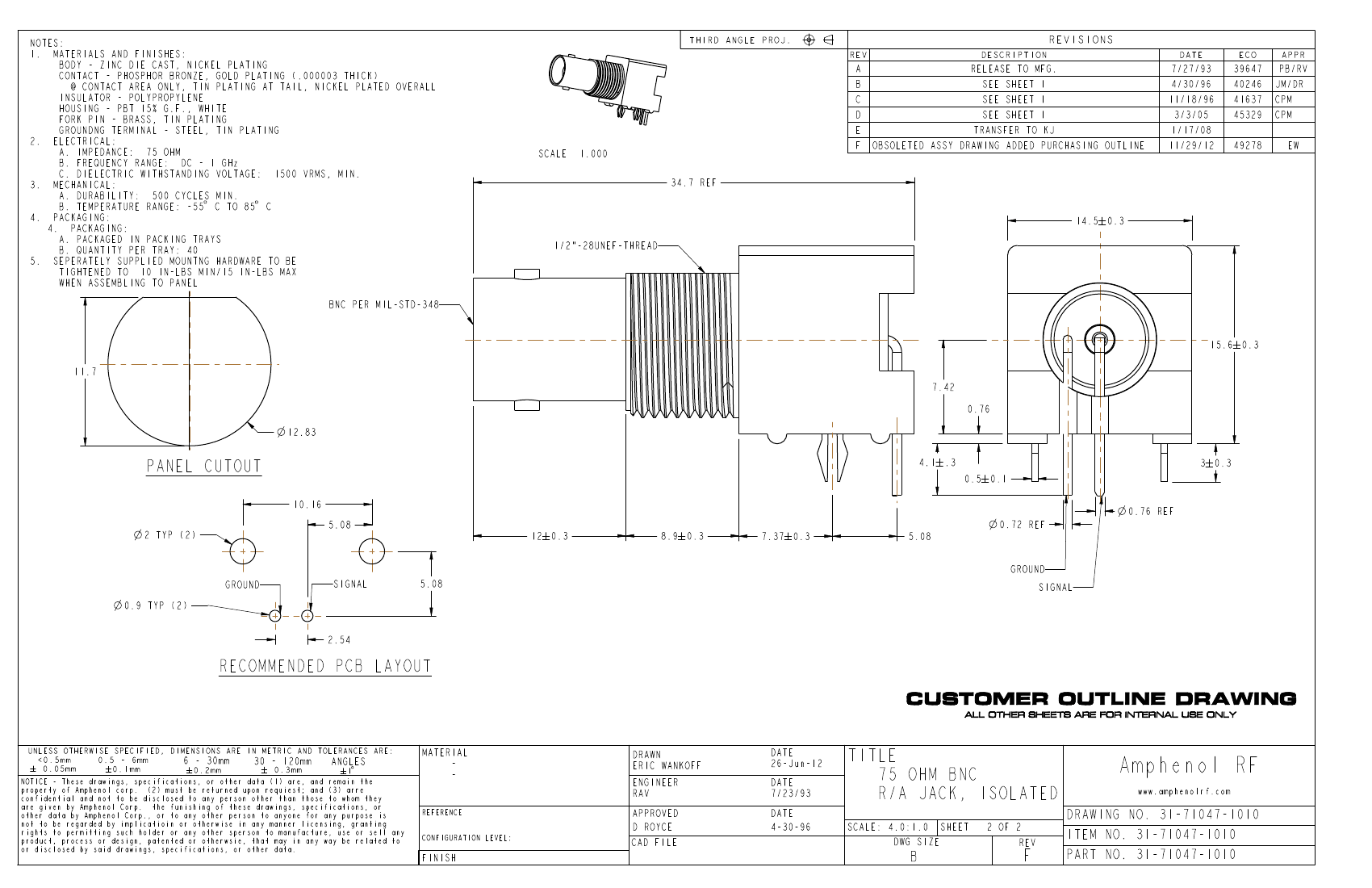

75 OHM BNC
R/A JACK, ISOLATED
SCALE: 4.0:1.0
DWG SIZE
SHEET
2 OF 2
Amphenol RF
www.amphenolrf.com
DRAWING NO. 31-71047-1010
ITEM NO. 31-71047-1010
PART NO. 31-71047-1010
FINISH
CAD FILE
B
REV
F
