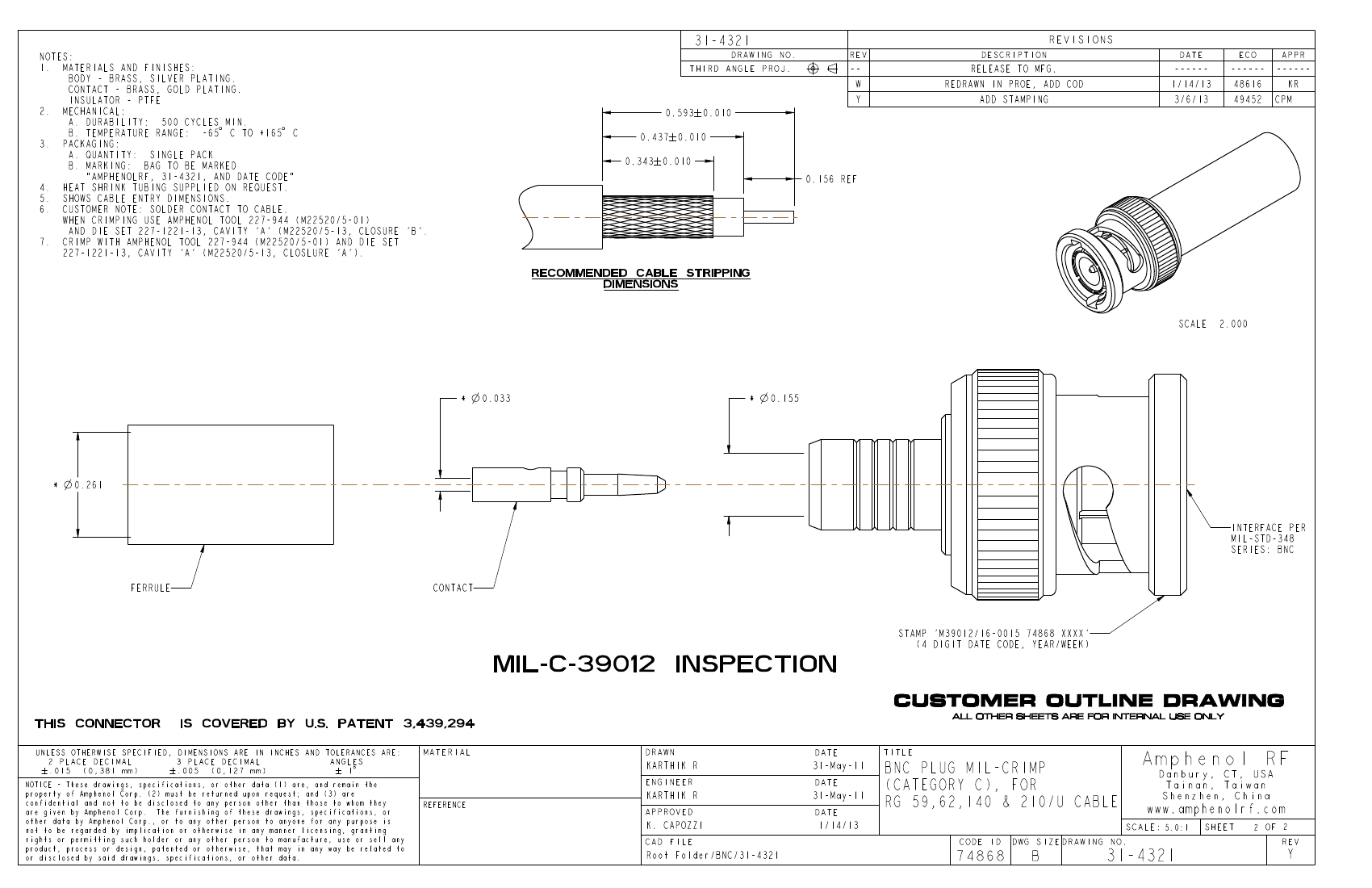

NOTES:
1. MATERIALS AND FINISHES:
BODY - BRASS, SILVER PLATING.
CONTACT - BRASS, GOLD PLATING.
INSULATOR - PTFE
2. MECHANICAL:
A. DURABILITY: 500 CYCLES MIN.
B. TEMPERATURE RANGE: -65 $C TO +165 $C
3. PACKAGING:
A. QUANTITY: SINGLE PACK
B. MARKING: BAG TO BE MARKED
"AMPHENOLRF, 31-4321, AND DATE CODE"
4. HEAT SHRINK TUBING SUPPLIED ON REQUEST.
5. SHOWS CABLE ENTRY DIMENSIONS.
6. CUSTOMER NOTE: SOLDER CONTACT TO CABLE.
WHEN CRIMPING USE AMPHENOL TOOL 227-944 (M22520/5-01)
AND DIE SET 227-1221-13, CAVITY 'A' (M22520/5-13, CLOSURE 'B'.
7. CRIMP WITH AMPHENOL TOOL 227-944 (M22520/5-01) AND DIE SET
227-1221-13, CAVITY 'A' (M22520/5-13, CLOSLURE 'A').
31-4321
REVISIONS
REV
DRAWING NO.
THIRD ANGLE PROJ.
--
W
Y
REDRAWN IN PROE, ADD COD
ADD STAMPING
RELEASE TO MFG.
DESCRIPTION
1/14/13
3/6/13
------
DATE
------
48616
49452
ECO
------
CPM
KR
APPR
0.593 #
0.010
0.437 #
0.010
0.343 #
0.010
0.156 REF
RECOMMENDED CABLE STRIPPING
DIMENSIONS
SCALE
2.000
*
0.033
*
0.155
*
0.261
INTERFACE PER
MIL-STD-348
SERIES: BNC
FERRULE
CONTACT
MIL-C-39012 INSPECTION
THIS CONNECTOR
IS COVERED BY U.S. PATENT 3,439,294
MATERIAL
DRAWN
STAMP 'M39012/16-0015 74868 XXXX'
(4 DIGIT DATE CODE, YEAR/WEEK)
UNLESS OTHERWISE SPECIFIED, DIMENSIO NS ARE IN INCHES AND TOLERANCES ARE:
2 PLACE DECIMAL
3 PLACE DECIMAL
ANGLES
#.015
(0,381 mm)
#.005 (0,127 mm)
# 1$
NOTICE - These drawings, specificati
property of Amphenol Corp. (2) must
confidential and not to be disclosed
are given by Amphenol Corp. The fur
other data by Amphenol Corp., or to
not to be regarded by implication or
rights or permitting such holder or
product, process or design, patented
or disclosed by said drawings, speci
ons, or other data (1) are, and rema
be returned upon request; and (3) ar
to any person other than those to w
nishing of these drawings, specifica
any other person to anyone for any p
otherwise in any manner licensing,
any other person to manufacture, use
or otherwise, that may in any way b
fications, or other data.
in the
e
hom they
tions, or
urpose is
granting
or sell any
e related to
KARTHIK R
31-May-11
31-May-11
DATE
DATE
DATE
TITLE
ENGINEER
REFERENCE
APPROVED
CAD FILE
KARTHIK R
K. CAPOZZI
Root Folder/BNC /31-4321
BNC PLUG MIL-CRIMP
(CATEGORY C), FOR
RG 59,62,140 & 210/U CABLE
74868
CODE ID
DWG SIZE DRAWING NO.
Amphenol RF
www.amphenolrf.com
SCALE: 5.0:1
SHEET
Danbury, CT, USA
Tainan, Taiwan
Shenzhen, China
1/14/13
2 OF 2
REV
B
31-4321
Y
