FPCR1C1213A3101 datasheet, PDF

Datasheet> All Categories > Mechanical and electronic products> switch> FPCR1C1213A3101

FPCR1C1213A3101: DescriptionSpecial Switch, Off-on, 4A, 12VDC, Solder Lug Terminal, Panel Mount; CategoryMechanical and electronic products switch; File Size137KB，5 Pages; ManufacturerAPEM; Environmental Compliance

Download Datasheet Parametric View All

FPCR1C1213A3101 Overview

Special Switch, Off-on, 4A, 12VDC, Solder Lug Terminal, Panel Mount

FPCR1C1213A3101 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	315844889
Reach Compliance Code	compliant
ECCN code	EAR99
Actuator angle
Actuator color	BLUE
Executor completed	GLOSS
Actuator length	0.177 inch
Actuator material	POLYAMIDE
Actuator stroke	2.794 mm
Actuator type	PUSHBUTTON
body height	26.4922 mm
center contact material	SILVER
Center contact plating	SILVER
Maximum contact current (DC)	4 A
Contact (DC) maximum rated R load	4A@12VDC
Contact function	OFF-ON
Contact resistance	0.05 mΩ
Maximum contact voltage (DC)	12 V
Dielectric withstand voltage	1000VRMS V
End contact material	SILVER
End contact plating	SILVER
illumination	LED
Insulation resistance	1000000000 Ω
insulator material	POLYAMIDE
Manufacturer's serial number	FP
Installation features	PANEL MOUNT
Maximum operating temperature	75 °C
Minimum operating temperature	-40 °C
surface mount	NO
Terminal length	0.248 inch
Termination type	SOLDER LUG

Preview

Download Datasheet

View All

New!

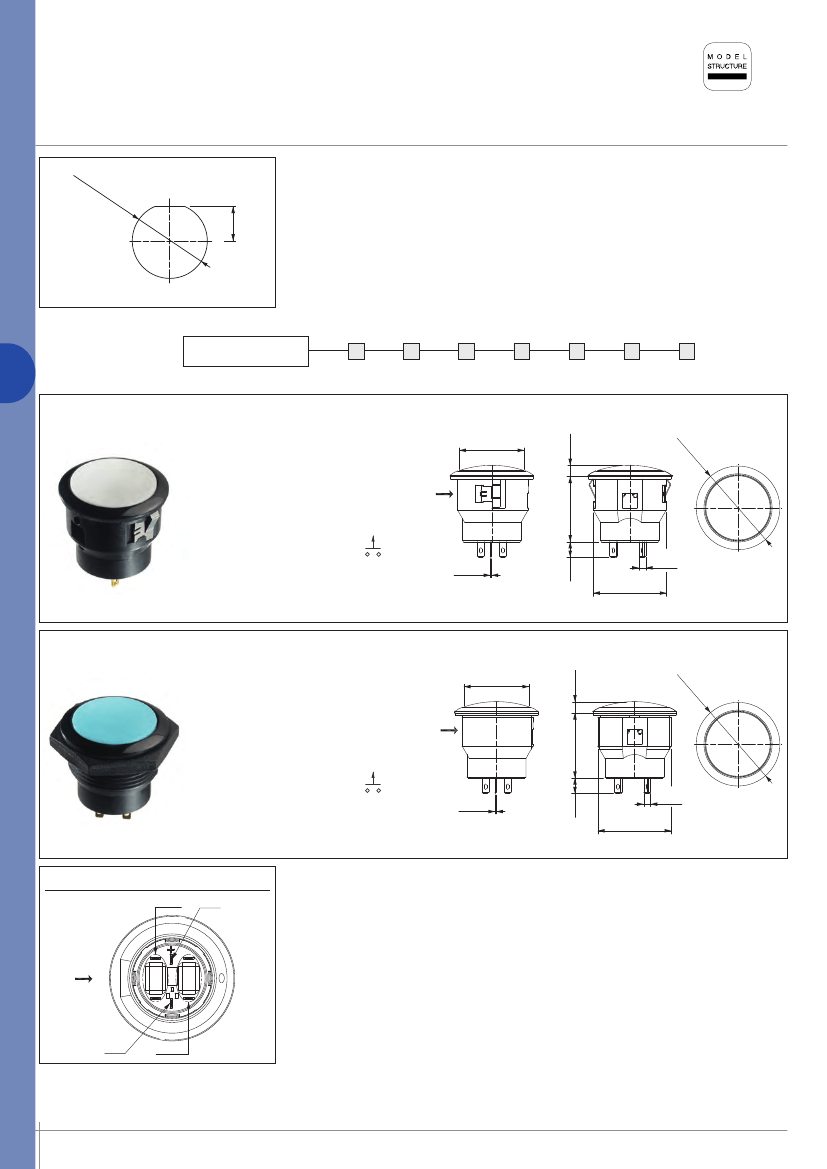

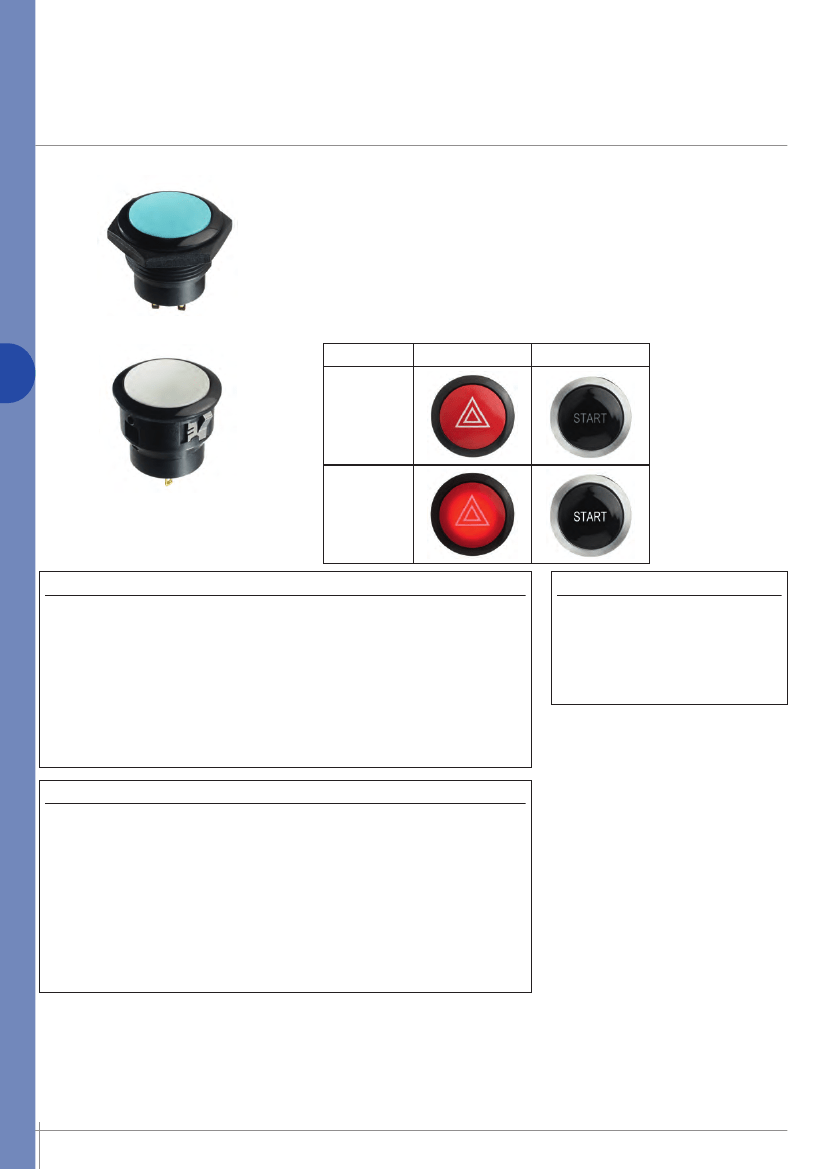

Fully illuminated pushbutton switches - bushing Ø 30 mm - momentary or latching

Distinctive features and specifications

FP series

Full actuator or symbol illumination

Suited for integrated designs

Large but lightweight

Pad printed or laser etched symbols

Snap-in and threaded bushing models

Pad printing

Laser

UG1410A

Non-illuminated

Illuminated

ELECTRICAL SPECIFICATIONS

MATERIALS

• Max. current/voltage rating with resistive load :

- silver contacts (code 2) : 4A 12VDC

- gold plated contacts (code 4) : 200mA 12VDC

• Initial contact resistance : 50 mΩ max.

• Insulation resistance : 1 GΩ min. at 500VDC

• Dielectric strength : 1.000 Vrms 50 Hz min.

• Electrical life at full load :

- Momentary models : 1 million cycles (gold plated contacts)

400.000 cycles (silver contacts)

- Latching models : 200.000 cycles

GENERAL SPECIFICATIONS

• Case : PA46

• Actuator : PA12, gloss finish

• Bushing/ bezel : ABS, gloss finish

• Contacts :

Silver (code 2)

or silver, gold plated (code 4)

• Panel thickness :

- Snap-in version : 1,5 (.059) to 2 mm (.078) with panel gasket

2 (.078) to 2,5 mm (.885) without panel gasket

- Threaded bushing version : 1(.039) to 9 mm (.354) max.

• Total travel : 2,8 mm

± 0,5 mm

• Typical operating force : 8N

± 2N

• Low level or mechanical life :

- Momentary models : 1 million cycles

- Latching models : 200.000 cycles

• Torque : 2 Nm max. applied to nut

• Operating temperature : -40°C to +75°C

The company reserves the right to change specifications without notice.

B2-150

www.apem.com

APEM
