NOTES:
1. MATERIALS AND FINISHES:
BAYONET SLEEVE - BRASS, NICKEL PLATING (.000100/.000250) THICK
BODIES - BRASS, NICKEL PLATING (.000100/.000250) THICK
WASHER - BRASS, NICKEL PLATING (.000100/.000250) THICK
CLAMP - BRASS, NICKEL PLATING (.000100/.000250) THICK
CONTACT - BeCu, GOLD PLATING (.00005/.0001 THICK) OVER NICKEL
OUTER CONTACT - BeCu, GOLD PLATING (.00005/.0001 THICK) OVER NICKEL
REAR OUTER CONTACT - BRASS, NICKEL PLATING (.000100/.000250) THICK
REAR GASKET - FLOUROSILICONE, COLOR: BLUE
FRONT GASKET - SILICONE RUBBER
INSULATORS - PTFE
SPACER - BRASS, NICKEL PLATING(.000100/.000250) THICK
RETAINING RING - BRASS, NICKEL PLATING (.000100/.000250) THICK
SPRING WASHER - BeCu, GOLD PLATING (.0005/.0001 THICK) OVER NICKEL
FERRULE - COPPER TUBING, NICKEL PLATING (.000100/.000250) THICK
2.
ELECTRICAL:
A. IMPEDANCE: NON-CONSTANT CAN BE USED WITH 50, 75 AND 93 OHM TRIAXIAL
B. FREQUENCY RANGE: DC - 500 mHz
ENVIRONMENTAL:
A. TEMPERATURE RANGE: -65
$C TO 165 $C
CABLES
THIRD ANGLE PROJ.
REV
REVISIONS
--
Y
DESCRIPTION
REDRAW IN PRO-E; ADD PARENTHESIS TO STAMP & COD
--
DATE
9/13/11
--
ECO
48728
--
APPR
--
MJS
120 $
130 $
3.
4.
5.
6.
110 $
FOR ASSEMBLY AND STRIPPING INSTRUCTIONS SEE 9-9950-433
FERRULE TO BE CRIMPED WITH A .178 HEX DIE
CONTACT TO BE SOLDERED
ASTERISK (*) INDICATES CABLE ENTRY DIMENSIONS

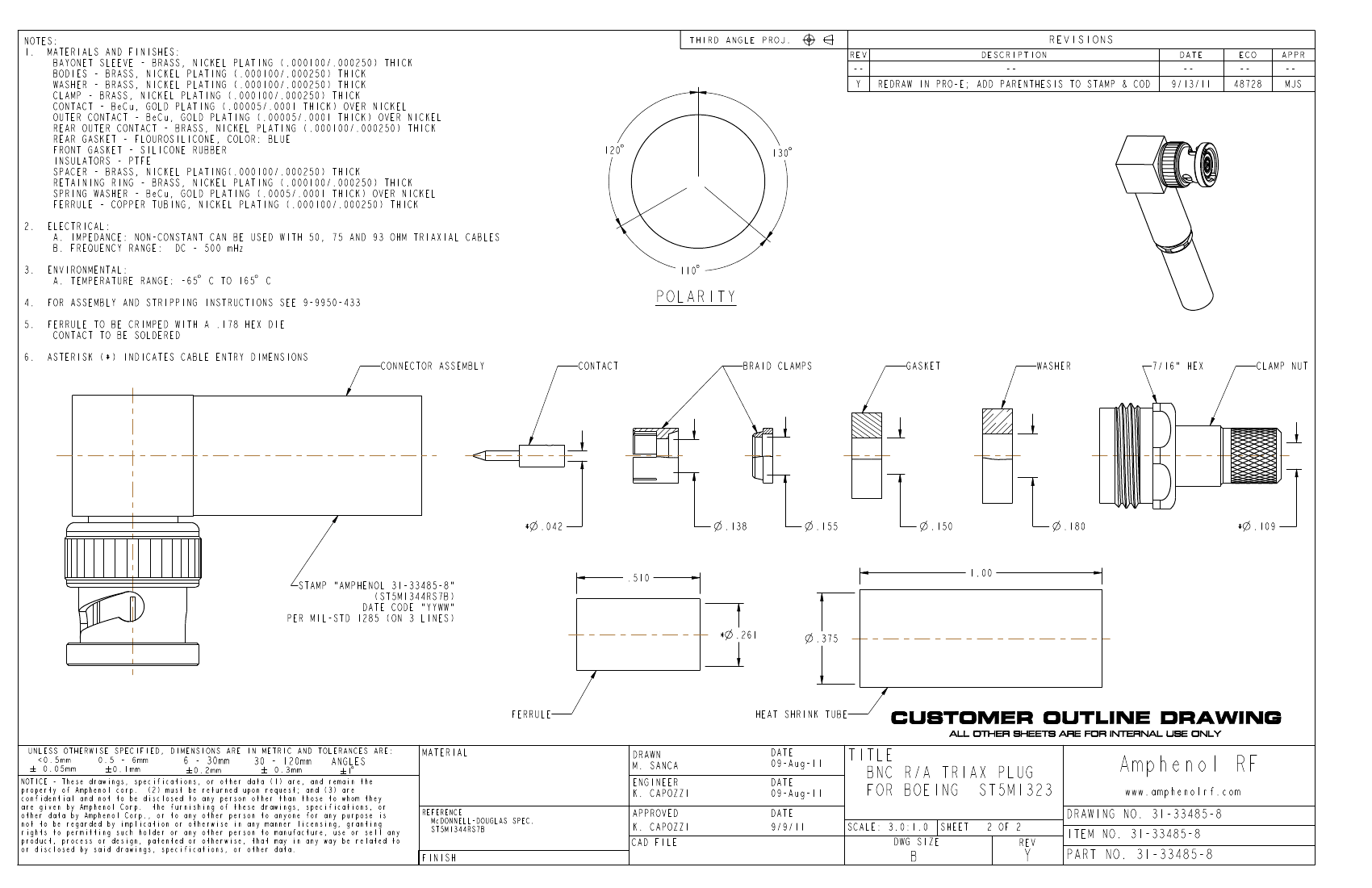

CONNECTOR ASSEMBLY
CONTACT
POLARITY
BRAID CLAMPS
GASKET
WASHER
7/16" HEX
CLAMP NUT
*
.042
.138
.155
.150
.180
*
.109
STAMP "AMPHENOL 31-33485-8"
(ST5M1344RS7B)
DATE CODE "YYWW"
PER MIL-STD 1285 (ON 3 LINES)
.510
1.00
*
.261
.375
FERRULE
UNLESS OTHERWISE SPECIFIED, DIMENSIONS ARE IN METRIC AND TOLERANCES ARE:
<0.5mm
0.5 - 6mm
6 - 30mm
30 - 120mm
ANGLES
# 0.05mm
#
0.1mm
# 0.3mm
#
0.2mm
# $
1
NOTICE - These drawings, specifications, or other data (1) are, and remain the
property of Amphenol corp. (2) must be returned upon request; and (3) are
confidential and not to be disclosed to any person other than those to whom
they
are given by Amphenol Corp. the furnishing of these drawings, specifications,
or
other data by Amphenol Corp., or to any other person to anyone for any purpose
is
not to be regarded by implication or otherwise in any manner licensing,
granting
rights to permitting such holder or any other person to manufacture, use or
sell any
product, process or design, patented or otherwise, that may in any way be
related to
or disclosed by said drawings, specifications, or other data.
HEAT SHRINK TUBE
DATE
09-Aug-11
DATE
09-Aug-11
DATE
9/9/11
MATERIAL
DRAWN
M. SANCA
ENGINEER
K. CAPOZZI
TITLE
BNC R/A TRIAX PLUG
FOR BOEING ST5M1323
SCALE: 3.0:1.0
DWG SIZE
SHEET
2 OF 2
REV
Amphenol RF
www.amphenolrf.com
REFERENCE
McDONNELL-DOUGLAS SPEC.
ST5M1344RS7B
FINISH
CAD FILE
APPROVED
K. CAPOZZI
DRAWING NO. 31-33485-8
B
Y
ITEM NO. 31-33485-8
PART NO. 31-33485-8
