RP132x-Y Series
Low on Resistance / Low Voltage 1 A LDO for High Temperature Applications
NO.EA-343-190408
OUTLINE
The RP132x Series are voltage-regulators with a built-in low ON-resistance transistor and output current is 1A
capability. These ICs have two versions: fixed output voltage type and externally adjustable output voltage type.
The externally adjustable output voltage type is adjustable between 0.8V and 5.5V. The minimum input voltage
can be set from 1.4V. Otherwise, the load regulation of RP132x has much improved when compared with
conventional regulators. It is Typ.5mV at I
OUT
½0.1mA
to 1A.

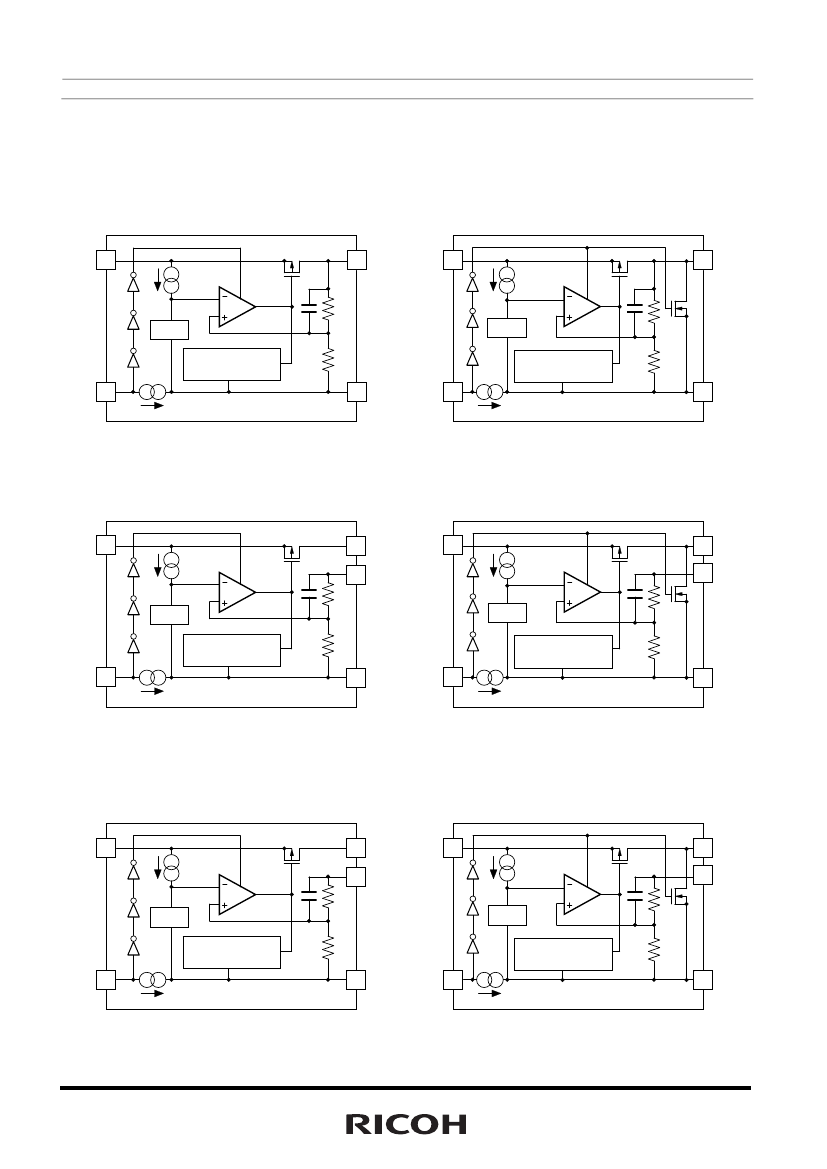

Each of these ICs consists of a voltage reference unit, an error amplifier, a resistor net for setting output voltage,
current limit circuits to prevent over-current and a thermal-shutdown circuit. A standby mode with ultra low supply
current can be realized with the chip enable function.
The packages for these ICs are DFN(PLP)1820-6, SOT-89-5, HSOP-6J, and TO-252-5-P2. They range from
high-density mounting to ultra high wattage.
FEATURES
Input Voltage Range (Maximum Rating) ...................... 1.4V to 6.5V (7 V)
Operating Temperature Range ..................................... −40C to 105C (※)
Output Current ............................................................ Min. 1A
Supply Current ............................................................. Typ. 65A
Standby Current .......................................................... Typ. 0.15A
Output Voltage Range .................................................. Fixed Output Voltage Type:
0.8V, 1.05V, 1.2V, 1.5V, 1.8V, 2.5V, 3.0V, 3.3V, 5.0V
Contact Ricoh sales representatives for other voltages.
Adjustable Output Voltage Type: 0.8V to 5.5V
Dropout Voltage .......................................................... Typ. 0.52V (V
SET
½3.0V,
I
OUT
½1A)
Ripple Rejection ........................................................... Typ. 70dB (f½1kHz, V
SET
½3.0V)
Output Voltage Accuracy ..............................................
1.0%
Output Voltage Temperature-Drift Coefficient .............. Typ.
60ppm/C
Line Regulation ............................................................ Typ. 0.052%/V
Load Regulation ......................................................... Typ. 3mV at I
OUT
½300mA,
Typ. 5mV at I
OUT
½1A
Packages .................................................................... DFN(PLP)1820-6, SOT-89-5, HSOP-6J, TO-252-5-P2
Inrush Current Limit Circuit ......................................... Typ. 500mA
B/D version: Inrush current limit time is 500s.
Fold-Back Protection Circuit ....................................... Typ. 250mA (Current at short mode)
Thermal Shutdown Circuit .......................................... Thermal Shutdown Temperature: Typ. 165C
Released Temperature: Typ. 95C
Auto Discharge Function ............................................ D version
Ceramic capacitors are recommended to be used with this IC .... 2.2F or more (V
SET
≤ 3.6V)
4.7F or more (V
SET
3.6V)
※
This product is usable for the high-temperature applications since have passed a test at the high
temperature. In addition, this product has a high-reliability since having passed Ricoh’s rigorous quality
standards. To distinguish from the consumer products, “-Yx” is added at the end of the product name.
APPLICATIONS
Industrial equipments such as FAs and smart meters
Equipments used under high-temperature conditions
Equipments accompanied by self-heating
1
RP132x-Y
NO.EA-343-190408
SELECTION GUIDE
The output voltage, the auto discharge function*, and the package type for the ICs can be selected at the
user’s request.
Product Name
RP132K001-TR-Y
RP132Kxx1-TR-Y
RP132H001-T1-YE
RP132Hxx1-T1-YE
RP132S001-E2-YE
RP132Sxx1-E2-YE
RP132J001-T1-YE
RP132Jxx1-T1-YE
Package
DFN(PLP)1820-6
SOT-89-5
HSOP-6J
TO-252-5-P2
Quantity per Reel
5,000 pcs
1,000 pcs
1,000 pcs
3,000 pcs
Pb Free
Yes
Yes
Yes
Yes
Halogen Free
Yes
Yes
Yes
Yes
RP132x001x is the adjustable output voltage type.
xx: Specify the set output voltage (V
SET
) of the fixed output voltage type.
0.8V(08), 1.2V(12), 1.5V(15), 1.8V(18), 2.5V(25), 3.0V(30), 3.3V(33), 5.0V(50)
1.05V(RP132x101x5)
Contact Ricoh sales representatives for other voltages.
The
auto discharge function at off state options are as follows.
(B) without auto discharge function* at off state
(D) with auto discharge function* at off state
* Auto-discharge function quickly lowers the output voltage to 0V, when the chip enable signal is switched from the active
mode to the standby mode, by releasing the electrical charge accumulated in the external capacitor.
3
RP132x-Y
NO.EA-343-190408
PIN DESCRIPTIONS
DFN(PLP)1820-6
Top View
6
5
4
SOT-89-5
5
6
HSOP-6J
4
6
5
4
TO-252-5-P2
Bottom View
4
5
1
1
2
3
3
2
1
2
3
1
2
3
1
2
3
4
5
DFN(PLP)1820-6
Pin No.
1
2
3
4
5
6
Symbol
V
OUT
V
FB
GND
CE
NC
V
DD
Output Pin
Feed Back Pin
Ground Pin
Chip Enable Pin ("H" Active)
No Connection
Input Pin
Pin Description
)
The tab on the bottom of the package enhances thermal performance and is electrically connected to
GND (substrate level). It is recommended that the tab be connected to the ground plane on the board, or otherwise
be left open.
When using Fixed Output Voltage Type (RP132Kxx1x),V
OUT
pin and V
FB
pin should be connected. When using
Adjstable Output Voltage Type (RP132K001x), please follow
Notes on the Adjustable Output Voltage Type Settings.
SOT-89-5
Pin No.
1
2
3
4
5
Symbol
CE
V
FB
GND
NC
CE
V
DD
V
OUT
Pin Description
Chip Enable Pin ("H" Active) (RP132Hxx1B/D)
Feed Back Pin (RP132H001B/D)
Ground Pin
No Connection (RP132Hxx1B/D)
Chip Enable Pin ("H" Active) (RP132H001B/D)
Input Pin
Output Pin
When using Adjstable Output Voltage Type (RP132H001x), please follow
Notes on Adjustable Output Voltage Type
Settings.
4
RP132x-Y
NO.EA-343-190408
HSOP-6J
Pin No.
1
2
3
4
5
6
Symbol
V
OUT
GND
NC
V
FB
CE
GND
V
DD
Output Pin
Ground Pin
No Connection (RP132Sxx1B/D)
Feed Back Pin (RP132S001B/D)
Chip Enable Pin ("H" Active)
Ground Pin
Input Pin
Pin Description
No. 2 pin and No .5 pin must be wired each other when mounted on boards. When using Adjstable Output Voltage Type
(RP132S001x), please follow
Notes on Adjustable Output Voltage Type Settings.
TO-252-5-P2
Pin No.
1
2
3
4
5
Symbol
CE
V
DD
GND
V
OUT
V
FB
Input Pin
Ground Pin
Output Pin
Feed Back Pin
Pin Description
Chip Enable Pin ("H" Active)
)
The tab on the bottom of the package enhances thermal performance and is electrically connected to
GND (substrate level). It is recommended that the tab be connected to the ground plane on the board, or otherwise
be left open.
When using Fixed Output Voltage Type (RP132Jxx1x),V
OUT
pin and V
FB
pin should be connected. When using
Adjstable Output Voltage Type (RP132J001x), please follow
Notes on the Adjustable Output Voltage Type Settings.
5
