REVISION D
C
DESIGNED & DIMENSIONED
IN MILLIMETERS[INCHES]
"A"
(SEE TABLE 1, SHT 2)
2.90 .114
REF
"C" REF
(SEE TABLE 3,
SHT 3)
"B" REF (TYP)
(SEE TABLE 2,
SHT 2)
N
P02
P04
LPHS-XX-XX-X-VXX-XX
POWER POS (TOTAL)
**-02, -04, -06, -08,
**-10, *-12, *-14
SIGNAL POS (TOTAL)
*-12, **-16, -20, -24,
-28, -32, *-36, *-40
OPTION
-GP: GUIDE POST
**-BLANK: NO GP OPTION
TAIL
-VP1: PRESS FIT
*-VT1: FOR .062" BOARD
*-VT2: FOR .093" BOARD
PLATING SPECIFICATION
-L: 10µ" GOLD IN CONTACT AREA,
MATTE TIN TAIL
-S: 30µ" GOLD IN CONTACT AREA,
MATTE TIN TAIL
DO NOT
SCALE FROM
THIS PRINT
"A"
5.08 .200
REF
01
02
(* = NOT TOOLED)
(** = NOT RELEASED)
5.08 .200
REF
C
L
1.27 .050 REF (TYP)
(TOL NON-ACCUM)
SUB-LPHS-24-X-VP1-GP-S
"A"
N/2
P01
P03
C
8.28 .326
"B"
SUB-LPHS-04-X-VP1-GP-P
12.29 .484
REF
15.21 .599
REF
18.00 .709
REF
0.00±0.10 .000±.004 (TYP)
"D" .550 REF
(SEE TABLE 3, SHT 3)
1.27 .050 REF (TYP)
(TOL NON-ACCUM)
P01
C
"B"
7.50 .295
2.50 .098
(TYP) REF
(TYP) REF
4.50 .177 (TYP) REF
4.53 .178
C
"E" REF
(SEE TABLE 2, SHT 2)
C
L
(* = NOT TOOLED)
(** = NOT RELEASED)
LPHS-04-24-X-VP1-GP SHOWN
FIG 1
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN MILLIMETERS.
TOLERANCES ARE:
DECIMALS
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
NOTES:
1.
C
REPRESENTS A CRITICAL DIMENSION.
2. MINIMUM PUSHOUT FORCE: 0.5 LBS OF SIGNAL & 3.0 LBS OF POWER PINS.
3. MAXIMUM ALLOWABLE BOW SEE TABLE 5.
4. ASSEMBLIES TO BE PACKAGED IN TRAYS.
5. APPLICATION TOOLING REQUIRED FOR TERMINATIONS, SEE TABLE 6.
X.X: 0.3[.01]
2
X.XX: 0.13[.005]
X.XXX: 0.051[.0020]
ANGLES
MATERIAL:
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
INSULATOR: LCP ULV-0, COLOR: BLACK
TERMINAL: COPPER ALLOY
LPHS-VT ASSEMBLY
LPHS-XX-XX-X-VXX-XX
12/10/2011
SHEET
1
OF
3
F:\DWG\MISC\MKTG\LPHS-XX-XX-X-VXX-XX-MKT.SLDDRW
BY:
VICKY Z
REVISION D
0.72 .028 REF
5.11 .201 REF
1.01 .040 REF
5.83 .230 REF
2.18 .086
REF
5.07 .200
REF
"G" (TYP) REF
(SEE TABLE 4, SHT 3)
"F" (TYP) REF
(SEE TABLE 4, SHT 3)
0.64 .025 (TYP) REF
5.72 .225
3.33 .131 (TYP) REF
C
L
0.38 .015 (TYP) REF
1.91 .075 (TYP) REF
C
L

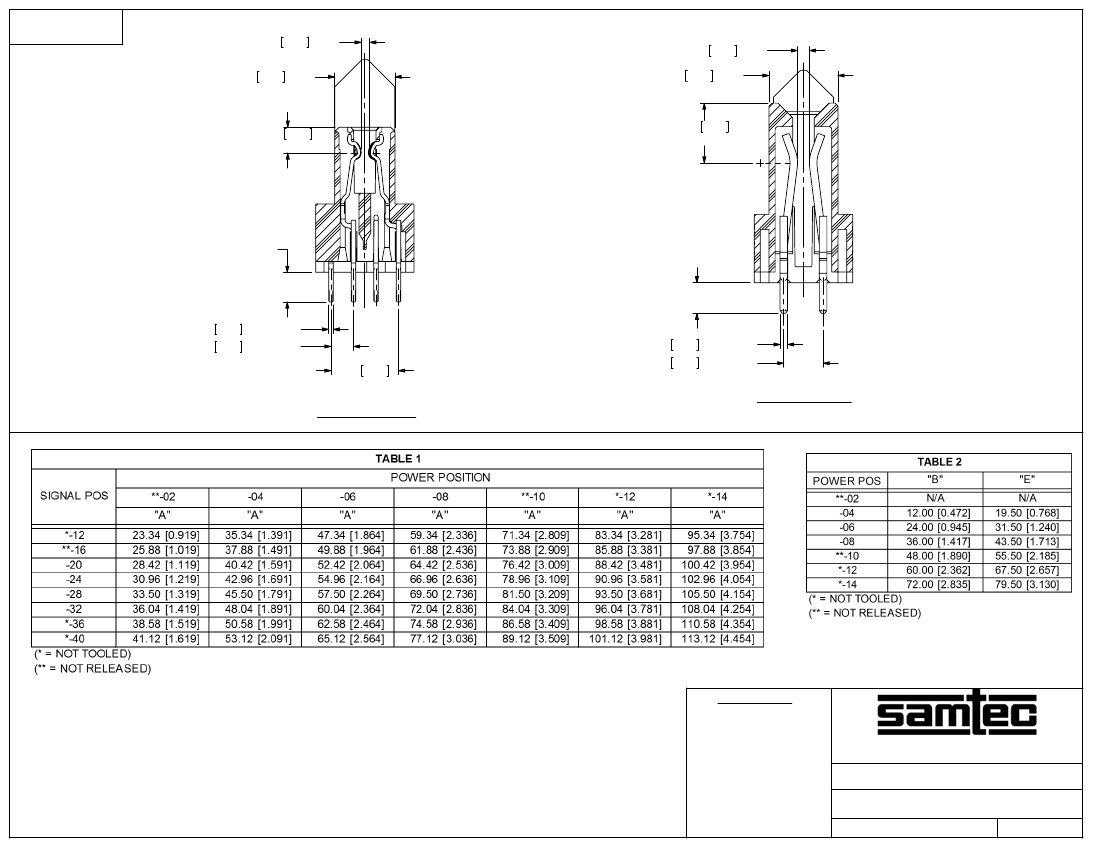

SECTION "A"-"A"
SECTION "B"-"B"
F:\DWG\MISC\MKTG\LPHS-XX-XX-X-VXX-XX-MKT.SLDDRW
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 3:1
LPHS-VT ASSEMBLY
12/10/2011
SHEET
2
OF
3
LPHS-XX-XX-X-VXX-XX
BY:
VICKY Z
REVISION D
SUB-LPHS-24-X-VT1-S
SUB-LPHS-08-X-VT1-P
5.83 .230 REF
C
L
"G" (TYP) REF
(SEE TABLE 4)
2.53 .099 REF
"A"
(SEE TABLE 1, SHT 2)
C
"F" (TYP) REF
(SEE TABLE 4)

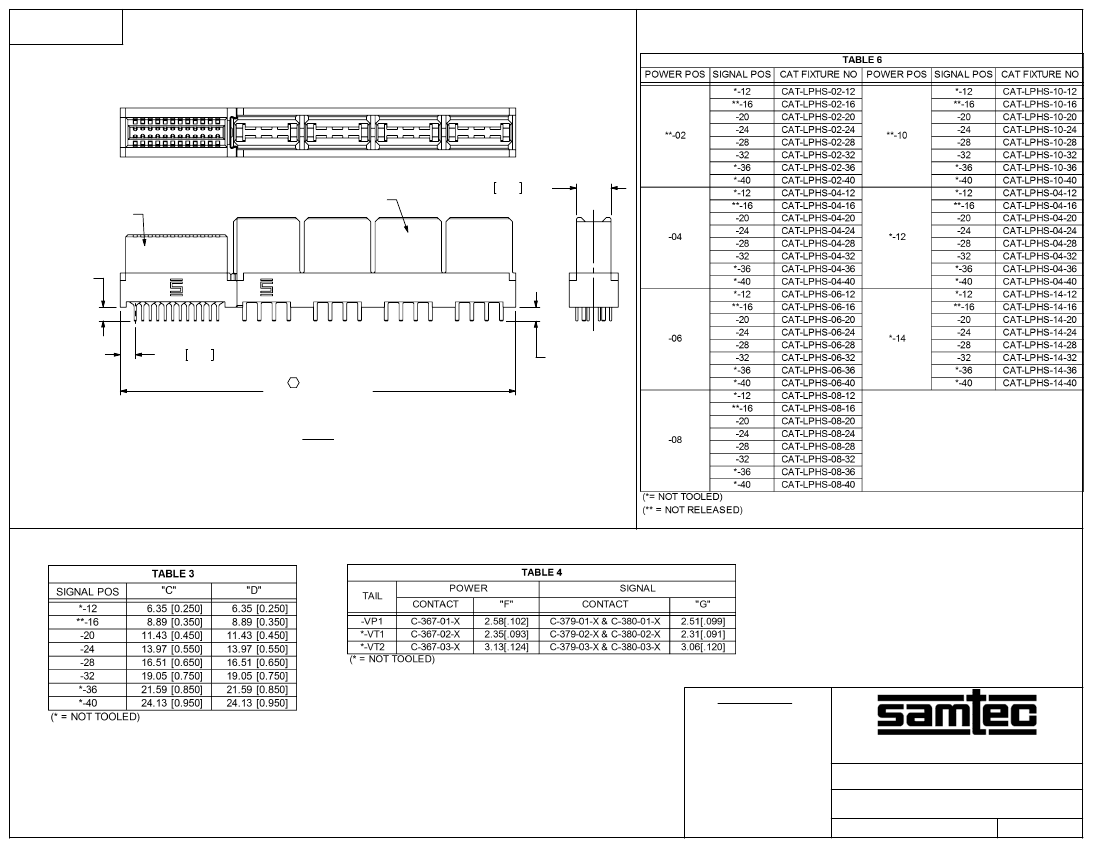

LPHS-08-24-X-VT1 SHOWN
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1)
(NOT RELEASED)
FIG 2
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 3:2
LPHS-VT ASSEMBLY
LPHS-XX-XX-X-VXX-XX
12/10/2011
SHEET
3
OF
3
F:\DWG\MISC\MKTG\LPHS-XX-XX-X-VXX-XX-MKT.SLDDRW
BY:
VICKY Z
