(2/32)
C A P A C I T O R S
REMINDERS FOR USING THESE PRODUCTS
Before using these products, be sure to request the delivery specifications.
SAFETY REMINDERS
Please pay sufficient attention to the warnings for safe designing when using this products.
REMINDERS
1. The products listed on this catalog are intended for use in general electronic equipment (AV equipment, telecommunications equip-
ment, home appliances, amusement equipment, computer equipment, personal equipment, office equipment, measurement equip-
ment, industrial robots) under a normal operation and use condition.
The products are not designed or warranted to meet the requirements of the applications listed below, whose performance and/or qual-
ity require a more stringent level of safety or reliability, or whose failure, malfunction or trouble could cause serious damage to society,
person or property.
If you intend to use the products in the applications listed below or if you have special requirements exceeding the range or conditions
set forth in the each catalog, please contact us.
(1) Aerospace/aviation equipment
(2) Transportation equipment (cars, electric trains, ships, etc.)
(3) Medical equipment (excepting Pharmaceutical Affairs Law
classification Class1,2)
(4) Power-generation control equipment
(5) Atomic energy-related equipment
(6) Seabed equipment
(7) Transportation control equipment
(8) Public information-processing equipment
(9) Military equipment
(10) Electric heating apparatus, burning equipment
(11) Disaster prevention/crime prevention equipment
(12) Safety equipment
(13) Other applications that are not considered general-purpose
applications
When designing your equipment even for general-purpose applications, you are kindly requested to take into consideration securing
protection circuit/device or providing backup circuits in your equipment.
2. We may modify products or discontinue production of a product listed in this catalog without prior notification.
3. We provide “Delivery Specification” that explain precautions for the specifications and safety of each product listed in this catalog. We
strongly recommend that you exchange these delivery specifications with customers that use one of these products.
4. If you plan to export a product listed in this catalog, keep in mind that it may be a restricted item according to the “Foreign Exchange
and Foreign Trade Control Law”. In such cases, it is necessary to acquire export permission in harmony with this law.
5. Any reproduction or transferring of the contents of this catalog is prohibited without prior permission from our company.
6. We are not responsible for problems that occur related to the intellectual property rights or other rights of our company or a third party
when you use a product listed in this catalog. We do not grant license of these rights.
7. This catalog only applies to products purchased through our company or one of our company’s official agencies. This catalog does not
apply to products that are purchased through other third parties.
20200310 / leadmlcc_halogenfree_fg_en.fm
(3/32)
C A P A C I T O R S
MLCC with dipped radial lead
Halogen-free, commercial grade
RoHS Directive Compliant Product
Halogen-free
Overview of the FG series
FEATURES
Voltage rating of 10V to 630V with capacitance range of 1pF to 47µF
APPLICATION
Noise reduction measures for various motors
Bypass capacitors and smoothing capacitors for switching power sources, etc.
Snubber circuits
PFC input filters
PART NUMBER CONSTRUCTION
FG
Series
name
1
2
2
Lead pitch
(mm)
2.5
5.0
8
4
6
0
1
2
3
8

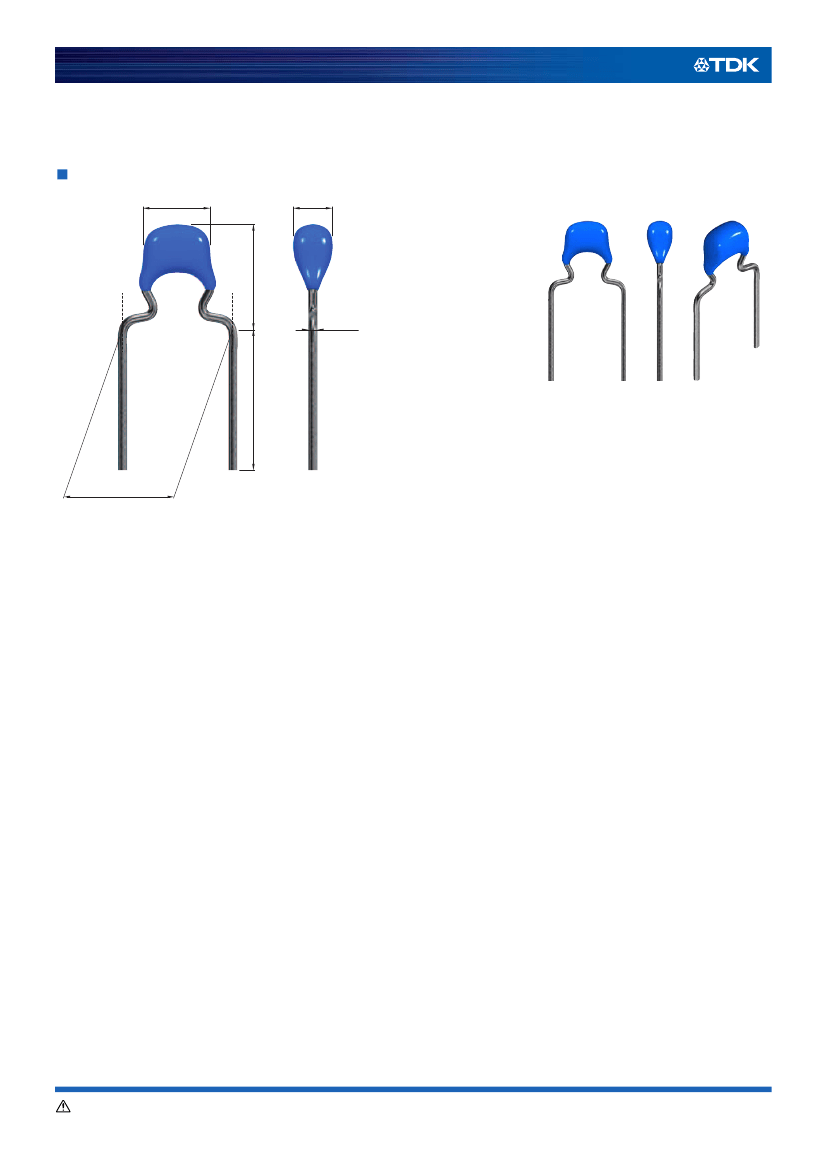

LxWxT
dimensions
(mm)
4.0x5.5x2.5
4.5x5.5x3.0
5.5x6.0x3.5
5.5x7.0x4.0
5.5x7.0x4.0
7.5x8.5x4.5
8.5x11.0x5.5
C0G
Capacitance
temperature
characteristics
C0G 0±30ppm/°C
X5R
±15%
X7R
±15%
X7S
±22%
X7T +22, –33%
1H
Rated
voltage
(V)
1A
10
1C
16
1E
25
1H
50
2A 100
2E 250
2W 450
2J 630
010
Nominal
capacitance
(pF)
010
1
100
10
101
100
102 1,000
C
Capacitance
tolerance
C ±0.25pF
D ±0.5pF
J
±5%
K ±10%
M ±20%
□□□
Internal
code
□
Packaging
style
0
6
Bulk
Taping
OPERATING TEMPERATURE RANGE
Temperature range
Capacitance temperature
Operating
Storage
characteristics
temperature
temperature
（°C）
（°C）
C0G, X7R, X7S, X7T
–55 to +125
–55 to +125
X5R
–55 to +85
–55 to +85
The maximum operating temperature includes capacitor self-generated heat of up to 20°C.
The storage temperature range is for after the circuit board is mounted.
RoHS Directive Compliant Product: See the following for more details.https://product.tdk.com/info/en/environment/rohs/index.html
Halogen-free: Indicates that Cl content is less than 900ppm, Br content is less than 900ppm, and that the total Cl and Br content is less than 1500ppm.
Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use.
Please note that the contents may change without any prior notice due to reasons such as upgrading.
20200310 / leadmlcc_halogenfree_fg_en.fm
