V23003-A0037-F105 datasheet, PDF

V23003-A0037-F105: DescriptionE-M RELAY,2 FORM C,DPDT-CO,DC,RANDOM,AC/DC,5A@250VDC; CategoryMechanical and electronic products relay; File Size276KB，10 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric View All

V23003-A0037-F105 Overview

E-M RELAY,2 FORM C,DPDT-CO,DC,RANDOM,AC/DC,5A@250VDC

Parameter Name	Attribute value
Objectid	405885750
Reach Compliance Code	unknown
ECCN code	EAR99
body width	19 mm
body height	30 mm
Body length or diameter	24 mm
Coil operating voltage (DC)	16.5 V
Coil power	1500 mW
Coil resistance	400 Ω
Maximum coil voltage (DC)	26.5 V
Nominal coil voltage	24 V
Coil/Input Power Type	DC
Contact (AC) maximum rated power R load	500VA@250VAC
Contact (AC) maximum rated R load	5A@250VAC
Maximum contact current (AC)	5 A
Maximum contact current (DC)	5 A
Contact (DC) maximum rated R load	5A@250VDC
Maximum contact voltage (AC)	250 V
Maximum contact voltage (DC)	250 V
Contact/Output Power Type	AC/DC
Dielectric strength between coil and contacts	500 Vrms
Dielectric strength between breaking contacts	1000 Vrms
Electrical life	10000000 Cycle(s)
End contact material	Silver
End contact plating	GOLD
Input switching control type	Random
Number of terminals	10
operating hours	4 ms
Maximum operating temperature	70 °C
Minimum operating temperature	-40 °C
PCB hole count	10
physical size	24mm x 19mm x 30mm
Relay style	2 FORM C
Relay function	DPDT
release time	4 ms
Terminal length	0.005 inch
Termination type	SOLDER
weight	25 g

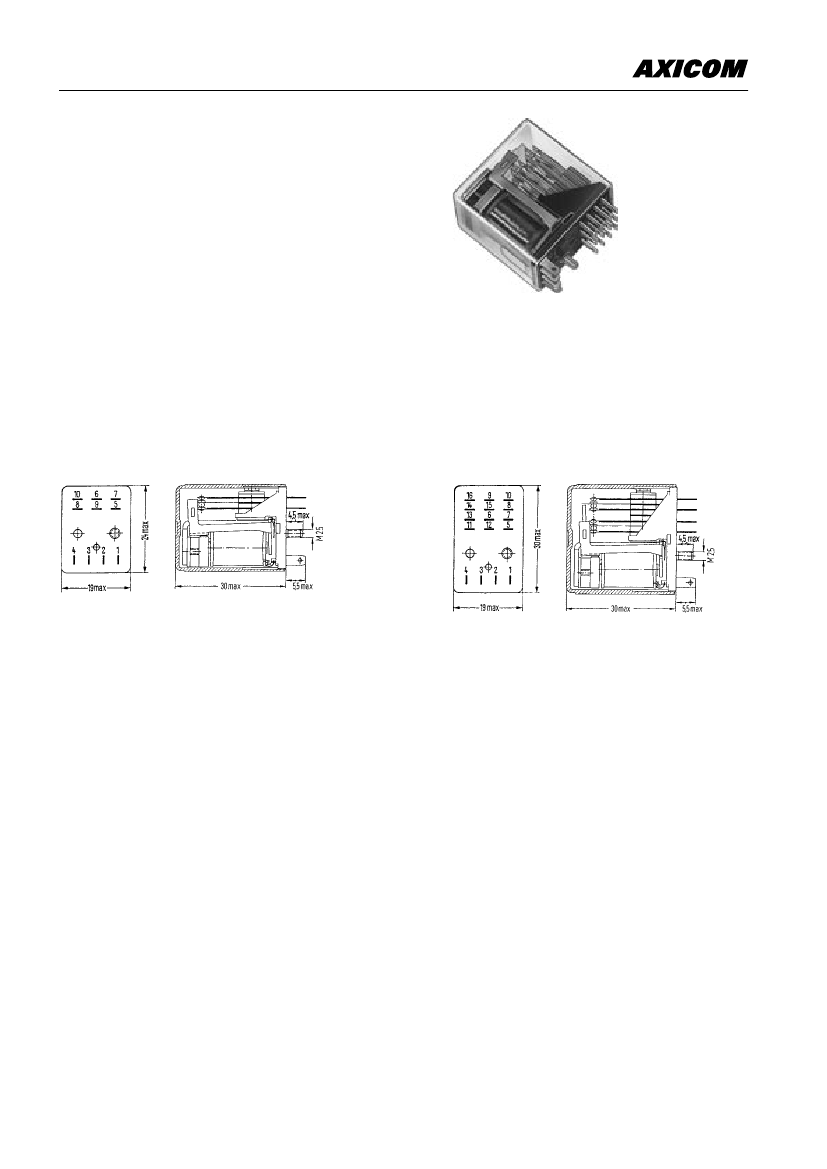

The Best Relaytion

Cradle Relay P

108-98015

Rev. B

EC-JM00-0009-03

ECOC: JM10

1. Aug. 04
