42820-4339

Description
Board Connector, 4 Contact(s), Right Angle, Solder Terminal, Locking, Black Insulator
CategoryThe connector    The connector
File Size254KB,1 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Download Datasheet Parametric View All

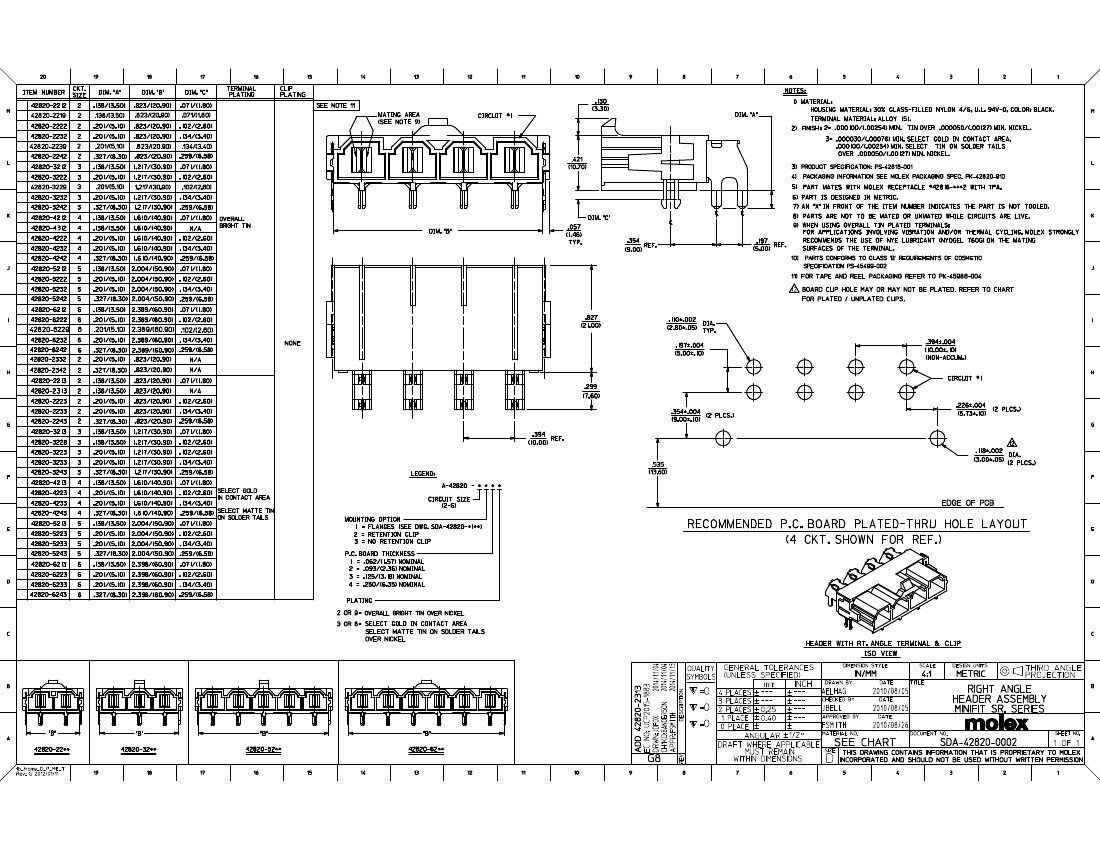

42820-4339 Overview

Board Connector, 4 Contact(s), Right Angle, Solder Terminal, Locking, Black Insulator

42820-4339 Parametric

Parameter NameAttribute value
Reach Compliance Codeunknow
Board mount optionsSPLIT BOARD LOCK
body width0.421 inch
subject depth0.827 inch
body length1.61 inch
Connector typeBOARD CONNECTOR
Contact arrangementS0P4
Contact to complete cooperationSN ON NI
Contact completed and terminatedTIN OVER NICKEL
Contact styleBLADE PIN-SKT
Insulator colorBLACK
insulator materialGLASS FILLED NYLON
Manufacturer's serial number42820
Mixed contactsYES
Installation option 1LOCKING
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of connectorsONE
Plating thickness100u inch
GuidelineUL
reliabilityCOMMERCIAL
Termination typeSOLDER
Total number of contacts4
Base Number Matches1
