BECHS-0.5-230-S9-AF-REDC1 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> BECHS-0.5-230-S9-AF-REDC1

Preview

BECHS-0.5-230-S9-AF-REDC1: Descriptionstandard card edge connectors HS bec conn, 230pin 0.50mm P, 30u Au; CategoryThe connector; File Size350KB，2 Pages; ManufacturerAll Sensors

Download Datasheet Parametric View All

BECHS-0.5-230-S9-AF-REDC1 Overview

standard card edge connectors HS bec conn, 230pin 0.50mm P, 30u Au

BECHS-0.5-230-S9-AF-REDC1 Parametric

Parameter Name	Attribute value
Manufacture	Yamaichi Electronics
Product Category	Standard Card Edge Connectors
Number of Positions	230
Mounting Angle	Righ
Pitch	0.5 mm
Housing Material	Liquid Crystal Polymer (LCP)
Contact Material	Copper Alloy
Contact Plating	Gold
Current Rating	0.5 A
Insulation Resistance	250 MOhms
Number of Rows	2
Temperature Range	- 40 C to + 85 C
Termination Style	SMD
Voltage Rating	50 V

Preview

Download Datasheet

View All

serIes BeChs

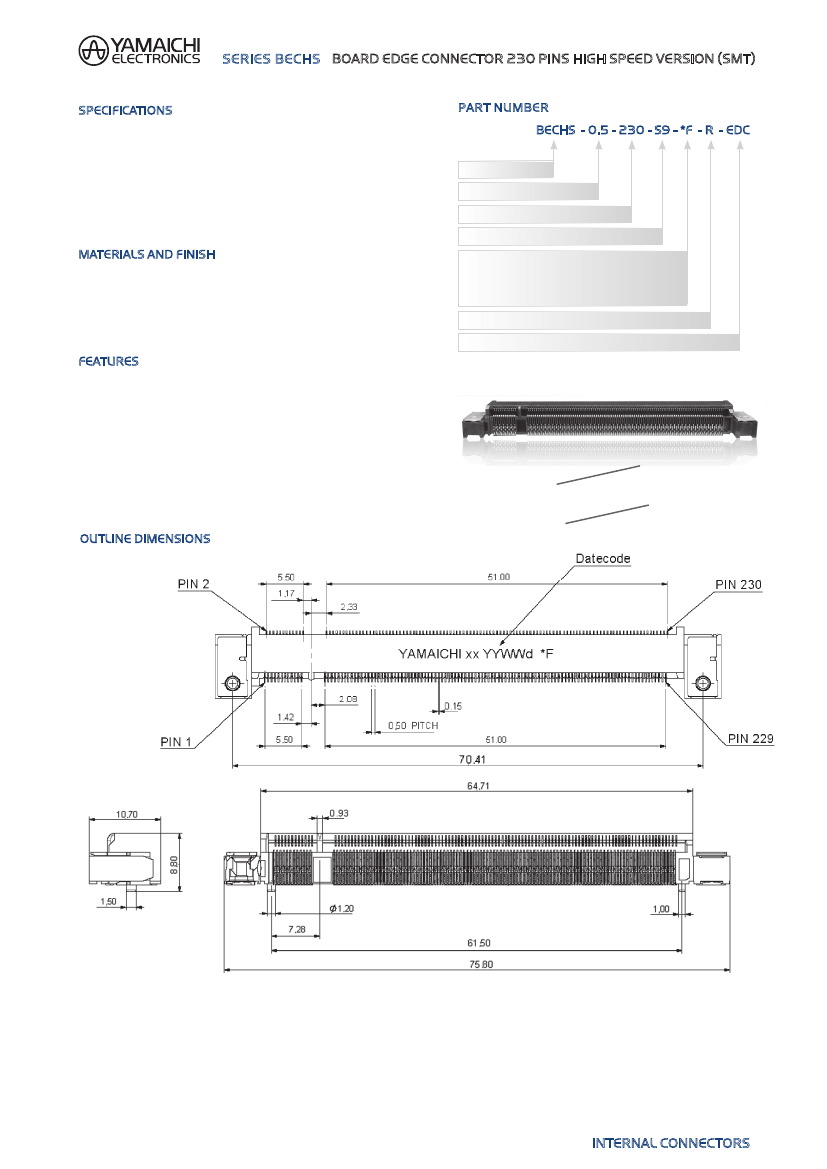

Board edge ConneCtor 230 pIns hIgh speed VersIon (sMt)

part nuMBer

250MΩ at 500V DC

500V ACrms for 1 minute

40mΩ max.

0.5A

50V DC

–40°C to +85°C

30 times

speCIfICatIons

Insulation Resistance:

Withstanding Voltage:

Contact Resistance:

Current Rating:

Voltage Rating:

Operating Temp. Range:

Mating Cycles:

BeChs - 0.5 - 230 - s9 - *f - r - edC

Series

Pitch: 0.50mm

Pin Count: 230

Orientation: 90°

MaterIals and fInIsh

Insulator:

Contacts:

Contact Plating:

LCP (UL 94V-0)

High Performance Copper Alloy

Contact Area - Selective Gold Flash, 15µ" or 30µ"

Solder Area - Gold Flash

Underplate - Ni

Contact Area Plating

FF = Gold Flash

BF = 15µ" Au

AF = 30µ" Au

Tape and Reel (300pcs. per reel)

Design No. (internal)

features

•

Transferring High speed data rates to support USB3.0. HDMI, PCIe2.0 and SATA

Designed for use at Automotive and other rough applications

Reliable contact design

Additional fixation of the module with screws at the connector possible

230pins, 90°, 0.5mm pitch

Mating height 5mm

Production site TS16949 certified

For transferring of power we advise to use the Power connector (see next page)

E

MOTIV

AUTO IANT

L

COMP

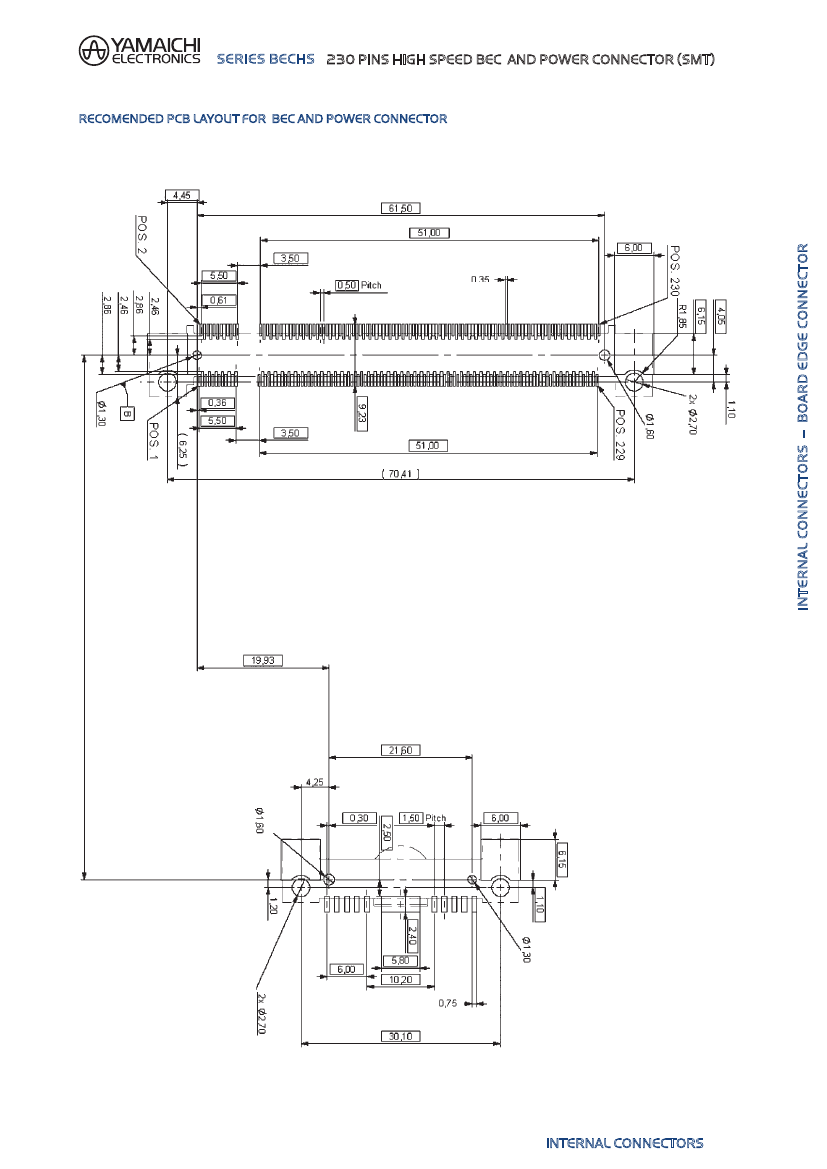

outlIne dIMensIons
