M85049/38S11N datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> Connector bracket> M85049/38S11N

M85049/38S11N: Descriptioncircular mil spec strain reliefs & adapters locking strain relief; CategoryThe connector Connector bracket; File Size159KB，1 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/; Environmental Compliance

Download Datasheet Parametric View All

M85049/38S11N Overview

circular mil spec strain reliefs & adapters locking strain relief

M85049/38S11N Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Glenair
Reach Compliance Code	compliant
Factory Lead Time	8 weeks
Other features	STANDARD: MIL-DTL-38999
Related military specifications	MIL-DTL-38999
Connector bracket type	CONNECTOR ACCESSORY
DIN compliance	NO
IEC compliance	NO
MIL compliance	YES
Material	ALUMINUM ALLOY
Military connector accessories name	STRAIN RELIEF
Housing size	11
Base Number Matches	1

Preview

Download Datasheet

View All

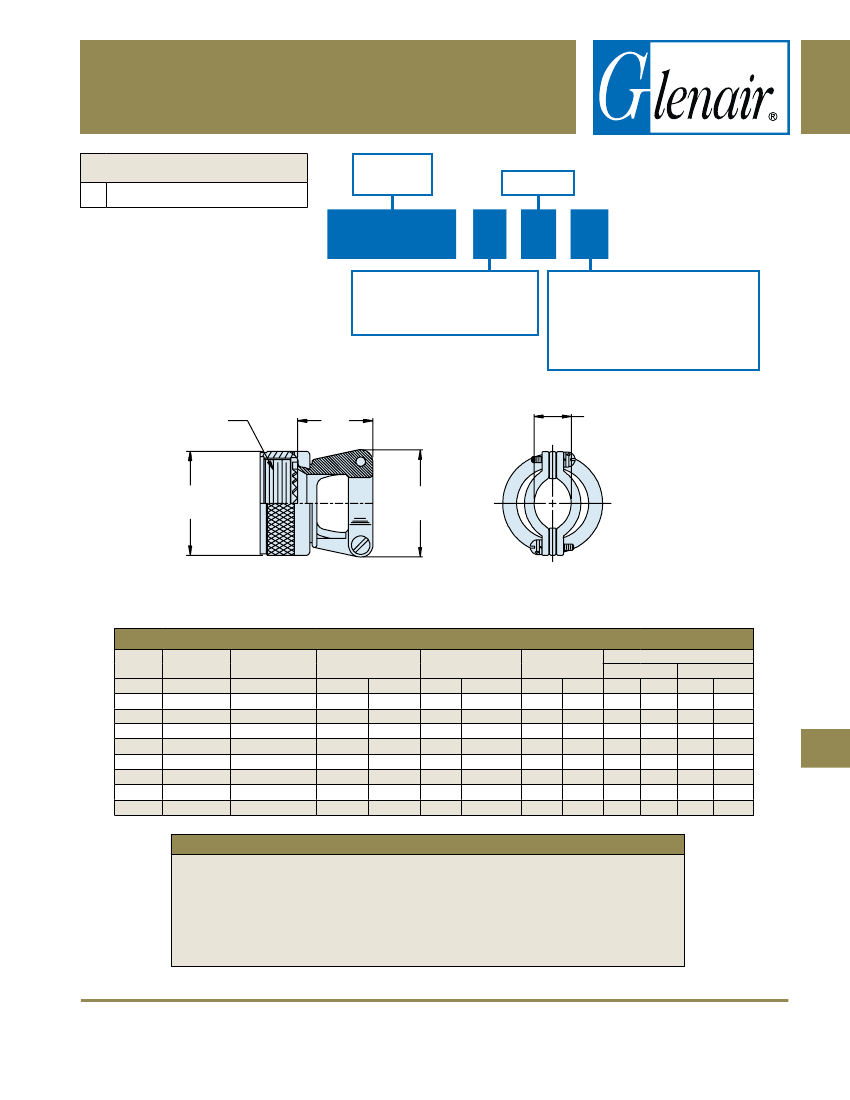

Self-Locking or Non-Self-Locking

CONNECTOR DESIGNATOR:

Basic

Part Number

MIL-DTL-38999 Series III & IV

Shell Size

FOR NEW DESIGN

USE AS85049/124

M85049/38

Material and Finish Designator

= Aluminum, Black Anodize

= Aluminum, Electroless Nickel

= 300 Series Steel, Passivated

= Aluminum, 500 Hour Cadmium

Olive Drab over Electroless Nickel

= Self-Locking

Use Dash for Non-Self-Locking

= Non-Detented

A Thread

Self-Locking

Only

Cable

Entry

Self-Locking Only

Note: Screw orientation shown is for

non-self-locking configuration. Screws

on self-locking configurations are on

the same side/face of the clamp.

TABLE I: Shell Size, Cable Entry and Backshell Dimensions

Shell

Size

Shell Size

Ref.

A Thread

Class 2B

M12 X 1 - 6H

M15 X 1 - 6H

M18 X 1 - 6H

M22 X 1 - 6H

M25 X 1 - 6H

M28 X 1 - 6H

M31 X 1 - 6H

M34 X 1 - 6H

M37 X 1 - 6H

Ø E Max

F Max

Self-Locking Only Self-Locking Only

.858

(21.8)

.91

(23.1)

.984

(25.0)

.91

(23.1)

1.157

(29.4)

1.01

(25.7)

1.279

(32.5)

1.06

(26.9)

1.406

(35.7)

1.16

(29.5)

1.516

(38.5)

1.41

(35.8)

1.642

(41.7)

1.51

(38.4)

1.768

(44.9)

1.66

(42.2)

1.889

(48.0)

2.76

(44.7)

Max

.85

(21.6)

.90

(22.9)

1.10 (27.9)

1.15 (29.2)

1.30 (33.0)

1.50 (38.1)

1.60 (40.6)

1.70 (43.2)

1.80 (45.7)

Cable Entry

Min

Max

.098 (2.5) .234 (5.9)

.153 (3.9) .234 (5.9)

.190 (4.8) .328 (8.3)

.260 (6.6) .457 (11.6)

.283 (7.2) .614 (15.6)

.325 (8.3) .634 (16.1)

.343 (8.7) .698 (17.7)

.381 (9.7) .823 (20.9)

.418 (10.6) .853 (21.7)

APPLICATION NOTES

Assembly to be identified with manufacturer’s name and part number, space permitting.

Cable Entry is defined as the accommodation entry for the wire bundle or cable.

Dimensions are not intended for inspection criteria.

For complete dimensions, see the applicable Military Specification.

Metric dimensions (mm) are in parentheses.

CAGE Codes 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

E-Mail: sales@glenair.com

www.glenair.com

62-11

Strain Reliefs

AS85049/38

Straight Strain Relief
