HFC3XSRAA19H831X datasheet, PDF

Datasheet> All Categories > The connector> The connector> HFC3XSRAA19H831X

HFC3XSRAA19H831X: DescriptionD-sub standard connectors 44p F HD PC tail C 4-40 R.spcr/clip; CategoryThe connector The connector; File Size285KB，1 Pages; ManufacturerCONEC; Websitehttp://www.conec.com

Download Datasheet Parametric View All

HFC3XSRAA19H831X Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	HFC3XSRAA19H831X	-	-	View	Buy Now

HFC3XSRAA19H831X Overview

D-sub standard connectors 44p F HD PC tail C 4-40 R.spcr/clip

HFC3XSRAA19H831X Parametric

Parameter Name	Attribute value
Maker	CONEC
Reach Compliance Code	compli
body width	0.496 inch
subject depth	0.256 inch
body length	2.09 inch
Contact to complete cooperation	AU ON NI
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	STAGGERED
Contact style	RND PIN-SKT
Dielectric withstand voltage	707VDC V
Filter function	YES
Insulator color	BLACK
Manufacturer's serial number	HFC
Plug contact pitch	0.09 inch
Match contact row spacing	0.078 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
PCB row number	3
Number of rows loaded	3
PCB contact pattern	STAGGERED
PCB contact row spacing	1.9812 mm
Plating thickness	FLASH inch
Guideline	UL
reliability	COMMERCIAL
Shell surface	TIN OVER NICKEL
Shell material	STEEL
Terminal pitch	2.286 mm
Termination type	SOLDER
Total number of contacts	44

Preview

Download Datasheet

View All

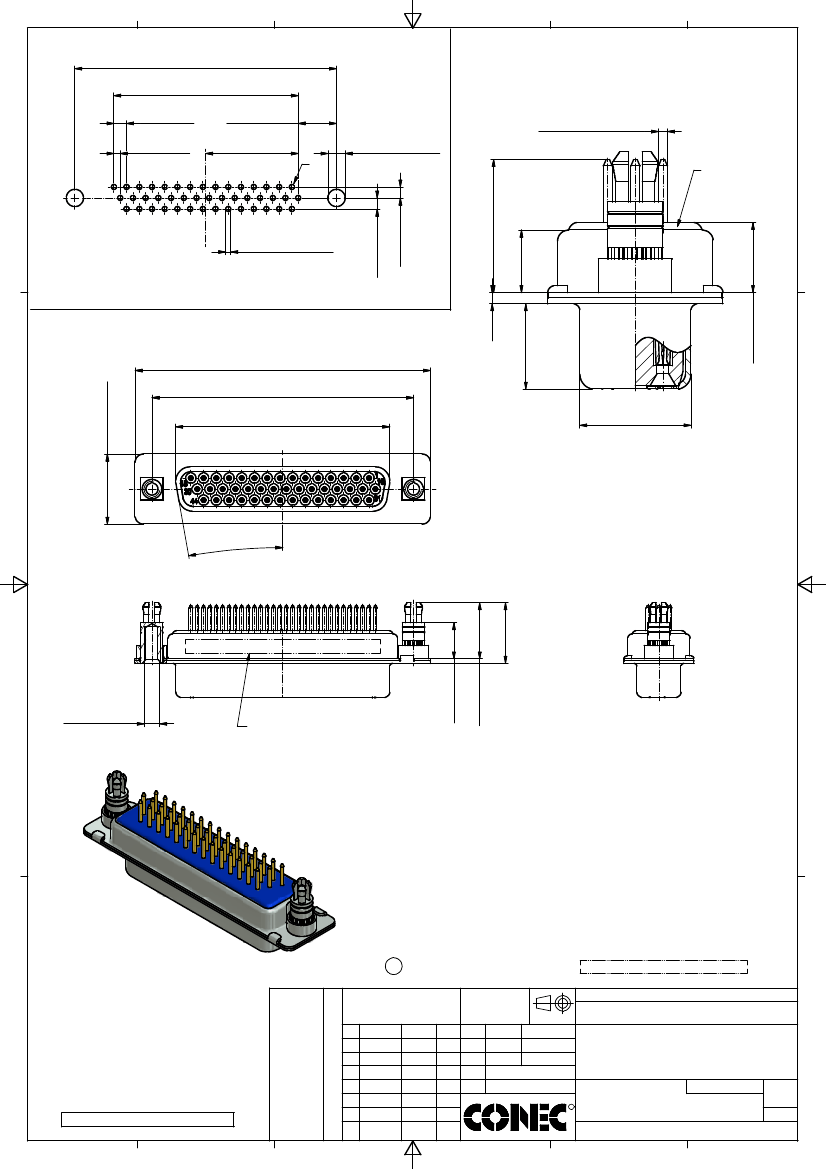

47,04

0,13

33,147

0,05

2,286

0,1

6,883

0,03

16,637

0,1

9,58

+ 0,42

- 0,28

3,1

0,1

(2x)

0,65

0,05

(44x)

(5:1)

1,143

0,1

SEALING

COMPOUND

1,98

0,1

1,98

0,1

0,9

+ 0,1

(44x)

-0

P.C.B. HOLE DRILLINGS

( P.C.B. TOP SIDE )

4,5

53,09

+ 0,33

- 0,43

12,6

+ 0,53

- 0,23

47,04

0,13

38,51

+ 0

- 0,26

- 0,2

6,13

+ 0,17

- 0,08

10°

HFC3XSRAA19H831X CONEC ABC

6,5

0,25

-40 UNC

SEE NOTE 11

10,1

0,3

10,9

max. 5,8

0,8

NOTES:

1. RoHS COMPLIANT

2. FOR WAVESOLDERING (SOLDER BATH TEMPERATURE 260° FOR 5 SEC.

AND SOLDER PREHEAT 100° FOR 30 SEC.)

3. METALSHELLS: STEEL; min. 315µin TIN over 40-80µin NICKEL

4. INSULATOR: HIGH TEMPERATURE PLASTIC UL 94 V-0; BLACK

5. CONTACTS: COPPER ALLOY

PLATING: GOLD FLASH over NICKEL

6. THREADED SPACER CLIPS: COPPER ALLOY; min. 200µin TIN over 80µin NICKEL

PCB-HOLE:

3,1

0,1; PCB-THICKNESS 2,3mm

7. COLLARS: COPPER ALLOY; min. 200µin TIN over 80µin NICKEL

8. SEALING COMPOUND: PUR; BLUE

9. CAPACITANCE: 830pF

20%

10. DIELECTRIC WITHSTANDING VOLTAGE: 707 VDC

THIS DRAWING MAY NOT BE COPIED OR

REPRODUCED IN ANY WAY, AND MAY NOT

BE PASSED ON TO A THIRD PARTY WITHOUT

WRITTEN PERMISSION.

OWNERSHIP AND COPYRIGHT OF CONEC GmbH

11. CONNECTOR IS PART MARKED: HFC3XSRAA19H831X CONEC ABC

tolerance

dim. in mm

date

drawn

22.11.10

appd.

22.11.10

norm

d-old

DO NOT ALTER CAD DRAWING BY HAND

scale:

material:

name

2:1 (5:1)

see notes

title:

Henneboel

Koch

D-SUB HD C-FILTER FEMALE

44pos. SOLDER PIN STRAIGHT

with threaded spacer clip

dwg no:

Inventor 10

1xb

Ä3958

Origin

31.03.2011 K.H.

Directive 2002/95/EC RoHS compliant

24K1A1283

part no:

DIN-

sh:

rev. description

date

name

HFC3XSRAA19H831X
