Series HF601
Flip Type ZIF Connector, 90°, SMT
Specifications
Insulation Resistance:
Contact Resistance:
Withstanding Voltage:
Voltage Rating:
Current Rating:
Operating Temp. Range:
Mating Cycles:
500MΩ min.
50mΩ max.
500V AC for 1 minute
50V AC
0.5A
-40°C to +85°C
20 times
High Speed
Connectors
Part Number
(Details)
HF601
Series No.
-
** - 02
Pin Counts
(10, *20, 26, 30, 40
45, 50 and 60)
Design No.
Materials and Finish
Insulator:
Contact:
LCP, Actuator:PA9T
Copper Alloy, Au over Ni
Features
Flip type ZIF connector
Super low profile, height = 2mm
FFC/FPC with and without positioning part can be used
Packaging tape and reel (1,200 pcs. per reel)

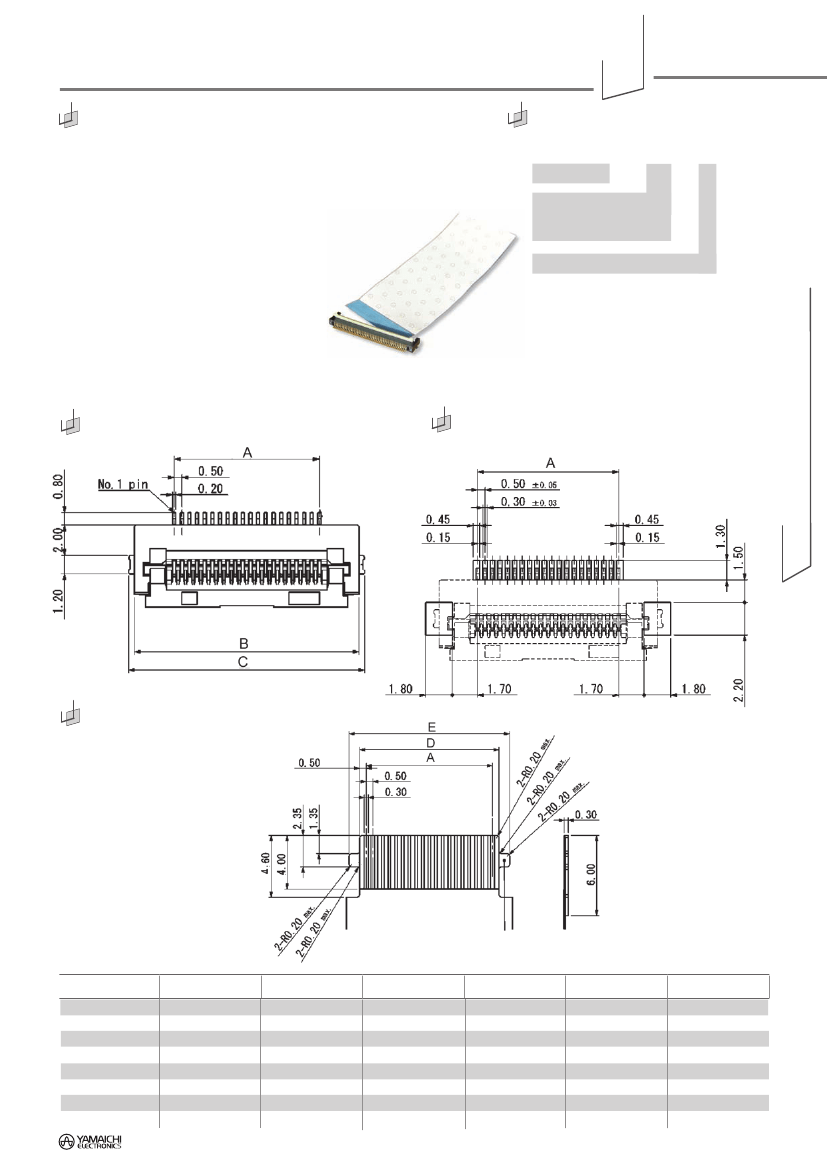

Outline Dimensions for 90° Connector
Recommended PCB Layout
Recommended FFC/FPC
Part Number
HF601-10-02
HF601-20-02
HF601-26-02
HF601-30-02
HF601-40-02
HF601-45-02
HF601-50-02
HF601-60-02
Pin Count
10
20
26
30
40
45
50
60
A
4.50
9.50
12.50
14.50
19.50
22.00
24.50
29.50
B
9.70
14.70
17.70
19.70
24.70
27.20
29.70
34.70
C
10.50
15.50
18.50
20.50
25.50
28.00
30.50
35.50
D
5.50
10.50
13.50
15.50
20.50
23.00
25.50
30.50
E
7.10
12.10
15.10
17.10
22.10
24.60
27.10
32.10
Connectors
SPECIFICATIONS AND DRAWINGS ARE SUBJECT TO ALTERATION WITHOUT PRIOR NOTICE - DIMENSIONS IN MILLIMETER
C-9
Non-ZIF Connectors for High Speed Cable
*Available on request
High Speed
Connectors
Specifications
Insulation Resistance:
Conductor Resistance.
Withstanding Voltage:
Voltage Rating:
Operating Temp. Range:
Series HF601
Flexible Flat Cable, 0.50mm Pitch
Part Number
(Details)
1,00MΩ
2.2
Ω
/ meter
500V AC rms for 1 minute
60V (UL20706)
-40°C to +105°C (UL20706)
HF601
Series No.
Pitch: 0.5mm
- F5 - ** - *** - * * - F - *
Materials and Finish
Conductor:
AU plated Cu
Insulation Tape:
Polyester, white
Supporting Tape: Polyester, blue
Pin Counts
10, 20, 26, 30, 40, 45, 50, and 60
Insulation Length in mm
Total length – 8 mm (2 x stipped lenght)
Direction of Supporting Tape
A = same B = opposite
0 = No ears
1 = Ear one side
2 = Ears both sides
Plating: F = Au
UL-Number
V = UL20706/20861
Features
Versions with posistioning part available on request
Minimum order quantity may occur

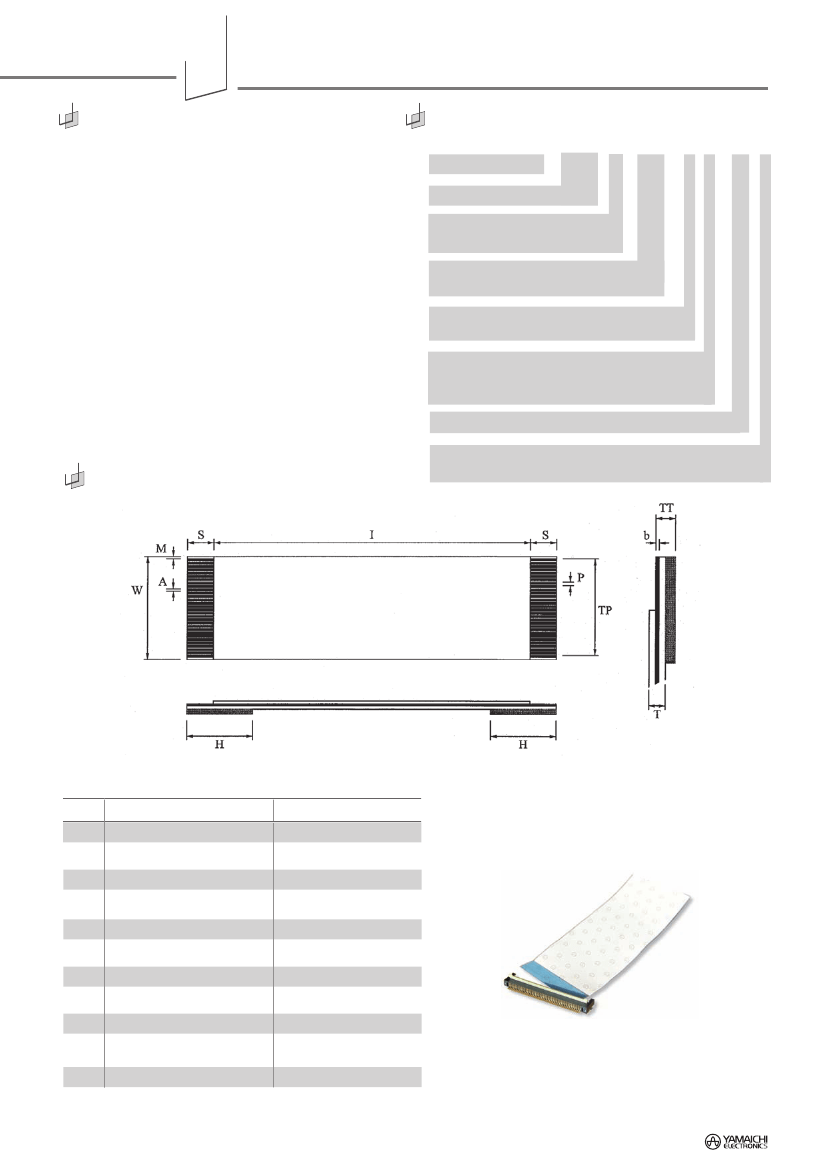

Outline Dimensions
Item
N
P
TP
W
T
M
I
S
TT
H
A
b
Description
Number of Conductors
Pitch in mm
Total Pitch
Stiffener Width
Thickness of FFC
Margin Width
Insulation length
Stripped Length
Terminal Thickness
Supporting tape lenght
Conductor width
Conductor thickness
Specification
10, 20, 26, 30, 40, 45, 50, 60
0.5mm
P x (n-1)
P x (n +1)
0.15mm
0.35mm
Total le ngth divided by 2 x S
4.0mm
0.3mm
6.0mm
0.3 +0.05mm
0.035
C-10
Connectors
SPECIFICATIONS AND DRAWINGS ARE SUBJECT TO ALTERATION WITHOUT PRIOR NOTICE - DIMENSIONS IN MILLIMETER
