Meet requirements of USB 2.0
UX Series
■
Features

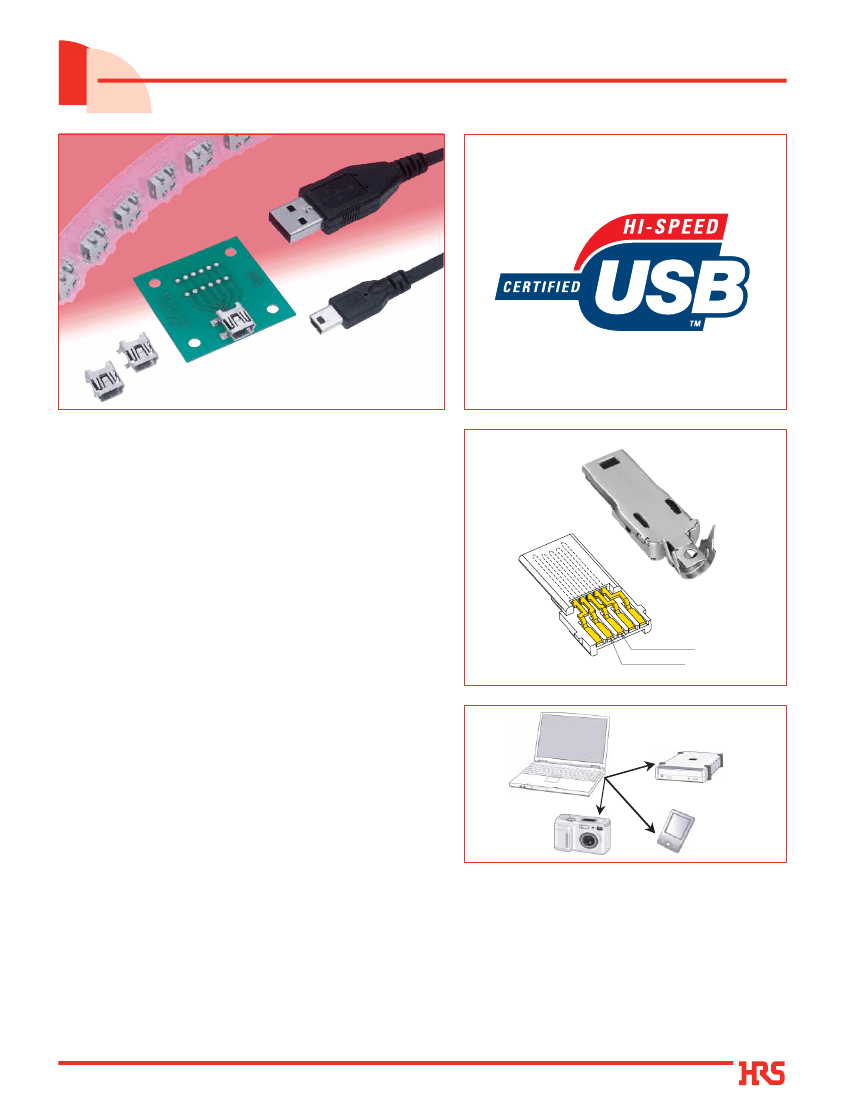

1. Certified to perform as required in USB 2.0 Standard
Tested and certified by USB Association approved laboratory the
connectors will perform at transmission speeds up to 480Mbps.
2. Designed for Low Skew performance
The distance between twisted pairs conductors (i.e.,
contact nos. 2 and 3) is of equal electrical length, for
receptacle and plug, resulting in zero theoretical skew.
3. Controlled Termination of Individual Conductors
The termination part of the contact is firmly attached in the molded
insulator body. Hirose’s Electric unique design of the metal shield
prevents short circuits, allowing the overmold resin to flow in the
terminated area.
By not using heat shrinkable tubing (or any other additional process),
the non-twisted part of the conductors is very short, suppressing any
unwanted impedance disturbances in the termination area.
Contact No. 3
Contact No. 2
4. Ease of mating and handling
Thin design of the plug assembly and the overmold section allows use
in small spaces.
The plug also incorporates a build-in snap-lock feature, providing
tactile verification of the full and secure mating of plug and receptacle.
5. Two types of metal shields
Two styles of the receptacle metal shield are available,
depending on the customer’s PCB design requirement:
-Surface Mount Termination
-Solder Dip Type
6. Printed Circuit Board placement features
Precise location on the board can be accomplished using
receptacle assemblies with or without the positioning boss.
7. Board placement with Automatic Equipment
Receptacle assemblies are provided with a heat resistant flat surfaces, removable after completion of the
soldering process and are supplied on the reels.
8. RoHS Compliant
All components and materials comply with the requirements of the EU Directive 2002/95/EC.
9. Support of Non-halogen Cable
Wiring harness can be arranged in non-halogen cable types.
Note: Non-halogen items are not covered in the current USB 2.0 Standard.
■
Applications
Personal and mobile computer peripheral equipment, data terminals, digital cameras, MP3 players, PDA’s, GPS
and other devices utilizing standard USB protocols
2008.4w
1
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be
of USB 2.0
Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
UX Series●Meet requirements
discontinued soon.
■Product
Specifications
Current rating
Ratings
Voltage rating
5 V AC
1A
Operating temperature range
-30
ç
to +75
ç
(Note 1)
Item
1.Contact resistance
50 m ohms max.
Specification
Measured at 100 mA
Measured at 100 V DC
100 V AC / one minute
Conditions
2.Insulation resistance 100 M ohms min.
3.Dielectric
No flashover or insulation breakdown
Withstanding Voltage
4.Capacitance
5.Mating/un-mating forces
6.Durability
(mating / un-mating)
7.Vibration
2 pF min.
Mating : 35N max.
Un-mating : 7N min.
Contact resistance: 70 m ohms max.
Un-mating force: 3N min.
Measured at 1000 ± 10Hz between adjacent contacts
With corresponding connector.
5000 cycles
Frequency: 10 to 55 Hz, single amplitude of 0.75 mm,
2 hours in each of the 3 axis.
8.Shock
No electrical discontinuity of 1 ms or more.
Frequency: 50 to 2000 Hz, 15 minutes in each of the 3 axis.
Acceleration of 490 m/s
2
, 11 ms duration, sine half-wave
waveform, 3 cycles in each of the 3 axis
Temperature: -55
ç
/
+
20
ç
to +35
ç
/
+
85
ç
/
+
20
ç
to +35
ç
Time:
-30
/
+
2 to 3
/
+
30
/
+
2 to 3 (Minutes)
10 cycles
168 hours at -10
ç
to +65
ç
and Relative Humidity of 90% to 98%
7 cycles
Exposed to 5% salt water solution for 48 hours
Soldering temperature: 245
ç
Recommended solder immersion time: 2 to 3 seconds
9.Shock
10.Thermal shock
Contact resistance: 70 m ohms max.
11.Humidity
12.Salt Spray
13.Solderability
Insulation resistance: 10 M ohms min. (Dry state)
Contact resistance: 70 m ohms max.
Wet state, with solder coverage area over 95%
■Materials
●
Receptacles
Part
Insulator
Contacts
Metal shield
Pick-and-place flat plate
Material
Synthetic resin
Copper alloy
Copper alloy
Polyamide
Color: Black
Contact area: Gold plating
Termination area: Tin alloy plating
Tin alloy plating
---------------
Finish
Remarks
UL94V-0
---------------
---------------
---------------
●
Plugs
Part
Insulator
Contacts
Metal shield
Over-mold compound (Note 1)
Material
Synthetic resin
Copper alloy
Steel
PVC
Color: Black
Contact area: Gold plating
Termination area: Tin alloy plating
Tin alloy plating
Black (Note 2)
Finish
Remarks
UL94V-0
---------------
---------------
---------------
Note 1: The over-mold compound is applied at the time of the termination of the plug with the cable and can not be ordered as a separate part.
Note 2: The over-molding and cables can be supplied in a wide range of colors.
Please contact your Hirose Electric account representative for details.
2
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or
requirements of USB 2.0
UX Series●Meet
contact your Hirose sales representative.
■Ordering
information
●

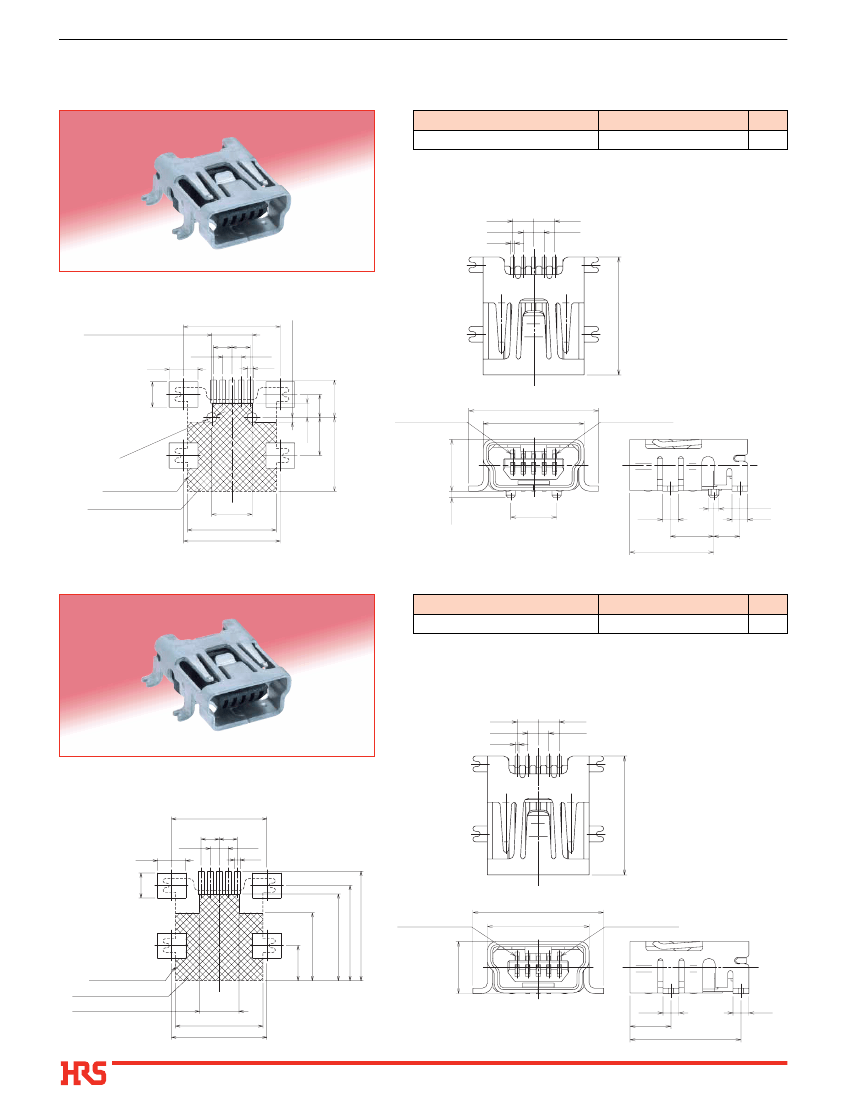

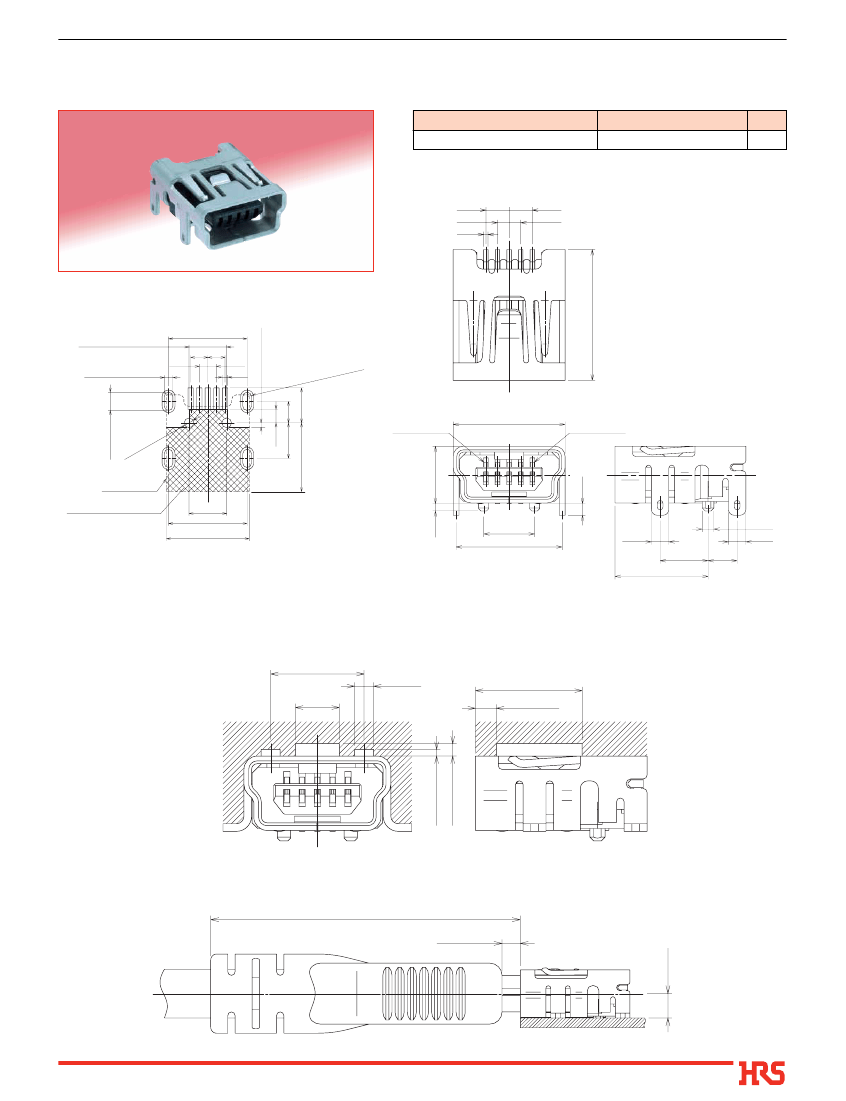

Receptacles
UX 60 A - MB - 5 S T
1
2
3
4
5
6
7
●
Plugs
UX 40 A - MB - 5 P
1
2
8
4
5
6
●
Plug Harnesses
UX 40 A - MB - 5 P A - 1000 - 1001
1
2
8
4
5
6
9
10
11
1
2
3
4
5
6
7
8
9
Series name
Contact wiring
UX
60: SMT type
40: Solder wiring type
Receptacle serial indication
Connector type
Number of contacts
Contact type
Metal shield termination
A: Without positioning post
MB: Mini B type
5
S: Female contact P: Male contact
T: SMT type
8: Solder dip type (Dip length 0.8) (Note 1)
Plug serial indication
Reverse side connector type
A: Type supporting thick cable
A: Standard A type
1000: 1000 mm (Note 2)
(Note 3)
10
Cable length
11
Serial number
Note 1: Types with different dip style termination lengths can also be provided.
Note 2: Various cable lengths can be provided.
Note 3: Detailed specifications of the harness items can be supplied.
3
