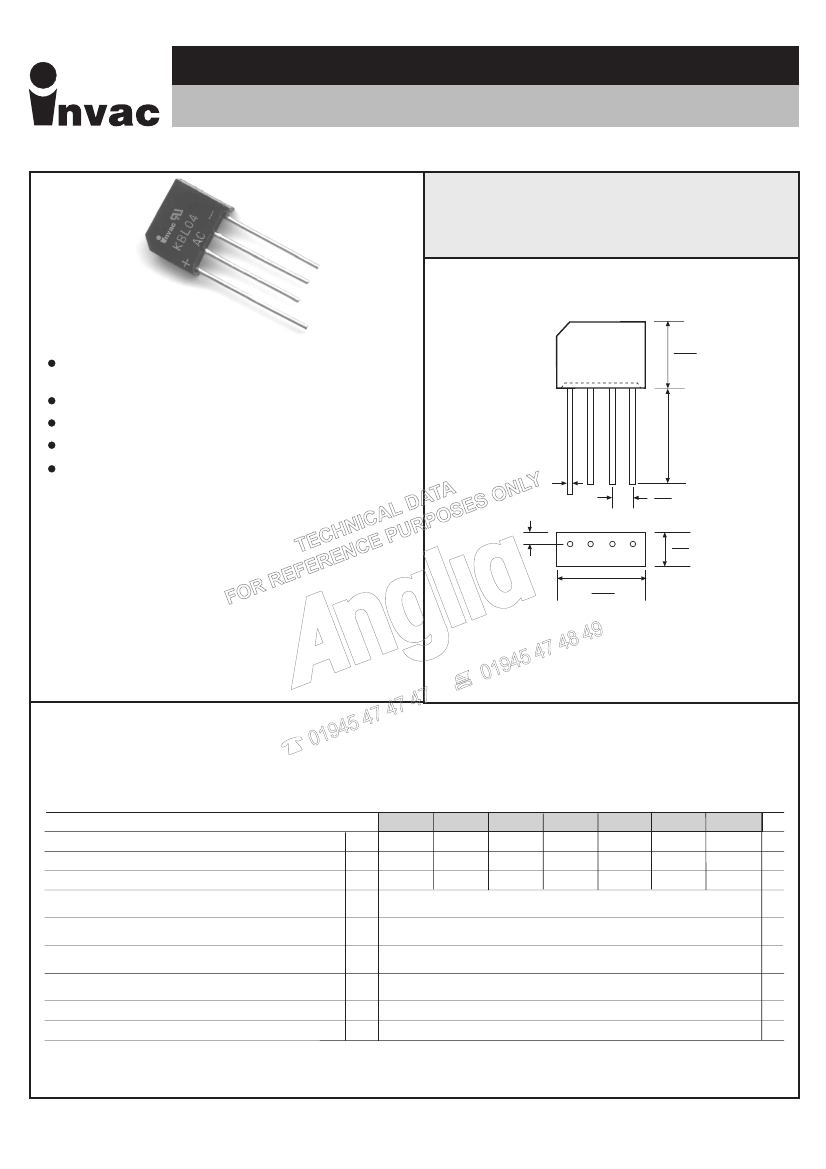

KBL0 SERIES
4.0 AMPERE SINGLE-PHASE SILICON BRIDGE RECTIFIER
VOLTAGE RANGE
50 to 1000 Volts PRV
CURRENT
4.0 Amperes
FEATURES
Plastic material has Underwriters Laboratory
flammability classification 94V-0
Low leakage.
Surge overload rating - 200 amperes peak.
Ideal for printed circuit boards.
Exceeds environmental standards of
MIL - STD - 19500.
+
~
~
±
16.4
15.2
19.0
min
Ø 1.3
5.6
4.6
6.5
6.0
19.6
18.5
MECHANICAL DATA
Case
:
:
:
Terminals :
:
Polarity :
Weight
:
Reliable low cost construction utilizing
moulded plastic technique results in
inexpensive product.
Leads, solderable per MIL - STD - 202,
Method 208.
Polarity symbols printed on body.
0.2 ounce, 5.6 grams.
2.1
Dimensions in millimetres
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25°C ambient temperature unless otherwise specified.
Single phase, half wave, 60 Hz, resistive or inductive load.For capacitive load, derate current by 20%.
KBL005
Maximum Recurrent Peak Reverse Voltage
Maximum Bridge Input Voltage RMS
Maximum DC Blocking Voltage
V
RRM
V
RMS
V
DC
50
35
50
KBL01
100
70
100
KBL02
200
140
200
KBL04
400
280
400
4.0
200
1.0
10.0
1.0
- 55 to + 125
- 55 to + 150
KBL06
600
420
600
KBL08
800
560
800
KBL10
1000
700
1000
V
V
V
A
A
V
µA
mA
°C
°C
Maximum Average Forward Current at
I
F(AV)
(see Fig 2)
T
A
= 50 °C
Peak Forward Surge Current, 8.3 ms single
I
FSM
half sine - wave superimposed on rated load (see Fig 1)
Maximum Forward Voltage Drop
per Element at 3.0A
Maximum Reverse Current at Rated DC
Blocking Voltage per Element (see Fig 4)
Operating Temperature Range
Storage Temperature Range
(see Fig 3)
T
A
= 25°C
T
C
= 100°C
V
F
I
R
T
J
T
STG
Reformatted by Anglia 9851
E-MAIL:
info@angliac.com
WEB:
www.angliac.com

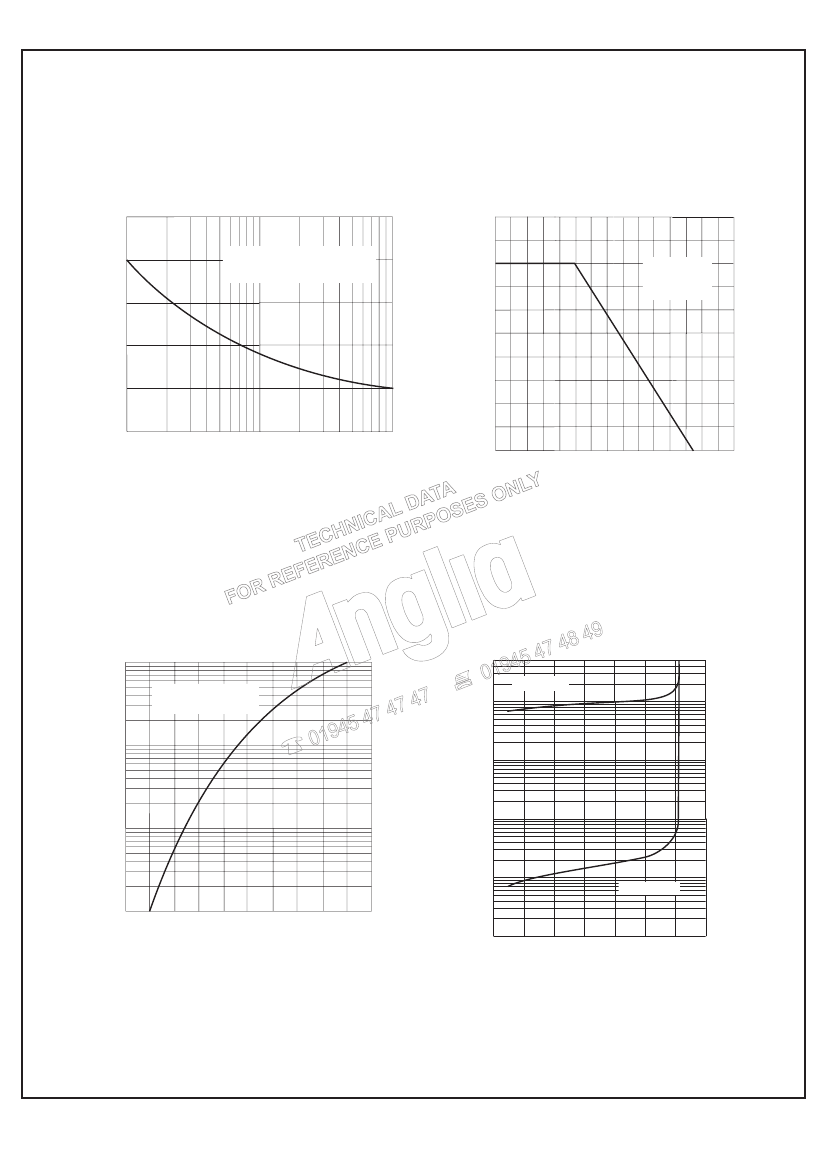

RATING AND CHARACTERISTIC CURVES
KBL0 SERIES
FIG 1 : MAXIMUM NON-REPETITIVE
SURGE CURRENT PER ELEMENT
250
PEAK FORWARD SURGE
CURRENT, AMPERES
8.3ms Single Half Sine Wave
T
J
=125°C
AVERAGE FORWARD OUTPUT
CURRENT, AMPERES
FIG 2 : DERATING CURVE FOR
RECTIFIED OUTPUT CURRENT
5.0
200
4.0
Resistive or
Inductive
Load
150
100
3.0
2.0
50
1.0
0
1
10
NUMBER OF CYCLES AT 60Hz
100
0
0
50
100
150
AMBIENT TEMPERATURE °C
FIG 3 : TYPICAL FORWARD
CHARACTERISTICS PER ELEMENT
100
T
J
= 25°C
Pulse Width = 300µs
FIG 4 : TYPICAL REVERSE
CHARACTERISTICS PER ELEMENT
500
T
A
= 125°C
INSTANTANEOUS REVERSE
CURRENT, MICROAMPERES
100
INSTANTANEOUS FORWARD
CURRENT, AMPERES
10
10
1
1.0
0.1
0.1
0.6
0.8
1.0
1.2
1.4
1.6
.01
0
20
40
60
T
A
= 25°C
INSTANTANEOUS FORWARD
VOLTAGE, VOLTS
80
100
120
140
PERCENT OF RATED PEAK
REVERSE VOLTAGE
Reformatted by Anglia 9851
