SR2-076-H135/02-95C datasheet, PDF

Datasheet> All Categories > The connector> The connector> SR2-076-H135/02-95C

SR2-076-H135/02-95C: DescriptionBoard Connector, 76 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Surface Mount Terminal, Receptacle; CategoryThe connector The connector; File Size317KB，1 Pages; ManufacturerE-tec Interconnect Ltd.; Environmental Compliance

Download Datasheet Parametric View All

SR2-076-H135/02-95C Overview

Board Connector, 76 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Surface Mount Terminal, Receptacle

SR2-076-H135/02-95C Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1162224076
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	ROHS COMPLIANT
Board mount options	PEG
body width	0.24 inch
subject depth	0.411 inch
body length	3.8 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	Tin (Sn)
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	1000000000 Ω
insulator material	LIQUID CRYSTAL POLYMER (LCP)
JESD-609 code	e3
Manufacturer's serial number	SR
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	4.191 mm
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2.54 mm
Termination type	SURFACE MOUNT
Total number of contacts	76

Preview

Download Datasheet

View All

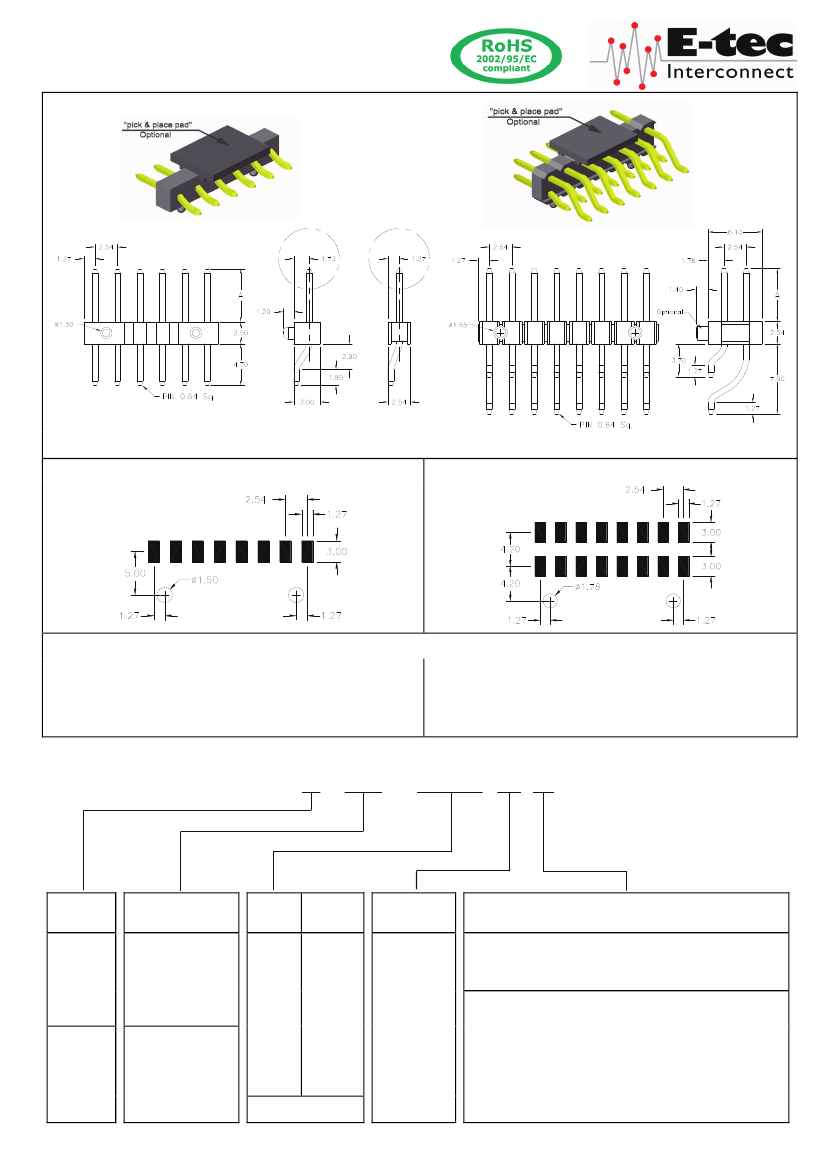

2.54mm pitch

- SMT -

Pin Header - slanted -

single and dual row

SR1

style

with

locating peg

without

locating peg

SR2

style

PCB

Surface Mount Layout

“single row”

PCB

Surface Mount Layout

“dual row”

SPECIFICATIONS

Current rating

Insulator resistance

Withstanding voltage

1000 MΩ min.

500 V AC

Operating temperature

Processing temperature

Contact material

(RoHS compliant)

Insulator material

(RoHS compliant)

- 40°C to +105°C

+250°C

+0/-5°C

for 10sec.

Copper alloy

SR1 = Nylon UL 94 V-0

SR2 = LCP

UL 94 V-0

How to order

SR x - xxx - H xxx/xx -

Rows

Nbr of pins

without locating pegs

code

135/00

135/01

135/02

135/03

135/04

135/05

135/06

135/07

135/08

135/09

135/10

DIM “A”

3.00 mm

3.60 mm

6.00 mm

6,80 mm

7.20 mm

7.40 mm

10.70 mm

10.40 mm

5.85 mm

8.15 mm

10.00 mm

Plating

Packing and ”pick & place pad” Option

(standard: Tube packing and w/o pick & place pad)

single row

002

003

040

030

with locating pegs

gold

tin/gold

(tin leadfree)

without ”locating pegs”

tube packing; with pick & place pad

reel packing; with pick & place pad

with ”locating pegs”

tube packing; without pick & place pad

tube packing; with pick & place pad

reel packing; with pick & place pad

dual row

006

080

Other platings

on request

Other dimensions on

request
