8393-15-36-1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 8393-15-36-1

8393-15-36-1: DescriptionBoard Connector, 36 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Black Insulator; CategoryThe connector The connector; File Size77KB，1 Pages; ManufacturerConexcon Group; Environmental Compliance

Download Datasheet Parametric View All

8393-15-36-1 Overview

Board Connector, 36 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Black Insulator

8393-15-36-1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	307777352
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.2 inch
subject depth	0.19 inch
body length	1.816 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	1000VAC V
Durability	500 Cycles
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYPHENYLENE SULPHIDE
Manufacturer's serial number	8393
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	15u inch
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.163 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	36

Preview

Download Datasheet

View All

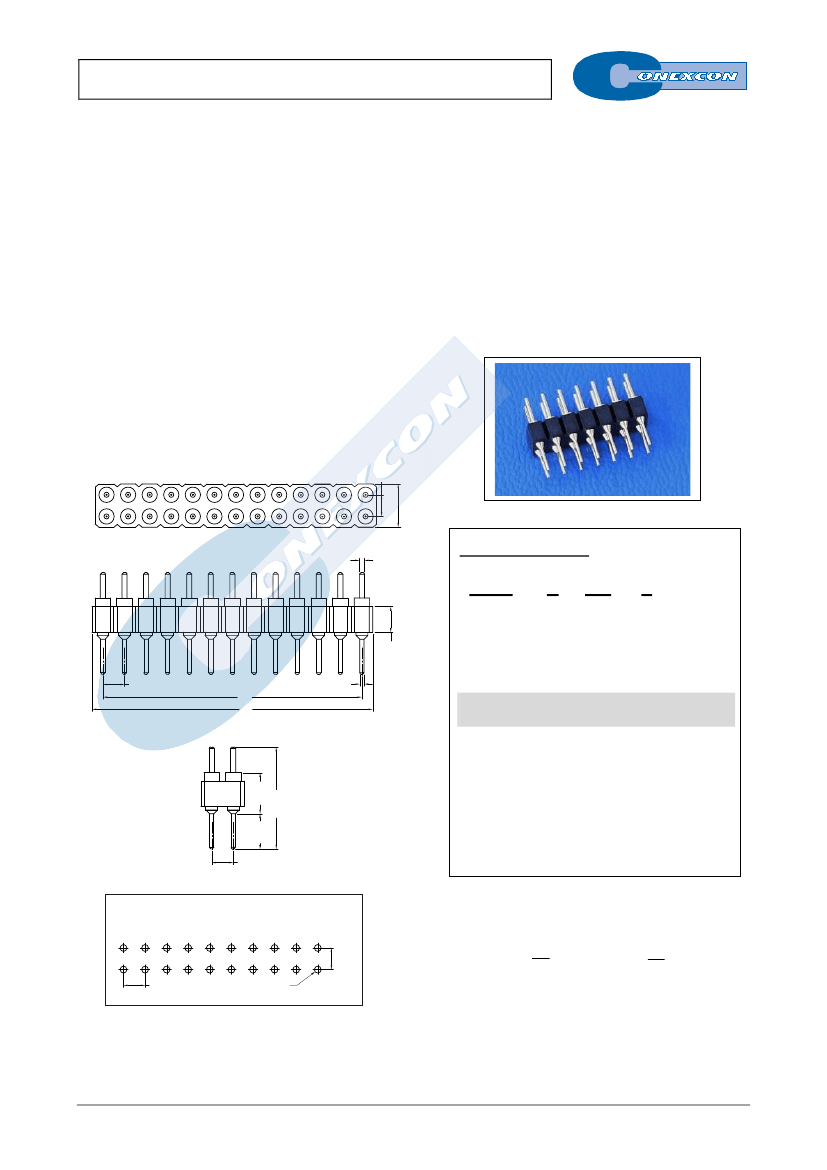

DUAL ROW VERTICAL PIN HEADER

8393 SERIES.

2.54 x 2.54 mm. (0.100 x 0.100”) pitch. Machined contact.

General Features

Electrical Features



Available in 4 through 80 circuits



0.64 round pin in contact area



Different plating options



Voltage rating: < 250V

Current rating: < 3 A

Contact resistance: < 10 mΩ

Dielectric withstanding Voltage: 1000 V AC/minute

Insulation resistance: >1000 MΩ

Materials

Mechanical Features



Insulator: PPS black + 30% GF UL 94 V-0

Contact: Brass

Operating temperature. -40ºC to +105ºC

RoHS compliant



Pin retention force to insulator: > 0.80 Kgf



Durability: 500 Cycles

Dimension Information

2 .54±0.15

5.08±0.15

Ordering Information:

ø0.64

8393 -

3.00±0.15

T-

XX-

1. Connector Series

2. (T) Contact Plating

2.54±0.10

ø0.50



T =

gold flash over 30-50µ" Ni overall

Recommended Finish



T =

15.

15µ" selec. gold over 30-50µ" Ni overall



T =

16.

30µ" selec. gold over 30-50µ" Ni overall

4.83

3. (XX) Number of circuits

11.96



Available in 4 through 80 circuits

2.54±0.10

RECOMMENDED HOLE PATTERN

(Tolerance ±0.05)

2.54±0.15

4.13

DIMENSIONS:





2.54



−







= Number of circuits

2.54











0.40





2.54

ø0.80

A-XX
