CHS120613M3+-0.5%TCR100 datasheet, PDF

Datasheet> All Categories > Passive components> The resistor> CHS120613M3+-0.5%TCR100

CHS120613M3+-0.5%TCR100: DescriptionFixed Resistor, Metal Glaze/thick Film, 0.25W, 13300000ohm, 200V, 0.5% +/-Tol, 100ppm/Cel, 1206,; CategoryPassive components The resistor; File Size349KB，3 Pages; ManufacturerSiegert Thinfilm Technology GmbH; Environmental Compliance

Download Datasheet Parametric View All

CHS120613M3+-0.5%TCR100 Overview

Fixed Resistor, Metal Glaze/thick Film, 0.25W, 13300000ohm, 200V, 0.5% +/-Tol, 100ppm/Cel, 1206,

CHS120613M3+-0.5%TCR100 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	221785685
Reach Compliance Code	compliant
ECCN code	EAR99
structure	Chip
Number of terminals	2
Maximum operating temperature	155 °C
Minimum operating temperature	-55 °C
Package height	0.4 mm
Package length	3.2 mm
Package form	SMT
Package width	1.5 mm
method of packing	Bulk
Rated power dissipation(P)	0.25 W
resistance	13300000 Ω
Resistor type	FIXED RESISTOR
series	CHS
size code	1206
technology	METAL GLAZE/THICK FILM
Temperature Coefficient	100 ppm/°C
Tolerance	0.5%
Operating Voltage	200 V

CHS120613M3+-0.5%TCR100 Preview

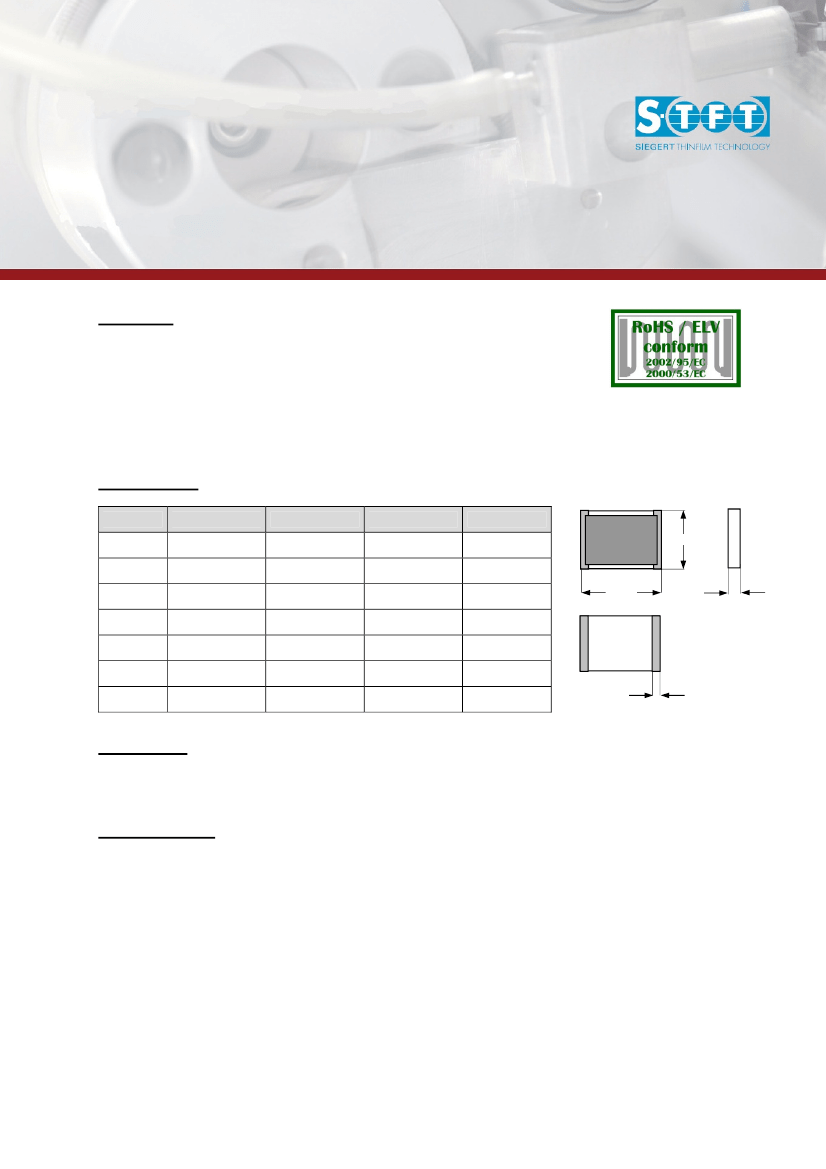

CHS-Series

High-Value Chip Resistors

Sizes: 0402, 0603, 0805, 1206, 1210, 2512, 4020

Features:

•

High value chip resistors in thick film technology

Low temperature and voltage dependency

Untrimmed for higher working voltage up to 6000 V

Suitable for high vacuum applications – no organics

PtAg terminations for soldering and conductive gluing

High temperature application possible (CHS-HT up to 300°

Non-magnetic

Dimensions:

Size

0402

0603

0805

1206

1210

2512

4020

1.04

1.50

2.00

3.20

6.30

10.20

0.05

0.50

0.80

1.25

1.50

2.50

3.50

5.10

0.05

0.30

0.40

0.50

0.60

+0.15/-0.05

0.1

0.2

0.3

+0.1/-0.05

+0.2/-0.1

0.2

+0.15/-0.05

+0.2/-0.05

0.8

0.9

L = Length, B = Width, D = Thickness, C = Width of wrap around (in mm)

Packaging:

Specifications may change without notice, Status 201301

Bulk in plastic bags – minimum quantity 100 pieces per value

Embossed carrier tape acc. to IEC 60286-3 – minimum 500 pieces per value

Reel diameter 180 mm or 330 mm

Ordering Data:

Type – value – tolerance – TCR – packaging

Example: CHS 4020 10G

±10%

TCR 100 Tape 180 mm

Untrimmed parts are indicated by the extension “NA” in the order code:

Type – value – tolerance – NA – TCR - packaging

Example: CHS 4020 10G

±10%

NA TCR 100 Tape 180 mm

If no requirements for TCR and taping are given, the standard value (highest value in table) will be

supplied and packaging is bulk. Standard measuring voltage is 10V. Different voltages on request and

agreement (specify explicitly).

SIEGERT TFT GmbH

Robert-Friese-Straße 3

07629 Hermsdorf / Germany

Tel.:

+49 36601 858 0

Fax:

+49 36601 858 11

E-Mail: info@siegert-tft.de

www.siegert-tft.de

CHS-Series

High-Value Chip Resistors

Sizes: 0402, 0603, 0805, 1206, 1210, 2512, 4020

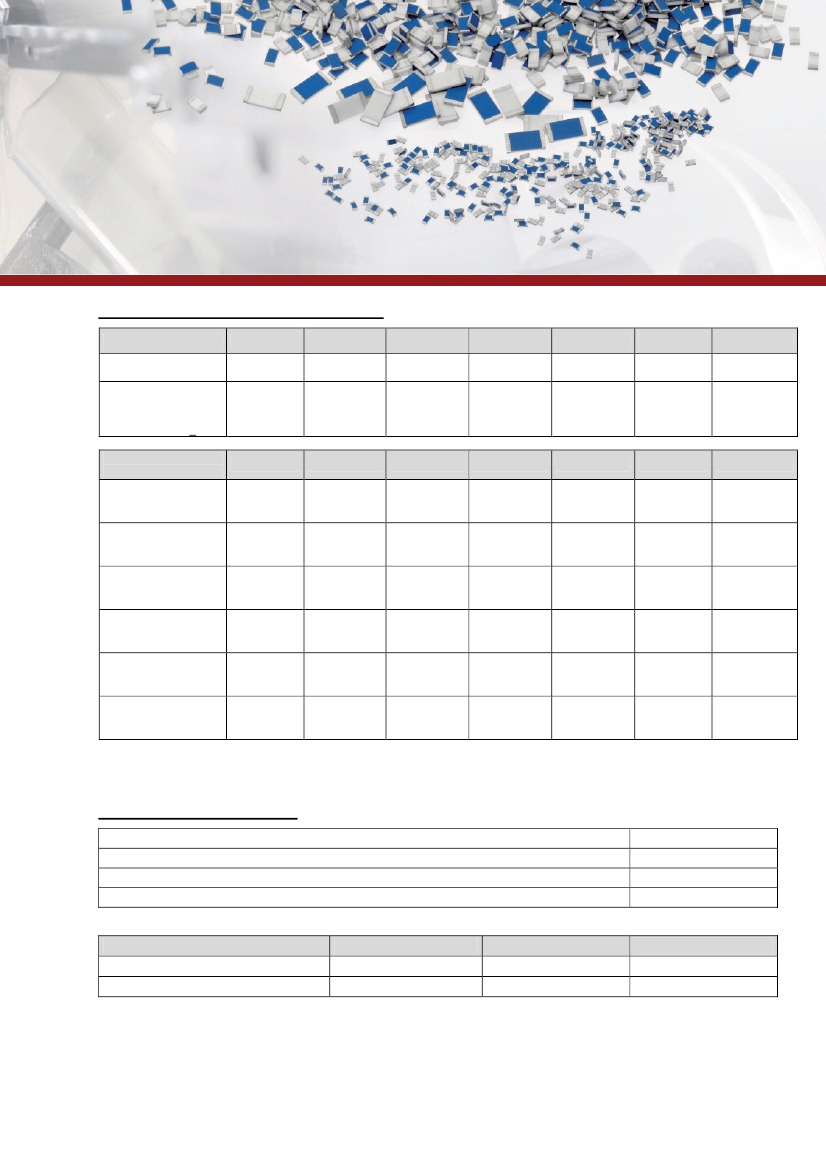

Technical data – depending on size:

Size

Power rating P

(mW)

155

= 0 mW)

Max. Working Voltage

U_, U

eff

(V)

trimmed

untrimmed (Tol. > 5%)

0402

0603

100

0805

125

1206

250

1210

350

2512

1000

4020

1500

150

100

200

400

300

600

1000

2000

4000

6000

Ranges/Tolerances/

TCR / VCR

10M – 100M

5/10/20%

TC50/100

500 ppm/V

5/10/20%

TC100/250

1000 ppm/V

5/10/20%

TC250/500

1000 ppm/V

10/20/30%

TC2000

2000 ppm/V

10/20/30%

TC3000

5000 ppm/V

on request

1/5/10/20%

TC50/100

500 ppm/V

2/5/10/20%

TC100/250

500 ppm/V

5/10/20%

TC250/500

1000 ppm/V

5/10/20/30%

TC500/1000

2000 ppm/V

10/20/30%

TC2000/3000

5000 ppm/V

on request

0.5/1/5/10/20% 0.5/1/5/10/20% 0.5/1/5/10/20% 0.5/…/20%

TC50/100

TC25/50/100

500 ppm/V

250 ppm/V

25 ppm/V

2/5/10/20%

TC100/250

500 ppm/V

5/10/20%

TC250/500

1000 ppm/V

5/10/20%

TC500/1000

2000 ppm/V

10/20/30%

TC2000/3000

5000 ppm/V

see CHM

series

2/5/10/20%

TC50/100/250

500 ppm/V

5/10/20%

TC100/250

1000 ppm/V

5/10/20%

TC500/1000

2000 ppm/V

10/20/30%

TC1000/2000

2000 ppm/V

see CHM

series

2/5/10/20%

TC50/100/250

250 ppm/V

5/10/20%

TC100/250

250 ppm/V

5/10/20%

TC250/500

500 ppm/V

5/10/20%

TC500/1000

1000 ppm/V

10/20/30%

TC1000/2000

2000 ppm/V

1/5/10/20%

TC25/50/100

50 ppm/V

1/5/10/20%

TC100/250

50 ppm/V

2/5/10/20%

TC250/500

100 ppm/V

5/10/20%

TC250/500

250 ppm/V

10/20/30%

TC500/1000

1000 ppm/V

0.25/…/10%

TC25/50/100

10 ppm/V

0.5/…/20%

TC25/50/100

25 ppm/V

1/5/10/20%

TC25/50/100

25 ppm/V

2/5/10/20%

TC50/100

50 ppm/V

5/10/20/30%

TC100/250

100 ppm/V

10/20/30%

TC500/1000

500 ppm/V

>100M – 500M

>500M – 1G

>1G – 10G

>10G – 100G

>100G – 1T

Technical data – general:

Operating temperature range

Climatic category acc. to EN 60068-1

Solderability acc. to EN 60068-2-58 (lead-free and lead-containing)

Maximum soldering temperature acc. to EN 60068-2-58

Extended temperature range up to 300° possible- see datasheet: “High temperature chip resistors” CHS-HT

-55° ... +155°

55/155/56

250°C, 3s

260°C, 10s

Long term stability

Storage 125°C/1000h

Load Life 70°

C/1000h

< 1 GΩ

< 1%

< 0.5%

< 10 GΩ

< 2%

< 1%

≥

10 GΩ

< 5%

< 2%

SIEGERT TFT GmbH

Robert-Friese-Straße 3

07629 Hermsdorf / Germany

Tel.:

+49 36601 858 0

Fax:

+49 36601 858 11

E-Mail: info@siegert-tft.de

www.siegert-tft.de

Specifications may change without notice, Status 201301

At continuous power dissipation the dimensions of solder-pads have to secure sufficient heat-conduction

TCR: in ppm/K; +25°

C...+125° TCR below standard TCR (highest value) and values >100G: +25°

C...+85°

VCR: typical values, all negative, not for all TCR values available

Other values of tolerance, TCR and VCR as well as higher resistance values on request and agreement

CHS-Series

High-Value Chip Resistors

Sizes: 0402, 0603, 0805, 1206, 1210, 2512, 4020

Maximum Voltage/1000h

< 0.5%

< 1%

< 2%

Up to 6 months after shipment; longer at storage in Nitrogen

Data not specified according to EN 140401-802 (CECC 40401-802)

SIEGERT TFT GmbH

Robert-Friese-Straße 3

07629 Hermsdorf / Germany

Tel.:

+49 36601 858 0

Fax:

+49 36601 858 11

E-Mail: info@siegert-tft.de

www.siegert-tft.de

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
