NMC-M0402NPO2R2B50TRPF datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> NMC-M0402NPO2R2B50TRPF

NMC-M0402NPO2R2B50TRPF: DescriptionCeramic Capacitor, Multilayer, Ceramic, 50V, 4.55% +Tol, 4.55% -Tol, C0G, 30ppm/Cel TC, 0.0000022uF, Surface Mount, 0402, CHIP, ROHS COMPLIANT; CategoryPassive components capacitor; File Size301KB，5 Pages; ManufacturerNIC Components Corp; Environmental Compliance

Download Datasheet Parametric View All

NMC-M0402NPO2R2B50TRPF Overview

Ceramic Capacitor, Multilayer, Ceramic, 50V, 4.55% +Tol, 4.55% -Tol, C0G, 30ppm/Cel TC, 0.0000022uF, Surface Mount, 0402, CHIP, ROHS COMPLIANT

NMC-M0402NPO2R2B50TRPF Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1635834412
package instruction	, 0402
Reach Compliance Code	compliant
Country Of Origin	Mainland China, Japan, Taiwan
ECCN code	EAR99
Factory Lead Time	18 weeks
YTEOL	3
capacitance	0.0000022 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
high	0.6 mm
JESD-609 code	e3
length	1 mm
Installation features	SURFACE MOUNT
multi-layer	Yes
negative tolerance	4.5455%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
Package form	SMT
method of packing	TR, PUNCHED PAPER, 7/10/13 INCH
positive tolerance	4.5455%
Rated (DC) voltage (URdc)	50 V
size code	0402
surface mount	YES
Temperature characteristic code	C0G
Temperature Coefficient	30ppm/Cel ppm/°C
Terminal surface	MATTE TIN OVER NICKEL
Terminal shape	WRAPAROUND
width	0.5 mm

Preview

Download Datasheet

View All

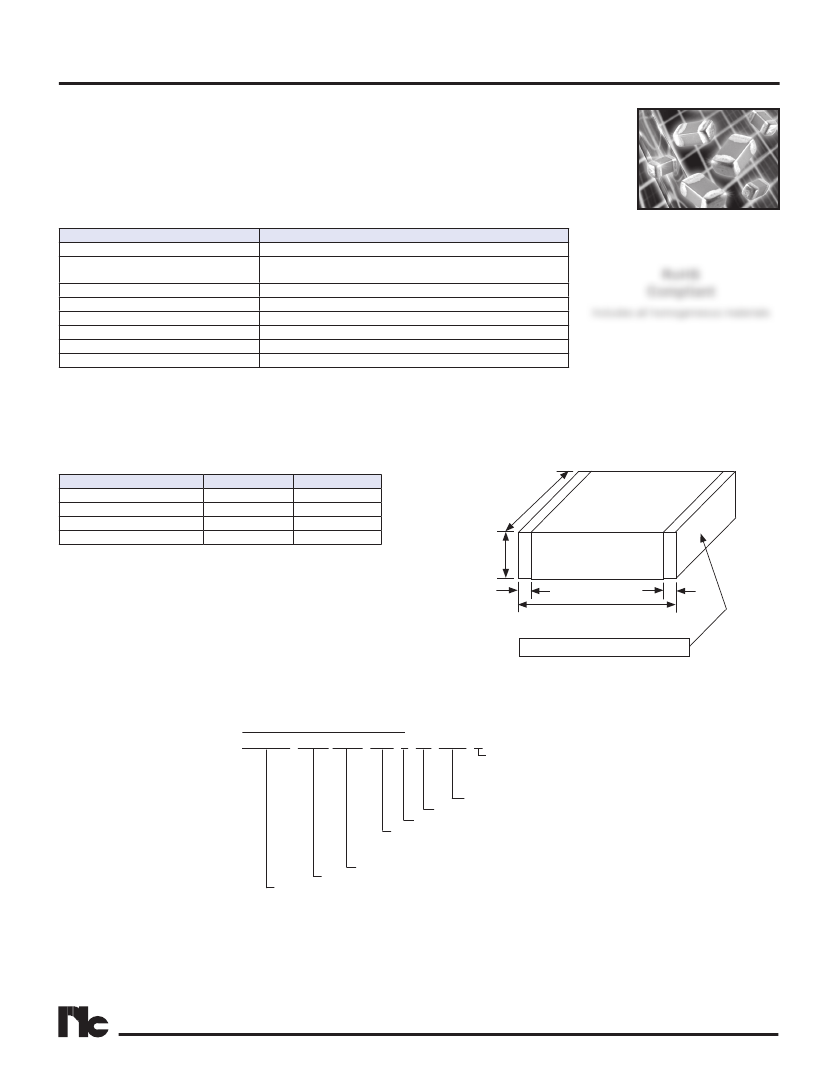

Multilayer Ceramic Chip Capacitors

FEATURES

• LOWER ESR - HIGH Q at HIGH FREQUENCY

• STABLE NPO CHARACTERISTICS OVER TEMPERATURE AND VOLTAGE

• EIA 0402 AND 0603 CASE SIZES

• IDEAL FOR WIRELESS DATA AND VOICE COMMUNICATIONS APPLICATIONS

WLANs, HIPERLAN, 802.11A, 802.11B, Wi-Fi, BLUETOOTH,TELEMATICS, PCS,

LMDS AND CELLULAR

NPO

0.1pF ~ 22pF

±0.1pF(B), ±0.25pF(C), ±0.5pF(D)

Capacitance Tolerance

±1%(F), ±2%(G), ±5% (J)

Operating Temperature Range

-55°C ~ +125°C

Temperature Characteristics

0 ± 30PPM/°C

Rated Voltage

25Vdc, 50Vdc

Dissipation Factor

0.001 max. (1MHz, +25°C)

insulation Resistance

10,000 Megohms min. @ +25°C

Dielectric Withstanding Voltage

125Vdc for 5 ± 1 seconds

Note: Reflow soldering allowed for all case sizes. Contact NIC for wave soldering restrictions.

SPECIFICATIONS

Capacitance Range

NMC-M Series

RoHS

Compliant

Includes all homogeneous materials

*See Part Number System for Details

DIMENISONS (mm)

EIA Case Size

Length (L)

Width (W)

Thickness (T)

Termination Width (P)

0402

1.0 ±0.05

0.5 ± 0.05

0.6 max.

0.10 ~ 0.30

0603

1.6 ±0.15

0.8 ± 0.15

1.0 max.

0.25 ~ 0.60

100% Sn over Ni barrier

PART NUMBER SYSTEM

NMC-M 0603 NPO 100 J 50 TRP F

RoHS Compliant

Series

Tape & Reel (Punched carrier)

Voltage (Vdc)

Capacitance Tolerance Code (see chart)

Capacitance Code, expressed in pF, first 2 digits are

significant, 3rd digit is no. of zeros, “R” indicates

decimal for under 10pF

Temperature Characteristic

Size Code (see chart)

NIC COMPONENTS CORP.

www.niccomp.com

SPECIFICATIONS ARE SUBJECT TO CHANGE
