HC49/254JF6.0MHZ datasheet, PDF

Datasheet> All Categories > Passive components> Crystal/resonator> HC49/254JF6.0MHZ

HC49/254JF6.0MHZ: DescriptionParallel - Fundamental Quartz Crystal, 6MHz Nom, ROHS COMPLIANT,RESISTANCE WELD PACKAGE-2; CategoryPassive components Crystal/resonator; File Size106KB，1 Pages; ManufacturerGolledge Electronics; Websitehttp://www.golledge.com/; Environmental Compliance

Download Datasheet Parametric View All

HC49/254JF6.0MHZ Overview

Parallel - Fundamental Quartz Crystal, 6MHz Nom, ROHS COMPLIANT,RESISTANCE WELD PACKAGE-2

HC49/254JF6.0MHZ Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1279829703
package instruction	ROHS COMPLIANT,RESISTANCE WELD PACKAGE-2
Reach Compliance Code	compliant
YTEOL	6.43
Ageing	3 PPM/FIRST YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	100 µW
frequency stability	0.005%
frequency tolerance	20 ppm
load capacitance	30 pF
Manufacturer's serial number	HC49
Installation features	THROUGH HOLE MOUNT
Nominal operating frequency	6 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
physical size	L11.05XB4.65XH13.46 (mm)/L0.435XB0.183XH0.53 (inch)
Series resistance	80 Ω
surface mount	NO

Preview

Download Datasheet

View All

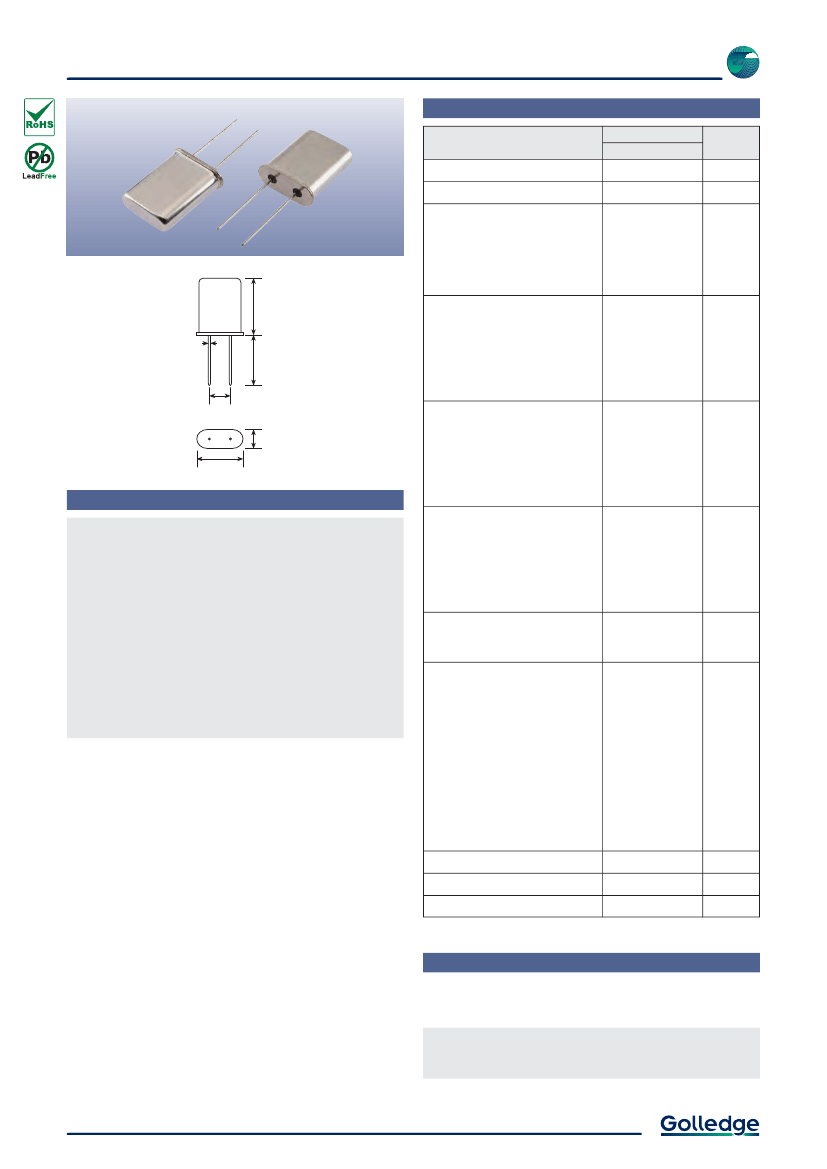

Standard Crystal

Specifications

2011/65/EU

HC49

Parameters

Package:

Frequency range:

Calibration tolerance:

Resistance weld

1.0 ~ 160MHz

Product

HC49



















specify

Option

Code

±5ppm

±10ppm

±20ppm

±30ppm

±50ppm

Other values (±3ppm ~ ±100ppm)

±5ppm

±10ppm

±20ppm

±30ppm

±50ppm

±100ppm

Other values (±3ppm ~ ±100ppm)

13.46

(max)

0.43Ø

12.00

(min)

Temperature stability:

4.88

4.65 (max)

11.05

(

)

Features

Operating temperature range:

0 to +50°C

-10 to +60°C

-20 to +70°C

-30 to +80°C

-40 to +85°C

Other values

Circuit condition:

12pF

16pF

18pF

20pF

30pF

Series resonant

Other values

Fundamental

3rd overtone

5th overtone



Industry standard HC49 case

Fundamental mode available up to 40.0MHz

Comprehensive stock of standard frequencies

Low cost for volume applications

Custom frequencies available

Tight specifications available

Wide frequency range available

Oscillation mode:

Equivalent series resistance (max):

3000Ω (1.0MHz)

700Ω (1.8 ~ 2.0MHz)

500Ω (>2.0 ~ 2.4MHz)

300Ω (>2.4 ~ 3.0MHz)

200Ω (>3.0 ~ 3.2MHz)

150Ω (>3.2 ~ 3.7MHz)

100Ω (>3.7 ~ 4.2MHz)

80Ω (>4.2 ~ 6.0MHz)

50Ω (>6.0 ~ 9.0MHz)

30Ω (>9.0 ~ 36.0MHz)

60Ω (24.0 ~ 90.0MHz, 3rd OT)

80Ω (80.0 ~ 160MHz, 5th OT)

Static capacitance (C

Ageing:

7pF max

±3ppm max first year

100μW

Test drive level:



Standard.



Optional - Please specify required code(s) when ordering

Ordering Information

Product name + option codes + frequency

eg:

HC49/351DF 16.1760MHz

30/50/10/16-F

HC49/232S3 48.0MHz

20/30/20/S-3



Insulating washers and mounting clips available. See our website for

details.



Centre ground lead available on request.

Tel:

+44 1460 256 100

03 Oct 2011

Fax:

+44 1460 256 101

E-mail:

sales@golledge.com

Web:

www.golledge.com
