UR233-17-TN3-D-R

Description
Regulator
CategoryPower/power management    The power supply circuit
File Size288KB，10 Pages
ManufacturerUNISONIC TECHNOLOGIES CO.,LTD
Websitehttp://www.unisonic.com.tw/
Download Datasheet Parametric View All

UR233-17-TN3-D-R Overview

Regulator

UR233-17-TN3-D-R Parametric

Parameter NameAttribute value
Objectid109094506
Reach Compliance Codecompliant
ECCN codeEAR99

UR233-17-TN3-D-R Preview

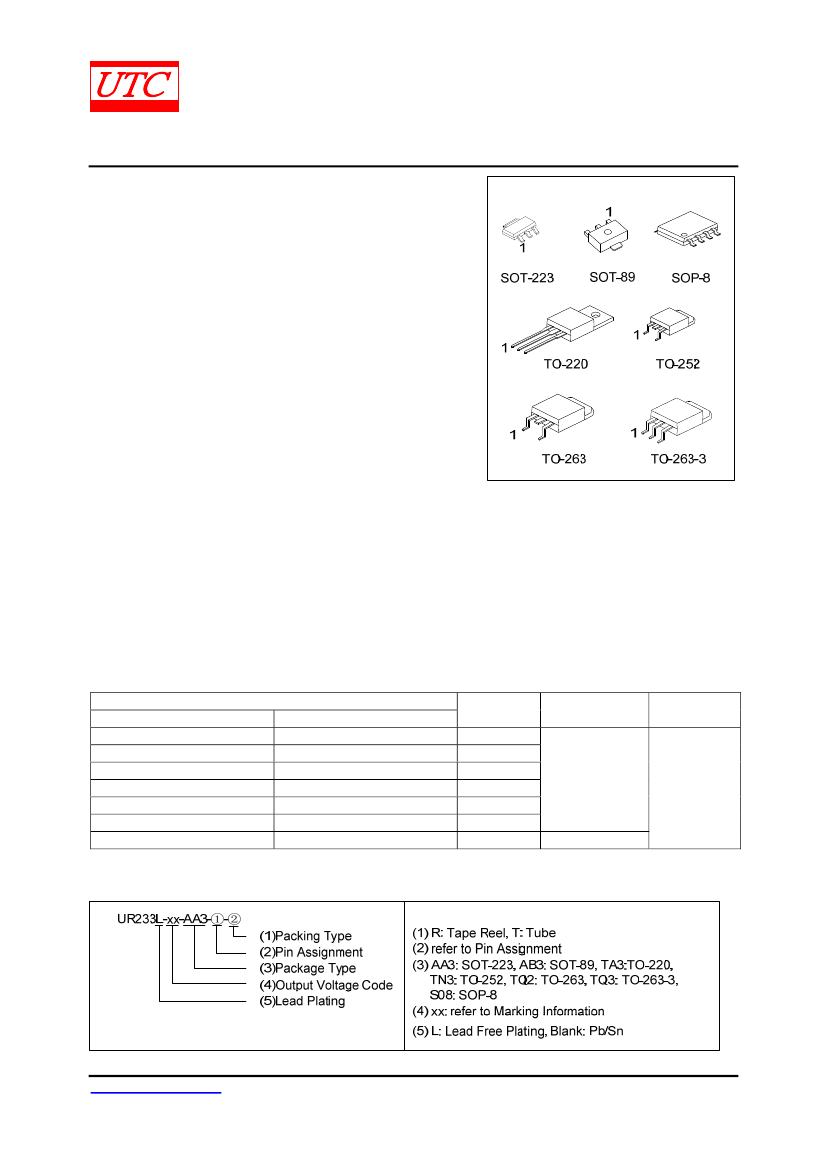

UNISONIC TECHNOLOGIES CO., LTD
UR233
LOW DROP FIXED AND
ADJUSTABLE POSITIVE
VOLTAGE REGULATORS
DESCRIPTION
The UTC
UR233
is a LOW DROP Voltage Regulator able to
provide up to 0.8A of Output Current, available even in adjustable
version (V
REF
=1.25V).High efficiency is assured by NPN pass
transistor. In fact in the case, unlike than PNP one, the Quiescent
Current flows mostly into the load. Only a very common 10μF
minimum capacitor is needed for stability. On chip trimming
allows the regulator to reach a very tight output voltage tolerance,
within
±1%
at 25°С. The ADJUSTABLE
UR233
is pin to pin
compatible with the other standard Adjustable voltage regulators
maintaining the better performances in terms of Drop and
Tolerance.
LINEAR INTEGRATED CIRCUIT
*Pb-free plating product number: UR233L
FEATURES
*Low dropout voltage (1.5V Typ.)
*Output current up to 0.8A
*Fixed output voltage of: 1.7V,1.8V,2.5V, 2,85V, 3.0V, 3.3V, 5.0V
*Adjustable version availability (V
REF
=1.25V)
*Internal current and thermal limit
*Available in
±1%(at
25°С) and 2% in all temperature range
*Supply voltage rejection: 75dB (TYP)
ORDERING INFORMATION
Ordering Number
Normal
Lead Free Plating
UR233-xx-AA3-①-②
UR233L-xx-AA3-①-②
UR233-xx-AB3-①-②
UR233L-xx-AB3-①-②
UR233-xx-TA3-①-②
UR233L-xx-TA3-①-②
UR233-xx-TN3-①-②
UR233L-xx-TN3-①-②
UR233-xx-TQ2-①-②
UR233L-xx-TQ2-①-②
UR233-xx-TQ3-①-②
UR233L-xx-TQ3-①-②
UR233-xx-S08-①-②
UR233L-xx-S08-①-②
Note: Pin Assignment: I:V
IN
O:V
OUT
G:GND
Package
SOT-223
SOT-89
TO-220
TO-252
TO-263
TO-263-3
SOP-8
①
Pin Assignment
A: GOI
B: OGI
C: GIO
D: IGO
GOOIxOOx
②
Packing
R: Tape Reel
T: Tube
ORDERING INFORMATION(Cont.)
www.unisonic.com.tw
Copyright © 2008 Unisonic Technologies Co., Ltd
1 of 10
QW-R102-011.D
UR233
MARKING INFORMATION
PACKAGE
VOLTAGE
PIN CODE PIN 1
CODE
A
B
SOT-223
17:1.7V
18:1.8V
25:2.5V
2J:2.85V
30:3.0V
33:3.3V
50:5.0V
AD:ADJ
C
D
A
B
C
D
A
B
C
D
GND
OUT
GND
IN
GND
OUT
GND
IN
GND
OUT
GND
IN
PIN 2
OUT
GND
IN
GND
OUT
GND
IN
GND
OUT
GND
IN
GND
PIN 3
IN
IN
OUT
OUT
IN
IN
OUT
OUT
IN
IN
OUT
OUT
LINEAR INTEGRATED CIRCUIT
MARKING
SOT-89
TO-220
TO-252
TO-263
TO-263-3
UNISONIC TECHNOLOGIES CO., LTD
www.unisonic.com.tw
2 of 10
QW-R102-011.D
UR233
BLOCK DIAGRAM
LINEAR INTEGRATED CIRCUIT
UNISONIC TECHNOLOGIES CO., LTD
www.unisonic.com.tw
3 of 10
QW-R102-011.D
UR233
ABSOLUTE MAXIMUM RATINGS
PARAMETER
LINEAR INTEGRATED CIRCUIT
VALUE
UNIT
DC Input Voltage
12
V
SOT-223
0.740
SOT-89
0.571
SOP-8
0.625
Power Dissipation
P
D
W
TO-252
1.471
TO-220
1.820
TO-263
2.222
Operating Junction Temperature
T
OPR
-40 ~ +85
°С
Storage Temperature
T
STG
-65 ~ +150
°C
Note: Absolute maximum ratings are those values beyond which the device could be permanently damaged.
Absolute maximum ratings are stress ratings only and functional device operation is not implied.
SYMBOL
V
IN
THERMAL DATA
PARAMETER
SOT-223
SOT-89
SOP-8
TO-252
TO-220
TO-263
SOT-223
SOT-89
SOP-8
TO-252
TO-220
TO-263
SYMBOL
RATING
135
175
160
68
55
45
19
48
45
7.5
15
7.8
UNIT
Junction-to-Ambient
θ
JA
°C/W
Junction-to-Case
θ
JC
°C/W
ELECTRICAL CHARACTERISTICS
(T
J
=0 ~ 125°С, unless otherwise specified)
For UR233-1.7
PARAMETER
Output Voltage
Output Voltage
Line Regulation
Load Regulation
Temperature Stability
Long Term Stability
Operating Input Voltage
Quiescent Current
Output Current
Output Noise Voltage
Supply Voltage Rejection
Dropout Voltage
Thermal Regulation
SYMBOL
V
OUT
V
OUT
ΔV
OUT
ΔV
OUT
ΔV
OUT
ΔV
OUT
V
IN
I
Q
I
OUT
eN
SVR
V
D
T
A
=25°С, 30ms Pulse
0.01
TEST CONDITIONS
V
IN
=3.7V, I
OUT
=10mA,
±1%
T
J
=25°С
V
IN
=3.1 ~ 10V,
±2%
I
OUT
=2 ~ 800mA
V
IN
=3.1 ~ 10V, I
OUT
=2mA
V
IN
=3.1V, I
OUT
=2 ~ 800mA
1000 hrs, T
J
=125°С
I
OUT
=100mA
V
IN
=10V
V
IN
=6.7V, T
J
=25°С
B=10Hz ~ 10KHz, T
J
=25°С
I
OUT
=40mA, f=120Hz, T
J
=25°С,
V
IN
=4.7V, V
RIPPLE
=1Vpp
MIN.
1.683
1.666
1
1
0.5
0.3
5
950
100
75
1.50
0.10
TYP.
1.700
MAX.
1.717
1.734
6
10
UNIT
V
V
mV
mV
%
%
V
mA
mA
μV
dB
V
%/W
800
60
12
10
1200
UNISONIC TECHNOLOGIES CO., LTD
www.unisonic.com.tw
4 of 10
QW-R102-011.D
UR233
ELECTRICAL CHARACTERISTICS(Cont.)
For UR233-1.8
PARAMETER
Output Voltage
Output Voltage
Line Regulation
Load Regulation
Temperature Stability
Long Term Stability
Operating Input Voltage
Quiescent Current
Output Current
Output Noise Voltage
Supply Voltage Rejection
Dropout Voltage
Thermal Regulation
For UR233-2.5
PARAMETER
Output Voltage
Output Voltage
Line Regulation
Load Regulation
Temperature Stability
Long Term Stability
Operating Input Voltage
Quiescent Current
Output Current
Output Noise Voltage
Supply Voltage Rejection
Dropout Voltage
Thermal Regulation
SYMBOL
V
OUT
V
OUT
ΔV
OUT
ΔV
OUT
ΔV
OUT
ΔV
OUT
V
IN
I
Q
I
OUT
eN
SVR
V
D
T
A
=25°С, 30ms Pulse
SYMBOL
V
OUT
V
OUT
ΔV
OUT
ΔV
OUT
ΔV
OUT
ΔV
OUT
V
IN
I
Q
I
OUT
eN
SVR
V
D
T
A
=25°С, 30ms Pulse
LINEAR INTEGRATED CIRCUIT
TEST CONDITIONS
V
IN
=3.8V, I
OUT
=10mA,
±1%
T
J
=25°С
V
IN
=3.2 ~ 10V,
±2%
I
OUT
=2 ~ 800mA
V
IN
=3.2 ~ 10V, I
OUT
=2mA
V
IN
=3.2V, I
OUT
=2 ~ 800mA
1000 hrs, T
J
=125°С
Io=100mA
V
IN
=10V
V
IN
=6.8V, T
J
=25°С
B=10Hz ~ 10KHz, T
J
=25°С
Io=40mA, f=120Hz, T
J
=25°С,
V
IN
=4.8V, V
RIPPLE
=1Vpp
MIN.
1.782
1.764
TYP.
1.800
MAX.
1.818
1.836
UNIT
V
V
mV
mV
%
%
V
mA
mA
μV
dB
1
1
0.5
0.3
5
950
100
75
0.01
MIN.
2.475
2.450
1
1
0.5
0.3
5
950
100
75
0.01
TYP.
2.500
6
10
800
60
12
10
1200
1.50
0.10
MAX.
2.525
2.550
6
10
V
%/W
UNIT
V
V
mV
mV
%
%
V
mA
mA
μV
dB
TEST CONDITIONS
V
IN
=4.5V, I
OUT
=10mA,
±1%
T
J
=25°С
V
IN
=3.9 ~ 10V,
I
OUT
=2 ~ 800mA
V
IN
=3.9 ~ 10V, I
OUT
=2mA
V
IN
=3.9V, I
OUT
=2 ~ 800mA
1000 hrs, T
J
=125°С
I
OUT
=100mA
V
IN
=10V
V
IN
=7.5V, T
J
=25°С
B=10Hz ~ 10KHz, T
J
=25°С
I
OUT
=40mA, f=120Hz, T
J
=25°С,
V
IN
=5.5V, V
RIPPLE
=1Vpp
±2%
800
60
12
10
1200
1.50
0.10
V
%/W
UNISONIC TECHNOLOGIES CO., LTD
www.unisonic.com.tw
5 of 10
QW-R102-011.D
More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

Recommended Resources

FM radio high frequency amplification and mixing circuit

Several electronic ignition circuits

Pulsed infrared LED driver circuit diagram

Light-controlled thyristor non-self-locking photosensitive relay

Negative 2V-12V reference voltage source

Multiple feedback bridge T-type oscillator circuit diagram

HDVICP_H.264 compression issue
1. Run the HDVICP test program on the DSP side alone, read the local file through the developer to perform H.264 compression, The result of the zoom is correct and can be played. Since the test image ...
lyc715088692 TI Technology Forum
Understanding the Internals of ADCs
PrefaceI have been using ADC for so long, but I have never taken a close look at the internal principles of ADC and how to obtain the best accuracy. Today I saw an official document from ST that expla...
btty038 RF/Wirelessly
About the io interrupt of msp430g2553
Experimental purpose: Press the button (corresponding to P1.3), and the LED (corresponding to P1.0) will change its on and off state. So I used the following program, but found that it did not have th...
hjl240 Microcontroller MCU
Analysis and Measurement of Intrinsic Noise in Operational Amplifier Circuits
Noise can be defined as any unwanted signal in an electronic system. Noise can cause degradation of audio signals and errors in accurate measurements. Board-level and system-level electronic design en...
lixiaohai8211 Analog electronics
HELPER2416 Development Board - Fedora Installation
I received the HELPER2416 development board 4 or 5 days ago. I just finished the things I was doing and I can finally make time to play with HELPER2416. I have downloaded the HELPER2416 data. I still ...
ltbytyn Embedded System
State Machine
Share with everyone!...
alex002 Embedded System
Shortcut:   S0 S1 S2 S3 S4 S5 S6 S7 S8 S9 SA SB SC SD SE SF SG SH SI SJ SK SL SM SN SO SP SQ SR SS ST SU SV SW SX SY SZ T0 T1 T2 T3 T4 T5 T6 T7 T8 T9 TA TB TC TD TE TF TG TH TI TJ TK TL TM TN TO TP TQ TR TS TT TU TV TW TX TY TZ U0 U1 U2 U3 U4 U6 U7 U8 UA UB UC UD UE UF UG UH UI UJ UK UL UM UN UP UQ UR US UT UU UV UW UX UZ V0 V1 V2 V3 V4 V5 V6 V7 V8 V9 VA VB VC VD VE VF VG VH VI VJ VK VL VM VN VO VP VQ VR VS VT VU VV VW VX VY VZ W0 W1 W2 W3 W4 W5 W6 W7 W8 W9 WA WB WC WD WE WF WG WH WI WJ WK WL WM WN WO WP WR WS WT WU WV WW WY X0 X1 X2 X3 X4 X5 X7 X8 X9 XA XB XC XD XE XF XG XH XK XL XM XN XO XP XQ XR XS XT XU XV XW XX XY XZ Y0 Y1 Y2 Y4 Y5 Y6 Y9 YA YB YC YD YE YF YG YH YK YL YM YN YP YQ YR YS YT YX Z0 Z1 Z2 Z3 Z4 Z5 Z6 Z8 ZA ZB ZC ZD ZE ZF ZG ZH ZJ ZL ZM ZN ZP ZR ZS ZT ZU ZV ZW ZX ZY

Popular Components

  1. ST7P10BF0U6TR
  2. CF-524025-46J
  3. MD15M32SLT20/AA
  4. KPT06B14-5S
  5. T212D277J006DTC
  6. MF220775.9KOHM0.5%25PPM
  7. CFPS1/2CVTR132G
  8. FMXMA1100JJF-02.400000M
  9. ZMM55-C11CT/R7
  10. A2541WV-S-2x14P-C1140
  11. C6201HFA-2x2P-GY
  12. A2541WV-18P-C965-G30

Popular Articles

  1. Keysight Technologies Launches 64GBd Multimode Optical-Electrical Integrated Module
  2. 28-Smart curtain design based on 51 single chip microcomputer
  3. UCF receives $4.5 million from U.S. Army research lab to develop GPS-independent smart navigation system
  4. Freescale Smart Car - Electromagnetic Tracking (Common to All Groups)
  5. ZDS2022 Oscilloscope 100 Practical Videos 69: Hardware Frequency Meter
  6. The United States is actively attracting companies to invest in chip manufacturing
  7. TSMC's 4nm Qualcomm Snapdragon 8 Gen1+ samples still heat up
  8. Baidu PaddlePaddle fully supports training and reasoning on Graphcore IPU
  9. Why are foldable screen phones so popular? Are they worth buying?
  10. Mobileye and the world's leading automakers expand their collaboration

Technical ResourceMore

  1. Protel2004_sp2_Genkey
  2. LTspiceIV circuit simulation software
  3. Protel99Se Enhanced Tool v4.0
  4. Intrinsic semiconductor, impurity semiconductor ppT
  5. Protel99SE library addition tool WIN7 64 available to provide usage instructions
  6. Electrical Automation Major--Factory Power Supply Course Design
  7. AD7142 Sensor Board In-Line Production Test Procedure
  8. IAR KeyGen
  9. Beida Jade Bird ACCP5.0 S1 stage using HTML language to develop commercial sites (training materials PPT courseware)
  10. Thevenin\'s Theorem Lesson Plan

EEWorld
subscription
account

EEWorld
service
account

Automotive
development
circle

Robot
development
community

About Us Customer Service Contact Information Datasheet Sitemap LatestNews
Index Files: 1516  1622  1680  1100  193  31  33  34  23  4
Datasheet   0 1 2 3 4 5 6 7 8 9 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
Room 1530, 15th Floor, Building B, No. 18 Zhongguancun Street, Haidian District, Beijing Telephone: (010) 82350740 Postal Code: 100190
Copyright © 2005-2026 EEWORLD.com.cn, Inc. All rights reserved 京ICP证060456号 京ICP备10001474号-1 电信业务审批[2006]字第258号函 京公网安备 11010802033920号
