RCL e3
www.vishay.com
Vishay Draloric

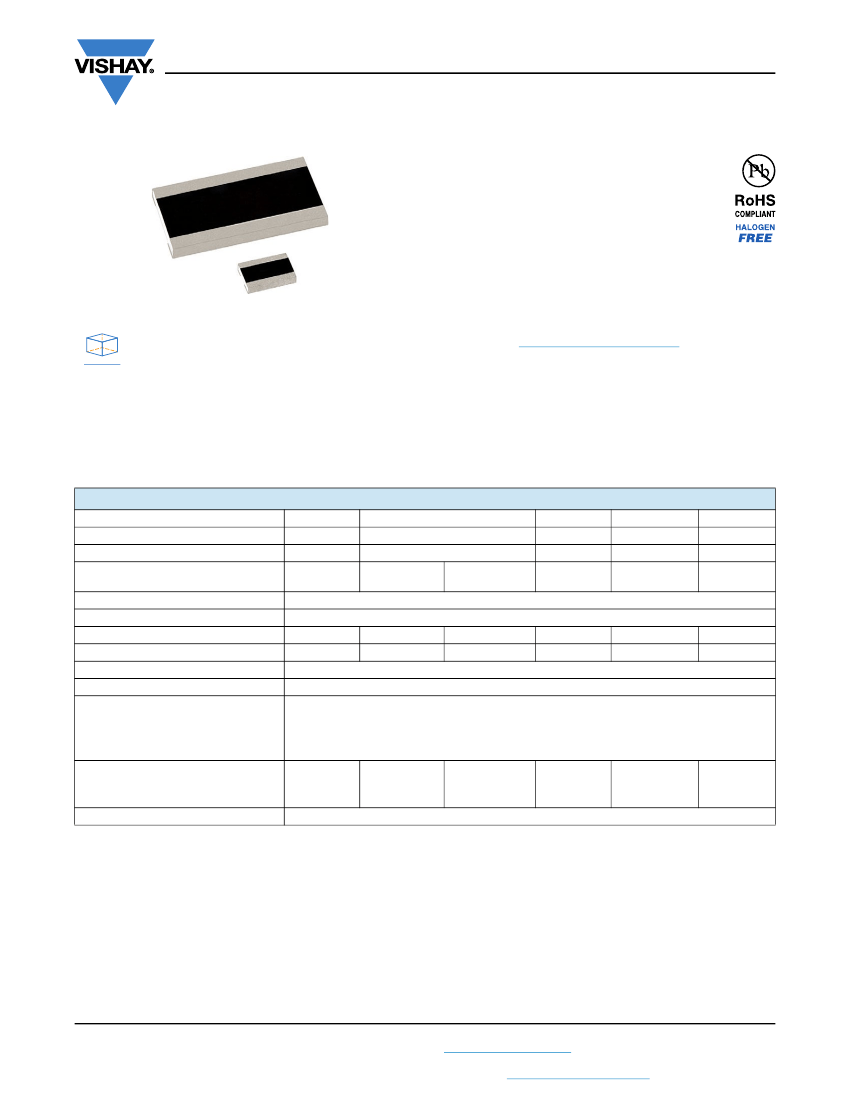

Long Side Termination Thick Film Chip Resistors
FEATURES
• Enhanced power rating
• Long side terminations
• Enhanced thermal cycling performance
• Pure tin solder contacts on Ni barrier layer,
provides compatibility with lead (Pb)-free and lead
containing soldering processes
• AEC-Q200 qualified
LINKS TO ADDITIONAL RESOURCES
D
D
3
3
3D Models
• Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
RCL e3 resistors series are the perfect choice for most fields
of power measurement electronics where reliability,
stability, power dissipation, and robust design is of major
concern.
Typical applications include power electronics in automotive
and industrial appliances.
APPLICATIONS
• Automotive
• Industrial
• Commercial
TECHNICAL SPECIFICATIONS
DESCRIPTION
Imperial size
Metric size code
Resistance range
Resistance tolerance
Temperature coefficient
Rated dissipation,
P
70
(1)
RCL0406 e3
0406
RR1016M
RCL0612 e3
0612
RR1632M
RCL1020 e3
1020
RR2550M
1
Ω
to 1 MΩ;
jumper (0
Ω)
RCL1218 e3
1218
RR3246M
1
Ω
to 2.2 MΩ;
jumper (0
Ω)
RCL1225 e3
1225
RR3263M
1
Ω
to 1 MΩ;
jumper (0
Ω)
1
Ω
to 1 MΩ; 1
Ω
to 39.2 kΩ;
40.2 kΩ to 1 MΩ
jumper (0
Ω)
jumper (0
Ω)
± 5 %; ± 1 %
± 200 ppm/K; ± 100 ppm/K
0.25 W
50 V
(1)
1.0 W
(2)
1.0 W
(2)
75 V
155 °C
1.0 W
200 V
1.0 W
200 V
2.0 W
(2)
200 V
Operating voltage,
U
max.
AC
RMS
/DC
Permissible film temperature,
ϑ
F max.
Operating temperature range
Max. resistance change at
P
70
for resistance range, |ΔR/R| after:
1000 h
8000 h
Permissible voltage against ambient
(insulation):
1 min,
U
ins
Failure rate: FIT
observed
200 V
-55 °C to +155 °C
≤
1.0 %
≤
2.0 %
100 V
100 V
100 V
300 V
300 V
300 V
≤
0.1 x 10
-9
/h
Notes
(1)
Please refer to APPLICATION INFORMATION below
(2)
Specified power rating requires dedicated mounting conditions to achieve the required thermal resistance
APPLICATION INFORMATION
When the resistor dissipates power, a temperature rise above the ambient temperature occurs, dependent on the thermal
resistance of the assembled resistor together with the printed circuit board. The rated dissipation applies only if the permitted
film temperature is not exceeded.
These resistors do not feature a limited lifetime when operated within the permissible limits. However, resistance value drift
increasing over operating time may result in exceeding a limit acceptable to the specific application, thereby establishing a
functional lifetime.
Revision: 26-Oct-2021
Document Number: 20046
1
For technical questions, contact:
thickfilmchip@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
RCL e3
www.vishay.com
DESCRIPTION
Production is strictly controlled and follows an extensive set
of instructions established for reproducibility. A cermet film
layer and a glass-over are deposited on a high grade (Al
2
O
3
)
ceramic substrate with its prepared inner contacts on both
sides. A special laser is used to achieve the target value by
smoothly fine trimming the resistive layer without damaging
the ceramics. The resistor elements are covered by a
protective coating designed for electrical, mechanical and
climatic protection. The terminations receive a final pure tin
on nickel plating.
The result of the determined production is verified by an
extensive testing procedure on 100 % of the individual chip
resistors. Only accepted products are laid directly into
the tape in accordance with
IEC 60286-3 Type 1a and
Type 2a
(1)
.
Vishay Draloric
The products do not contain any of the banned
substances as per IEC 62474, GADSL, or the SVHC list,
see
www.vishay.com/how/leadfree.
Hence the products fully comply with the following
directives:
• 2000/53/EC End-of-Life Vehicle Directive (ELV) and
Annex II (ELV II)
• 2011/65/EU Restriction of the Use of Hazardous
Substances
Directive
(RoHS)
with
amendment
2015/863/EU
• 2012/19/EU Waste Electrical and Electronic Equipment
Directive (WEEE)
Vishay pursues the elimination of conflict minerals from its
supply chain, see the Conflict Minerals Policy at
www.vishay.com/doc?49037.
ASSEMBLY
The resistors are suitable for processing on automatic SMD
assembly systems. They are suitable for automatic
soldering using wave, reflow or vapor phase as shown in
IEC 61760-1
(1)
. The encapsulation is resistant to all
cleaning solvents commonly used in the electronics
industry, including alcohols, esters and aqueous solutions.
The suitability of conformal coatings, potting compounds
and their processes, if applied, shall be qualified by
appropriate means to ensure the long-term stability of the
whole system.
The resistors are RoHS-compliant, the pure tin plating
provides
compatibility
with
lead
(Pb)-free
and
lead-containing soldering processes. Solderability is
specified for 2 years after production or requalification. The
permitted storage time is 20 years. The immunity of the
plating against tin whisker growth has been proven under
extensive testing.
APPROVALS
The resistors are qualified according to AEC-Q200.
Where applicable, the resistors are tested in accordance
with
EN 140401-802
which refers to
EN 60115-1,
EN 60115-8
and the variety of environmental test
procedures of the
IEC 60068
(1)
series.
RELATED PRODUCTS
The RCA-LS e3, Sulfur Resistant, Long Side Termination
Thick Film Chip Resistors series is designed for harsh
environment applications. For ordering RCA-LS e3 products
please refer to latest edition of datasheet,
www.vishay.com/doc?20060.
MATERIALS
Vishay acknowledges the following systems for the
regulation of hazardous substances:
• IEC 62474, Material Declaration for Products of and for the
Electrotechnical Industry, with the list of declarable
substances given therein
(2)
• The Global Automotive Declarable Substance List
(GADSL)
(3)
• The REACH regulation (1907/2006/EC) and the related list
of substances with very high concern (SVHC)
(4)
for its
supply chain
Notes
(1)
The quoted IEC standards are also released as EN standards with the same number and identical contents
(2)
The IEC 62474 list of declarable substances is maintained in a dedicated database, which is available at
http://std.iec.ch/iec62474
(3)
The Global Automotive Declarable Substance List (GADSL) is maintained by the American Chemistry Council and available at
www.gadsl.org
(4)
The SVHC list is maintained by the European Chemical Agency (ECHA) and available at
http://echa.europa.eu/candidate-list-table
Revision: 26-Oct-2021
Document Number: 20046
3
For technical questions, contact:
thickfilmchip@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
RCL e3
www.vishay.com

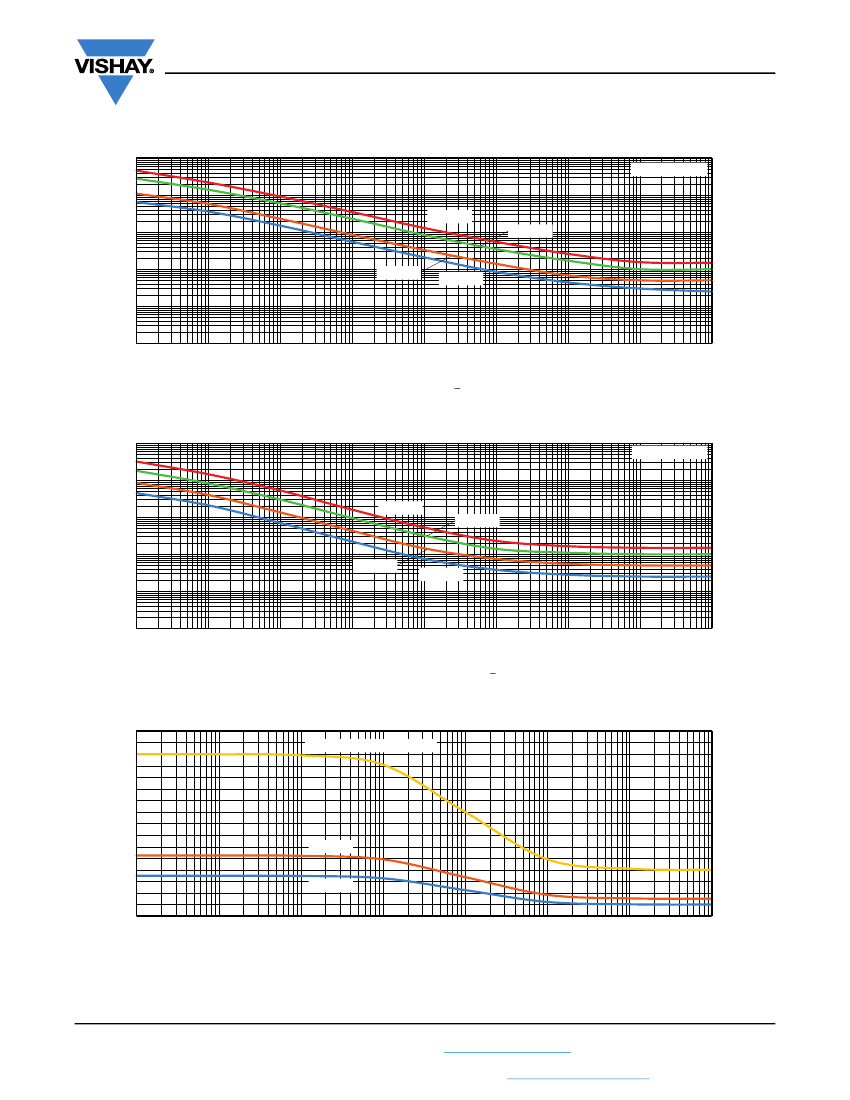

FUNCTIONAL PERFORMANCE
Single Pulse
(1)
1000
RCL1020 in work
Vishay Draloric
10000
100
2nd line
^
P
max.
- Pulse Load (W)
RCL1225
1000
1st line
2nd line
100
10
1
10
100
RCL1020 in work
RCL1218
10
1
RCL0612
RCL0406
0.1
0.01
0.000001
0.00001
0.0001
0.001
0.01
t
i
- Pulse Duration (s)
0.1
ˆ
ˆ
Maximum pulse load, single pulse; applicable if
P
→
0 and n < 1000 and
U
≤
U
max.
;
for permissible resistance change equivalent to 8000 h operation
Continuous Pulse
(1)
1000
2nd line
^
P
max.
- Continuous Pulse Load (W)
10000
100
RCL1225
1000
1st line
2nd line
100
10
1
10
100
10000
1000
1st line
2nd line
100
10
0.1
1
10
RCL1218
10
1
RCL0612
RCL0406
0.1
0.01
0.000001
0.00001
0.0001
0.001
0.01
t
i
- Pulse Duration (s)
0.1
ˆ
ˆ
Maximum pulse load, continuous pulses; applicable if
P
≤
P
(
ϑ
amb
) and
U
≤
U
max.
;
for permissible resistance change equivalent to 8000 h operation
Pulse Voltage
(1)
800
RCL1020, RCL1218, RCL1225
700
2nd line
^
U
max.
- Pulse Voltage (V)
600
500
400
300
200
100
0
0.000001
RCL0406
RCL0612
0.00001
0.0001
0.001
0.01
t
i
- Pulse Duration (s)
ˆ
ˆ
Maximum pulse voltage, single and continuous pulses; applicable if
P
≤
P
max.
;
for permissible resistance change equivalent to 8000 h operation
(1)
Note
Pulse diagram under review to match upgraded rated dissipation and operating voltage
Document Number: 20046
4
For technical questions, contact:
thickfilmchip@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
Revision: 26-Oct-2021
