M85049/51N28S datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> M85049/51N28S

M85049/51N28S: Descriptioncircular mil spec strain reliefs & adapters strain relief SZ 28 steel; CategoryThe connector; File Size191KB，1 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric View All

M85049/51N28S Overview

circular mil spec strain reliefs & adapters strain relief SZ 28 steel

M85049/51N28S Parametric

Parameter Name	Attribute value
Manufacture	Glenai
Product Category	Circular MIL Spec Strain Reliefs & Adapters
Produc	Strain Reliefs
MIL Type	MIL-DTL-5015, MIL-DTL-26482 II

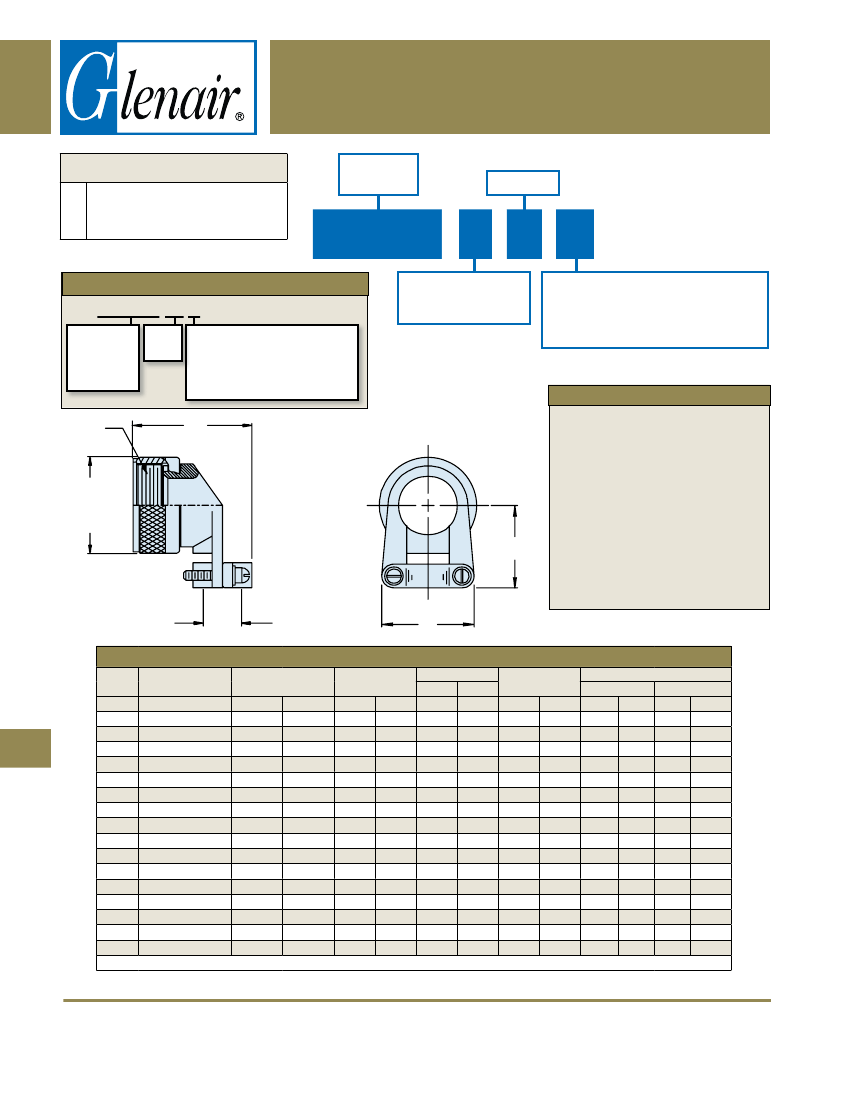

Preview

Download Datasheet

View All

Self-Locking or Non-Self-Locking

CONNECTOR DESIGNATOR:

Basic

Part Number

AS85049/51 and MS3418

90° Strain Relief

Strain Reliefs

AS50151 Series AS34001 Crimp,

MIL-DTL-26482 Series II,

SAE-AS1703 Crimp Series III,

MIL-DTL-83723 Series I & III

Dash No.

M85049/51

FOR NEW DESIGN

USE AS85049/120

Superseded PART NUMBER

MS3418-10 C

Basic

Part No.

(Non-Self-

Locking)

Dash

No.

Metal and Finish Designator

A = Aluminum 1000 Hour Cadmium Olive

Drab over Electroless Nickel

C = Aluminum, Cadmium Olive Drab

G = Aluminim Black Anodize

N = Aluminum, Electroless Nickel

= Self-Locking

-1

= Non-Self-Locking

= Non-Detented

Material and Finish Designator

= Aluminum, Black Anodize

= Aluminum, Electroless Nickel

= Aluminum, 1000 Hour Cadmium

Olive Drab over Electroless Nickel

APPLICATION NOTES

Assembly to be identified with

manufacturer’s name and part

number, space permitting.

Cable Entry is defined as the

accommodation entry for the

wire bundle or cable.

Dimensions are not intended for

inspection criteria.

For complete dimensions, see the

applicable Military Specification.

Metric dimensions (mm) are in

parentheses.

A Thread

Self Locking

Only

Self Locking

Only

Cable

Entry

TABLE I: Shell Size, Cable Entry and Backshell Dimensions

Dash

No.

3*+

28+

32+

36+

40+

44+

48+

61*+

A Thread

Class 2B

.562 - 24 UNEF

.500 - 20 UNF

.625 - 24 UNEF

.750 - 20 UNEF

.875 - 20 UNEF

1.000 - 20 UNEF

1.062 - 18 UNEF

1.188 - 18 UNEF

1.313 - 18 UNEF

1.438 - 18 UNEF

1.750 - 18 UNS

2.000 - 18 UNS

2.250 - 16 UN

2.500 - 16 UN

2.750 - 16 UN

3.000 - 16 UN

1.500 - 18 UNEF

Ø E Max

Self-Locking

.885

(22.5)

1.010

(25.7)

1.135

(28.8)

1.260

(32.0)

1.385

(35.2)

1.510

(38.4)

1.635

(41.5)

1.760

(44.7)

1.885

(47.9)

2.135

(54.2)

2.395

(60.8)

2.635

(66.9)

2.885

(73.3)

3.135

(79.6)

3.385

(86.0)

F Max

Self-Locking

1.257 (31.9)

1.339 (34.0)

1.532 (38.9)

1.592 (40.4)

1.741 (44.2)

1.853 (47.1)

1.978 (50.2)

2.108 (53.5)

2.228 (56.6)

2.528 (64.2)

2.591 (65.8)

2.716 (69.0)

2.841 (72.2)

3.091 (78.5)

3.216 (81.7)

±.062

.777

.746

.805

.867

.930

.994

1.171

1.234

1.296

1.358

1.572

1.797

1.922

2.047

2.296

2.421

1.388

(1.6)

(19.7)

(18.9)

(20.4)

(22.0)

(23.6)

(25.2)

(29.7)

(31.2)

(32.9)

(34.5)

(39.9)

(45.6)

(48.8)

(52.0)

(58.3)

(61.5)

(35.3)

Cable Entry

Max

Min

Max

.782 (19.9) .125 (3.2) .204 (5.2)

.862 (21.9) .187 (4.7) .286 (7.3)

.968 (24.6) .291 (7.4) .416 (10.6)

1.003 (25.5) .351 (8.9) .476 (12.1)

1.061 (26.9) .501 (12.7) .626 (15.9)

1.394 (35.4) .518 (13.2) .706 (17.9)

1.466 (37.2) 581 (14.8) .831 (21.1)

1.572 (39.9) .644 (16.4) .956 (24.3)

1.698 (43.1) .706 (17.9) 1.081 (27.5)

1.790 (45.5) .750 (19.1) 1.187 (30.1)

2.035 (51.7) .875 (22.2) 1.250 (31.8)

2.386 (60.6) .938 (23.8) 1.375 (34.9)

2.566 (65.2) .938 (23.8) 1.500 (38.1)

2.860 (72.6) 1.188 (30.2) 1.750 (44.5)

3.344 (84.9) 1.312 (33.3) 1.875 (47.6)

1.775 (45.1) .706 (17.9) 1.081 (27.5)

Printed in U.S.A.

* Not Available in Self Locking

+ Not Available under M83723/15A

CAGE Codes 06324

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

E-Mail: sales@glenair.com

www.glenair.com

62-20
