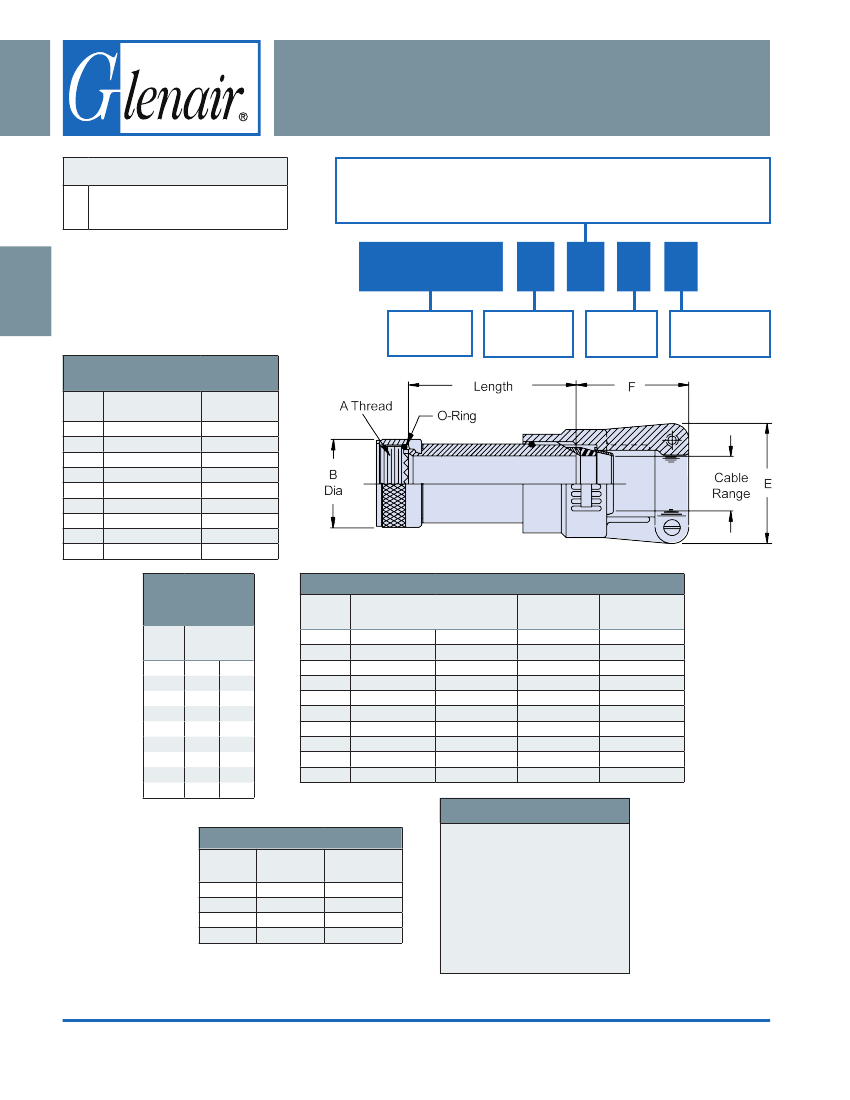

AS85049/18

Straight EMI/RFI Environmental Backshell

TABLE I: Shell Size,

Thread and Dimensions

Shell

Size

A Thread

Class 2B

M12 X 1 - 6H

M15 X 1 - 6H

M18 X 1 - 6H

M22 X 1 - 6H

M25 X 1 - 6H

M28 X 1 - 6H

M31 X 1 - 6H

M34 X 1 - 6H

M37 X 1 - 6H

B Dia

Max

.750 (19.1)

.850 (21.6)

1.000 (25.4)

1.150 (29.2)

1.250 (31.8)

1.400 (35.6)

1.550 (39.4)

1.650 (41.9)

1.850 (47.0)

AS85049

CONNECTOR DESIGNATOR:

MIL-DTL-38999, Series III and IV

EN3645

= Electroless Nickel

= 1,000 Hr. Cadmium Olive Drab

over Electroless Nickel

Finish

= Aluminum, Nickel Flurocarbon Polymer

= Aluminum, Zinc-Nickel, Black

M85049/18

Basic

Part Number

Shell Size

(Table I)

Length Code

(Table IV)

Omit for Standard

Clamp Size

(Table III)

TABLE II:

Shell Size and

Clamp Size

Shell

Size

Clamp Size

Min Max

TABLE III: Clamp Size, Cable Range and Dimensions

Clamp

Size

Min

.062

.125

.250

.375

.500

.625

.750

.875

1.000

1.125

Cable Range

Max

(3.2)

(6.4)

(9.5)

(12.7)

(15.9)

(19.1)

(22.2)

(25.4)

(28.6)

(31.8)

Max

.781

.969

1.062

1.156

1.250

1.375

1.500

1.625

1.750

1.875

(19.8)

(24.6)

(27.0)

(29.4)

(31.8)

(34.9)

(38.1)

(41.3)

(44.5)

(47.6)

Max

1.250

1.312

1.375

1.500

1.625

(31.8)

(33.3)

(34.9)

(38.1)

(41.3)

(1.6)

(3.2)

(6.4)

(9.5)

(12.7)

(15.9)

(19.1)

(22.2)

(25.4)

(28.6)

.125

.250

.375

.500

.625

.750

.875

1.000

1.125

1.250

APPLICATION NOTES

TABLE IV: Length Code

Length

Code

Standard

Available

Shell Sizes

9 - 25

Length

1.500 (38.1)

2.500 (63.5)

3.500 (88.9)

4.500 (114.3)

For complete dimensions

see the applicable Military

Specification.

Metric dimensions (mm) are in

parentheses.

Cable Range is defined as

the accommodation range

for the wire bundle or cable.

Dimensions shown are not

intended for inspection criteria.

Dimensions in inches (millimeters) and are subject to change without notice.

U.S. CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

B-38

E-Mail: sales@glenair.com
